makVrv::DtSettingsBackup Class Reference

Provides a method of doign settings backup. More...

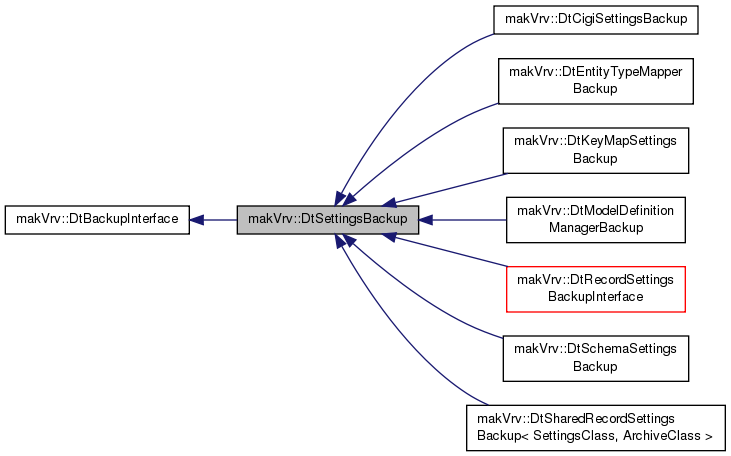

Inheritance diagram for makVrv::DtSettingsBackup:

Public Types
enum	RestoreFlags { RestoreFromFactory = 0x00000001, RestoreFromLocal = 0x00000002, KeepRestoreFromLocal = 0x80000000, RestoreAll = RestoreFromFactory | RestoreFromLocal }
typedef std::map < DtSettingsBackup *, int >	RestoreWhenRestored
Public Types inherited from makVrv::DtBackupInterface
typedef std::vector< std::string >	NameList

Public Member Functions
	DtSettingsBackup ()
	CTOR.
virtual	~DtSettingsBackup ()
	DTOR.
virtual bool	createAndWriteToBackupFile (const std::ostringstream &str, const std::string &path)
	Creates a backup file on the specified path and writes to that backup file given the string stream which contains the stored buffer.
virtual bool	createAndWriteToBackupFiles (const std::vector< std::ostringstream * > &str, const std::string &path, const std::vector< std::string > &fileNames)
const std::string &	backupFile () const
	Get the name of the backup file.
virtual bool	backupFileExists () const
	Returns true if the file can be restored from a local backup.
virtual bool	backupDirExists () const
	Returns true if the file can be restored from a local backup directory.
virtual bool	factoryFileExists () const
	Returns true if can be restored from factory.
virtual bool	factoryDirExists () const
	Returns true if can be restored from factory directory.
virtual void	backup ()
	Backs up settings to backup file.
virtual void	backupByDir ()
	Backs up settings to backup directory.
virtual void	deleteBackup ()
	If backup file exists, deletes it.
virtual void	restore (bool fromFactory=false)
	Restore all.
virtual void	getRestorableNames (NameList &names)
	Get the names of states restore will affect.
virtual void	restore (bool fromFactory, bool selectedOnly)
	Restore the state, either from the backup (default) or from the factory.
virtual void	restore (const DtSettingsBackup *from)=0
	Called with the object that needs to be restored from.
virtual void	restoreSelected (const DtSettingsBackup *)
	Called with the object that needs to be restored from.
virtual std::string	backupClassType () const =0
	Override to return the class name of this object.
virtual DtSettingsBackup *	create () const =0
	Returns a new empty class of type.
virtual void	write (boost::archive::xml_oarchive &ar)=0
	Override to write to given stream.
virtual void	read (boost::archive::xml_iarchive &ar)=0
	Override to read from given stream.
virtual void	writeDir (std::vector< std::ostringstream * > &outStreamVec, std::vector< std::string > &fileNames)
	Support for writing settings to files in a directory.
virtual void	readIncremental (boost::archive::xml_iarchive &ar)
	Support for reading files from a directory by looping over files and incrementally adding their contents.
void	setManagerDestroyed (bool b)
	If true, will not signal destroyed.
virtual void	addRestoreWhenRestored (DtSettingsBackup *, const RestoreFlags &f=RestoreAll)
	Sets to restore the specified object when this object is restored.
const RestoreWhenRestored &	restoreWhenRestored () const
virtual void	cancelRestoreWhenRestored (DtSettingsBackup *, const RestoreFlags &f=RestoreAll)
	Cancels that the specified object should be restored when this one is restored.
virtual std::string	backupName () const
	Returns a more readable backup name (for dialogs).
void	setBackupsPath (const std::string &s)
const std::string &	backupsPath () const
void	setFactoryFile (const std::string &s)
const std::string &	factoryFile () const
void	setFactoryDir (const std::string &dir)
const std::string &	factoryDir () const
void	setBackupDir (const std::string &dir)
const std::string &	backupDir () const
Public Member Functions inherited from makVrv::DtBackupInterface
	DtBackupInterface ()
	Default CTOR.
virtual	~DtBackupInterface ()
	Default DTOR.

Public Attributes
boost::signal< void(const DtSettingsBackup *)>	signal_destructing
	Called when destructing.
boost::signal< void(const DtSettingsBackup *)>	signal_backupCleared
boost::signal< void(const DtSettingsBackup *)>	signal_backedUp
boost::signal< void(const DtSettingsBackup *)>	signal_restored
Public Attributes inherited from makVrv::DtBackupInterface
boost::signal< void(DtBackupInterface *)>	signal_backupFileChanged
	This signal should be emitted when the backup file is created, written to, or destroyed.

Protected Member Functions
virtual bool	restore (bool fromFactory, std::vector< DtSettingsBackup * > &hasBeenRestored, bool selectedOnly)
	Restores from startup (false) or factory (true) file.

Protected Attributes
bool	myManagerDestroyed
RestoreWhenRestored	myRestoreWhenRestored
std::string	myBackupFile
std::string	myFactoryFile
std::string	myBackupsPath
std::string	myBackupDir
std::string	myFactoryDir

Detailed Description

Provides a method of doign settings backup.

Member Typedef Documentation

typedef std::map<DtSettingsBackup*, int> makVrv::DtSettingsBackup::RestoreWhenRestored

Member Enumeration Documentation

enum makVrv::DtSettingsBackup::RestoreFlags

Enumerator:

RestoreFromFactory
RestoreFromLocal
KeepRestoreFromLocal	Normally, when restoring locally, the object will be removed from the next local restore, figuring that, when the associated object is restored, there is no need to continue to restore this object. To prevent that, set this flag when registering to restore an object when another is restored
RestoreAll

Constructor & Destructor Documentation

makVrv::DtSettingsBackup::DtSettingsBackup

(

)

CTOR.

virtual makVrv::DtSettingsBackup::~DtSettingsBackup ( )

virtual

DTOR.

Member Function Documentation

virtual bool makVrv::DtSettingsBackup::createAndWriteToBackupFile ( const std::ostringstream &  str, const std::string &  path  )

virtual

Creates a backup file on the specified path and writes to that backup file given the string stream which contains the stored buffer.

Will delete the backup file when this object is deleted

virtual bool makVrv::DtSettingsBackup::createAndWriteToBackupFiles ( const std::vector< std::ostringstream * > &  str, const std::string &  path, const std::vector< std::string > &  fileNames  )

virtual

const std::string& makVrv::DtSettingsBackup::backupFile

(

)

const

Get the name of the backup file.

virtual bool makVrv::DtSettingsBackup::backupFileExists ( ) const

virtual

Returns true if the file can be restored from a local backup.

Implements makVrv::DtBackupInterface.

virtual bool makVrv::DtSettingsBackup::backupDirExists ( ) const

virtual

Returns true if the file can be restored from a local backup directory.

Implements makVrv::DtBackupInterface.

virtual bool makVrv::DtSettingsBackup::factoryFileExists ( ) const

virtual

Returns true if can be restored from factory.

Implements makVrv::DtBackupInterface.

virtual bool makVrv::DtSettingsBackup::factoryDirExists ( ) const

virtual

Returns true if can be restored from factory directory.

Implements makVrv::DtBackupInterface.

virtual void makVrv::DtSettingsBackup::backup ( )

virtual

Backs up settings to backup file.

If file does not exist, will create. Emits signal_backedUp when this object is backed up

Implements makVrv::DtBackupInterface.

Reimplemented in makVrv::DtRecordSettingsBackupInterface.

Referenced by makVrv::DtRecordSettingsBackupInterface::backup(), makVrv::DtSharedRecordSettingsBackup< SettingsClass, ArchiveClass >::backup(), and makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >::initializeBackup().

virtual void makVrv::DtSettingsBackup::backupByDir ( )

virtual

Backs up settings to backup directory.

If directory does not exist, will create. Emits signal_backedUp when this object is backed up

Reimplemented in makVrv::DtRecordSettingsBackupInterface.

Referenced by makVrv::DtRecordSettingsBackupInterface::backupByDir().

virtual void makVrv::DtSettingsBackup::deleteBackup ( )

virtual

If backup file exists, deletes it.

Returns true if successful. Emits signal_backupCleared when backup is cleared

Implements makVrv::DtBackupInterface.

virtual void makVrv::DtSettingsBackup::restore ( bool  fromFactory = false )

virtual

Restore all.

Implements makVrv::DtBackupInterface.

virtual void makVrv::DtSettingsBackup::getRestorableNames ( NameList &  names )

virtual

Get the names of states restore will affect.

Implements makVrv::DtBackupInterface.

virtual void makVrv::DtSettingsBackup::restore ( bool  fromFactory, bool  selectedOnly  )

virtual

Restore the state, either from the backup (default) or from the factory.

virtual void makVrv::DtSettingsBackup::restore ( const DtSettingsBackup *  from )

pure virtual

Called with the object that needs to be restored from.

The object passed in should be considered temporary. Any member that holds onto this will become invalid after the restore method is complete

Implemented in makVrv::DtCigiSettingsBackup, makVrv::DtEntityTypeMapperBackup, makVrv::DtKeyMapSettingsBackup, makVrv::DtSharedRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtObserverModesRecord >, makArchives::DtObserverModesRecord >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtShadowSettingsCollectionRecord >, makArchives::DtShadowSettingsCollectionRecord >, makVrv::DtSchemaSettingsBackup, and makVrv::DtModelDefinitionManagerBackup.

virtual void makVrv::DtSettingsBackup::restoreSelected ( const DtSettingsBackup *  )

inlinevirtual

Called with the object that needs to be restored from.

The object passed in should be considered temporary. Any member that holds onto this will become invalid after the restore method is complete

Reimplemented in makVrv::DtObserverModesSettingsBackup, and makVrv::DtShadowSettingsCollectionBackup.

virtual std::string makVrv::DtSettingsBackup::backupClassType ( ) const

pure virtual

Override to return the class name of this object.

Will be used as a key to look itself up in the backup manager

Implemented in makVrv::DtCigiSettingsBackup, makVrv::DtEntityTypeMapperBackup, makVrv::DtSharedRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtKeyMapSettingsBackup, makVrv::DtRecordSettingsBackupInterface, makVrv::DtSchemaSettingsBackup, and makVrv::DtModelDefinitionManagerBackup.

virtual DtSettingsBackup* makVrv::DtSettingsBackup::create ( ) const

pure virtual

Returns a new empty class of type.

Will be called from restore() method to restore data into

Implemented in makVrv::DtCigiSettingsBackup, makVrv::DtEntityTypeMapperBackup, makVrv::DtKeyMapSettingsBackup, makVrv::DtSharedRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtObserverModesRecord >, makArchives::DtObserverModesRecord >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtShadowSettingsCollectionRecord >, makArchives::DtShadowSettingsCollectionRecord >, makVrv::DtSchemaSettingsBackup, and makVrv::DtModelDefinitionManagerBackup.

virtual void makVrv::DtSettingsBackup::write ( boost::archive::xml_oarchive &  ar )

pure virtual

Override to write to given stream.

Implementation need not be more than oa << *this

Implemented in makVrv::DtCigiSettingsBackup, makVrv::DtSharedRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtEntityTypeMapperBackup, makVrv::DtKeyMapSettingsBackup, makVrv::DtRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtObserverModesRecord >, makArchives::DtObserverModesRecord >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtShadowSettingsCollectionRecord >, makArchives::DtShadowSettingsCollectionRecord >, makVrv::DtSchemaSettingsBackup, and makVrv::DtModelDefinitionManagerBackup.

virtual void makVrv::DtSettingsBackup::read ( boost::archive::xml_iarchive &  ar )

pure virtual

Override to read from given stream.

Implementation need not be more than ia >> *this

Implemented in makVrv::DtSharedRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtCigiSettingsBackup, makVrv::DtEntityTypeMapperBackup, makVrv::DtKeyMapSettingsBackup, makVrv::DtRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtObserverModesRecord >, makArchives::DtObserverModesRecord >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtShadowSettingsCollectionRecord >, makArchives::DtShadowSettingsCollectionRecord >, makVrv::DtSchemaSettingsBackup, and makVrv::DtModelDefinitionManagerBackup.

virtual void makVrv::DtSettingsBackup::writeDir ( std::vector< std::ostringstream * > &  outStreamVec, std::vector< std::string > &  fileNames  )

inlinevirtual

Support for writing settings to files in a directory.

Reimplemented in makVrv::DtRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtObserverModesRecord >, makArchives::DtObserverModesRecord >, and makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtShadowSettingsCollectionRecord >, makArchives::DtShadowSettingsCollectionRecord >.

virtual void makVrv::DtSettingsBackup::readIncremental ( boost::archive::xml_iarchive &  ar )

inlinevirtual

Support for reading files from a directory by looping over files and incrementally adding their contents.

Reimplemented in makVrv::DtEntityTypeMapperBackup, makVrv::DtRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtObserverModesRecord >, makArchives::DtObserverModesRecord >, makVrv::DtRecordSettingsBackup< DtBaseSettingsManager< makArchives::DtShadowSettingsCollectionRecord >, makArchives::DtShadowSettingsCollectionRecord >, and makVrv::DtModelDefinitionManagerBackup.

void makVrv::DtSettingsBackup::setManagerDestroyed ( bool  b )

inline

If true, will not signal destroyed.

virtual void makVrv::DtSettingsBackup::addRestoreWhenRestored ( DtSettingsBackup *  , const RestoreFlags &  f = RestoreAll  )

virtual

Sets to restore the specified object when this object is restored.

Will hold the information only – the actual restore will be handled by the backup manager

const RestoreWhenRestored& makVrv::DtSettingsBackup::restoreWhenRestored ( ) const

inline

virtual void makVrv::DtSettingsBackup::cancelRestoreWhenRestored ( DtSettingsBackup *  , const RestoreFlags &  f = RestoreAll  )

virtual

Cancels that the specified object should be restored when this one is restored.

virtual std::string makVrv::DtSettingsBackup::backupName ( ) const

virtual

Returns a more readable backup name (for dialogs).

Will return backupClassType by default

Reimplemented in makVrv::DtCigiSettingsBackup, makVrv::DtKeyMapSettingsBackup, makVrv::DtSharedRecordSettingsBackup< SettingsClass, ArchiveClass >, makVrv::DtRecordSettingsBackupInterface, and makVrv::DtModelDefinitionManagerBackup.

void makVrv::DtSettingsBackup::setBackupsPath ( const std::string &  s )

inline

const std::string& makVrv::DtSettingsBackup::backupsPath ( ) const

inline

void makVrv::DtSettingsBackup::setFactoryFile ( const std::string &  s )

inline

Referenced by makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >::initializeBackup(), and makVrv::DtBaseSharedSettingsManager< makArchives::DtSymbolDecorationSettingsRecord, DtSymbolDecorationSettings >::initializeBackup().

const std::string& makVrv::DtSettingsBackup::factoryFile ( ) const

inline

void makVrv::DtSettingsBackup::setFactoryDir ( const std::string &  dir )

inline

const std::string& makVrv::DtSettingsBackup::factoryDir ( ) const

inline

void makVrv::DtSettingsBackup::setBackupDir ( const std::string &  dir )

inline

const std::string& makVrv::DtSettingsBackup::backupDir ( ) const

inline

virtual bool makVrv::DtSettingsBackup::restore ( bool  fromFactory, std::vector< DtSettingsBackup * > &  hasBeenRestored, bool  selectedOnly  )

protectedvirtual

Restores from startup (false) or factory (true) file.

Member Data Documentation

boost::signal<void (const DtSettingsBackup*)> makVrv::DtSettingsBackup::signal_destructing

Called when destructing.

If registered with shared manager will remove item

boost::signal<void (const DtSettingsBackup*)> makVrv::DtSettingsBackup::signal_backupCleared

boost::signal<void (const DtSettingsBackup*)> makVrv::DtSettingsBackup::signal_backedUp

boost::signal<void (const DtSettingsBackup*)> makVrv::DtSettingsBackup::signal_restored

bool makVrv::DtSettingsBackup::myManagerDestroyed

protected

RestoreWhenRestored makVrv::DtSettingsBackup::myRestoreWhenRestored

protected

std::string makVrv::DtSettingsBackup::myBackupFile

protected

std::string makVrv::DtSettingsBackup::myFactoryFile

protected

std::string makVrv::DtSettingsBackup::myBackupsPath

protected

std::string makVrv::DtSettingsBackup::myBackupDir

protected

std::string makVrv::DtSettingsBackup::myFactoryDir

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtSettingsBackup.h
