makVrv::DtStealthControlWidget Class Reference

A widget class for managing attachment. More...

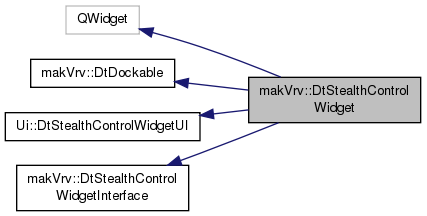

Inheritance diagram for makVrv::DtStealthControlWidget:

Public Slots
void	observerChanged (int index)
void	onAddObserverClicked ()
void	onRemoveObserverClicked ()

Public Member Functions
	DtStealthControlWidget (DtDe &de, QWidget *parent=0, Qt::WindowFlags flags=0)
	CTOR.
virtual	~DtStealthControlWidget ()
	DTOR.
virtual void	addObserver (const std::string &displayName, const DtUniqueID &id)
	Add an observer to the observer combo box.
virtual void	removeObserver (const std::string &displayName, const DtUniqueID &id)
	Remove an observer from the observer combo box.
virtual void	setCurrentObserver (const std::string &observerName)
	Set the current observer in the observer combo box.
virtual QSize	sizeHint () const
virtual int	numObservers () const
	Returns the number of observers.
virtual void	setAutoHide (bool)
virtual void	setWidgetVisible (bool)
	Sets combo visible/invisibile.
Public Member Functions inherited from makVrv::DtDockable
	DtDockable (DtDe &de, const std::string &className)
	CTOR By default a dockable widget is not docked, call dock to attempt to dock this widget.
virtual	~DtDockable ()
	DTOR.
const std::string &	className () const
	The class name.
void	dock (Qt::DockWidgetArea area)
	Dock this dockable in the main window, this function should only be called once.
virtual bool	isDocked () const
	Check to see if we are in a container.
virtual void	setContainerVisible (bool visible)
	call either shows or hides container base upon the input.
virtual void	setContainerMovable (bool moveable)
	Set whether the container is moveable.
virtual void	setContainerFloatable (bool floatable)
	Set whether the container is floatable.
virtual void	setContainerClosable (bool closeable)
	Set whether the container is closeable.
virtual bool	isContainerHidden () const
	Returns true if container is hidden.
virtual bool	isContainerMovable () const
	Returns true if container is moveable.
virtual bool	isContainerFloatable () const
	Returns true if container is floatable.
virtual bool	isContainerClosable () const
	Returns true if container is closeable.
virtual void	showContainer ()
	Show the container.
virtual void	hideContainer ()
	Hide the container.
virtual void	floatContainer ()
	Float the container.
virtual void	unfloatContainer ()
	Un float the container.
virtual void	removeContainer ()
	Untabs the container.
virtual bool	initiallyVisible () const
	Virtual function needed for controlling if the widget is docked visible.
virtual Qt::DockWidgetArea	initialDockWidgetLocation () const
	Virtual function needed for controlling if the widget is docked visible.
virtual bool	containerTabbed () const
	Tells whether the container is tabbed or not.
virtual int	containerTabIndex () const
	If the container is tabbed, returns the position of the container inside the tab structure.
virtual void	getContainerTabbedGeometry (int &x, int &y, int &width, int &height) const
	Gets the geometry of the container if it is tabbed.
virtual QWidget *	container ()
	Returns the QDockWidget or other container that holds this widget.
virtual void	setContainer (QWidget *cont)
	Set with the QDockWidget or other container that holds this widget.
virtual void	bringToTop ()
	Brings the container to the front (when it is tabbed)
virtual void	setDockWidgetItem (DtDockWidgetItem *item)
	If this dockable is the target of a menu item, a pointer to to the associated menu item.
virtual DtDockWidgetItem *	dockWidgetItem () const
	Get the associated menu item, if any.
virtual void	connectContainerToDockItem ()
	The menu item create does this the first time, but we need to do it explicitly on GUI restores.
Public Member Functions inherited from makVrv::DtStealthControlWidgetInterface
virtual	~DtStealthControlWidgetInterface ()
	Virtual DTOR.

Protected Attributes
DtStealthControlWidgetLogic *	myLogic
	Pointer to our logic handler.
Protected Attributes inherited from makVrv::DtDockable
QWidget *	myContainer
	my Container widget
std::string	myClassName
DtDe &	myDe
bool	myIsFloatable
bool	myIsClosable
bool	myIsMovable
DtDockWidgetItem *	myDockWidgetItem

Additional Inherited Members
Protected Member Functions inherited from makVrv::DtDockable
QTabBar *	tabBar () const
	Returns the container tab bar object if myContainer is tabbed.

Detailed Description

A widget class for managing attachment.

Constructor & Destructor Documentation

makVrv::DtStealthControlWidget::DtStealthControlWidget	(	DtDe &	de,
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

CTOR.

virtual makVrv::DtStealthControlWidget::~DtStealthControlWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtStealthControlWidget::addObserver ( const std::string &  displayName, const DtUniqueID &  id  )

virtual

Add an observer to the observer combo box.

Implements makVrv::DtStealthControlWidgetInterface.

virtual void makVrv::DtStealthControlWidget::removeObserver ( const std::string &  displayName, const DtUniqueID &  id  )

virtual

Remove an observer from the observer combo box.

Implements makVrv::DtStealthControlWidgetInterface.

virtual void makVrv::DtStealthControlWidget::setCurrentObserver ( const std::string &  observerName )

virtual

Set the current observer in the observer combo box.

Implements makVrv::DtStealthControlWidgetInterface.

virtual QSize makVrv::DtStealthControlWidget::sizeHint ( ) const

virtual

virtual int makVrv::DtStealthControlWidget::numObservers ( ) const

virtual

Returns the number of observers.

Implements makVrv::DtStealthControlWidgetInterface.

virtual void makVrv::DtStealthControlWidget::setAutoHide ( bool  )

virtual

virtual void makVrv::DtStealthControlWidget::setWidgetVisible ( bool  b )

virtual

Sets combo visible/invisibile.

Implements makVrv::DtStealthControlWidgetInterface.

void makVrv::DtStealthControlWidget::observerChanged ( int  index )

slot

void makVrv::DtStealthControlWidget::onAddObserverClicked ( )

slot

void makVrv::DtStealthControlWidget::onRemoveObserverClicked ( )

slot

Member Data Documentation

DtStealthControlWidgetLogic* makVrv::DtStealthControlWidget::myLogic

protected

Pointer to our logic handler.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCoreQt/DtStealthControlWidget.h
