DtReflectedExtEntityList Class Reference

class DtReflectedExtAggregateList: More...

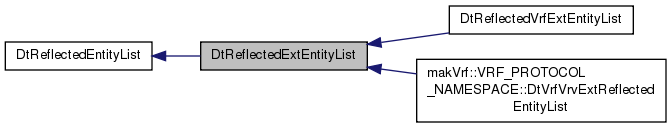

Inheritance diagram for DtReflectedExtEntityList:

Public Member Functions
	DtReflectedExtEntityList (DtExerciseConn *exConn, const DtRwProperties &stateProps=DtRwProperties::emptyProperties(), const DtRwProperties &paramProps=DtRwProperties::emptyProperties())
	Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.
	DtReflectedExtEntityList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse, const DtRwProperties &stateProps=DtRwProperties::emptyProperties(), const DtRwProperties &paramProps=DtRwProperties::emptyProperties())
	Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.
	DtReflectedExtEntityList (DtExerciseConn *exConn, const DtList *handleList, const DtDDMRegionSet *regionSetToUse=0, const DtRwProperties &stateProps=DtRwProperties::emptyProperties(), const DtRwProperties &paramProps=DtRwProperties::emptyProperties())
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.
virtual	~DtReflectedExtEntityList ()
	Destructor.
virtual void	setPropertyPrototypes (const DtRwProperties &stateProps, const DtRwProperties &paramProps)
	Sets the prototypes for state and parameter properties.
virtual void	setWaitForVrfExtendedData (bool)
	Sets whether or not to wait for VRF extended data in readyToAdd.
virtual bool	waitForVrfExtendedData () const
	Whether to wait for VRF extended data in readyToAdd.
virtual DtReflectedExtEntity *	lookupEE (RTI::ObjectHandle id)
	Look up entity by handle.
virtual DtReflectedExtEntity *	lookupEE (const DtGlobalObjectDesignator &objName)
	Look up entity by name.
virtual DtReflectedExtEntity *	firstEE () const
	Get the first entity in the list.
virtual DtReflectedExtEntity *	lastEE () const
	Get the last entity in the list.
virtual void	addEntityAdditionCallback (DtExtEntityCallbackFunction cb, void *userData)
	Entity added callback registration.
virtual void	removeEntityAdditionCallback (DtExtEntityCallbackFunction cb, void *userData)
	Entity added callback deregistration.
virtual void	addEntityRemovalCallback (DtExtEntityCallbackFunction cb, void *userData)
	Entity removed callback registration.
virtual void	removeEntityRemovalCallback (DtExtEntityCallbackFunction cb, void *userData)
	Entity removed callback deregistration.

Static Public Member Functions
static void	setTimeoutRequestTime (DtTime t)
	Sets the time to timeout on VRF object data request. Default is 2 seconds.
static DtTime	timeoutRequestTime ()
static void	setInitializer (DtExtendedAttributesInitializerPtr init)
	Set the initializer used by all reflected lists of this type.
static DtExtendedAttributesInitializerPtr	initializer ()
	Returns the initializer used by all reflected lists of this type.

Protected Member Functions
void	initializeExtendedProperties ()
	Determines whether or not extended properties available. Called from constructors.
void	processVrfObjectStateUpdateMessage (DtDataInteraction *interaction)
void	processVrfObjectDataMessage (DtDataInteraction *interaction)
virtual void	processDataInteraction (DtDataInteraction *i)
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Create a new reflected entity.
virtual void	addToObjectList (DtReflectedObject *refObj)
virtual void	cleanupObjectDataMessageHashList ()
	Called from destructor. Cleans up myObjectDataMessageHashlist and removed all memory.
virtual bool	readyToAdd (DtReflectedObject *obj)
	Overridden to see if: a) This object is a VRF object b) This object has VRF object data associated with it, via extended attributes or object data message.
virtual bool	setupVrfObjectData (DtReflectedObject *object)
	Sets up extended state repository from cached VRF data (if exists).
virtual bool	addObjectIfWaitingForVrfMessage (DtReflectedExtEntity *)
	Will start the process of adding an object to the reflected list if this object is waiting for a VRF message.
virtual void	requestVrfObjectData (DtReflectedObject *object)
	This routine will request the VRF object data message to be sent for a VRF entity.
virtual bool	timeOutVrfObjectDataRequest (DtReflectedObject *obj)
	Returns true if the time has been too long in receiving a VRF object data request.
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Override to remove objects from any waiting lists.
virtual void	diguyExtensionsSetup ()
	Sets up the HLA decoders for DI-Guy extensions.
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks.
virtual void	entityAdded (DtReflectedEntity *)
	When an entity is added initialize any extended properties (if supported and available) as well as add update callback for object.
virtual void	entityUpdated (DtReflectedEntity *)
virtual void	entityRemoved (DtReflectedEntity *)

Static Protected Member Functions
static void	dataInteractionCallback (DtDataInteraction *i, void *usr)
static void	entityUpdatedCallback (DtReflectedEntity *entity, void *userData)
	When an entity is updated, we will update its state properties.
static void	entityRemovedCallback (DtReflectedEntity *entity, void *userData)
	When an entity is removed we need to de-register our update callback.

Protected Attributes
DtHashlist	myObjectDataMessageHashlist
	List to keep the VRF obj data messages that have been found but not associated with new entities yet.
DtHashList	myObjectDataMessageRequestList
	List to keep track of requests for VRF object message data and the time they were sent.
DtHashList	myWaitingForVrfObjectData
	Reflected objects that are waiting for VRF object updates.
bool	myWaitForVrfExtendedData
DtRwProperties	myStatePropertiesPrototype
DtRwProperties	myParameterPropertiesPrototype

Static Protected Attributes
static DtTime	theTimeoutRequestTime
static DtExtendedAttributesInitializerPtr	theInitializer

Private Member Functions
	DtReflectedExtEntityList (const DtReflectedExtEntityList &orig)
	Not implemented.
DtReflectedExtEntityList &	operator= (const DtReflectedExtEntityList &rhs)
	Not implemented.

Detailed Description

class DtReflectedExtAggregateList:

Instances of DtReflectedExtAggregateList will manage the list of remote aggregates in the exercise and process any extended VRF data that may be published for these objects.

Constructor & Destructor Documentation

DtReflectedExtEntityList::DtReflectedExtEntityList	(	DtExerciseConn *	exConn,
		const DtRwProperties &	stateProps = DtRwProperties::emptyProperties(),
		const DtRwProperties &	paramProps = DtRwProperties::emptyProperties()
	)

Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.

If state and parameter property prototypes are specified, calls setPropertyPrototypes. If not, properties will not be decoded until setPropertyPrototypes is called.

DtReflectedExtEntityList::DtReflectedExtEntityList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse,
		const DtRwProperties &	stateProps = DtRwProperties::emptyProperties(),
		const DtRwProperties &	paramProps = DtRwProperties::emptyProperties()
	)

Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.

If state and parameter property prototypes are specified, calls setPropertyPrototypes. If not, properties will not be decoded until setPropertyPrototypes is called.

DtReflectedExtEntityList::DtReflectedExtEntityList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtRwProperties &	stateProps = DtRwProperties::emptyProperties(),
		const DtRwProperties &	paramProps = DtRwProperties::emptyProperties()
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

If state and parameter property prototypes are specified, calls setPropertyPrototypes. If not, properties will not be decoded until setPropertyPrototypes is called.

virtual DtReflectedExtEntityList::~DtReflectedExtEntityList ( )

virtual

Destructor.

DtReflectedExtEntityList::DtReflectedExtEntityList ( const DtReflectedExtEntityList &  orig )

private

Not implemented.

Member Function Documentation

virtual void DtReflectedExtEntityList::setPropertyPrototypes ( const DtRwProperties &  stateProps, const DtRwProperties &  paramProps  )

virtual

Sets the prototypes for state and parameter properties.

Each reflected object will be initialized with this prototype and will therefore decode the included properties.

virtual void DtReflectedExtEntityList::setWaitForVrfExtendedData ( bool  )

virtual

Sets whether or not to wait for VRF extended data in readyToAdd.

Default is true, although there is a timeout period for this waiting set by theTimeoutRequestTime

virtual bool DtReflectedExtEntityList::waitForVrfExtendedData ( ) const

virtual

Whether to wait for VRF extended data in readyToAdd.

virtual DtReflectedExtEntity* DtReflectedExtEntityList::lookupEE ( RTI::ObjectHandle  id )

virtual

Look up entity by handle.

virtual DtReflectedExtEntity* DtReflectedExtEntityList::lookupEE ( const DtGlobalObjectDesignator &  objName )

virtual

Look up entity by name.

virtual DtReflectedExtEntity* DtReflectedExtEntityList::firstEE ( ) const

virtual

Get the first entity in the list.

virtual DtReflectedExtEntity* DtReflectedExtEntityList::lastEE ( ) const

virtual

Get the last entity in the list.

virtual void DtReflectedExtEntityList::addEntityAdditionCallback ( DtExtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity added callback registration.

virtual void DtReflectedExtEntityList::removeEntityAdditionCallback ( DtExtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity added callback deregistration.

virtual void DtReflectedExtEntityList::addEntityRemovalCallback ( DtExtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity removed callback registration.

virtual void DtReflectedExtEntityList::removeEntityRemovalCallback ( DtExtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity removed callback deregistration.

static void DtReflectedExtEntityList::setTimeoutRequestTime ( DtTime  t )

static

Sets the time to timeout on VRF object data request. Default is 2 seconds.

static DtTime DtReflectedExtEntityList::timeoutRequestTime ( )

static

static void DtReflectedExtEntityList::setInitializer ( DtExtendedAttributesInitializerPtr  init )

static

Set the initializer used by all reflected lists of this type.

static DtExtendedAttributesInitializerPtr DtReflectedExtEntityList::initializer ( )

static

Returns the initializer used by all reflected lists of this type.

void DtReflectedExtEntityList::initializeExtendedProperties ( )

protected

Determines whether or not extended properties available. Called from constructors.

void DtReflectedExtEntityList::processVrfObjectStateUpdateMessage ( DtDataInteraction *  interaction )

protected

void DtReflectedExtEntityList::processVrfObjectDataMessage ( DtDataInteraction *  interaction )

protected

static void DtReflectedExtEntityList::dataInteractionCallback ( DtDataInteraction *  i, void *  usr  )

staticprotected

virtual void DtReflectedExtEntityList::processDataInteraction ( DtDataInteraction *  i )

protectedvirtual

virtual DtReflectedObject* DtReflectedExtEntityList::newReflectedObject ( DtHlaObject *  obj ) const

protectedvirtual

Create a new reflected entity.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrvExtReflectedEntityList.

virtual void DtReflectedExtEntityList::addToObjectList ( DtReflectedObject *  refObj )

protectedvirtual

virtual void DtReflectedExtEntityList::cleanupObjectDataMessageHashList ( )

protectedvirtual

Called from destructor. Cleans up myObjectDataMessageHashlist and removed all memory.

virtual bool DtReflectedExtEntityList::readyToAdd ( DtReflectedObject *  obj )

protectedvirtual

Overridden to see if: a) This object is a VRF object b) This object has VRF object data associated with it, via extended attributes or object data message.

If a) is true and b) is false, then, the object will not be added to the reflected list. Instead, a request will be sent out for the VRF object data associated with the object. Once it is received, the object will be added to the reflected list.

virtual bool DtReflectedExtEntityList::setupVrfObjectData ( DtReflectedObject *  object )

protectedvirtual

Sets up extended state repository from cached VRF data (if exists).

If this method returns true, the object was either not an extended object or it had the data correctly set.

virtual bool DtReflectedExtEntityList::addObjectIfWaitingForVrfMessage ( DtReflectedExtEntity *  )

protectedvirtual

Will start the process of adding an object to the reflected list if this object is waiting for a VRF message.

Returns true if this object is and was added to the list.

virtual void DtReflectedExtEntityList::requestVrfObjectData ( DtReflectedObject *  object )

protectedvirtual

This routine will request the VRF object data message to be sent for a VRF entity.

This request will be handled by the entity publisher.

virtual bool DtReflectedExtEntityList::timeOutVrfObjectDataRequest ( DtReflectedObject *  obj )

protectedvirtual

Returns true if the time has been too long in receiving a VRF object data request.

If this method returns true, will add the entity to the list regardless.

virtual void DtReflectedExtEntityList::removeAndDelete ( DtReflectedObject *  obj, char *  msg = NULL  )

protectedvirtual

Override to remove objects from any waiting lists.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrvExtReflectedEntityList, and makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrvExtReflectedEntityList.

virtual void DtReflectedExtEntityList::diguyExtensionsSetup ( )

protectedvirtual

Sets up the HLA decoders for DI-Guy extensions.

virtual void DtReflectedExtEntityList::processObjectAdditionCallbacks ( DtReflectedObject *  object )

protectedvirtual

Process object addition/removal callbacks.

virtual void DtReflectedExtEntityList::entityAdded ( DtReflectedEntity *  )

protectedvirtual

When an entity is added initialize any extended properties (if supported and available) as well as add update callback for object.

Reimplemented in DtReflectedVrfExtEntityList.

static void DtReflectedExtEntityList::entityUpdatedCallback ( DtReflectedEntity *  entity, void *  userData  )

staticprotected

When an entity is updated, we will update its state properties.

virtual void DtReflectedExtEntityList::entityUpdated ( DtReflectedEntity *  )

protectedvirtual

Reimplemented in DtReflectedVrfExtEntityList.

static void DtReflectedExtEntityList::entityRemovedCallback ( DtReflectedEntity *  entity, void *  userData  )

staticprotected

When an entity is removed we need to de-register our update callback.

virtual void DtReflectedExtEntityList::entityRemoved ( DtReflectedEntity *  )

protectedvirtual

Reimplemented in DtReflectedVrfExtEntityList.

DtReflectedExtEntityList& DtReflectedExtEntityList::operator= ( const DtReflectedExtEntityList &  rhs )

private

Not implemented.

Member Data Documentation

DtHashlist DtReflectedExtEntityList::myObjectDataMessageHashlist

protected

List to keep the VRF obj data messages that have been found but not associated with new entities yet.

DtHashList DtReflectedExtEntityList::myObjectDataMessageRequestList

protected

List to keep track of requests for VRF object message data and the time they were sent.

DtHashList DtReflectedExtEntityList::myWaitingForVrfObjectData

protected

Reflected objects that are waiting for VRF object updates.

DtTime DtReflectedExtEntityList::theTimeoutRequestTime

staticprotected

bool DtReflectedExtEntityList::myWaitForVrfExtendedData

protected

DtRwProperties DtReflectedExtEntityList::myStatePropertiesPrototype

protected

DtRwProperties DtReflectedExtEntityList::myParameterPropertiesPrototype

protected

DtExtendedAttributesInitializerPtr DtReflectedExtEntityList::theInitializer

staticprotected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfExtObjects/reflectedExtEntityList.h
