DtSimTaskState holds the current execution state of a given task. More...

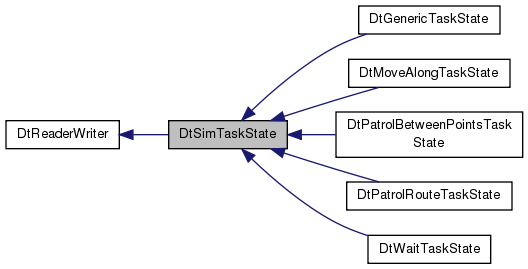

Inheritance diagram for DtSimTaskState:

Public Member Functions
	DtSimTaskState ()
	default constructor
	DtSimTaskState (const DtString &writeName, DtReaderWriterRegistry *parentRegistry=0)
	constructor If you have a task staet object 'put' itself, the write name will preface the task state object.
	DtSimTaskState (const DtString &writeName, const DtSimTaskState &orig, DtReaderWriterRegistry *parentRegistry=0)
	copy constructor
const DtSimTaskState &	operator= (const DtSimTaskState &orig)
	assignment operator; same as copy constructor
virtual	~DtSimTaskState ()
	destructor
virtual bool	init ()
	Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.
virtual DtString	type () const
	What kind of task state object am I? Returns a string indicating the kind of task state object( for example, �move-along-task-state�, Derived classes must implement this member function to return a unique string representing the type of task state.
virtual DtSimTaskState *	clone (const DtString &name, DtReaderWriterRegistry *parentRegistry=0) const
	Make a copy of this task.
virtual void	putData (std::string &fp, int indentLevel=0)
	putData writes our type, which is provided by the virtual type accessor of the deriving class.
virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	getData is just used to get us past the type in the data stream, since it's not actually stored.
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	pseudo-copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
bool	operator== (const DtReaderWriter &) const
	Equivalence operator.
bool	operator!= (const DtReaderWriter &rhs)
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	postPutSelf ()
	Called after either version of put self (file or environment). Default is no-op.
virtual void	prePutSelf ()
	Called before either version of put self (file or environment). Default is no-op.
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	postGetSelf ()
	Called after either version of getSelf (mtl or environment). Default is no-op.
virtual void	preGetSelf ()
	Called before either version of get self (file or environment). Default is no-op.
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
bool	isReadonly () const
virtual void	reset ()
	For those reader/writer items that support it, resets the reader/writer value to original state Default is no-op.
virtual int	alignment () const
	For those items that are sent over the network via HLA, this will give the network alignment.
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual bool	hasVariableReference () const
	Returns true if this item or any item in the registry (recursive) is a variable reference.
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings.
virtual void	recordUpdateTime () const
	Can be implemented in subclasses to stamp the time when updated.
virtual bool	wasUpdatedSince (DtTime t) const
	Can be implemented in subclasses to return true if an update occurred after the specified time.
virtual bool	changedSinceLastChecked ()
	Returns true if this objects value has changed since the last time this function was called.
virtual bool	peekChangedSinceLastChecked () const
	Returns the value that changedSinceLastChecked would return but does not reset the internal flag.
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively.
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
	Previous default value, if exists, will be removed and replaced with a clone of the supplied variable.
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Give the stream, if the stream contains a default value then set it here.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual DtRwVariableBindings *	generateVariableBindings () const
	Iterates over the registry (recursively) and returns a variable bindings object that contains all the variables that are contained in this read/writer class.
virtual bool	toXml (const DtFilename &) const
	Writes contents of xml result to the given filename.
virtual bool	fromXml (const DtString &)
	Restores object from given xml string. Returns true if valid.
virtual bool	fromXmlFile (const DtFilename &)
	Restores object from given xml file.
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
	Override to add attributes of actual data.
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
	Called when the item is a variable reference.
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
	Gets data from the environment value.
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
	Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op.
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)
	Called when the item is a variable reference.

Static Public Member Functions
static DtSimTaskState *	createTaskState (DtlObjPtr mtlStream)
	Static functions.
static DtSimTaskState *	createTaskState (DtString taskStateType)
static void	addTaskStateCreatorFcn (const DtString &taskName, DtSimTaskStateCreatorFcn fcn)
	Adds a task creator member function to the task factory.
static void	setFactory (DtSimTaskStateFactory *factory)
static DtSimTaskStateFactory *	factory ()
static bool	isTypeRegistered (DtString type)
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static void	setPutIndent (bool)
static bool	putIndent ()
static const char *	theXmlType ()
	The type that is used when archiving to an XML stream.
static const DtFilename &	appPath ()
	Gets the current working directory.
static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
	Sets the function to create the DtReaderWriterFactory.
static void	createReaderWriterFactory ()
static void	cleanupFactory ()
static void	setOutputStream (DtOutputStream *stream)
static DtOutputStream &	outputStream ()
static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)
	Given a filename, returns a newly created reader/writer object from the object found within.
static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)
	Given a xml string, returns a newly created reader/writer object from the object found within.
static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)
	Given a xml environment, returns a newly created reader/writer object from the object found within.
static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)
	Gets the named attribute from a DtEnvValueSP.

Static Public Attributes
static DtSimTaskStateFactory *	myFactory

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)
	Copies values from the specified DtReaderWriter.
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.
bool	myChangedFlag
	Set to true when value changes Set to false when value checked with changedSinceLastChecked.
Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue
static DtGetSelfCallbackInfo	thePostGetSelfCallback
static DtPutSelfCallbackInfo	thePrePutSelfCallback
static const DtVariableBindingsList	theEmptyVariableBindingsList
static bool	theCreatorFcnSet
static DtReaderWriterFactory *	theFactory
static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn
static bool	thePutIndent
static DtOutputStream *	theOutputStream

Detailed Description

DtSimTaskState holds the current execution state of a given task.

DtSimTaskState is an abstract base class that represents the current execution state associated with a given DtSimTask. Derived classes hold details particular to a specific task. For example, for the DtMoveAlongTask there is a corresponding DtMoveAlongTaskState class that holds the current waypoint and direction of movement along the route. DtSimTaskState can be used in transferring responsibility for handling a task from one class to another (i.e. mult-resolution modeling), or in the context of suspending and resuming a task.

Constructor & Destructor Documentation

DtSimTaskState::DtSimTaskState ( )

default constructor

DtSimTaskState::DtSimTaskState	(	const DtString &	writeName,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

constructor If you have a task staet object 'put' itself, the write name will preface the task state object.

DtSimTaskState::DtSimTaskState	(	const DtString &	writeName,
		const DtSimTaskState &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

copy constructor

virtual DtSimTaskState::~DtSimTaskState ( )

virtual

destructor

Member Function Documentation

const DtSimTaskState& DtSimTaskState::operator= ( const DtSimTaskState & orig )

assignment operator; same as copy constructor

virtual bool DtSimTaskState::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

virtual DtString DtSimTaskState::type ( ) const

virtual

What kind of task state object am I? Returns a string indicating the kind of task state object( for example, �move-along-task-state�, Derived classes must implement this member function to return a unique string representing the type of task state.

The set of standard task state types supplied with VR-Forces is in taskStateTypes.h.

Returns: DtBaseTaskStateType

Reimplemented in DtMoveAlongTaskState, DtPatrolBetweenPointsTaskState, DtPatrolRouteTaskState, DtWaitTaskState, and DtGenericTaskState.

virtual DtSimTaskState* DtSimTaskState::clone	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)		const

virtual

Make a copy of this task.

Returns a newly allocated instance of a DtSimTaskState. Override this member function to return a pointer to a newly allocated instance of the derived class.

Reimplemented in DtMoveAlongTaskState, DtPatrolBetweenPointsTaskState, DtPatrolRouteTaskState, DtWaitTaskState, and DtGenericTaskState.

virtual void DtSimTaskState::putData	(	std::string &	fp,
		int	indentLevel = `0`
	)

virtual

putData writes our type, which is provided by the virtual type accessor of the deriving class.

Reimplemented from DtReaderWriter.

virtual DtlObjPtr DtSimTaskState::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

virtual

getData is just used to get us past the type in the data stream, since it's not actually stored.

Reimplemented from DtReaderWriter.

static DtSimTaskState* DtSimTaskState::createTaskState ( DtlObjPtr mtlStream )

static

Static functions.

Creates a new task state object, given a pointer to a M�K Technologies LISP (MTL) stream. It first parses the stream to extract the type of task to create. Then it calls the task factory's create() member function with the given task type. This returns a new instance of the particular task type. The task's getData() member function is then called to retrieve the task parameters from the stream. The pointer to the new task is returned.

static DtSimTaskState* DtSimTaskState::createTaskState ( DtString taskStateType )

static

static void DtSimTaskState::addTaskStateCreatorFcn	(	const DtString &	taskName,
		DtSimTaskStateCreatorFcn	fcn
	)

static

Adds a task creator member function to the task factory.

static void DtSimTaskState::setFactory ( DtSimTaskStateFactory * factory )

static

static DtSimTaskStateFactory* DtSimTaskState::factory ( )

static

Reimplemented from DtReaderWriter.

static bool DtSimTaskState::isTypeRegistered ( DtString type )

static

Member Data Documentation

DtSimTaskStateFactory* DtSimTaskState::myFactory

static

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrftasks/simTaskState.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
