DtSystemHealthCheck Class Reference

Class that is used to define a health check. More...

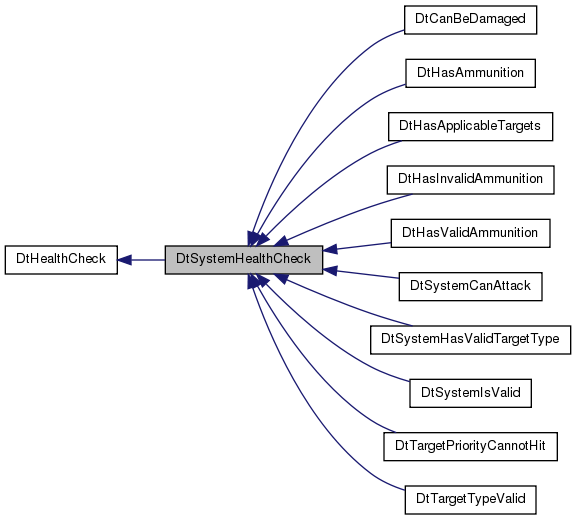

Inheritance diagram for DtSystemHealthCheck:

Public Member Functions
	DtSystemHealthCheck (makVrv::DtDe &de, DtUiHealthCheck *)
	DtSystemHealthCheck (const DtSystemHealthCheck &)
virtual	~DtSystemHealthCheck ()
virtual bool	passesCheck (const DtComponentSystemDefinition *, QString &error, bool &continueOn) const =0
	Implement to see if this system passes the given check.
virtual void	fix (DtComponentSystemDefinition *)=0
	Implement to fix the issue on the given system.
Public Member Functions inherited from DtHealthCheck
	DtHealthCheck (makVrv::DtDe &de, DtUiHealthCheck *)
	DtHealthCheck (const DtHealthCheck &)
virtual	~DtHealthCheck ()
virtual DtHealthCheck *	clone () const =0
	Clone this object.
virtual const char *	name () const =0
	Internal name that can be used to map to ui file to disallow inclusion of this rule.
virtual void	attemptHealthFix (const QString &)

Additional Inherited Members
Protected Attributes inherited from DtHealthCheck
makVrv::DtDe &	myDe
DtUiHealthCheck *	myParent

Detailed Description

Class that is used to define a health check.

Return true if passes, and, if false implement the fix() method to fix the issue

Constructor & Destructor Documentation

DtSystemHealthCheck::DtSystemHealthCheck	(	makVrv::DtDe &	de,
		DtUiHealthCheck *
	)

DtSystemHealthCheck::DtSystemHealthCheck

(

const DtSystemHealthCheck &

)

virtual DtSystemHealthCheck::~DtSystemHealthCheck ( )

virtual

Member Function Documentation

virtual bool DtSystemHealthCheck::passesCheck ( const DtComponentSystemDefinition *  , QString &  error, bool &  continueOn  ) const

pure virtual

Implement to see if this system passes the given check.

If continueOn is set to false no further checks will be made

Implemented in DtTargetPriorityCannotHit, DtHasApplicableTargets, DtHasAmmunition, DtHasInvalidAmmunition, DtHasValidAmmunition, DtTargetTypeValid, DtSystemHasValidTargetType, DtSystemCanAttack, DtCanBeDamaged, and DtSystemIsValid.

virtual void DtSystemHealthCheck::fix ( DtComponentSystemDefinition *  )

pure virtual

Implement to fix the issue on the given system.

Implemented in DtTargetPriorityCannotHit, DtHasApplicableTargets, DtHasAmmunition, DtHasInvalidAmmunition, DtHasValidAmmunition, DtTargetTypeValid, DtSystemHasValidTargetType, DtSystemCanAttack, DtCanBeDamaged, and DtSystemIsValid.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/simulationObjectEditorImpl/uiSystemHealth.h
