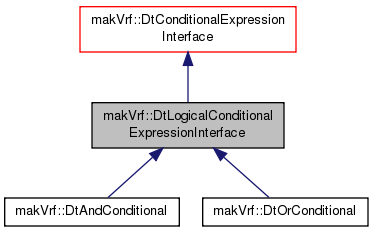

Inheritance diagram for makVrf::DtLogicalConditionalExpressionInterface:

Public Member Functions
	DtLogicalConditionalExpressionInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtLogicalConditionalExpressionInterface ()
virtual void	setupConditional (const DtSimCondExpr , const std::vector< makVrv::DtSimEntry > &data)
	Takes the conditions from the other logical and makes them ours.
virtual void	switching ()
virtual void	replacing ()
Public Member Functions inherited from makVrf::DtConditionalExpressionInterface
	DtConditionalExpressionInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtConditionalExpressionInterface ()
virtual QString	value () const =0
virtual DtSimCondExpr *	conditionalExpression () const
DtConditionExpressionLogic *	logic () const
virtual void	toBeDeleted ()
virtual void	conditionComplete ()
	Sends signal_conditionalComplete.
virtual void	conditionCancelled ()
	Sends signal_conditionalCancelled.

Protected Member Functions
virtual void	run (DtConditionalExpressionView , const std::vector< makVrv::DtSimEntry > &data)
	Override to run the dialog.
virtual void	setupGui (DtConditionalExpressionView , DtConditionalExpressionViewItem , const std::vector< makVrv::DtSimEntry * > &data)
virtual bool	isComplete () const
bool	bringsUpDialog () const
	Return true if this is bringing up a dialog. Default is true.
void	setValue (const QString &)

Additional Inherited Members
Public Attributes inherited from makVrf::DtConditionalExpressionInterface
boost::signal< void()>	signal_conditionComplete
boost::signal< void()>	signal_conditionCancelled
boost::signal< void(DtConditionalExpressionInterface *)>	signal_destroyed
Protected Attributes inherited from makVrf::DtConditionalExpressionInterface
makVrv::DtDe &	myDe
DtConditionExpressionLogic *	myLogic

Constructor & Destructor Documentation

makVrf::DtLogicalConditionalExpressionInterface::DtLogicalConditionalExpressionInterface	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = `0`
	)

virtual makVrf::DtLogicalConditionalExpressionInterface::~DtLogicalConditionalExpressionInterface ( )

virtual

Member Function Documentation

virtual void makVrf::DtLogicalConditionalExpressionInterface::setupConditional	(	const DtSimCondExpr *	,
		const std::vector< makVrv::DtSimEntry * > &	data
	)

virtual

Takes the conditions from the other logical and makes them ours.

virtual void makVrf::DtLogicalConditionalExpressionInterface::switching ( )

virtual

virtual void makVrf::DtLogicalConditionalExpressionInterface::replacing ( )

virtual

virtual void makVrf::DtLogicalConditionalExpressionInterface::run	(	DtConditionalExpressionView *	,
		const std::vector< makVrv::DtSimEntry * > &	data
	)

protectedvirtual

Override to run the dialog.

virtual void makVrf::DtLogicalConditionalExpressionInterface::setupGui	(	DtConditionalExpressionView *	,
		DtConditionalExpressionViewItem *	,
		const std::vector< makVrv::DtSimEntry * > &	data
	)

protectedvirtual

virtual bool makVrf::DtLogicalConditionalExpressionInterface::isComplete ( ) const

protectedvirtual

bool makVrf::DtLogicalConditionalExpressionInterface::bringsUpDialog ( ) const

inlineprotectedvirtual

Return true if this is bringing up a dialog. Default is true.

void makVrf::DtLogicalConditionalExpressionInterface::setValue ( const QString & )

inlineprotectedvirtual

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/andConditional.h
