makVrf::DtVrfTreeWidget Class Reference

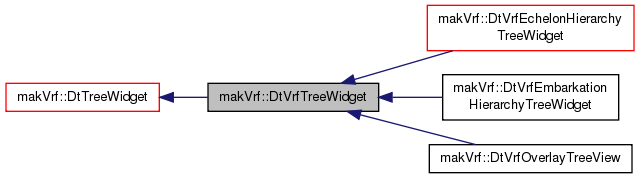

Inheritance diagram for makVrf::DtVrfTreeWidget:

Public Member Functions
	DtVrfTreeWidget (makVrv::DtDe &de, QWidget *parent=0)
	CTOR.
virtual	~DtVrfTreeWidget ()
	DTOR.
virtual void	startDrag (Qt::DropActions supportedActions)
QTreeWidgetItem *	draggingOver () const
Public Member Functions inherited from makVrf::DtTreeWidget
	DtTreeWidget (makVrv::DtDe &de, QWidget *parent)
	Constructor.
virtual	~DtTreeWidget ()
	DTOR.
virtual QTreeWidgetItem *	lastItem () const
	Returns the last item in the list.
QTreeWidgetItem *	itemFromIndex (const QModelIndex &idx)
QModelIndex	indexFromItem (QTreeWidgetItem *item, int column=0) const
virtual void	setMinimumSizeHint (const QSize &)
	Set the minimum size hint. If either width or height is -1 uses default.
virtual QSize	minimumSizeHint () const
virtual void	setSizeHint (const QSize &s)
	Sets the size hint in absence of minimum size.
virtual int	indexOfChild (QTreeWidgetItem *) const
	Returns the index of the child.
unsigned int	depth (QTreeWidgetItem *) const
	Returns the number of levels down this item is.
QTreeWidgetItem *	nextSibling (QTreeWidgetItem *) const
	Returns the next item after the supplied item.
void	setAllowEmptySelection (bool)
	Only valid in single selection mode.
bool	allowEmptySelection () const
virtual bool	edit (const QModelIndex &index, EditTrigger trigger, QEvent *event)
	Override to prevent keystrokes from going to vantage while editing.
virtual void	closeEditor (QWidget *editor, QAbstractItemDelegate::EndEditHint hint)
virtual void	itemRightClickedOn (QTreeWidgetItem *, QMouseEvent *, int col)
virtual void	mousePressEvent (QMouseEvent *event)
virtual void	mouseDoubleClickEvent (QMouseEvent *event)
	Turn off in name editing potential if double click.
virtual void	mouseReleaseEvent (QMouseEvent *event)
virtual void	itemLeftClickedOn (QTreeWidgetItem *, QMouseEvent *, int)
virtual bool	editingCanceled () const
virtual void	setAllowWindowsStyleNameEdit (bool)
bool	allowWindowsStyleNameEdit () const
virtual void	setDisableNameEditIfNotWindowsStyleEdit (bool)
	If not supporting windows style editing also disallow double click name editing.
bool	disableNameEditIfNotWindowsStyleEnabled () const
virtual void	setEditPressTime (double)
double	editPressTime () const

Public Attributes
boost::signal< void(const QStringList &children, makVrv::DtUniqueID parentId)>	signal_reparent

Protected Member Functions
virtual QMimeData *	mimeData (const QList< QTreeWidgetItem * > list) const
virtual void	dragEnterEvent (QDragEnterEvent *event)
virtual bool	dropMimeData (QTreeWidgetItem *parent, int index, const QMimeData *mimeData, Qt::DropAction action)
virtual void	dragMoveEvent (QDragMoveEvent *event)
virtual void	updateDraggingOver (QDragMoveEvent *)
virtual void	dragLeaveEvent (QDragLeaveEvent *e)
virtual bool	canDropOnItem (QTreeWidgetItem *, const QStringList &globalIds, QDragMoveEvent *event) const
	Override to tell whether or not dragged item can be dropped on specified list item.
virtual void	dropItems (const QStringList &globalIds, QTreeWidgetItem *)
	Override to drop specified items onto the specified parent.
Protected Member Functions inherited from makVrf::DtTreeWidget
virtual void	scrollContentsBy (int, int)
virtual QSize	sizeHint () const
	Need to do this as default sizeHint() for an abstract scroll area (in Qt 4.2.2) is too large.
virtual QItemSelectionModel::SelectionFlags	selectionCommand (const QModelIndex &index, const QEvent *event=0) const
	Override to allow empty selection in single selection mode.
virtual QItemSelectionModel::SelectionFlags	selectionBehaviorFlags () const

Protected Attributes
QTreeWidgetItem *	myDraggingOver
Protected Attributes inherited from makVrf::DtTreeWidget
bool	myMouseRightClick
bool	myAllowEmptySelection
bool	myAllowWindowsStyleNameEdit
double	myEditPressTime
makVrv::DtDe &	myDe
bool	myEditingCanceled
QSize	myMinimumSizeHint
QSize	mySizeHint
bool	myNextReleaseMightBeEdit
QTreeWidgetItem *	myCheckForEditAfterTimer
bool	myLastEditEventWasDoubleClick
bool	myDisableNameEditIfNotWindowsStyleEnabled

Additional Inherited Members
Signals inherited from makVrf::DtTreeWidget
void	mouseLeftPressed (QTreeWidgetItem *, QMouseEvent *, int col)
	Emitted when the mouse button is pressed.
void	rightClickOnItem (QTreeWidgetItem *, QMouseEvent *, int col)
	Emitted when right button is released.
void	contentsMoving (int, int)
Protected Slots inherited from makVrf::DtTreeWidget
virtual void	checkForEdit ()

Constructor & Destructor Documentation

makVrf::DtVrfTreeWidget::DtVrfTreeWidget	(	makVrv::DtDe &	de,
		QWidget *	parent = 0
	)

CTOR.

virtual makVrf::DtVrfTreeWidget::~DtVrfTreeWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrf::DtVrfTreeWidget::startDrag ( Qt::DropActions  supportedActions )

virtual

QTreeWidgetItem* makVrf::DtVrfTreeWidget::draggingOver ( ) const

inline

virtual QMimeData* makVrf::DtVrfTreeWidget::mimeData ( const QList< QTreeWidgetItem * >  list ) const

protectedvirtual

Reimplemented in makVrf::DtVrfOverlayTreeView.

virtual void makVrf::DtVrfTreeWidget::dragEnterEvent ( QDragEnterEvent *  event )

protectedvirtual

Reimplemented in makVrf::DtVrfOrbatTreeWidget.

virtual bool makVrf::DtVrfTreeWidget::dropMimeData ( QTreeWidgetItem *  parent, int  index, const QMimeData *  mimeData, Qt::DropAction  action  )

protectedvirtual

Reimplemented in makVrf::DtVrfOrbatTreeWidget.

virtual void makVrf::DtVrfTreeWidget::dragMoveEvent ( QDragMoveEvent *  event )

protectedvirtual

Reimplemented in makVrf::DtVrfOrbatTreeWidget.

virtual void makVrf::DtVrfTreeWidget::updateDraggingOver ( QDragMoveEvent *  )

protectedvirtual

virtual void makVrf::DtVrfTreeWidget::dragLeaveEvent ( QDragLeaveEvent *  e )

protectedvirtual

virtual bool makVrf::DtVrfTreeWidget::canDropOnItem ( QTreeWidgetItem *  , const QStringList &  globalIds, QDragMoveEvent *  event  ) const

protectedvirtual

Override to tell whether or not dragged item can be dropped on specified list item.

Reimplemented in makVrf::DtVrfEchelonHierarchyTreeWidget, makVrf::DtVrfOrbatTreeWidget, makVrf::DtVrfOverlayTreeView, and makVrf::DtVrfEmbarkationHierarchyTreeWidget.

virtual void makVrf::DtVrfTreeWidget::dropItems ( const QStringList &  globalIds, QTreeWidgetItem *    )

protectedvirtual

Override to drop specified items onto the specified parent.

Reimplemented in makVrf::DtVrfEchelonHierarchyTreeWidget, makVrf::DtVrfOrbatTreeWidget, makVrf::DtVrfOverlayTreeView, and makVrf::DtVrfEmbarkationHierarchyTreeWidget.

Member Data Documentation

boost::signal<void (const QStringList& children, makVrv::DtUniqueID parentId)> makVrf::DtVrfTreeWidget::signal_reparent

QTreeWidgetItem* makVrf::DtVrfTreeWidget::myDraggingOver

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/vrfTreeWidget.h
