makVrv::DtCigiBaseEntity Class Reference

This class provides an abstract base class for CIGI entities. More...

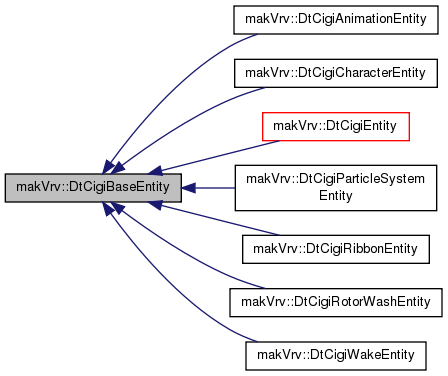

Inheritance diagram for makVrv::DtCigiBaseEntity:

Public Member Functions
	DtCigiBaseEntity (DtCigiConnection &connection, DtAgentManagerInterface &sceneInterface, int entityId, int entityType)
	Constructor takes a DtCigiConnection, scene interface, and the CIGI entity ID/type.
virtual	~DtCigiBaseEntity ()
	Destructor.
virtual DtUniqueID	uniqueId () const
	Returns the element ID of the entity's scene object.
virtual DtUniqueID	elementId () const
	Returns the element ID of the entity's scene object.
virtual int	cigiId () const
	Returns the CIGI Id of the CIGI entity.
virtual void	init ()
	Create the scene object used by the entity and report the entity element and its parameters.
virtual void	uninit ()
	Destroy the scene object created in init(), any updaters created along the way, and report the element destroyed.
virtual void	restart ()
	Calls uninit(), init(), and then restores dead reckoning, embarkation, etc.
virtual void	restartRequest ()
	This is called to request that the entity be restarted.
virtual int	entityType () const
	Get the entity type the entity was created with.
virtual void	setVisible (bool yesNo)
	Set whether the entity is visible.
virtual bool	isVisible () const
	Get the current visibility.
virtual void	setDeadReckoningOn (bool onOff)
	Turns dead-reckoning on/off.
virtual bool	isDeadReckoning () const
	Determine if the entity is ACTUALLY dead reckoning.
virtual void	setPosition (const DtGeodeticCoord &pos, bool force=false)
	Set the entity's geodetic position.
virtual const DtGeodeticCoord &	position () const
	Returns the last position set by a CIGI entity control message.
virtual const DtVector &	localPosition () const
	Returns the last computed local position set.
virtual void	setOrientation (const DtTaitBryan &orientation, bool force=false)
	Set the entity's orientation.
virtual const DtTaitBryan &	orientation () const
	Returns the last orientation set by a CIGI entity control message.
virtual const DtTaitBryan &	localOrientation () const
	Returns the computed last local orientation.
virtual const DtTaitBryan &	geocentricOrientation () const
	Get the last computed geocentric orientation.
virtual void	setLinearRate (const DtVector &rate, bool useWorldCoordinates, bool force=false)
	Sets the entity's linear rate.
virtual const DtVector &	linearRate () const
	Get the last set linear rate.
virtual void	setAngularRate (const DtVector &rate, bool useWorldCoordinates, bool force=false)
	Set's the entity's angular rate.
virtual const DtVector &	angularRate () const
	Get the last set angular rate.
virtual void	slot_deadReckoningAllowed (bool allowed)
	Called when IG-wide extrapolation is turned on or off.
virtual void	setAlpha (int alpha)
	Sets the entity's alpha value.
virtual int	alpha () const
	Returns the entity's alpha value.
virtual void	setInheritAlpha (bool inherit)
	Set whether the entity should inherit alpha from its parent.
virtual bool	isInheritingAlpha () const
	Determine if the entity is inheriting alpha.
virtual void	slot_alphaChanged (int alpha, DtUniqueID id)
	Slot so we can check if the parent's alpha has changed.
virtual void	slot_entityToBeDeleted (int cigiEntityId)
	Connected to the signal raised by the entity manager when an entity is removed, this is used to insure that signals connected to an embarkation parent are managed correctly if/when that parent is deleted.
virtual void	setGroundClampingOn (DtGroundClampingUpdater::GroundClampingMode clampType)
	Turns ground clamping on/off.
virtual DtGroundClampingUpdater::GroundClampingMode	groundClampingType () const
	Get the current ground clamping type.
virtual void	setArtPartTranslation (int partId, float xOffset, float yOffset, float zOffset, bool xEnable, bool yEnable, bool zEnable)
	Set the relative position of an articulated part.
virtual bool	getArtPartTranslation (int partId, int &mappedPartId, DtVector &translation)
	Get the art part translation from a specified CIGI part id.
virtual void	setArtPartOrientation (int partId, float yaw, float pitch, float roll, bool yawEnable, bool pitchEnable, bool rollEnable)
	Set the orientation of an articulated part.
virtual bool	getArtPartOrientation (int partId, int &mappedPartId, DtTaitBryan &orientation)
	Returns false if the part id is not found.
virtual void	setArtPartLinearRate (int partId, float xRate, float yRate, float zRate)
	Set the linear rate of an articulated part.
virtual bool	getArtPartLinearRate (int partId, int &mappedPartId, DtVector &rate)
	Get the art part translation rate from a specified CIGI part id.
virtual bool	getArtPartTranslationAndRate (int partId, int &mappedPartId, DtVector &translation, DtVector &rate)
	Get the art part translation and rate from a specified CIGI part id.
virtual void	setArtPartAngularRate (int partId, float yawRate, float pitchRate, float rollRate)
	Set the angular rate of an articulated part.
virtual bool	getArtPartAngularRate (int partId, int &mappedPartId, DtVector &rate)
	Returns false if the part id is not found.
virtual bool	getArtPartOrientationAndRate (int partId, int &mappedPartId, DtTaitBryan &orientation, DtVector &rate)
	Returns false if the part id is not found.
virtual void	setArtPartEnable (int partId, bool trueFalse)
	Enable/disable an articulated part.
virtual DtSceneObjectAgent *	findSceneObjectAgent ()
virtual void	setRelativeTo (DtCigiBaseEntity *parent)
	Attachment control.
virtual void	setRelativePosition (const DtVector &pos)
	Sets the entity's relative position (if attached).
virtual void	setRelativeOrientation (const DtTaitBryan &orient)
	Sets the entity's relative orientation (relative to the parent's body coordinates) if attached.
virtual bool	isEmbarked () const
	Determine if the entity is attached to a parent entity.
virtual int	embarkedParentId () const
	Get the CIGI ID of the entity to which we are attached.

Public Attributes
boost::signal< void(int, DtUniqueID)>	signal_alphaChanged
	Emitted when this entity's alpha has changed.

Protected Member Functions
virtual void	startDeadReckoning ()
	Create and set up Dead Reckoning updater.
virtual void	endDeadReckoning ()
	Remove the Dead Reckoning updater.
virtual void	startEmbarked ()
	Create and set up Embarkation updater.
virtual void	endEmbarked ()
	Remove the Embarkation updater.
virtual void	startGroundClamping ()
	Create and set up Ground Clamping updater; uses buildGroundClampingUpdater() to create the updater agents.
virtual void	buildGroundClampingUpdater ()
	Create and intialize the ground clamping updater agents.
virtual void	endGroundClamping ()
	Remove the Ground Clamping updater.
virtual bool	isGroundClamping () const
	Returns false if ground clamping type is DtGroundClampingUpdater::ClampNone true otherwise.
virtual void	getExtrapolatedValuesAndRestart ()
	Request position and orientation values from the render thread if this entity is dead reckoned.
virtual void	delayedStartEmbarked ()
	When an embarked entity is restarted, it needs to be reattached to its parent at the start of the next frame (after all other entities have been restarted).
virtual void	queryExtrapolatedPositionAndOrientation (DtUniqueID drAgentId, bool relative)
	This is the render thread-run method that collects dead reckoned position and orientation.
virtual void	returnExtrapolatedPositionAndOrientation (const DtVector &resultPos, const DtTaitBryan &resultOri, bool relative, bool invokeRestart)
	This method returns the position and orientation collected from the render thread in the connection thread.
virtual DtDeadReckonUpdater *	findDRUpdaterInRenderThread (DtUniqueID drAgentId) const
	Helper function called by queryExtrapolatedPositionAndOrientation to look up the the dead reckon updater object given its agent id.

Protected Attributes
DtSceneObjectAgent *	mySceneObject
DtModelAgent *	myModel
std::string	myEntityModelDefName
DtDeadReckonUpdaterAgent *	myDeadReckonUpdaterAgent
DtGroundClampingUpdaterAgent *	myGroundClampingUpdaterAgent
DtEmbarkationUpdaterAgent *	myEmbarkationUpdaterAgent
bool	myDeadReckoningOn
bool	myEmbarked
DtGroundClampingUpdater::GroundClampingMode	myGroundClampingType
DtGeodeticCoord	myLastPosition
DtVector	myLastLocalPosition
DtTaitBryan	myLastOrientation
DtTaitBryan	myLastLocalOrientation
DtTaitBryan	myLastGeocentricOrientation
DtVector	myLastRelativePosition
DtTaitBryan	myLastRelativeOrientation
DtVector	myLastVelocity
bool	myLastVelocityWorldCoordinates
DtVector	myLastAngularVelocity
bool	myLastAngularVelocityWorldCoordinates
DtCigiConnection &	myConnection
DtAgentManagerInterface &	mySceneInterface
int	myEntityId
int	myEntityType
DtCigiBaseEntity *	myParent
int	myEmbarkedParentID
bool	myInheritAlpha
int	myAlpha
bool	myVisiblity
bool	myPositionSet
bool	myOrientationSet
std::map< int, DtTaitBryan >	myLastArtPartOrientation
std::map< int, DtVector >	myLastArtPartTranslation
std::map< int, DtVector >	myArtPartAngularRate
std::map< int, DtVector >	myArtPartLinearRate
DtSignalConnectionManager	mySignalConnections

Detailed Description

This class provides an abstract base class for CIGI entities.

These are created by the DtCigiEntityVisualizer and updated as CIGI messages that pertain to entities are processed.

Constructor & Destructor Documentation

makVrv::DtCigiBaseEntity::DtCigiBaseEntity	(	DtCigiConnection &	connection,
		DtAgentManagerInterface &	sceneInterface,
		int	entityId,
		int	entityType
	)

Constructor takes a DtCigiConnection, scene interface, and the CIGI entity ID/type.

virtual makVrv::DtCigiBaseEntity::~DtCigiBaseEntity ( )

virtual

Destructor.

Member Function Documentation

virtual DtUniqueID makVrv::DtCigiBaseEntity::uniqueId ( ) const

virtual

Returns the element ID of the entity's scene object.

Use of this method is deprecated; use elementId()

virtual DtUniqueID makVrv::DtCigiBaseEntity::elementId ( ) const

virtual

Returns the element ID of the entity's scene object.

virtual int makVrv::DtCigiBaseEntity::cigiId ( ) const

virtual

Returns the CIGI Id of the CIGI entity.

virtual void makVrv::DtCigiBaseEntity::init ( )

virtual

Create the scene object used by the entity and report the entity element and its parameters.

Reimplemented in makVrv::DtCigiWatercraftEntity, makVrv::DtCigiEntity, makVrv::DtCigiCharacterEntity, makVrv::DtCigiRibbonEntity, makVrv::DtCigiParticleSystemEntity, and makVrv::DtCigiAnimationEntity.

virtual void makVrv::DtCigiBaseEntity::uninit ( )

virtual

Destroy the scene object created in init(), any updaters created along the way, and report the element destroyed.

Reimplemented in makVrv::DtCigiWatercraftEntity, makVrv::DtCigiEntity, makVrv::DtCigiCharacterEntity, makVrv::DtCigiWakeEntity, makVrv::DtCigiRibbonEntity, makVrv::DtCigiParticleSystemEntity, makVrv::DtCigiAnimationEntity, and makVrv::DtCigiRotorWashEntity.

virtual void makVrv::DtCigiBaseEntity::restart ( )

virtual

Calls uninit(), init(), and then restores dead reckoning, embarkation, etc.

If the entity is embarked, it will schedule restoration of embark state for the beginning of the next tick to ensure that the parent entity restoration is complete

Reimplemented in makVrv::DtCigiEntity, makVrv::DtCigiWatercraftEntity, makVrv::DtCigiCharacterEntity, makVrv::DtCigiParticleSystemEntity, makVrv::DtCigiAnimationEntity, and makVrv::DtCigiRotorWashEntity.

virtual void makVrv::DtCigiBaseEntity::restartRequest ( )

virtual

This is called to request that the entity be restarted.

If not dead reckoned, restart() will be called immediately. Otherwise, the current position and orientation are requested from the render thread (and restart() will be called when those values are available.

Reimplemented in makVrv::DtCigiEntity.

virtual int makVrv::DtCigiBaseEntity::entityType ( ) const

virtual

Get the entity type the entity was created with.

virtual void makVrv::DtCigiBaseEntity::setVisible ( bool  yesNo )

virtual

Set whether the entity is visible.

Reimplemented in makVrv::DtCigiWakeEntity, and makVrv::DtCigiRotorWashEntity.

virtual bool makVrv::DtCigiBaseEntity::isVisible ( ) const

virtual

Get the current visibility.

virtual void makVrv::DtCigiBaseEntity::setDeadReckoningOn ( bool  onOff )

virtual

Turns dead-reckoning on/off.

virtual bool makVrv::DtCigiBaseEntity::isDeadReckoning ( ) const

virtual

Determine if the entity is ACTUALLY dead reckoning.

This is the logical && of its myDeadReckoningOn flag (which means that CIGI has requested that THIS entity be dead reckoned) and DtConnection::extrapolationEnabled(), which CIGI uses to globally allow or disallow dead reckoning

virtual void makVrv::DtCigiBaseEntity::setPosition ( const DtGeodeticCoord &  pos, bool  force = false  )

virtual

Set the entity's geodetic position.

Parameters

[in]	pos	is the position set from the CIGI entity control message.
[in]	force	is a flag to force handling even if position has not changed.

Reimplemented in makVrv::DtCigiWatercraftEntity, makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWakeEntity.

virtual const DtGeodeticCoord& makVrv::DtCigiBaseEntity::position ( ) const

virtual

Returns the last position set by a CIGI entity control message.

virtual const DtVector& makVrv::DtCigiBaseEntity::localPosition ( ) const

virtual

Returns the last computed local position set.

virtual void makVrv::DtCigiBaseEntity::setOrientation ( const DtTaitBryan &  orientation, bool  force = false  )

virtual

Set the entity's orientation.

Parameters

[in]	orientation	is the orientation set from the CIGI entity control message.
[in]	force	is a flag to force handling even if orientation has not changed.

Reimplemented in makVrv::DtCigiWatercraftEntity, makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWakeEntity.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::orientation ( ) const

virtual

Returns the last orientation set by a CIGI entity control message.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::localOrientation ( ) const

virtual

Returns the computed last local orientation.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::geocentricOrientation ( ) const

virtual

Get the last computed geocentric orientation.

virtual void makVrv::DtCigiBaseEntity::setLinearRate ( const DtVector &  rate, bool  useWorldCoordinates, bool  force = false  )

virtual

Sets the entity's linear rate.

If useWorldCoordinates is set to true, sets the velocity according to the entity's rate with respect to the tangential reference plane of the entity. Otherwise, sets the velocity with respect to the entity's coordinate system.

Reimplemented in makVrv::DtCigiWakeEntity, and makVrv::DtCigiWatercraftEntity.

virtual const DtVector& makVrv::DtCigiBaseEntity::linearRate ( ) const

virtual

Get the last set linear rate.

virtual void makVrv::DtCigiBaseEntity::setAngularRate ( const DtVector &  rate, bool  useWorldCoordinates, bool  force = false  )

virtual

Set's the entity's angular rate.

If useWorldCoordinates is set to true, sets the angular velocity with respect to the tangential reference plane of the entity. Otherwise, sets the velocity with respect to the entity's coordinate system.

virtual const DtVector& makVrv::DtCigiBaseEntity::angularRate ( ) const

virtual

Get the last set angular rate.

virtual void makVrv::DtCigiBaseEntity::setRelativeTo ( DtCigiBaseEntity *  parent )

virtual

Attachment control.

Attach entity to parent

Reimplemented in makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::setRelativePosition ( const DtVector &  pos )

virtual

Sets the entity's relative position (if attached).

Reimplemented in makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::setRelativeOrientation ( const DtTaitBryan &  orient )

virtual

Sets the entity's relative orientation (relative to the parent's body coordinates) if attached.

Reimplemented in makVrv::DtCigiWakeEntity.

virtual bool makVrv::DtCigiBaseEntity::isEmbarked ( ) const

virtual

Determine if the entity is attached to a parent entity.

virtual int makVrv::DtCigiBaseEntity::embarkedParentId ( ) const

virtual

Get the CIGI ID of the entity to which we are attached.

virtual void makVrv::DtCigiBaseEntity::slot_deadReckoningAllowed ( bool  allowed )

virtual

Called when IG-wide extrapolation is turned on or off.

Stops the entity from dead reckoning if it currently is (but remembers if it was) and turns dead reckoning on if the entity has requested dead reckoning and it becomes allowed again

virtual void makVrv::DtCigiBaseEntity::setAlpha ( int  alpha )

virtual

Sets the entity's alpha value.

virtual int makVrv::DtCigiBaseEntity::alpha ( ) const

virtual

Returns the entity's alpha value.

This needs to be checked if the entity is inheriting its parent's alpha.

virtual void makVrv::DtCigiBaseEntity::setInheritAlpha ( bool  inherit )

virtual

Set whether the entity should inherit alpha from its parent.

virtual bool makVrv::DtCigiBaseEntity::isInheritingAlpha ( ) const

virtual

Determine if the entity is inheriting alpha.

virtual void makVrv::DtCigiBaseEntity::slot_alphaChanged ( int  alpha, DtUniqueID  id  )

virtual

Slot so we can check if the parent's alpha has changed.

virtual void makVrv::DtCigiBaseEntity::slot_entityToBeDeleted ( int  cigiEntityId )

virtual

Connected to the signal raised by the entity manager when an entity is removed, this is used to insure that signals connected to an embarkation parent are managed correctly if/when that parent is deleted.

virtual void makVrv::DtCigiBaseEntity::setGroundClampingOn ( DtGroundClampingUpdater::GroundClampingMode  clampType )

virtual

Turns ground clamping on/off.

virtual DtGroundClampingUpdater::GroundClampingMode makVrv::DtCigiBaseEntity::groundClampingType ( ) const

virtual

Get the current ground clamping type.

virtual void makVrv::DtCigiBaseEntity::setArtPartTranslation ( int  partId, float  xOffset, float  yOffset, float  zOffset, bool  xEnable, bool  yEnable, bool  zEnable  )

virtual

Set the relative position of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartTranslation ( int  partId, int &  mappedPartId, DtVector &  translation  )

virtual

Get the art part translation from a specified CIGI part id.

Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartOrientation ( int  partId, float  yaw, float  pitch, float  roll, bool  yawEnable, bool  pitchEnable, bool  rollEnable  )

virtual

Set the orientation of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartOrientation ( int  partId, int &  mappedPartId, DtTaitBryan &  orientation  )

virtual

Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartLinearRate ( int  partId, float  xRate, float  yRate, float  zRate  )

virtual

Set the linear rate of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartLinearRate ( int  partId, int &  mappedPartId, DtVector &  rate  )

virtual

Get the art part translation rate from a specified CIGI part id.

Returns false if the part id is not found.

virtual bool makVrv::DtCigiBaseEntity::getArtPartTranslationAndRate ( int  partId, int &  mappedPartId, DtVector &  translation, DtVector &  rate  )

virtual

Get the art part translation and rate from a specified CIGI part id.

Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartAngularRate ( int  partId, float  yawRate, float  pitchRate, float  rollRate  )

virtual

Set the angular rate of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartAngularRate ( int  partId, int &  mappedPartId, DtVector &  rate  )

virtual

Returns false if the part id is not found.

virtual bool makVrv::DtCigiBaseEntity::getArtPartOrientationAndRate ( int  partId, int &  mappedPartId, DtTaitBryan &  orientation, DtVector &  rate  )

virtual

Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartEnable ( int  partId, bool  trueFalse  )

virtual

Enable/disable an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual DtSceneObjectAgent* makVrv::DtCigiBaseEntity::findSceneObjectAgent ( )

virtual

virtual void makVrv::DtCigiBaseEntity::startDeadReckoning ( )

protectedvirtual

Create and set up Dead Reckoning updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::endDeadReckoning ( )

protectedvirtual

Remove the Dead Reckoning updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::startEmbarked ( )

protectedvirtual

Create and set up Embarkation updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::endEmbarked ( )

protectedvirtual

Remove the Embarkation updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::startGroundClamping ( )

protectedvirtual

Create and set up Ground Clamping updater; uses buildGroundClampingUpdater() to create the updater agents.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual void makVrv::DtCigiBaseEntity::buildGroundClampingUpdater ( )

protectedvirtual

Create and intialize the ground clamping updater agents.

virtual void makVrv::DtCigiBaseEntity::endGroundClamping ( )

protectedvirtual

Remove the Ground Clamping updater.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual bool makVrv::DtCigiBaseEntity::isGroundClamping ( ) const

protectedvirtual

Returns false if ground clamping type is DtGroundClampingUpdater::ClampNone true otherwise.

virtual void makVrv::DtCigiBaseEntity::getExtrapolatedValuesAndRestart ( )

protectedvirtual

Request position and orientation values from the render thread if this entity is dead reckoned.

Reimplemented in makVrv::DtCigiEntity.

virtual void makVrv::DtCigiBaseEntity::delayedStartEmbarked ( )

protectedvirtual

When an embarked entity is restarted, it needs to be reattached to its parent at the start of the next frame (after all other entities have been restarted).

This is the slot called when the attached-to boost signal preTick is raised. It detaches from the signal and then calls startEkbarked().

virtual void makVrv::DtCigiBaseEntity::queryExtrapolatedPositionAndOrientation ( DtUniqueID  drAgentId, bool  relative  )

protectedvirtual

This is the render thread-run method that collects dead reckoned position and orientation.

It is queued as a 'driver' function if the CIGI connection is running in its own thread

virtual void makVrv::DtCigiBaseEntity::returnExtrapolatedPositionAndOrientation ( const DtVector &  resultPos, const DtTaitBryan &  resultOri, bool  relative, bool  invokeRestart  )

protectedvirtual

This method returns the position and orientation collected from the render thread in the connection thread.

If the CIGI connection is running in its own thread, then queryExtrapolatedPositionAndOrientation() will queue this as a 'connection' function. If invokeRestart is true, then restart() will be called when before this function returns

virtual DtDeadReckonUpdater* makVrv::DtCigiBaseEntity::findDRUpdaterInRenderThread ( DtUniqueID  drAgentId ) const

protectedvirtual

Helper function called by queryExtrapolatedPositionAndOrientation to look up the the dead reckon updater object given its agent id.

Member Data Documentation

boost::signal<void (int, DtUniqueID)> makVrv::DtCigiBaseEntity::signal_alphaChanged

Emitted when this entity's alpha has changed.

DtSceneObjectAgent* makVrv::DtCigiBaseEntity::mySceneObject

protected

DtModelAgent* makVrv::DtCigiBaseEntity::myModel

protected

std::string makVrv::DtCigiBaseEntity::myEntityModelDefName

protected

DtDeadReckonUpdaterAgent* makVrv::DtCigiBaseEntity::myDeadReckonUpdaterAgent

protected

DtGroundClampingUpdaterAgent* makVrv::DtCigiBaseEntity::myGroundClampingUpdaterAgent

protected

DtEmbarkationUpdaterAgent* makVrv::DtCigiBaseEntity::myEmbarkationUpdaterAgent

protected

bool makVrv::DtCigiBaseEntity::myDeadReckoningOn

protected

bool makVrv::DtCigiBaseEntity::myEmbarked

protected

DtGroundClampingUpdater::GroundClampingMode makVrv::DtCigiBaseEntity::myGroundClampingType

protected

DtGeodeticCoord makVrv::DtCigiBaseEntity::myLastPosition

protected

DtVector makVrv::DtCigiBaseEntity::myLastLocalPosition

protected

DtTaitBryan makVrv::DtCigiBaseEntity::myLastOrientation

protected

DtTaitBryan makVrv::DtCigiBaseEntity::myLastLocalOrientation

protected

DtTaitBryan makVrv::DtCigiBaseEntity::myLastGeocentricOrientation

protected

DtVector makVrv::DtCigiBaseEntity::myLastRelativePosition

protected

DtTaitBryan makVrv::DtCigiBaseEntity::myLastRelativeOrientation

protected

DtVector makVrv::DtCigiBaseEntity::myLastVelocity

protected

bool makVrv::DtCigiBaseEntity::myLastVelocityWorldCoordinates

protected

DtVector makVrv::DtCigiBaseEntity::myLastAngularVelocity

protected

bool makVrv::DtCigiBaseEntity::myLastAngularVelocityWorldCoordinates

protected

DtCigiConnection& makVrv::DtCigiBaseEntity::myConnection

protected

DtAgentManagerInterface& makVrv::DtCigiBaseEntity::mySceneInterface

protected

int makVrv::DtCigiBaseEntity::myEntityId

protected

int makVrv::DtCigiBaseEntity::myEntityType

protected

DtCigiBaseEntity* makVrv::DtCigiBaseEntity::myParent

protected

int makVrv::DtCigiBaseEntity::myEmbarkedParentID

protected

bool makVrv::DtCigiBaseEntity::myInheritAlpha

protected

int makVrv::DtCigiBaseEntity::myAlpha

protected

bool makVrv::DtCigiBaseEntity::myVisiblity

protected

bool makVrv::DtCigiBaseEntity::myPositionSet

protected

bool makVrv::DtCigiBaseEntity::myOrientationSet

protected

std::map<int, DtTaitBryan> makVrv::DtCigiBaseEntity::myLastArtPartOrientation

protected

std::map<int, DtVector> makVrv::DtCigiBaseEntity::myLastArtPartTranslation

protected

std::map<int, DtVector> makVrv::DtCigiBaseEntity::myArtPartAngularRate

protected

std::map<int, DtVector> makVrv::DtCigiBaseEntity::myArtPartLinearRate

protected

DtSignalConnectionManager makVrv::DtCigiBaseEntity::mySignalConnections

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCigi/DtCigiBaseEntity.h
