makVrv::DtIntervisibilityFanVisualizer Class Reference

DtIntervisibilityLineVisualizer display an intervisibility line drawn as geometry in the scene. More...

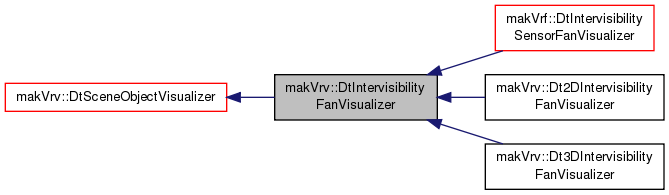

Inheritance diagram for makVrv::DtIntervisibilityFanVisualizer:

Public Member Functions
	DtIntervisibilityFanVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
	Constructor.
virtual	~DtIntervisibilityFanVisualizer ()
	Destructor.
virtual void	setVisibleColor (float r, float g, float b, float a)
	Sets the color for the visible portion of the line (default is green)
void	visibleColor (float &r, float &g, float &b, float &a) const
virtual void	setBlockedColor (float r, float g, float b, float a)
	Sets the color for the blocked portion of the line (default is red)
void	blockedColor (float &r, float &g, float &b, float &a) const
virtual void	setCircleColor (float r, float g, float b, float a)=0
	Sets the color for the circle portion of the fan (default is blue)
virtual void	setStartPoint (const DtVector &)
	Sets the start for of the first vertex. Will delete any updaters if they exist for the start point.
virtual void	setEndPoint (const DtVector &)
	Sets the end point. Will delete any updaters if they exist for the end point.
virtual void	setStartAttachPoint (DtElementID)
	Will set the start attach point. Converts to scene id for current model set.
virtual void	setStartPointOffset (const DtVector &)
	Sets the offset from the attached start point.
virtual void	setEndAttachPoint (DtElementID)
	Will set the end attach point. Converts to scene id for current model set.
virtual void	setEndPointOffset (const DtVector &)
	Sets the offset from the attached end point.
virtual void	setSelected (bool b)
	Sets selected state.
virtual void	setFanModeSamplingRate (double d)
	Sets the fan mode fampling rate (in radians)
virtual void	setStartPointOffsetFromCenter (const DtVector &)
	Sets the start offset from the center.
Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
virtual	~DtSceneObjectVisualizer ()
virtual DtUniqueID	uniqueID () const
	Return unique id of mySceneObjectAgent, if it exists, else returns 0;.
virtual DtSceneObjectAgent *	sceneObjectAgent ()
virtual void	setParent (DtStateVisualizer *p)
	Override of base class setParent to simply set the parent without destroying/recreating model agents.
virtual void	setSceneObjectAgent (DtSceneObjectAgent *)
virtual void	setElementID (const DtElementID &elementID)
DtElementID	elementID () const
virtual bool	show (int)
	Override to show/hide scene object agent (if it exists)
virtual bool	hide (int)
	Will call destroyModelAgents(), if, when the context is added, it is the first context in the list.
Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR.
virtual	~DtStateVisualizer ()
	DTOR.
virtual const TypeInfo &	typeInfo () const =0
	Get the type info.
void	setModelDefinition (const std::string &definition)
	Sets the model definition and creates agent(s) based on that definition.
const std::string &	modelDefinition () const
	Gets the current model definition.
virtual bool	setVisible (bool visible, int context)
	Returns true if this context wants to show or hide the item.
virtual void	initialize ()
	Initialize the visualizer.
virtual bool	isVisible () const
	Returns true if visible.
virtual bool	selected () const
void	setName (const std::string &)
	Internal name of state visualizer.
const std::string &	name () const
virtual void	setPickable (bool)
	Sets pickable state.
virtual bool	pickable () const
virtual void	setUniqueID (DtUniqueID id)
int	visualizerType () const
void	setShowHideContext (const std::vector< int > &s)
	Set show/hide context without changing visibility of item.
DtStateListener &	listener ()
DtBaseConnection &	simulation ()
	Get the connection for this visualizer.
void	setDistribute (bool b)
	Whether or not to distribute over the network.
bool	distribute () const

Protected Member Functions
virtual void	createModelAgents ()
	Creates the model agent. If already created, makes it visible.
virtual void	destroyModelAgents ()
	Model agent is only destroyed in destructor.
virtual void	setModelDefinitionForAgents ()
	Sets model definition for all the agents that this visualizer might be using.
virtual void	resetSpatial ()
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &visDef)
	Get the start point offset (if set) from the definition.
virtual void	setFixedDistance (bool b)
virtual void	createCircle ()=0
	Creates the circle used for the outline.
virtual void	selectCircle (bool)=0
	Selects the circle.
Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent *	createObjectAgent ()
Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Called when the mouse is clicked in this visualizer.
virtual void	slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual void	slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual bool	supportsShowHideContext (int) const
	Default returns true.
template<typename T , typename C >
void	connectAndUpdate (boost::signal< void(T)> &sig, void(C::*fp)(T), T val)
	Connect a signal and update the entity.

Protected Attributes
DtMultiLineModelAgent *	myMultiLineModelAgent
DtIntervisibilityFanStateListener &	myFanListener
DtAttachableFanUpdaterAgent *	myAttachableUpdaterAgent
DtVector	myStartPointOffsetFromCenter
Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID	myElementID
Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	myUniqueID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
int	myModelSet
int	myVisualizerType
std::vector< int >	myShowHideContexts
bool	mySelected
bool	myPickable
bool	myVisible
DtStateVisualizer *	myParent
DtSceneObjectAgent *	mySceneObjectAgent

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
	Visualizer class types that are supportable via visualizers. More...
Public Attributes inherited from makVrv::DtStateVisualizer
boost::signal< void(DtStateVisualizer *, DtStateVisualizer *, DtStateVisualizer *)>	signal_reparented
	Signaled when the parent of this item changes, called before destroying any model agents.
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDown
	Emitted when the entity's indicator is clicked.
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseUp
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDblClick

Detailed Description

DtIntervisibilityLineVisualizer display an intervisibility line drawn as geometry in the scene.

Constructor & Destructor Documentation

makVrv::DtIntervisibilityFanVisualizer::DtIntervisibilityFanVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

Constructor.

virtual makVrv::DtIntervisibilityFanVisualizer::~DtIntervisibilityFanVisualizer ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtIntervisibilityFanVisualizer::setVisibleColor ( float  r, float  g, float  b, float  a  )

virtual

Sets the color for the visible portion of the line (default is green)

Reimplemented in makVrf::DtIntervisibilitySensorFanVisualizer.

void makVrv::DtIntervisibilityFanVisualizer::visibleColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

virtual void makVrv::DtIntervisibilityFanVisualizer::setBlockedColor ( float  r, float  g, float  b, float  a  )

virtual

Sets the color for the blocked portion of the line (default is red)

Reimplemented in makVrf::DtIntervisibilitySensorFanVisualizer.

void makVrv::DtIntervisibilityFanVisualizer::blockedColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

virtual void makVrv::DtIntervisibilityFanVisualizer::setCircleColor ( float  r, float  g, float  b, float  a  )

pure virtual

Sets the color for the circle portion of the fan (default is blue)

Implemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartPoint ( const DtVector &  )

virtual

Sets the start for of the first vertex. Will delete any updaters if they exist for the start point.

virtual void makVrv::DtIntervisibilityFanVisualizer::setEndPoint ( const DtVector &  )

virtual

Sets the end point. Will delete any updaters if they exist for the end point.

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartAttachPoint ( DtElementID  )

virtual

Will set the start attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartPointOffset ( const DtVector &  )

virtual

Sets the offset from the attached start point.

virtual void makVrv::DtIntervisibilityFanVisualizer::setEndAttachPoint ( DtElementID  )

virtual

Will set the end attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityFanVisualizer::setEndPointOffset ( const DtVector &  )

virtual

Sets the offset from the attached end point.

virtual void makVrv::DtIntervisibilityFanVisualizer::setSelected ( bool  )

virtual

Sets selected state.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtIntervisibilitySensorFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setFanModeSamplingRate ( double  d )

virtual

Sets the fan mode fampling rate (in radians)

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartPointOffsetFromCenter ( const DtVector &  )

virtual

Sets the start offset from the center.

For display only, not calculation. Useful in 2D mode when wanting to have points on top of the lines

virtual void makVrv::DtIntervisibilityFanVisualizer::createModelAgents ( )

protectedvirtual

Creates the model agent. If already created, makes it visible.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrf::DtIntervisibilitySensorFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::destroyModelAgents ( )

protectedvirtual

Model agent is only destroyed in destructor.

Here, it will be hidden (if it has been created)

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setModelDefinitionForAgents ( )

protectedvirtual

Sets model definition for all the agents that this visualizer might be using.

If model agents are not created, should create them. Should not call this directly, but rather call setModelDefinition

Reimplemented from makVrv::DtSceneObjectVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::resetSpatial ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityFanVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition &  visDef )

protectedvirtual

Get the start point offset (if set) from the definition.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setFixedDistance ( bool  b )

protectedvirtual

virtual void makVrv::DtIntervisibilityFanVisualizer::createCircle ( )

protectedpure virtual

Creates the circle used for the outline.

Implemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::selectCircle ( bool  )

protectedpure virtual

Selects the circle.

Implemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

Member Data Documentation

DtMultiLineModelAgent* makVrv::DtIntervisibilityFanVisualizer::myMultiLineModelAgent

protected

DtIntervisibilityFanStateListener& makVrv::DtIntervisibilityFanVisualizer::myFanListener

protected

DtAttachableFanUpdaterAgent* makVrv::DtIntervisibilityFanVisualizer::myAttachableUpdaterAgent

protected

DtVector makVrv::DtIntervisibilityFanVisualizer::myStartPointOffsetFromCenter

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtIntervisibilityFanVisualizer.h
