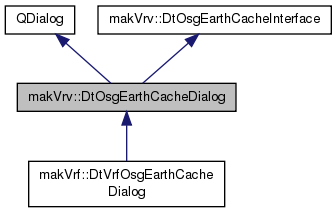

Inheritance diagram for makVrv::DtOsgEarthCacheDialog:

Public Slots
virtual void	QtSlot_progressUpdate (int progress)
	Qslot of the signal emit by the WidetProgressCallback.
virtual void	QtSlot_showCacheFinishedBox ()
	Qslot of the singal emit by DtOsgEarthCache, shows the cache finished QMessageBox.
virtual void	QtSlot_cacheEnd ()
	Qslot of the signal emit by DtOsgEarthCache when cache end, may cancel or finished.

Public Member Functions
virtual	~DtOsgEarthCacheDialog ()
	DTOR.
virtual void	showEstimateMessageBox (const std::string &message)
	Shows the estimation message box.
virtual void	showCacheFinishedMessageBox (const std::string &message)
	Shows the cache finished message box.
virtual void	osgEarthFileSelectChanged (std::string definition)
	callback when use select a different osg Earth file
virtual bool	warningUserIfSpecifyAreaUnChecked ()
	if the user didn't check speficy area,give the warning.

Protected Slots
User input slots (protected).
Receives notification that the user has changed a widget's value.
virtual void	on_lowestLODSpinBox_valueChanged (int)
virtual void	on_highestLODSpinBox_valueChanged (int)
virtual void	on_speficyCacheAreaCheckBox_valueChanged (int)
virtual void	on_startLongitudeSlider_valueChanged (int)
virtual void	on_startLongitudeSpinBox_valueChanged (double)
virtual void	on_startLatitudeSlider_valueChanged (int)
virtual void	on_startLatitudeSpinBox_valueChanged (double)
virtual void	on_endLongitudeSlider_valueChanged (int)
virtual void	on_endLongitudeSpinBox_valueChanged (double)
virtual void	on_endLatitudeSlider_valueChanged (int)
virtual void	on_endLatitudeSpinBox_valueChanged (double)
virtual void	on_generateCacheButton_clicked ()
virtual void	on_clearAreaButton_clicked ()
virtual void	on_cancelButton_clicked ()

Protected Member Functions
	DtOsgEarthCacheDialog (DtDe &de, QWidget *parent)
	Protected Constructor.
void	setupGui ()
	setup the gui, will be called in the CTOR
virtual void	closeEvent (QCloseEvent *e)
	override the closeEvent of QDialog
virtual void	showEvent (QShowEvent *e)
	override the showEvent of QDialog,will create the logic here
virtual void	resetGui ()
	reset the gui

virtual void	onStartLongitudeChanged (double)
	see DtOsgEarthCacheInterfacecallback when the start longitude changed.
virtual void	onStartLatitudeChanged (double)
	callback when the start latitude changed.
virtual void	onEndLongitudeChanged (double)
	callback when the end longitude changed.
virtual void	onEndLatitudeChanged (double)
	callback when the end latitude changed.
virtual void	onCacheStarted ()
	callback when the cache started.
virtual void	onCacheFinished ()
	callback when the cache finished.
virtual void	onLonLatReset (bool checkSpecifyCacheCheckBox)
	callback when the lon/lat reset.
virtual void	onCoordinateSystemDecimalChanged (int)
	callback when the coordinate system decimal changed
virtual void	onProgressUpdate (const std::string &, int)
	callback when update the progress
virtual void	setMaxmiumLOD (int maximumLOD)
	set the maxmiumLOD for generating cache,only apply for image and elevation layers
virtual void	exit ()
	close the dialog

Protected Attributes
DtDe &	myDe
DtOsgEarthCacheLogic *	myLogic
int	myMaximumLOD
bool	myDontShowWarningDialogAgain
QVBoxLayout *	myMainLayout
QHBoxLayout *	myLevelSettingsLayout
QLabel *	myLowestLODLabel
QSpinBox *	myLowestLODSpinBox
QLabel *	myHighestLODLabel
QSpinBox *	myHighestLODSpinBox
QHBoxLayout *	myCacheLayout
QCheckBox *	mySpecifyCacheAreaCheckBox
QPushButton *	myClearAreaButton
QPushButton *	myGenerateCacheButton
QWidget *	myGeocentricWidget
QVBoxLayout *	myGeocentricLayout
QHBoxLayout *	myStartGeocentricLayout
QLabel *	myStartLongitudeLaybol
QSlider *	myStartLongitudeSlider
QDoubleSpinBox *	myStartLongitudeSpinBox
QLabel *	myStartLatitudeLaybol
QSlider *	myStartLatitudeSlider
QDoubleSpinBox *	myStartLatitudeSpinBox
QHBoxLayout *	myEndGeocentricLayout
QLabel *	myEndLongitudeLaybol
QSlider *	myEndLongitudeSlider
QDoubleSpinBox *	myEndLongitudeSpinBox
QLabel *	myEndLatitudeLaybol
QSlider *	myEndLatitudeSlider
QDoubleSpinBox *	myEndLatitudeSpinBox
QHBoxLayout *	myCacheHelpLayout
QLabel *	myDescriptionText
QHBoxLayout *	myCacheButtonLayout
QVBoxLayout *	myProgressLayout
QLabel *	myProgressLabel
QProgressBar *	myProgressBar
QPushButton *	myCancelButton
QPushButton *	myCloseButton

Private Member Functions
	DtOsgEarthCacheDialog (const DtOsgEarthCacheDialog &)
	Copy Constructor not implimented � Copy not allowed.
DtOsgEarthCacheDialog &	operator= (const DtOsgEarthCacheDialog &)
	Assignment Operator not implimented � Copy not allowed.

Friends
class	DtOsgEarthCacheDialogCreator

Additional Inherited Members
Public Attributes inherited from makVrv::DtOsgEarthCacheInterface
boost::signal< void(std::string)>	signal_selectOsgEarthChanged
	boost signals
boost::signal< void(int)>	signal_lowestLODChanged
boost::signal< void(int)>	signal_highestLODChanged
boost::signal< void(int)>	signal_specifyCacheAreaCheckBoxChanged
boost::signal< void(double, bool)>	signal_startLongitudeChanged
boost::signal< void(double, bool)>	signal_startLatitudeChanged
boost::signal< void(double, bool)>	signal_endLongitudeChanged
boost::signal< void(double, bool)>	signal_endLatitudeChanged
boost::signal< void()>	signal_generateCacheButtonClicked
boost::signal< void()>	signal_clearAreaButtonClicked
boost::signal< void(int)>	signal_estimateMessageBoxResult
boost::signal< void(int)>	signal_cacheFinishedMessageBoxResult
boost::signal< void()>	signal_cancelButtonClicked
boost::signal< void()>	signal_cleanup
boost::signal< void()>	signal_cacheFinished
boost::signal< void(int)>	signal_progressUpdate

Detailed Description

DtOsgEarthCacheDialog.

See Also: QDialog,DtOsgEarthCacheInterface

Constructor & Destructor Documentation

virtual makVrv::DtOsgEarthCacheDialog::~DtOsgEarthCacheDialog ( )

virtual

DTOR.

makVrv::DtOsgEarthCacheDialog::DtOsgEarthCacheDialog ( const DtOsgEarthCacheDialog & )

private

Copy Constructor not implimented � Copy not allowed.

makVrv::DtOsgEarthCacheDialog::DtOsgEarthCacheDialog	(	DtDe &	de,
		QWidget *	parent
	)

protected

Protected Constructor.

Use DtOsgEarthCacheDialogCreator to create instances of this class

Member Function Documentation

virtual void makVrv::DtOsgEarthCacheDialog::showEstimateMessageBox ( const std::string & message )

virtual

Shows the estimation message box.

param message The message to show in the QMessageBox

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::showCacheFinishedMessageBox ( const std::string & message )

virtual

Shows the cache finished message box.

Parameters

message The message to show in the QMessageBox

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::osgEarthFileSelectChanged ( std::string definition )

virtual

callback when use select a different osg Earth file

Parameters

definition The name of the osgEarth file

Implements makVrv::DtOsgEarthCacheInterface.

virtual bool makVrv::DtOsgEarthCacheDialog::warningUserIfSpecifyAreaUnChecked ( )

virtual

if the user didn't check speficy area,give the warning.

return true if the user still want cache it anyway

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::QtSlot_progressUpdate ( int progress )

virtualslot

Qslot of the signal emit by the WidetProgressCallback.

Parameters

progress The progress(between 0-100)

virtual void makVrv::DtOsgEarthCacheDialog::QtSlot_showCacheFinishedBox ( )

virtualslot

Qslot of the singal emit by DtOsgEarthCache, shows the cache finished QMessageBox.

virtual void makVrv::DtOsgEarthCacheDialog::QtSlot_cacheEnd ( )

virtualslot

Qslot of the signal emit by DtOsgEarthCache when cache end, may cancel or finished.

DtOsgEarthCacheDialog& makVrv::DtOsgEarthCacheDialog::operator= ( const DtOsgEarthCacheDialog & )

private

Assignment Operator not implimented � Copy not allowed.

void makVrv::DtOsgEarthCacheDialog::setupGui ( )

protected

setup the gui, will be called in the CTOR

virtual void makVrv::DtOsgEarthCacheDialog::onStartLongitudeChanged ( double )

protectedvirtual

see DtOsgEarthCacheInterfacecallback when the start longitude changed.

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::onStartLatitudeChanged ( double )

protectedvirtual

callback when the start latitude changed.

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::onEndLongitudeChanged ( double )

protectedvirtual

callback when the end longitude changed.

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::onEndLatitudeChanged ( double )

protectedvirtual

callback when the end latitude changed.

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::onCacheStarted ( )

protectedvirtual

callback when the cache started.

Implements makVrv::DtOsgEarthCacheInterface.

Reimplemented in makVrf::DtVrfOsgEarthCacheDialog.

virtual void makVrv::DtOsgEarthCacheDialog::onCacheFinished ( )

protectedvirtual

callback when the cache finished.

Implements makVrv::DtOsgEarthCacheInterface.

Reimplemented in makVrf::DtVrfOsgEarthCacheDialog.

virtual void makVrv::DtOsgEarthCacheDialog::onLonLatReset ( bool checkSpecifyCacheCheckBox )

protectedvirtual

callback when the lon/lat reset.

Parameters

checkSpecifyCacheCheckBox whether you want check SpeficyCacheCheckBox

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::onCoordinateSystemDecimalChanged ( int )

protectedvirtual

callback when the coordinate system decimal changed

Parameters

digits the digits of the decimal

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::onProgressUpdate	(	const std::string &	,
		int
	)

protectedvirtual

callback when update the progress

Parameters

currentLayer	the name of the current layer
progress	the progress bewtween 0-100

Implements makVrv::DtOsgEarthCacheInterface.

Reimplemented in makVrf::DtVrfOsgEarthCacheDialog.

virtual void makVrv::DtOsgEarthCacheDialog::setMaxmiumLOD ( int maximumLOD )

protectedvirtual

set the maxmiumLOD for generating cache,only apply for image and elevation layers

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::exit ( )

protectedvirtual

close the dialog

Implements makVrv::DtOsgEarthCacheInterface.

virtual void makVrv::DtOsgEarthCacheDialog::closeEvent ( QCloseEvent * e )

protectedvirtual

override the closeEvent of QDialog

virtual void makVrv::DtOsgEarthCacheDialog::showEvent ( QShowEvent * e )

protectedvirtual

override the showEvent of QDialog,will create the logic here

virtual void makVrv::DtOsgEarthCacheDialog::resetGui ( )

protectedvirtual

reset the gui

Reimplemented in makVrf::DtVrfOsgEarthCacheDialog.

virtual void makVrv::DtOsgEarthCacheDialog::on_lowestLODSpinBox_valueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_highestLODSpinBox_valueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_speficyCacheAreaCheckBox_valueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_startLongitudeSlider_valueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_startLongitudeSpinBox_valueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_startLatitudeSlider_valueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_startLatitudeSpinBox_valueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_endLongitudeSlider_valueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_endLongitudeSpinBox_valueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_endLatitudeSlider_valueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_endLatitudeSpinBox_valueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_generateCacheButton_clicked ( )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_clearAreaButton_clicked ( )

protectedvirtualslot

virtual void makVrv::DtOsgEarthCacheDialog::on_cancelButton_clicked ( )

protectedvirtualslot

Reimplemented in makVrf::DtVrfOsgEarthCacheDialog.

Friends And Related Function Documentation

friend class DtOsgEarthCacheDialogCreator

friend

Member Data Documentation

DtDe& makVrv::DtOsgEarthCacheDialog::myDe

protected

DtOsgEarthCacheLogic* makVrv::DtOsgEarthCacheDialog::myLogic

protected

int makVrv::DtOsgEarthCacheDialog::myMaximumLOD

protected

bool makVrv::DtOsgEarthCacheDialog::myDontShowWarningDialogAgain

protected

QVBoxLayout* makVrv::DtOsgEarthCacheDialog::myMainLayout

protected

QHBoxLayout* makVrv::DtOsgEarthCacheDialog::myLevelSettingsLayout

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myLowestLODLabel

protected

QSpinBox* makVrv::DtOsgEarthCacheDialog::myLowestLODSpinBox

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myHighestLODLabel

protected

QSpinBox* makVrv::DtOsgEarthCacheDialog::myHighestLODSpinBox

protected

QHBoxLayout* makVrv::DtOsgEarthCacheDialog::myCacheLayout

protected

QCheckBox* makVrv::DtOsgEarthCacheDialog::mySpecifyCacheAreaCheckBox

protected

QPushButton* makVrv::DtOsgEarthCacheDialog::myClearAreaButton

protected

QPushButton* makVrv::DtOsgEarthCacheDialog::myGenerateCacheButton

protected

QWidget* makVrv::DtOsgEarthCacheDialog::myGeocentricWidget

protected

QVBoxLayout* makVrv::DtOsgEarthCacheDialog::myGeocentricLayout

protected

QHBoxLayout* makVrv::DtOsgEarthCacheDialog::myStartGeocentricLayout

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myStartLongitudeLaybol

protected

QSlider* makVrv::DtOsgEarthCacheDialog::myStartLongitudeSlider

protected

QDoubleSpinBox* makVrv::DtOsgEarthCacheDialog::myStartLongitudeSpinBox

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myStartLatitudeLaybol

protected

QSlider* makVrv::DtOsgEarthCacheDialog::myStartLatitudeSlider

protected

QDoubleSpinBox* makVrv::DtOsgEarthCacheDialog::myStartLatitudeSpinBox

protected

QHBoxLayout* makVrv::DtOsgEarthCacheDialog::myEndGeocentricLayout

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myEndLongitudeLaybol

protected

QSlider* makVrv::DtOsgEarthCacheDialog::myEndLongitudeSlider

protected

QDoubleSpinBox* makVrv::DtOsgEarthCacheDialog::myEndLongitudeSpinBox

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myEndLatitudeLaybol

protected

QSlider* makVrv::DtOsgEarthCacheDialog::myEndLatitudeSlider

protected

QDoubleSpinBox* makVrv::DtOsgEarthCacheDialog::myEndLatitudeSpinBox

protected

QHBoxLayout* makVrv::DtOsgEarthCacheDialog::myCacheHelpLayout

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myDescriptionText

protected

QHBoxLayout* makVrv::DtOsgEarthCacheDialog::myCacheButtonLayout

protected

QVBoxLayout* makVrv::DtOsgEarthCacheDialog::myProgressLayout

protected

QLabel* makVrv::DtOsgEarthCacheDialog::myProgressLabel

protected

QProgressBar* makVrv::DtOsgEarthCacheDialog::myProgressBar

protected

QPushButton* makVrv::DtOsgEarthCacheDialog::myCancelButton

protected

QPushButton* makVrv::DtOsgEarthCacheDialog::myCloseButton

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvOsgEarthQt/DtOsgEarthCacheDialog.h

Public Slots

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Private Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
