makVrv::DtSharedSettings Class Reference

The base class for all shared settings. More...

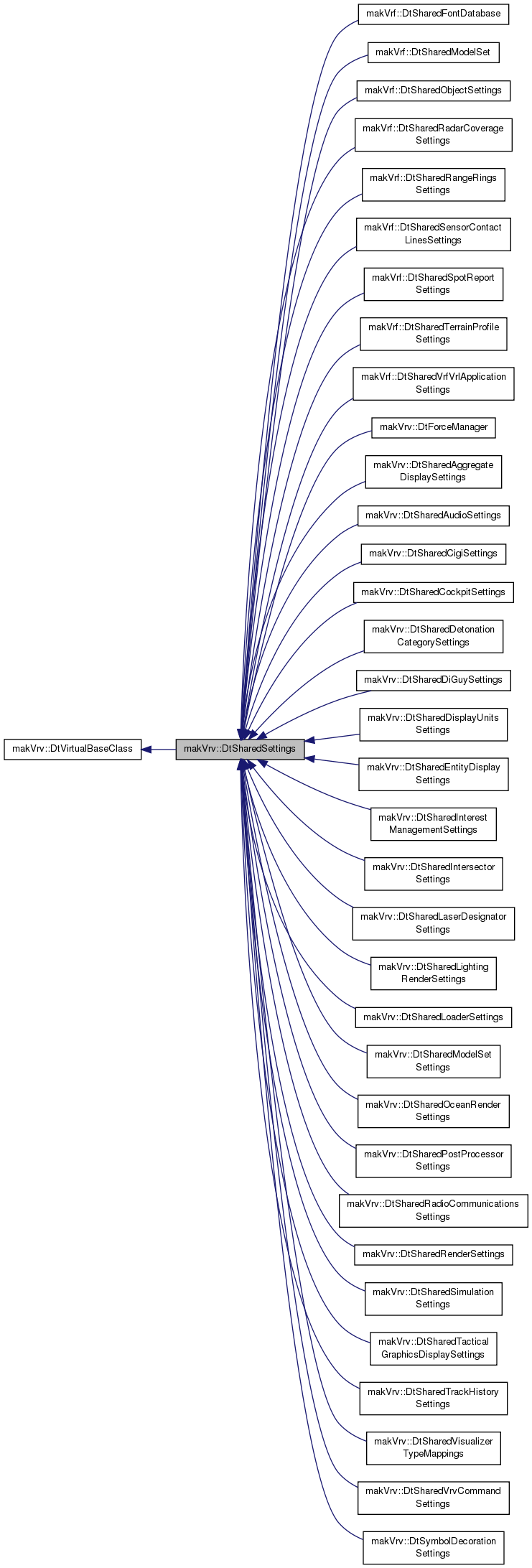

Inheritance diagram for makVrv::DtSharedSettings:

Classes
class	SafetyKey
	Internal key used to ensure thread safety. More...
class	SignalSafety

Public Member Functions
	DtSharedSettings (const DtSharedSettingsManager &manager)
	CTOR.
virtual	~DtSharedSettings ()
	DTOR.
boost::shared_mutex &	mutex ()
	Get the mutex for the settings object.
Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
	Do nothing constructor.
virtual	~DtVirtualBaseClass ()
	Virtual do nothing destructor.

Section for safely emitting signals in 'set' functions from a
write locked settings object.
class	SignalSafety
const DtSharedSettingsManager &	myManager
boost::shared_mutex	myMutex
boost::unique_lock < boost::shared_mutex > *	myCurrentWriteLock
SafetyKey	safeToEmitSignals ()
	Create a safety key for the function, see above example.
void	setCurrentWriteLock (boost::unique_lock< boost::shared_mutex > *currentWriteLock)
	No need to call, set by the DtWriteSettingLock object.
virtual const DtSettingsBackup *	settingsBackup () const
	Accessor for the settings backup (const).
virtual DtSettingsBackup *	settingsBackup ()
	Accessor for the settings backup.
virtual void	backup ()
	Called to back up the settings.

Detailed Description

The base class for all shared settings.

Actual settings class should have the following members/declarations

friend class DtReadSettingsLock<DtSharedSimulationSettings>; friend class DtWriteSettingsLock<DtSharedSimulationSettings>; friend class DtSharedSettingsManager; static std::string className();

Constructor & Destructor Documentation

makVrv::DtSharedSettings::DtSharedSettings

(

const DtSharedSettingsManager &

manager

)

CTOR.

virtual makVrv::DtSharedSettings::~DtSharedSettings ( )

virtual

DTOR.

Member Function Documentation

boost::shared_mutex& makVrv::DtSharedSettings::mutex ( )

inline

Get the mutex for the settings object.

SafetyKey makVrv::DtSharedSettings::safeToEmitSignals ( )

inline

Create a safety key for the function, see above example.

void makVrv::DtSharedSettings::setCurrentWriteLock ( boost::unique_lock< boost::shared_mutex > *  currentWriteLock )

inline

No need to call, set by the DtWriteSettingLock object.

virtual const DtSettingsBackup* makVrv::DtSharedSettings::settingsBackup ( ) const

virtual

Accessor for the settings backup (const).

Exceptions

DtCorruptedState

Re-implement to use.

Reimplemented in makVrv::DtSharedAudioSettings, makVrv::DtSharedDisplayUnitsSettings, makVrv::DtSharedRadioCommunicationsSettings, makVrv::DtSharedEntityDisplaySettings, makVrv::DtSharedPostProcessorSettings, makVrv::DtSharedCockpitSettings, makVrv::DtSymbolDecorationSettings, makVrv::DtSharedRenderSettings, makVrv::DtSharedAggregateDisplaySettings, makVrv::DtSharedOceanRenderSettings, makVrv::DtSharedIntersectorSettings, makVrv::DtSharedDiGuySettings, makVrv::DtSharedLightingRenderSettings, makVrv::DtSharedLaserDesignatorSettings, makVrv::DtSharedTacticalGraphicsDisplaySettings, makVrv::DtSharedTrackHistorySettings, makVrv::DtSharedLoaderSettings, and makVrv::DtSharedInterestManagementSettings.

virtual DtSettingsBackup* makVrv::DtSharedSettings::settingsBackup ( )

virtual

Accessor for the settings backup.

Exceptions

DtCorruptedState

Re-implement to use.

Reimplemented in makVrv::DtSharedAudioSettings, makVrv::DtSharedDisplayUnitsSettings, makVrv::DtSharedRadioCommunicationsSettings, makVrv::DtSharedEntityDisplaySettings, makVrv::DtSharedPostProcessorSettings, makVrv::DtSharedCockpitSettings, makVrv::DtSymbolDecorationSettings, makVrv::DtSharedRenderSettings, makVrv::DtSharedAggregateDisplaySettings, makVrv::DtSharedOceanRenderSettings, makVrv::DtSharedIntersectorSettings, makVrv::DtSharedDiGuySettings, makVrv::DtSharedLightingRenderSettings, makVrv::DtSharedLaserDesignatorSettings, makVrv::DtSharedTacticalGraphicsDisplaySettings, makVrv::DtSharedTrackHistorySettings, makVrv::DtSharedLoaderSettings, and makVrv::DtSharedInterestManagementSettings.

virtual void makVrv::DtSharedSettings::backup ( )

virtual

Called to back up the settings.

Exceptions

DtCorruptedState

Re-implement to use.

Reimplemented in makVrv::DtSharedAudioSettings, makVrv::DtSharedDisplayUnitsSettings, makVrv::DtSharedRadioCommunicationsSettings, makVrv::DtSharedEntityDisplaySettings, makVrv::DtSharedPostProcessorSettings, makVrv::DtSharedCockpitSettings, makVrv::DtSymbolDecorationSettings, makVrv::DtSharedRenderSettings, makVrv::DtSharedAggregateDisplaySettings, makVrv::DtSharedOceanRenderSettings, makVrv::DtSharedIntersectorSettings, makVrv::DtSharedDiGuySettings, makVrv::DtSharedLightingRenderSettings, makVrv::DtSharedLaserDesignatorSettings, makVrv::DtSharedTacticalGraphicsDisplaySettings, makVrv::DtSharedLoaderSettings, makVrv::DtSharedTrackHistorySettings, and makVrv::DtSharedInterestManagementSettings.

Friends And Related Function Documentation

friend class SignalSafety

friend

Member Data Documentation

const DtSharedSettingsManager& makVrv::DtSharedSettings::myManager

private

boost::shared_mutex makVrv::DtSharedSettings::myMutex

private

boost::unique_lock<boost::shared_mutex>* makVrv::DtSharedSettings::myCurrentWriteLock

private

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtSharedSettings.h
