makVrv::LRUCache< K, T, COMPARE > Class Template Reference

Least-recently-used cache class. More...

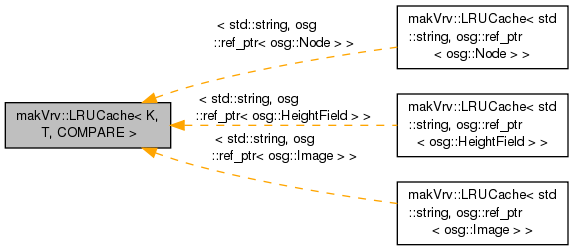

Inheritance diagram for makVrv::LRUCache< K, T, COMPARE >:
Inheritance graph
[legend]

Classes

struct  Functor
struct  Record

Public Member Functions

 LRUCache (unsigned max=100)
 LRUCache (bool threadsafe, unsigned max=100)
virtual ~LRUCache ()
 dtor
void insert (const K &key, const T &value)
bool get (const K &key, Record &out)
bool has (const K &key)
void erase (const K &key)
void clear ()
void setMaxSize (unsigned max)
unsigned getMaxSize () const
CacheStats getStats () const
void iterate (Functor &functor) const
void enableDebug (bool enable)

Protected Types

typedef std::list< K >::iterator lru_iter
typedef std::list< K > lru_type
typedef std::pair< T, lru_iter > map_value_type
typedef std::map< K,
map_value_type > 		map_type
typedef map_type::iterator map_iter
typedef map_type::const_iterator map_const_iter

Protected Attributes

map_type _map
lru_type _lru
unsigned _max
unsigned _buf
unsigned _queries
unsigned _hits
bool _threadsafe
Threading::Mutex _mutex

Private Member Functions

void insert_impl (const K &key, const T &value)
void get_impl (const K &key, Record &result)
bool has_impl (const K &key)
void erase_impl (const K &key)
void clear_impl ()
void setMaxSize_impl (unsigned max)
void iterate_impl (Functor &f) const

Private Attributes

bool myDebug

Detailed Description

template<typename K, typename T, typename COMPARE = std::less<K>>
class makVrv::LRUCache< K, T, COMPARE >

Least-recently-used cache class.

K = key type, T = value type

usage: LRUCache<K,T> cache; cache.put( key, value ); LRUCache.Record rec = cache.get( key ); if ( rec.valid() ) const T& value = rec.value();

Member Typedef Documentation

template<typename K, typename T, typename COMPARE = std::less<K>>
typedef std::list<K>::iterator makVrv::LRUCache< K, T, COMPARE >::lru_iter
protected
template<typename K, typename T, typename COMPARE = std::less<K>>
typedef std::list<K> makVrv::LRUCache< K, T, COMPARE >::lru_type
protected
template<typename K, typename T, typename COMPARE = std::less<K>>
typedef std::pair<T, lru_iter> makVrv::LRUCache< K, T, COMPARE >::map_value_type
protected
template<typename K, typename T, typename COMPARE = std::less<K>>
typedef std::map<K, map_value_type> makVrv::LRUCache< K, T, COMPARE >::map_type
protected
template<typename K, typename T, typename COMPARE = std::less<K>>
typedef map_type::iterator makVrv::LRUCache< K, T, COMPARE >::map_iter
protected
template<typename K, typename T, typename COMPARE = std::less<K>>
typedef map_type::const_iterator makVrv::LRUCache< K, T, COMPARE >::map_const_iter
protected

Constructor & Destructor Documentation

template<typename K, typename T, typename COMPARE = std::less<K>>
makVrv::LRUCache< K, T, COMPARE >::LRUCache ( unsigned  max = 100)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
makVrv::LRUCache< K, T, COMPARE >::LRUCache ( bool  threadsafe,
unsigned  max = 100
)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
virtual makVrv::LRUCache< K, T, COMPARE >::~LRUCache ( )
inlinevirtual

dtor

Member Function Documentation

template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::insert ( const K &  key,
const T &  value
)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
bool makVrv::LRUCache< K, T, COMPARE >::get ( const K &  key,
Record &  out
)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
bool makVrv::LRUCache< K, T, COMPARE >::has ( const K &  key)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::erase ( const K &  key)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::clear ( )
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::setMaxSize ( unsigned  max)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
unsigned makVrv::LRUCache< K, T, COMPARE >::getMaxSize ( ) const
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
CacheStats makVrv::LRUCache< K, T, COMPARE >::getStats ( ) const
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::iterate ( Functor &  functor) const
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::enableDebug ( bool  enable)
inline
template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::insert_impl ( const K &  key,
const T &  value
)
inlineprivate

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert().

template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::get_impl ( const K &  key,
Record &  result
)
inlineprivate

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::get().

template<typename K, typename T, typename COMPARE = std::less<K>>
bool makVrv::LRUCache< K, T, COMPARE >::has_impl ( const K &  key)
inlineprivate

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::has().

template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::erase_impl ( const K &  key)
inlineprivate

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::erase().

template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::clear_impl ( )
inlineprivate

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::clear().

template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::setMaxSize_impl ( unsigned  max)
inlineprivate

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::LRUCache(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::setMaxSize().

template<typename K, typename T, typename COMPARE = std::less<K>>
void makVrv::LRUCache< K, T, COMPARE >::iterate_impl ( Functor &  f) const
inlineprivate

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::iterate().

Member Data Documentation

template<typename K, typename T, typename COMPARE = std::less<K>>
map_type makVrv::LRUCache< K, T, COMPARE >::_map
protected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::clear_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::erase_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::get_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::getStats(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::has_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::iterate_impl(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::setMaxSize_impl().

template<typename K, typename T, typename COMPARE = std::less<K>>
lru_type makVrv::LRUCache< K, T, COMPARE >::_lru
protected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::clear_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::erase_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::get_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert_impl(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::setMaxSize_impl().

template<typename K, typename T, typename COMPARE = std::less<K>>
unsigned makVrv::LRUCache< K, T, COMPARE >::_max
protected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::getMaxSize(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::getStats(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert_impl(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::setMaxSize_impl().

template<typename K, typename T, typename COMPARE = std::less<K>>
unsigned makVrv::LRUCache< K, T, COMPARE >::_buf
protected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert_impl(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::setMaxSize_impl().

template<typename K, typename T, typename COMPARE = std::less<K>>
unsigned makVrv::LRUCache< K, T, COMPARE >::_queries
protected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::clear_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::get_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::getStats(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::LRUCache().

template<typename K, typename T, typename COMPARE = std::less<K>>
unsigned makVrv::LRUCache< K, T, COMPARE >::_hits
protected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::clear_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::get_impl(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::getStats(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::LRUCache().

template<typename K, typename T, typename COMPARE = std::less<K>>
bool makVrv::LRUCache< K, T, COMPARE >::_threadsafe
protected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::clear(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::erase(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::get(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::has(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::iterate(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::setMaxSize().

template<typename K, typename T, typename COMPARE = std::less<K>>
Threading::Mutex makVrv::LRUCache< K, T, COMPARE >::_mutex
mutableprotected

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::clear(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::erase(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::get(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::has(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::iterate(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::setMaxSize().

template<typename K, typename T, typename COMPARE = std::less<K>>
bool makVrv::LRUCache< K, T, COMPARE >::myDebug
private

Referenced by makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::enableDebug(), makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::insert_impl(), and makVrv::LRUCache< std::string, osg::ref_ptr< osg::Image > >::LRUCache().

The documentation for this class was generated from the following file:
