The DtLuaFeatureSet class is a wrapper around a DtFeatureSet that will provide feature information for lua scripts. More...

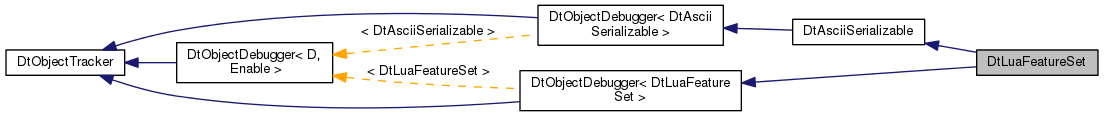

Inheritance diagram for DtLuaFeatureSet:

[legend]

Public Types
typedef std::vector< DtLocation3D >	LocationVector

typedef std::map< std::string, std::string >	AttributeMap

Public Member Functions
	DtLuaFeatureSet (DtSimManager *=0, const std::string &type="")
	CTOR. More...

	DtLuaFeatureSet (const DtLuaFeatureSet &)

DtLuaFeatureSet &	operator= (const DtLuaFeatureSet &)

DtLuaFeatureSet	getFeaturesWithinArea (luabind::object const &points, luabind::object const &attributes)
	Returns a feature set which contains all features within the specified geometry containing the specified attributes. More...

DtLuaFeatureSet	getFeaturesWithinRange (const DtLocation3D &, double range, luabind::object const &attributes)
	Returns a feature set which contains all features within the specified point and box size containing the specified attributes. More...

DtLuaFeatureSet	filter (const DtLuaFeatureGeometry &geom, luabind::object const &attributes)

DtLuaFeatureSet	filterGeometry (const DtLuaFeatureGeometry &geom)

DtLuaFeatureSet	filterAttributes (luabind::object const &attributes)

virtual void	setSimManager (DtSimManager *simManager)
	Script API functions above. ////////////////////////////////////! More...

virtual DtString	objectType () const
	Should return the string name of this object. More...

DtString	serialize ()
	Inherited from DtAsciiSerializable. Returns a string serialized version of this class. More...

bool	deserialize (const DtString &data)
	Inherited from DtAsciiSerializable. More...

Public Member Functions inherited from DtAsciiSerializable
	DtAsciiSerializable ()
	The implementer of this interface should be sure to create a creator function to create an empty object that returns a pointer to this interface. More...

	DtAsciiSerializable (const DtAsciiSerializable &orig)

virtual	~DtAsciiSerializable ()

virtual std::string	objectTypeC () const
	Returns a std::string version of the objectType. More...

virtual void	init (void *userData)
	This function is called right after the object is constructed during the deserialization process, but before deserialize() is called. More...

Static Public Member Functions
static DtAsciiSerializable *	creator ()
	Inherited from DtAsciiSerializable. Returns a new object of this type with default values. More...

Static Public Member Functions inherited from DtObjectDebugger< DtAsciiSerializable >
static DtObjectCounter::CounterType	ObjectCount ()

static const DtObjectContainer *	ObjectContainer ()

Static Public Member Functions inherited from DtObjectDebugger< DtLuaFeatureSet >
static DtObjectCounter::CounterType	ObjectCount ()

static const DtObjectContainer *	ObjectContainer ()

Protected Types
typedef std::vector < MAKVRinTerra::DtFeature::CPtr >	Features

Protected Member Functions
virtual void	gatherFeatures (const MAKVRinTerra::DtFeature &)
	Gathers all the found features into a local vector. More...

virtual void	testLoaded ()
	Tests to see if the feature set is loaded. More...

void	update (MAKVRinTerra::DtFeatureGeometry)

void	update (const LocationVector &locations)

void	update (const AttributeMap &attributes)

void	updateRange (const DtLocation3D &center, double range)

void	updatePoints (luabind::object const &points)

void	updateAttributes (luabind::object const &attributes)

void	filterFeatures ()

Protected Member Functions inherited from DtObjectDebugger< DtAsciiSerializable >
	DtObjectDebugger ()

	DtObjectDebugger (const DtObjectDebugger &)

	~DtObjectDebugger ()

Protected Member Functions inherited from DtObjectDebugger< DtLuaFeatureSet >
	DtObjectDebugger ()

	DtObjectDebugger (const DtObjectDebugger &)

	~DtObjectDebugger ()

Protected Attributes
DtSimManager *	mySimManager

std::vector< DtLocation3D >	myLocations
	Items used to be stored into or restored from saved state. More...

std::map< std::string, std::string >	myAttributes

boost::shared_ptr < MAKVRinTerra::DtFeatureSet >	myFeatureSet

bool	myProcessed

Features	myFeatures

std::string	myType

boost::optional < MAKVRinTerra::DtQuery >	myQuery

boost::optional < MAKVRinTerra::DtFeatureGeometry >	myGeomFilter

bool	getIsLoaded () const
	Return true if the feature set is loaded. More...

int	getFeatureCount ()
	Return the number of features in the set. More...

bool	getIsPointFeature (int)
	Returns true if the feature at the particular index is a point feature. More...

bool	getIsLinearFeature (int)
	Returns true if the feature at the particular index is a linear feature. More...

bool	getIsArealFeature (int)
	Returns true if the feature at the particular index is an areal feature. More...

std::string	getFeatureType (int)
	Returns a string of the type of feature (point, line, area). More...

std::vector< std::string >	getFeatureAttributeNames (int)
	Returns a lua bound table list of all attribute names for the particular feature index. More...

bool	getHasAttributeNamed (int, const std::string)
	Returns true if there is an attribute named on the particular feature. More...

DtLocation3D	getLocation3D (int)
	Returns the 3D location of the feature. More...

std::vector< DtLocation3D >	getLocations3D (int)
	Returns a vector of points for the particular feature. More...

MAKVRinTerra::DtFeature::CPtr	feature (int)
	Returns a feature at the given index or throws an exception if index is out of range. More...

DtLuaFeatureGeometry	geometry (int)
	Returns the feature geometry at the given index or throws an exception if index is out of range. More...

DtLuaFeatureSet	load ()

static luabind::object	getFeatureAttributeValue (DtLuaFeatureSet &, int, const std::string, lua_State *)
	Returns an attribute value for the specified index and attribute name. More...

Detailed Description

The DtLuaFeatureSet class is a wrapper around a DtFeatureSet that will provide feature information for lua scripts.

When archived the query that was used to create the feature set will be saved. Upon restore the feature set will again be created. Calling isLoaded() is essential to knowing when the query is complete

Member Typedef Documentation

typedef std::vector<DtLocation3D> DtLuaFeatureSet::LocationVector

typedef std::map<std::string, std::string> DtLuaFeatureSet::AttributeMap

typedef std::vector<MAKVRinTerra::DtFeature::CPtr> DtLuaFeatureSet::Features

protected

Constructor & Destructor Documentation

DtLuaFeatureSet::DtLuaFeatureSet	(	DtSimManager *	= `0`,
		const std::string &	type = `""`
	)

CTOR.

DtLuaFeatureSet::DtLuaFeatureSet ( const DtLuaFeatureSet & )

Member Function Documentation

DtLuaFeatureSet& DtLuaFeatureSet::operator= ( const DtLuaFeatureSet & )

DtLuaFeatureSet DtLuaFeatureSet::getFeaturesWithinArea	(	luabind::object const &	points,
		luabind::object const &	attributes
	)

Returns a feature set which contains all features within the specified geometry containing the specified attributes.

DtLuaFeatureSet DtLuaFeatureSet::getFeaturesWithinRange	(	const DtLocation3D &	,
		double	range,
		luabind::object const &	attributes
	)

Returns a feature set which contains all features within the specified point and box size containing the specified attributes.

The range is in meters. The range will create a bounding box with the point supplied at the center

DtLuaFeatureSet DtLuaFeatureSet::filter	(	const DtLuaFeatureGeometry &	geom,
		luabind::object const &	attributes
	)

DtLuaFeatureSet DtLuaFeatureSet::filterGeometry ( const DtLuaFeatureGeometry & geom )

DtLuaFeatureSet DtLuaFeatureSet::filterAttributes ( luabind::object const & attributes )

virtual void DtLuaFeatureSet::setSimManager ( DtSimManager * simManager )

virtual

Script API functions above. ////////////////////////////////////!

Used by the object serializer so that an instance of this object can call checkSelf()

virtual DtString DtLuaFeatureSet::objectType ( ) const

virtual

Should return the string name of this object.

The object name should not be part of the serialization unless you want it to be, but you should take it into account when implementing both functions.

Implements DtAsciiSerializable.

DtString DtLuaFeatureSet::serialize ( )

virtual

Inherited from DtAsciiSerializable. Returns a string serialized version of this class.

Implements DtAsciiSerializable.

bool DtLuaFeatureSet::deserialize ( const DtString & data )

virtual

Inherited from DtAsciiSerializable.

Returns true if it could fill its members with the data contained in the string. False otherwise.

Implements DtAsciiSerializable.

static DtAsciiSerializable* DtLuaFeatureSet::creator ( )

static

Inherited from DtAsciiSerializable. Returns a new object of this type with default values.

bool DtLuaFeatureSet::getIsLoaded ( ) const

Return true if the feature set is loaded.

Operations that can be performed on a feature set

int DtLuaFeatureSet::getFeatureCount ( )

Return the number of features in the set.

bool DtLuaFeatureSet::getIsPointFeature ( int )

Returns true if the feature at the particular index is a point feature.

Will throw an exception if index is out of range or feature set is not loaded

bool DtLuaFeatureSet::getIsLinearFeature ( int )

Returns true if the feature at the particular index is a linear feature.

Will throw an exception if index is out of range or feature set is not loaded

bool DtLuaFeatureSet::getIsArealFeature ( int )

Returns true if the feature at the particular index is an areal feature.

Will throw an exception if index is out of range or feature set is not loaded

std::string DtLuaFeatureSet::getFeatureType ( int )

Returns a string of the type of feature (point, line, area).

Will throw an exception if index is out of range or feature set is not loaded

std::vector<std::string> DtLuaFeatureSet::getFeatureAttributeNames ( int )

Returns a lua bound table list of all attribute names for the particular feature index.

Will throw an exception if index is out of range or if feature set is not loaded

bool DtLuaFeatureSet::getHasAttributeNamed	(	int	,
		const std::string
	)

Returns true if there is an attribute named on the particular feature.

DtLocation3D DtLuaFeatureSet::getLocation3D ( int )

Returns the 3D location of the feature.

If a multi-point feature returns the first point. Will throw an exception if the index is out of range, the feature set is not loaded

std::vector<DtLocation3D> DtLuaFeatureSet::getLocations3D ( int )

Returns a vector of points for the particular feature.

If a point feature returns a vector of 1 point. Will throw an exception if the index is out of range, the feature set is not loaded

static luabind::object DtLuaFeatureSet::getFeatureAttributeValue	(	DtLuaFeatureSet &	,
		int	,
		const std::string	,
		lua_State *
	)

static

Returns an attribute value for the specified index and attribute name.

Will throw an exception if the index is out of range, the feature set is not loaded, or the attribute name is not valid for the particular feature

MAKVRinTerra::DtFeature::CPtr DtLuaFeatureSet::feature ( int )

Returns a feature at the given index or throws an exception if index is out of range.

DtLuaFeatureGeometry DtLuaFeatureSet::geometry ( int )

Returns the feature geometry at the given index or throws an exception if index is out of range.

DtLuaFeatureSet DtLuaFeatureSet::load ( )

virtual void DtLuaFeatureSet::gatherFeatures ( const MAKVRinTerra::DtFeature & )

protectedvirtual

Gathers all the found features into a local vector.

virtual void DtLuaFeatureSet::testLoaded ( )

protectedvirtual

Tests to see if the feature set is loaded.

Throws an exception if not. If it is loaded and the features have not been gathered into the feature set collection will do that

void DtLuaFeatureSet::update ( MAKVRinTerra::DtFeatureGeometry )

protected

void DtLuaFeatureSet::update ( const LocationVector & locations )

protected

void DtLuaFeatureSet::update ( const AttributeMap & attributes )

protected

void DtLuaFeatureSet::updateRange	(	const DtLocation3D &	center,
		double	range
	)

protected

void DtLuaFeatureSet::updatePoints ( luabind::object const & points )

protected

void DtLuaFeatureSet::updateAttributes ( luabind::object const & attributes )

protected

void DtLuaFeatureSet::filterFeatures ( )

protected

Member Data Documentation

DtSimManager* DtLuaFeatureSet::mySimManager

protected

std::vector<DtLocation3D> DtLuaFeatureSet::myLocations

protected

Items used to be stored into or restored from saved state.

std::map<std::string, std::string> DtLuaFeatureSet::myAttributes

protected

boost::shared_ptr<MAKVRinTerra::DtFeatureSet> DtLuaFeatureSet::myFeatureSet

protected

bool DtLuaFeatureSet::myProcessed

protected

Features DtLuaFeatureSet::myFeatures

protected

std::string DtLuaFeatureSet::myType

protected

boost::optional<MAKVRinTerra::DtQuery> DtLuaFeatureSet::myQuery

protected

boost::optional<MAKVRinTerra::DtFeatureGeometry> DtLuaFeatureSet::myGeomFilter

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfLua/luaFeatureSet.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
