DtPortData Class Reference

This is an abstract base class for all data elements that are passed through ports. More...

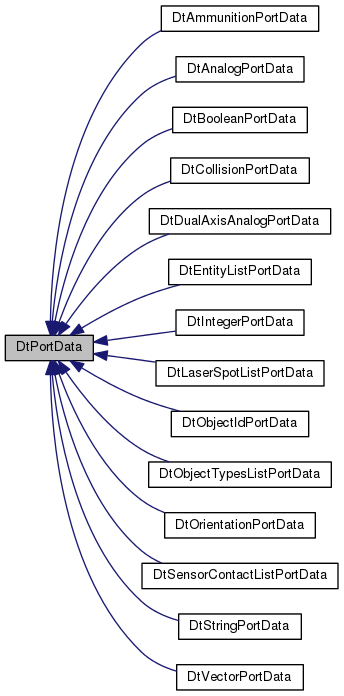

Inheritance diagram for DtPortData:

Public Member Functions
	DtPortData ()
	default constructor More...
virtual	~DtPortData ()
	destructor More...
	DtPortData (const DtPortData &orig)
	Copy Constructor. More...
DtPortData &	operator= (const DtPortData &orig)
	Assignment operator. More...
virtual const DtString	type () const =0
	Returns a string type value for this class. More...
virtual DtPortData *	clone () const =0
	Provides a copy of this port data. More...

Detailed Description

This is an abstract base class for all data elements that are passed through ports.

Derived types will be such things as DtAnalogPortData which manage a double, or more complex data types such as a target list. Derived types must provide a type() method with a unique type string and a clone() method for copying the data.

Constructor & Destructor Documentation

DtPortData::DtPortData

(

)

default constructor

virtual DtPortData::~DtPortData ( )

virtual

destructor

DtPortData::DtPortData

(

const DtPortData &

orig

)

Copy Constructor.

Member Function Documentation

DtPortData& DtPortData::operator=

(

const DtPortData &

orig

)

Assignment operator.

virtual const DtString DtPortData::type ( ) const

pure virtual

Returns a string type value for this class.

Provide a unique string for each DtPortData class.

Implemented in DtSensorContactListPortData, DtStringPortData, DtVectorPortData, DtOrientationPortData, DtEntityListPortData, DtObjectTypesListPortData, DtAmmunitionPortData, DtDualAxisAnalogPortData, DtCollisionPortData, DtAnalogPortData, DtObjectIdPortData, DtBooleanPortData, DtIntegerPortData, and DtLaserSpotListPortData.

virtual DtPortData* DtPortData::clone ( ) const

pure virtual

Provides a copy of this port data.

Implemented in DtSensorContactListPortData, DtAmmunitionPortData, DtStringPortData, DtVectorPortData, DtOrientationPortData, DtDualAxisAnalogPortData, DtEntityListPortData, DtObjectTypesListPortData, DtCollisionPortData, DtAnalogPortData, DtObjectIdPortData, DtBooleanPortData, DtIntegerPortData, and DtLaserSpotListPortData.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfobjcore/portData.h
