DtRectangularPyramidStateRepository Class Reference

Instances of DtRectangularPyramidStateRepository are used to store state data for HLAobjectRoot.SensorFieldOfView.RectangularPyramid objects. More...

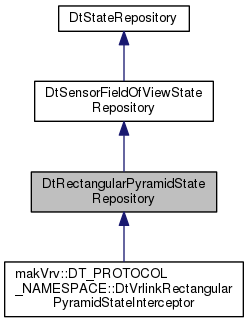

Inheritance diagram for DtRectangularPyramidStateRepository:

Public Member Functions
	DtRectangularPyramidStateRepository ()
	Constructor. More...
virtual	~DtRectangularPyramidStateRepository ()
	Destructor. More...
	DtRectangularPyramidStateRepository (const DtRectangularPyramidStateRepository &orig)
	Copy Constructor. More...
DtRectangularPyramidStateRepository &	operator= (const DtRectangularPyramidStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setXHalfAngle (DtFloat64 val)
	Set the XHalfAngle. More...
virtual DtFloat64	xHalfAngle () const
	Get the XHalfAngle. More...
virtual void	setYHalfAngle (DtFloat64 val)
	Set the YHalfAngle. More...
virtual DtFloat64	yHalfAngle () const
	Get the YHalfAngle. More...
Public Member Functions inherited from DtSensorFieldOfViewStateRepository
	DtSensorFieldOfViewStateRepository ()
	Constructor. More...
virtual	~DtSensorFieldOfViewStateRepository ()
	Destructor. More...
	DtSensorFieldOfViewStateRepository (const DtSensorFieldOfViewStateRepository &orig)
	Copy Constructor. More...
DtSensorFieldOfViewStateRepository &	operator= (const DtSensorFieldOfViewStateRepository &orig)
	Assignment Operator. More...
virtual void	setHost (const DtGlobalObjectDesignator &val)
	Set the Host. More...
virtual const DtGlobalObjectDesignator &	host () const
	Get the Host. More...
virtual void	setId (const DtString &val)
	Set the Id. More...
virtual DtString	id () const
	Get the Id. More...
virtual void	setRelativeLocation (const DtVector &val)
	Set the RelativeLocation. More...
virtual const DtVector &	relativeLocation () const
	Get the RelativeLocation. More...
virtual void	setRadius (DtFloat64 val)
	Set the Radius. More...
virtual DtFloat64	radius () const
	Get the Radius. More...
virtual void	setTrackingMode (DtSensorTrackingMode val)
	Set the TrackingMode. More...
virtual DtSensorTrackingMode	trackingMode () const
	Get the TrackingMode. More...
virtual void	setRelativeOrientation (const DtTaitBryan &val)
	Set the RelativeOrientation. More...
virtual const DtTaitBryan &	relativeOrientation () const
	Get the RelativeOrientation. More...
virtual void	setTargetedEntity (const DtGlobalObjectDesignator &val)
	Set the TargetedEntity. More...
virtual const DtGlobalObjectDesignator &	targetedEntity () const
	Get the TargetedEntity. More...
virtual void	setTargetedLocation (const DtVector &val)
	Set the TargetedLocation. More...
virtual const DtVector &	targetedLocation () const
	Get the TargetedLocation. More...
virtual void	setMinimumAzimuthAngle (DtFloat64 val)
	Set the MinimumAzimuthAngle. More...
virtual DtFloat64	minimumAzimuthAngle () const
	Get the MinimumAzimuthAngle. More...
virtual void	setMaximumAzimuthAngle (DtFloat64 val)
	Set the MaximumAzimuthAngle. More...
virtual DtFloat64	maximumAzimuthAngle () const
	Get the MaximumAzimuthAngle. More...
virtual void	setMinimumElevationAngle (DtFloat64 val)
	Set the MinimumElevationAngle. More...
virtual DtFloat64	minimumElevationAngle () const
	Get the MinimumElevationAngle. More...
virtual void	setMaximumElevationAngle (DtFloat64 val)
	Set the MaximumElevationAngle. More...
virtual DtFloat64	maximumElevationAngle () const
	Get the MaximumElevationAngle. More...
virtual void	setMaximumZoomLevel (DtFloat64 val)
	Set the MaximumZoomLevel. More...
virtual DtFloat64	maximumZoomLevel () const
	Get the MaximumZoomLevel. More...
virtual void	setZoomLevel (DtFloat64 val)
	Set the ZoomLevel. More...
virtual DtFloat64	zoomLevel () const
	Get the ZoomLevel. More...
virtual void	setColor (DtU32 val)
	Set the Color. More...
virtual DtU32	color () const
	Get the Color. More...

Static Public Member Functions
static DtRectangularPyramidStateRepository *	create ()
	Create a DtRectangularPyramidStateRepository. More...
Static Public Member Functions inherited from DtSensorFieldOfViewStateRepository
static DtSensorFieldOfViewStateRepository *	create ()
	Create a DtSensorFieldOfViewStateRepository. More...

Protected Attributes
DtFloat64	myXHalfAngle
DtFloat64	myYHalfAngle
Protected Attributes inherited from DtSensorFieldOfViewStateRepository
DtGlobalObjectDesignator	myHost
DtString	myId
DtVector	myRelativeLocation
DtFloat64	myRadius
DtSensorTrackingMode	myTrackingMode
DtTaitBryan	myRelativeOrientation
DtFloat64	myMinimumAzimuthAngle
DtFloat64	myMaximumAzimuthAngle
DtFloat64	myMinimumElevationAngle
DtFloat64	myMaximumElevationAngle
DtGlobalObjectDesignator	myTargetedEntity
DtVector	myTargetedLocation
DtFloat64	myMaximumZoomLevel
DtFloat64	myZoomLevel
DtU32	myColor

Detailed Description

Instances of DtRectangularPyramidStateRepository are used to store state data for HLAobjectRoot.SensorFieldOfView.RectangularPyramid objects.

Constructor & Destructor Documentation

DtRectangularPyramidStateRepository::DtRectangularPyramidStateRepository

(

)

Constructor.

virtual DtRectangularPyramidStateRepository::~DtRectangularPyramidStateRepository ( )

virtual

Destructor.

DtRectangularPyramidStateRepository::DtRectangularPyramidStateRepository

(

const DtRectangularPyramidStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

DtRectangularPyramidStateRepository& DtRectangularPyramidStateRepository::operator=

(

const DtRectangularPyramidStateRepository &

orig

)

Assignment Operator.

virtual DtStateRepository* DtRectangularPyramidStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtSensorFieldOfViewStateRepository.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

static DtRectangularPyramidStateRepository* DtRectangularPyramidStateRepository::create ( )

static

Create a DtRectangularPyramidStateRepository.

virtual void DtRectangularPyramidStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtSensorFieldOfViewStateRepository.

virtual void DtRectangularPyramidStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtSensorFieldOfViewStateRepository.

virtual void DtRectangularPyramidStateRepository::setXHalfAngle ( DtFloat64  val )

virtual

Set the XHalfAngle.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual DtFloat64 DtRectangularPyramidStateRepository::xHalfAngle ( ) const

virtual

Get the XHalfAngle.

virtual void DtRectangularPyramidStateRepository::setYHalfAngle ( DtFloat64  val )

virtual

Set the YHalfAngle.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual DtFloat64 DtRectangularPyramidStateRepository::yHalfAngle ( ) const

virtual

Get the YHalfAngle.

Member Data Documentation

DtFloat64 DtRectangularPyramidStateRepository::myXHalfAngle

protected

DtFloat64 DtRectangularPyramidStateRepository::myYHalfAngle

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfExtObjects/rectangularPyramidStateRepository.h
