DtTerrainSourceTracker Class Reference

Base class for Terrain Source trackers. More...

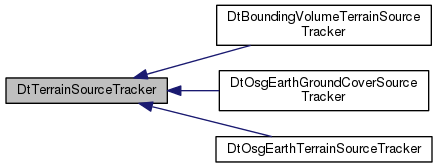

Inheritance diagram for DtTerrainSourceTracker:

Public Member Functions
	DtTerrainSourceTracker (DtVantageTerrainEngine *, DtPagerCommandQueue *commandQueue, osgEarth::MapNode *mapNode)
	CTOR. More...
virtual	~DtTerrainSourceTracker ()
	DTOR. More...
virtual DtTerrainInterfaceConfig &	configOptions ()
virtual const DtTerrainInterfaceConfig &	configOptions () const
virtual bool	init (DtTerrainSourcePager &)
	Called after options are set. More...
virtual boost::optional < DtTerrainIntersectOptions::Fidelity >	intersectFidelity () const
	Fidelity that this tracker is configured for. More...
virtual bool	dataAvailable (DtPagingMetaDataPtr metaData, DtTerrainPagingGeometryPtr geometry)=0
virtual void	pageInData (DtPagingMetaDataPtr metaData, DtTerrainPagingGeometryPtr geometry)=0
	Page in data within geometry. More...
virtual bool	canPageOutData (DtTerrainIntersectIDType intersectId)=0
virtual DtTerrainIntersectIDType	findOldestPagedData (unsigned int &numTriangles)=0
	Finds the least-recently-used tile and set myOldestPagedObject to it. More...
virtual void	pageOutOldestData (const int priority)=0
	Adds a page out command for the least-recently-used tileID to myCommandQueue. More...
virtual void	addNodesToCollisionMapping (DtNodeId node, DtCollisionObjectList *collObjList)
virtual void	removeNodeToCollisionMappings (DtNodeId node)
virtual DtCollisionObjectList	collisionObjectsForNode (DtNodeId node)
virtual osgEarth::MapNode *	mapNode () const
	Access osgEarth::MapNode object. More...
virtual const Coordinate_System *	localCS () const
	Return the local coordinate system. More...
virtual void	setLabel (const DtString &)
virtual void	printInfo () const
virtual void	getPageOutData (DtNodeBoundingList &nodeBoundingList)
	Return a list of bounding sphere that represent the the paged in tiles. More...
virtual void	getPageInData (DtNodeBoundingList &nodeBoundingList)
	Return a list of bounding sphere that represent the the paged out tiles. More...
virtual void	getProceduralTreeTile (DtDebugDrawTerrainOutputInterface::terrainLineList &nodeBoundingList)
	Return a list of tiles that represent the ground cover loaded. More...
virtual unsigned	getMaxLODForBilinearIntersection () const
virtual double	intersetionTriangleMergeTolerance () const
virtual bool	useLandCoverData () const
	Return true if the current tracker use land cover data. More...
virtual DtSurface	getSoilFromString (const std::string &soilType) const
virtual double	triangleOutputMergeTolerance () const
virtual unsigned	minElevationIndexLOD () const
virtual unsigned	maxElevationIndexLOD () const
virtual unsigned	maxLOD () const
	Return the max lod. More...
virtual bool	useRawElevation () const
	Return true if the current tracker use raw elevation. More...
virtual osgEarth::TileKey	getBestTileKey (const osgEarth::TileKey &) const
	Return the best tile key to use (based on the tracker) for a pass tilekey. More...

Protected Attributes
DtString	myLabel
DtTerrainInterfaceConfig	myConfig
DtPagerCommandQueue *	myCommandQueue
DtNodeToCollObjMMap	myNodeToCollObjMMap
tbb::spin_rw_mutex	myMutex
DtVantageTerrainEngine *	myVantageTerrainEngine
const osg::ref_ptr < osgEarth::MapNode >	myMapNode
	map node for whole terrain More...

Detailed Description

Base class for Terrain Source trackers.

Determines if the necessary data To perform an intersection is currently available. Can also create commands for a DtTerrainSourceTracker to actually perform the paging.

Constructor & Destructor Documentation

DtTerrainSourceTracker::DtTerrainSourceTracker	(	DtVantageTerrainEngine *	,
		DtPagerCommandQueue *	commandQueue,
		osgEarth::MapNode *	mapNode
	)

CTOR.

virtual DtTerrainSourceTracker::~DtTerrainSourceTracker ( )

virtual

DTOR.

Member Function Documentation

virtual DtTerrainInterfaceConfig& DtTerrainSourceTracker::configOptions ( )

virtual

virtual const DtTerrainInterfaceConfig& DtTerrainSourceTracker::configOptions ( ) const

virtual

virtual bool DtTerrainSourceTracker::init ( DtTerrainSourcePager &  )

virtual

Called after options are set.

Returns false if error.

Reimplemented in DtOsgEarthTerrainSourceTracker, and DtOsgEarthGroundCoverSourceTracker.

virtual boost::optional<DtTerrainIntersectOptions::Fidelity> DtTerrainSourceTracker::intersectFidelity ( ) const

virtual

Fidelity that this tracker is configured for.

The default returns an empty optional which means that this tracker will be used for all terrain intersections. If value is returned then this tracker will only be used for intersections which specify that fidelity.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual bool DtTerrainSourceTracker::dataAvailable ( DtPagingMetaDataPtr  metaData, DtTerrainPagingGeometryPtr  geometry  )

pure virtual

Returns

True if all data along this chord has been paged in.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, and DtOsgEarthGroundCoverSourceTracker.

virtual void DtTerrainSourceTracker::pageInData ( DtPagingMetaDataPtr  metaData, DtTerrainPagingGeometryPtr  geometry  )

pure virtual

Page in data within geometry.

Determines which tiles are within the geometry and adds a page in command to myCommandQueue to page in any tiles within the geometry that have not yet been paged in.

Parameters

geometry	The geometry to page in data within.
intersectId	Id to assign to the page in command to seed tileData for newly paged-in tiles.
priority	Priority to use for commands generated by this call.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, and DtOsgEarthGroundCoverSourceTracker.

virtual bool DtTerrainSourceTracker::canPageOutData ( DtTerrainIntersectIDType  intersectId )

pure virtual

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, and DtOsgEarthGroundCoverSourceTracker.

virtual DtTerrainIntersectIDType DtTerrainSourceTracker::findOldestPagedData ( unsigned int &  numTriangles )

pure virtual

Finds the least-recently-used tile and set myOldestPagedObject to it.

Parameters

numTrianglesOut

The number of triangles the least-recently-used tileId represents in the collision world.

Returns

The id of the last intersect test for which this tracker's least-recently-used data was necessary.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, and DtOsgEarthGroundCoverSourceTracker.

virtual void DtTerrainSourceTracker::pageOutOldestData ( const int  priority )

pure virtual

Adds a page out command for the least-recently-used tileID to myCommandQueue.

Parameters

priority

Priority to use for commands generated by this call.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, and DtOsgEarthGroundCoverSourceTracker.

virtual void DtTerrainSourceTracker::addNodesToCollisionMapping ( DtNodeId  node, DtCollisionObjectList *  collObjList  )

virtual

virtual void DtTerrainSourceTracker::removeNodeToCollisionMappings ( DtNodeId  node )

virtual

virtual DtCollisionObjectList DtTerrainSourceTracker::collisionObjectsForNode ( DtNodeId  node )

virtual

virtual osgEarth::MapNode* DtTerrainSourceTracker::mapNode ( ) const

virtual

Access osgEarth::MapNode object.

virtual const Coordinate_System* DtTerrainSourceTracker::localCS ( ) const

virtual

Return the local coordinate system.

virtual void DtTerrainSourceTracker::setLabel ( const DtString &  )

virtual

virtual void DtTerrainSourceTracker::printInfo ( ) const

virtual

Reimplemented in DtBoundingVolumeTerrainSourceTracker.

virtual void DtTerrainSourceTracker::getPageOutData ( DtNodeBoundingList &  nodeBoundingList )

virtual

Return a list of bounding sphere that represent the the paged in tiles.

Reimplemented in DtBoundingVolumeTerrainSourceTracker.

virtual void DtTerrainSourceTracker::getPageInData ( DtNodeBoundingList &  nodeBoundingList )

virtual

Return a list of bounding sphere that represent the the paged out tiles.

Reimplemented in DtBoundingVolumeTerrainSourceTracker.

virtual void DtTerrainSourceTracker::getProceduralTreeTile ( DtDebugDrawTerrainOutputInterface::terrainLineList &  nodeBoundingList )

virtual

Return a list of tiles that represent the ground cover loaded.

Reimplemented in DtOsgEarthGroundCoverSourceTracker.

virtual unsigned DtTerrainSourceTracker::getMaxLODForBilinearIntersection ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual double DtTerrainSourceTracker::intersetionTriangleMergeTolerance ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual bool DtTerrainSourceTracker::useLandCoverData ( ) const

virtual

Return true if the current tracker use land cover data.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual DtSurface DtTerrainSourceTracker::getSoilFromString ( const std::string &  soilType ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual double DtTerrainSourceTracker::triangleOutputMergeTolerance ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual unsigned DtTerrainSourceTracker::minElevationIndexLOD ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual unsigned DtTerrainSourceTracker::maxElevationIndexLOD ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual unsigned DtTerrainSourceTracker::maxLOD ( ) const

virtual

Return the max lod.

Reimplemented in DtOsgEarthGroundCoverSourceTracker, and DtOsgEarthTerrainSourceTracker.

virtual bool DtTerrainSourceTracker::useRawElevation ( ) const

virtual

Return true if the current tracker use raw elevation.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual osgEarth::TileKey DtTerrainSourceTracker::getBestTileKey ( const osgEarth::TileKey &  ) const

virtual

Return the best tile key to use (based on the tracker) for a pass tilekey.

Reimplemented in DtOsgEarthTerrainSourceTracker.

Member Data Documentation

DtString DtTerrainSourceTracker::myLabel

protected

DtTerrainInterfaceConfig DtTerrainSourceTracker::myConfig

protected

DtPagerCommandQueue* DtTerrainSourceTracker::myCommandQueue

protected

DtNodeToCollObjMMap DtTerrainSourceTracker::myNodeToCollObjMMap

protected

tbb::spin_rw_mutex DtTerrainSourceTracker::myMutex

mutableprotected

DtVantageTerrainEngine* DtTerrainSourceTracker::myVantageTerrainEngine

protected

const osg::ref_ptr<osgEarth::MapNode> DtTerrainSourceTracker::myMapNode

protected

map node for whole terrain

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vantageTerrainImplementation/terrainSourceTracker.h
