DtVectorGeoc3D Class Reference

! VectorGeoc3D is a direction in 3-space, i.e. More...

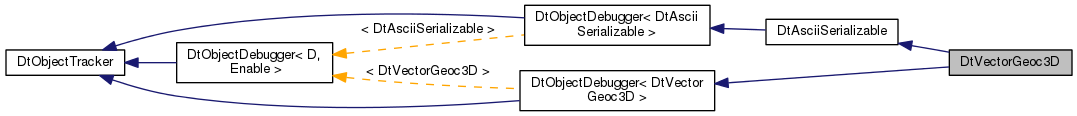

Inheritance diagram for DtVectorGeoc3D:

Public Member Functions
	DtVectorGeoc3D (const DtVector &vect)
	DtVectorGeoc3D (const DtVectorGeoc3D &orig)
	~DtVectorGeoc3D ()
DtVectorGeoc3D &	operator= (const DtVectorGeoc3D &orig)
DtVector	geocVector () const
DtVectorGeoc3D	makeCopy () const
	The assignment operator and copy constructor above, are useful in the expected way for C++ code, but Lua just copies the references to objects, so a special copy function is needed. More...
DtVector3D	makeVector3DAtLoc (const DtLocation3D loc) const
	Makes a direction vector at a particular location on the earth, given the location and this geocentric direction vector. More...
DtVectorGeoc3D	crossVectorGeoc3D (const DtVectorGeoc3D &vec) const
	Takes the cross product of given vector with this one. More...
double	dotVectorGeoc3D (const DtVectorGeoc3D &vec) const
	Takes the dot product of the given vector with this one. More...
double	getLength () const
	Returns the length of the vector. More...
bool	operator== (const DtVectorGeoc3D &) const
bool	operator!= (const DtVectorGeoc3D &orig) const
DtVectorGeoc3D	getScaled (const double scale) const
	Vector modification functions. More...
DtVectorGeoc3D	getNegated (void) const
DtVectorGeoc3D	getUnit (void) const
Public Member Functions inherited from DtAsciiSerializable
	DtAsciiSerializable ()
	The implementer of this interface should be sure to create a creator function to create an empty object that returns a pointer to this interface. More...
	DtAsciiSerializable (const DtAsciiSerializable &orig)
virtual	~DtAsciiSerializable ()
virtual std::string	objectTypeC () const
	Returns a std::string version of the objectType. More...
virtual void	init (void *userData)
	This function is called right after the object is constructed during the deserialization process, but before deserialize() is called. More...

Protected Attributes
DtVector	myGeocVector
DtString	objectType () const
	Inherited from DtAsciiSerializable. More...
DtString	serialize ()
	Returns a string serialized version of this class. More...
bool	deserialize (const DtString &data)
	Returns true if it could fill its members with the data contained in the string. More...
static DtAsciiSerializable *	creator ()
	Returns a new object of this type with default values. More...

Additional Inherited Members
Static Public Member Functions inherited from DtObjectDebugger< DtAsciiSerializable >
static DtObjectCounter::CounterType	ObjectCount ()
static const DtObjectContainer *	ObjectContainer ()
Static Public Member Functions inherited from DtObjectDebugger< DtVectorGeoc3D >
static DtObjectCounter::CounterType	ObjectCount ()
static const DtObjectContainer *	ObjectContainer ()
Protected Member Functions inherited from DtObjectDebugger< DtAsciiSerializable >
	DtObjectDebugger ()
	DtObjectDebugger (const DtObjectDebugger &)
	~DtObjectDebugger ()
Protected Member Functions inherited from DtObjectDebugger< DtVectorGeoc3D >
	DtObjectDebugger ()
	DtObjectDebugger (const DtObjectDebugger &)
	~DtObjectDebugger ()

Detailed Description

! VectorGeoc3D is a direction in 3-space, i.e.

a vector in geocentric coordinates

Constructor & Destructor Documentation

DtVectorGeoc3D::DtVectorGeoc3D

(

const DtVector &

vect

)

DtVectorGeoc3D::DtVectorGeoc3D

(

const DtVectorGeoc3D &

orig

)

DtVectorGeoc3D::~DtVectorGeoc3D

(

)

Member Function Documentation

DtVectorGeoc3D& DtVectorGeoc3D::operator=

(

const DtVectorGeoc3D &

orig

)

DtVector DtVectorGeoc3D::geocVector

(

)

const

DtString DtVectorGeoc3D::objectType ( ) const

virtual

Inherited from DtAsciiSerializable.

Returns "DtVectorGeoc3D"

Implements DtAsciiSerializable.

DtString DtVectorGeoc3D::serialize ( )

virtual

Returns a string serialized version of this class.

Implements DtAsciiSerializable.

bool DtVectorGeoc3D::deserialize ( const DtString &  data )

virtual

Returns true if it could fill its members with the data contained in the string.

False otherwise.

Implements DtAsciiSerializable.

static DtAsciiSerializable* DtVectorGeoc3D::creator ( )

static

Returns a new object of this type with default values.

DtVectorGeoc3D DtVectorGeoc3D::makeCopy

(

)

const

The assignment operator and copy constructor above, are useful in the expected way for C++ code, but Lua just copies the references to objects, so a special copy function is needed.

DtVector3D DtVectorGeoc3D::makeVector3DAtLoc

(

const DtLocation3D

loc

)

const

Makes a direction vector at a particular location on the earth, given the location and this geocentric direction vector.

DtVectorGeoc3D DtVectorGeoc3D::getScaled

(

const double

scale

)

const

Vector modification functions.

Return a new vector.

DtVectorGeoc3D DtVectorGeoc3D::getNegated

(

void

)

const

DtVectorGeoc3D DtVectorGeoc3D::getUnit

(

void

)

const

DtVectorGeoc3D DtVectorGeoc3D::crossVectorGeoc3D

(

const DtVectorGeoc3D &

vec

)

const

Takes the cross product of given vector with this one.

double DtVectorGeoc3D::dotVectorGeoc3D

(

const DtVectorGeoc3D &

vec

)

const

Takes the dot product of the given vector with this one.

double DtVectorGeoc3D::getLength

(

)

const

Returns the length of the vector.

bool DtVectorGeoc3D::operator==

(

const DtVectorGeoc3D &

)

const

bool DtVectorGeoc3D::operator!= ( const DtVectorGeoc3D &  orig ) const

inline

Member Data Documentation

DtVector DtVectorGeoc3D::myGeocVector

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfutil/scriptGeometry.h
