DtVrfExtensions Class Reference

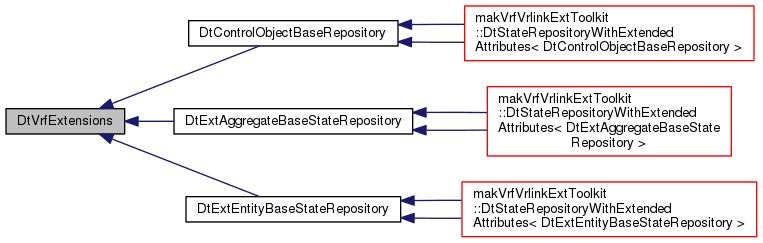

Inheritance diagram for DtVrfExtensions:

Public Member Functions
	DtVrfExtensions ()
virtual	~DtVrfExtensions ()
	DtVrfExtensions (const DtVrfExtensions &orig)
DtVrfExtensions &	operator= (const DtVrfExtensions &orig)
virtual const DtString &	name () const
virtual void	setName (const DtString &n)
virtual const DtString &	vrfObjectLabel () const
virtual void	setVrfObjectLabel (const DtString &l)
virtual const DtString &	echelonId () const
virtual void	setEchelonId (const DtString &l)
virtual const DtString &	overlayParent () const
virtual void	setOverlayParent (const DtString &l)
virtual bool	isVrfSimulated () const
virtual void	setIsVrfSimulated (bool vrf)
virtual DtU32	vrfSessionId () const
virtual void	setVrfSessionId (DtU32 id)
virtual void	setVrfMessageVersionSupported (DtU32 id)
virtual DtU32	vrfMessageVersionSupported () const
virtual void	setObjectType (const DtObjectType &)
virtual const DtObjectType &	objectType () const
virtual void	setIsSubordinateOfForce (bool b)
virtual bool	isSubordinateOfForce () const
virtual int	superType () const
virtual void	setHasPlan (bool yesNo)
virtual bool	hasPlan () const
virtual void	setIsCurrentlyTasked (bool yesNo)
virtual bool	isCurrentlyTasked () const
virtual void	setRulesOfEngagement (const DtString &)
virtual const DtString &	rulesOfEngagement () const
virtual bool	setupFromVrfObjectData (const DtIfVrfObjectData &data)
virtual void	addRangeItem (const DtRangeItem &)
	Adds, removes and returns items in the range item list. More...
virtual void	removeRangeItem (int index)
virtual void	setRangeItems (const DtRangeItems &)
const DtRangeItems &	rangeItems () const
virtual bool	createVrfObjectDataMessage ()
virtual DtIfVrfObjectData *	vrfObjectDataMessage () const
virtual void	setIndependentlyTasked (bool yesNo)
virtual bool	independentlyTasked () const
virtual void	setUnderFire (bool yesNo)
virtual bool	underFire () const
virtual void	setExecutingPlan (bool yesNo)
virtual bool	executingPlan () const
virtual void	setExtendedData (const std::map< DtString, DtString > &)
	Gets/sets extended data. More...
virtual const std::map < DtString, DtString > &	extendedData () const
virtual void	setExtendedData (const DtString &key, const DtString &value)
virtual DtString	extendedData (const DtString &) const
virtual void	setBoundingVolume (const DtVector32 &)
	Sets/gets bounding volume and bounding volume offset of an entity. More...
virtual const DtVector32 &	boundingVolume () const
virtual void	setBoundingVolumeOffset (const DtVector32 &)
virtual const DtVector32 &	boundingVolumeOffset () const

Static Public Member Functions
static void	setExpectedVrfMessageVersion (DtU32 version)
	The expected VRF message version of this application. More...
static DtU32	expectedVrfMessageVersion ()

Protected Member Functions
virtual void	extensionModified ()

Protected Attributes
DtString	myName
DtIfVrfObjectData *	myVrfObjectDataMessage

Static Protected Attributes
static DtU32	theExpectedVrfMessageVersion

Constructor & Destructor Documentation

DtVrfExtensions::DtVrfExtensions

(

)

virtual DtVrfExtensions::~DtVrfExtensions ( )

virtual

DtVrfExtensions::DtVrfExtensions

(

const DtVrfExtensions &

orig

)

Member Function Documentation

DtVrfExtensions& DtVrfExtensions::operator=

(

const DtVrfExtensions &

orig

)

virtual const DtString& DtVrfExtensions::name ( ) const

virtual

virtual void DtVrfExtensions::setName ( const DtString &  n )

virtual

virtual const DtString& DtVrfExtensions::vrfObjectLabel ( ) const

virtual

virtual void DtVrfExtensions::setVrfObjectLabel ( const DtString &  l )

virtual

virtual const DtString& DtVrfExtensions::echelonId ( ) const

virtual

virtual void DtVrfExtensions::setEchelonId ( const DtString &  l )

virtual

virtual const DtString& DtVrfExtensions::overlayParent ( ) const

virtual

virtual void DtVrfExtensions::setOverlayParent ( const DtString &  l )

virtual

virtual bool DtVrfExtensions::isVrfSimulated ( ) const

virtual

virtual void DtVrfExtensions::setIsVrfSimulated ( bool  vrf )

virtual

virtual DtU32 DtVrfExtensions::vrfSessionId ( ) const

virtual

virtual void DtVrfExtensions::setVrfSessionId ( DtU32  id )

virtual

virtual void DtVrfExtensions::setVrfMessageVersionSupported ( DtU32  id )

virtual

virtual DtU32 DtVrfExtensions::vrfMessageVersionSupported ( ) const

virtual

virtual void DtVrfExtensions::setObjectType ( const DtObjectType &  )

virtual

Reimplemented in DtControlObjectBaseRepository.

virtual const DtObjectType& DtVrfExtensions::objectType ( ) const

virtual

virtual void DtVrfExtensions::setIsSubordinateOfForce ( bool  b )

virtual

virtual bool DtVrfExtensions::isSubordinateOfForce ( ) const

virtual

virtual void DtVrfExtensions::setIndependentlyTasked ( bool  yesNo )

virtual

virtual bool DtVrfExtensions::independentlyTasked ( ) const

virtual

virtual int DtVrfExtensions::superType ( ) const

virtual

virtual void DtVrfExtensions::setUnderFire ( bool  yesNo )

virtual

virtual bool DtVrfExtensions::underFire ( ) const

virtual

virtual void DtVrfExtensions::setHasPlan ( bool  yesNo )

virtual

virtual bool DtVrfExtensions::hasPlan ( ) const

virtual

virtual void DtVrfExtensions::setExecutingPlan ( bool  yesNo )

virtual

virtual bool DtVrfExtensions::executingPlan ( ) const

virtual

virtual void DtVrfExtensions::setIsCurrentlyTasked ( bool  yesNo )

virtual

virtual bool DtVrfExtensions::isCurrentlyTasked ( ) const

virtual

virtual void DtVrfExtensions::setRulesOfEngagement ( const DtString &  )

virtual

virtual const DtString& DtVrfExtensions::rulesOfEngagement ( ) const

virtual

virtual bool DtVrfExtensions::setupFromVrfObjectData ( const DtIfVrfObjectData &  data )

virtual

Reimplemented in DtExtEntityBaseStateRepository.

virtual void DtVrfExtensions::addRangeItem ( const DtRangeItem &  )

virtual

Adds, removes and returns items in the range item list.

virtual void DtVrfExtensions::removeRangeItem ( int  index )

virtual

virtual void DtVrfExtensions::setRangeItems ( const DtRangeItems &  )

virtual

const DtRangeItems& DtVrfExtensions::rangeItems

(

)

const

virtual void DtVrfExtensions::setExtendedData ( const std::map< DtString, DtString > &  )

virtual

Gets/sets extended data.

Reimplemented in DtControlObjectBaseRepository, and DtExtAggregateBaseStateRepository.

virtual const std::map<DtString, DtString>& DtVrfExtensions::extendedData ( ) const

virtual

virtual void DtVrfExtensions::setExtendedData ( const DtString &  key, const DtString &  value  )

virtual

Reimplemented in DtControlObjectBaseRepository, and DtExtAggregateBaseStateRepository.

virtual DtString DtVrfExtensions::extendedData ( const DtString &  ) const

virtual

Reimplemented in DtControlObjectBaseRepository, and DtExtAggregateBaseStateRepository.

virtual void DtVrfExtensions::setBoundingVolume ( const DtVector32 &  )

virtual

Sets/gets bounding volume and bounding volume offset of an entity.

Note that the offsets are in body coordinates

virtual const DtVector32& DtVrfExtensions::boundingVolume ( ) const

virtual

virtual void DtVrfExtensions::setBoundingVolumeOffset ( const DtVector32 &  )

virtual

virtual const DtVector32& DtVrfExtensions::boundingVolumeOffset ( ) const

virtual

static void DtVrfExtensions::setExpectedVrfMessageVersion ( DtU32  version )

static

The expected VRF message version of this application.

static DtU32 DtVrfExtensions::expectedVrfMessageVersion ( )

static

virtual bool DtVrfExtensions::createVrfObjectDataMessage ( )

virtual

Reimplemented in DtExtEntityStateRepository, DtControlObjectRepository, and DtExtAggregateStateRepository.

virtual DtIfVrfObjectData* DtVrfExtensions::vrfObjectDataMessage ( ) const

virtual

virtual void DtVrfExtensions::extensionModified ( )

protectedvirtual

Reimplemented in DtControlObjectBaseRepository, DtExtAggregateBaseStateRepository, and DtExtEntityBaseStateRepository.

Member Data Documentation

DtString DtVrfExtensions::myName

protected

DtIfVrfObjectData* DtVrfExtensions::myVrfObjectDataMessage

protected

DtU32 DtVrfExtensions::theExpectedVrfMessageVersion

staticprotected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfExtObjects/vrfExtensions.h
