makVrf::DtConditionalDialogInterface Class Reference

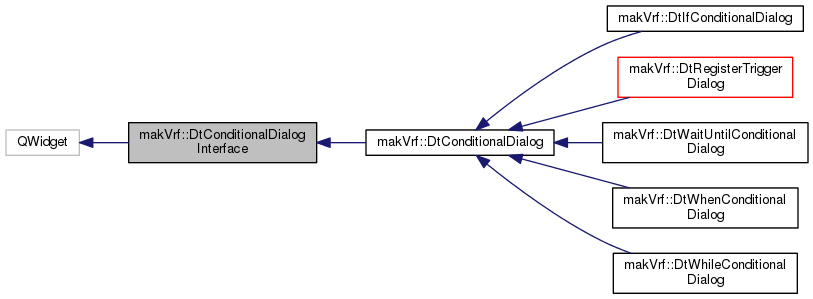

Inheritance diagram for makVrf::DtConditionalDialogInterface:

Public Member Functions
	DtConditionalDialogInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtConditionalDialogInterface ()
virtual void	run (const std::vector< makVrv::DtSimEntry * > &data)=0
	Override to run the dialog. More...
virtual void	conditionComplete (const DtSimStatement &)
	Sends signal to send out set. More...
virtual void	conditionCancelled ()
	Sends signal that current condition expression was cancelled. More...
virtual void	setupGui (const std::vector< makVrv::DtSimEntry * > &data)=0
virtual void	enable ()=0
	enables interface More...
virtual void	disable ()=0
	disbles interface More...
virtual DtSimCondExpr *	conditionalExpression () const =0
	Calls down to view to get condition. Memory allocated must be freed by caller. More...
virtual bool	editExpression (const DtSimStatement *, const DtSimCondExpr *, const std::vector< makVrv::DtSimEntry * > &data)=0
	edits the expression More...
virtual QString	statementDescription () const =0
virtual void	setStatementDescription (const QString &)=0
virtual void	setTriggers (DtRwTriggersList *)
virtual DtRwTriggersList *	triggers () const
virtual void	setConditionalMenu (DtVrfConditionalMenu *)

Public Attributes
boost::signals2::signal< void(const DtSimStatement &)>	signal_conditionComplete
boost::signals2::signal< void()>	signal_conditionCancelled
boost::signals2::signal< void(DtConditionalDialogInterface *)>	signal_destroyed

Protected Attributes
makVrv::DtDe &	myDe
DtRwTriggersList *	myTriggers
DtVrfConditionalMenu *	myConditionalMenu

Constructor & Destructor Documentation

makVrf::DtConditionalDialogInterface::DtConditionalDialogInterface	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtConditionalDialogInterface::~DtConditionalDialogInterface ( )

virtual

Member Function Documentation

virtual void makVrf::DtConditionalDialogInterface::run ( const std::vector< makVrv::DtSimEntry * > &  data )

pure virtual

Override to run the dialog.

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::conditionComplete ( const DtSimStatement &  )

virtual

Sends signal to send out set.

virtual void makVrf::DtConditionalDialogInterface::conditionCancelled ( )

virtual

Sends signal that current condition expression was cancelled.

virtual void makVrf::DtConditionalDialogInterface::setupGui ( const std::vector< makVrv::DtSimEntry * > &  data )

pure virtual

Implemented in makVrf::DtRegisterTriggerDialog, and makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::enable ( )

pure virtual

enables interface

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::disable ( )

pure virtual

disbles interface

Implemented in makVrf::DtConditionalDialog.

virtual DtSimCondExpr* makVrf::DtConditionalDialogInterface::conditionalExpression ( ) const

pure virtual

Calls down to view to get condition. Memory allocated must be freed by caller.

Implemented in makVrf::DtConditionalDialog.

virtual bool makVrf::DtConditionalDialogInterface::editExpression ( const DtSimStatement *  , const DtSimCondExpr *  , const std::vector< makVrv::DtSimEntry * > &  data  )

pure virtual

edits the expression

Implemented in makVrf::DtConditionalDialog, makVrf::DtRegisterTriggerDialog, and makVrf::DtWhenConditionalDialog.

virtual QString makVrf::DtConditionalDialogInterface::statementDescription ( ) const

pure virtual

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::setStatementDescription ( const QString &  )

pure virtual

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::setTriggers ( DtRwTriggersList *  )

virtual

Reimplemented in makVrf::DtRegisterTriggerDialog.

virtual DtRwTriggersList* makVrf::DtConditionalDialogInterface::triggers ( ) const

virtual

virtual void makVrf::DtConditionalDialogInterface::setConditionalMenu ( DtVrfConditionalMenu *  )

virtual

Member Data Documentation

boost::signals2::signal<void (const DtSimStatement&)> makVrf::DtConditionalDialogInterface::signal_conditionComplete

boost::signals2::signal<void ()> makVrf::DtConditionalDialogInterface::signal_conditionCancelled

boost::signals2::signal<void (DtConditionalDialogInterface*)> makVrf::DtConditionalDialogInterface::signal_destroyed

makVrv::DtDe& makVrf::DtConditionalDialogInterface::myDe

protected

DtRwTriggersList* makVrf::DtConditionalDialogInterface::myTriggers

protected

DtVrfConditionalMenu* makVrf::DtConditionalDialogInterface::myConditionalMenu

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiTaskSetQt/conditionalDialogInterface.h
