makVrf::DtConditionalExpressionInterface Class Reference

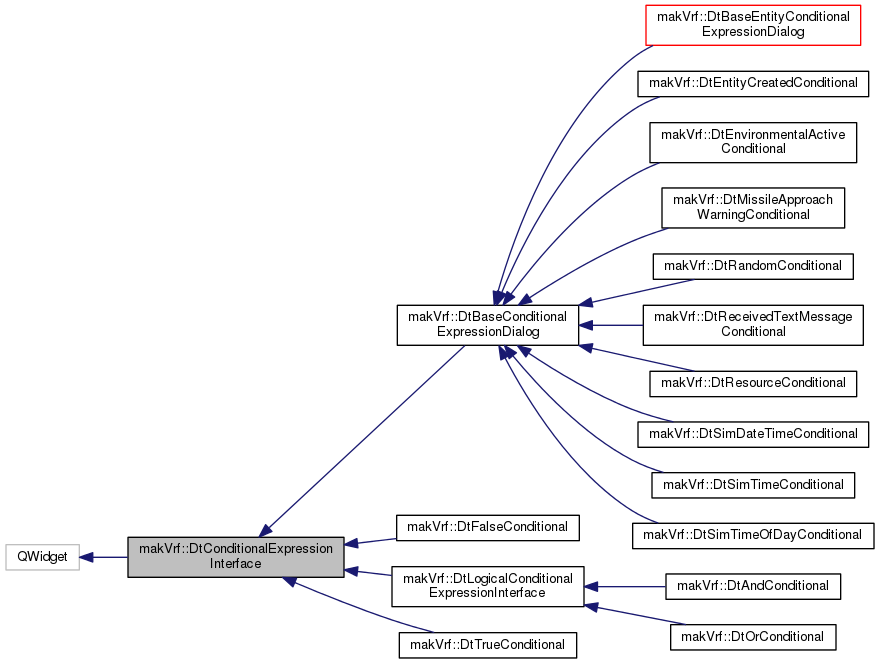

Inheritance diagram for makVrf::DtConditionalExpressionInterface:

Public Member Functions
	DtConditionalExpressionInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtConditionalExpressionInterface ()
virtual void	run (DtConditionalExpressionView *, const std::vector< makVrv::DtSimEntry * > &data)=0
	Override to run the dialog. More...
virtual void	setupGui (DtConditionalExpressionView *, DtConditionalExpressionViewItem *, const std::vector< makVrv::DtSimEntry * > &data)=0
virtual bool	isComplete () const =0
virtual QString	value () const =0
virtual void	setValue (const QString &)=0
virtual DtSimCondExpr *	conditionalExpression () const
DtConditionExpressionLogic *	logic () const
virtual void	toBeDeleted ()
virtual void	setupConditional (const DtSimCondExpr *, const std::vector< makVrv::DtSimEntry * > &data)=0
	Sets up the dialog with conditional expression. More...
virtual bool	bringsUpDialog () const
	Return true if this is bringing up a dialog. Default is true. More...
virtual void	conditionComplete ()
	Sends signal_conditionalComplete. More...
virtual void	conditionCancelled ()
	Sends signal_conditionalCancelled. More...

Public Attributes
boost::signals2::signal< void()>	signal_conditionComplete
boost::signals2::signal< void()>	signal_conditionCancelled
boost::signals2::signal< void(DtConditionalExpressionInterface *)>	signal_destroyed

Protected Attributes
makVrv::DtDe &	myDe
DtConditionExpressionLogic *	myLogic

Constructor & Destructor Documentation

makVrf::DtConditionalExpressionInterface::DtConditionalExpressionInterface	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtConditionalExpressionInterface::~DtConditionalExpressionInterface ( )

virtual

Member Function Documentation

virtual void makVrf::DtConditionalExpressionInterface::run ( DtConditionalExpressionView *  , const std::vector< makVrv::DtSimEntry * > &  data  )

pure virtual

Override to run the dialog.

Implemented in makVrf::DtLogicalConditionalExpressionInterface, makVrf::DtTrueConditional, makVrf::DtFalseConditional, and makVrf::DtBaseConditionalExpressionDialog.

virtual void makVrf::DtConditionalExpressionInterface::setupGui ( DtConditionalExpressionView *  , DtConditionalExpressionViewItem *  , const std::vector< makVrv::DtSimEntry * > &  data  )

pure virtual

Implemented in makVrf::DtLogicalConditionalExpressionInterface, makVrf::DtTrueConditional, makVrf::DtFalseConditional, and makVrf::DtBaseConditionalExpressionDialog.

virtual bool makVrf::DtConditionalExpressionInterface::isComplete ( ) const

pure virtual

Implemented in makVrf::DtLogicalConditionalExpressionInterface, makVrf::DtTrueConditional, makVrf::DtFalseConditional, and makVrf::DtBaseConditionalExpressionDialog.

virtual QString makVrf::DtConditionalExpressionInterface::value ( ) const

pure virtual

Implemented in makVrf::DtResourceConditional, makVrf::DtAndConditional, makVrf::DtEntCheckDiGuyAppearanceConditional, makVrf::DtMissileApproachWarningConditional, makVrf::DtEntCheckDiGuyAnimationConditional, makVrf::DtEntEmbarkedConditional, makVrf::DtSimTimeConditional, makVrf::DtEntAltitudeConditional, makVrf::DtEntInAreaConditional, makVrf::DtEntLeftOfLineConditional, makVrf::DtDetectEntityConditional, makVrf::DtEnvironmentalActiveConditional, makVrf::DtTrueConditional, makVrf::DtEntityCreatedConditional, makVrf::DtReceivedTextMessageConditional, makVrf::DtFalseConditional, makVrf::DtLifeformSurrenderedConditional, makVrf::DtEntDestroyedConditional, makVrf::DtEntHasTargetConditional, makVrf::DtScenarioEventConditional, makVrf::DtEntUnderFireConditional, makVrf::DtBreachedConditional, makVrf::DtEntIndependentlyTaskedConditional, makVrf::DtRandomConditional, makVrf::DtSimTimeOfDayConditional, makVrf::DtSimDateTimeConditional, vrfAddConditionalExample::DtNorthConditional, and makVrf::DtOrConditional.

virtual void makVrf::DtConditionalExpressionInterface::setValue ( const QString &  )

pure virtual

Implemented in makVrf::DtResourceConditional, makVrf::DtLogicalConditionalExpressionInterface, makVrf::DtEntCheckDiGuyAppearanceConditional, makVrf::DtMissileApproachWarningConditional, makVrf::DtEntCheckDiGuyAnimationConditional, makVrf::DtEntEmbarkedConditional, makVrf::DtSimTimeConditional, makVrf::DtEntAltitudeConditional, makVrf::DtEntInAreaConditional, makVrf::DtEntLeftOfLineConditional, makVrf::DtDetectEntityConditional, makVrf::DtEntityCreatedConditional, makVrf::DtEnvironmentalActiveConditional, makVrf::DtReceivedTextMessageConditional, makVrf::DtLifeformSurrenderedConditional, makVrf::DtScenarioEventConditional, makVrf::DtTrueConditional, makVrf::DtEntDestroyedConditional, makVrf::DtEntHasTargetConditional, makVrf::DtFalseConditional, makVrf::DtEntUnderFireConditional, makVrf::DtBreachedConditional, makVrf::DtRandomConditional, makVrf::DtSimTimeOfDayConditional, makVrf::DtEntIndependentlyTaskedConditional, makVrf::DtSimDateTimeConditional, and vrfAddConditionalExample::DtNorthConditional.

virtual DtSimCondExpr* makVrf::DtConditionalExpressionInterface::conditionalExpression ( ) const

virtual

DtConditionExpressionLogic* makVrf::DtConditionalExpressionInterface::logic ( ) const

inline

virtual void makVrf::DtConditionalExpressionInterface::toBeDeleted ( )

virtual

virtual void makVrf::DtConditionalExpressionInterface::setupConditional ( const DtSimCondExpr *  , const std::vector< makVrv::DtSimEntry * > &  data  )

pure virtual

Sets up the dialog with conditional expression.

Implemented in makVrf::DtResourceConditional, makVrf::DtMissileApproachWarningConditional, makVrf::DtEntCheckDiGuyAppearanceConditional, makVrf::DtEntCheckDiGuyAnimationConditional, makVrf::DtLogicalConditionalExpressionInterface, makVrf::DtEntEmbarkedConditional, makVrf::DtSimTimeConditional, makVrf::DtEntAltitudeConditional, makVrf::DtEntInAreaConditional, makVrf::DtEntLeftOfLineConditional, makVrf::DtDetectEntityConditional, makVrf::DtEntityCreatedConditional, makVrf::DtEnvironmentalActiveConditional, makVrf::DtReceivedTextMessageConditional, makVrf::DtLifeformSurrenderedConditional, makVrf::DtScenarioEventConditional, makVrf::DtEntDestroyedConditional, makVrf::DtEntHasTargetConditional, makVrf::DtEntUnderFireConditional, makVrf::DtBreachedConditional, makVrf::DtRandomConditional, makVrf::DtSimTimeOfDayConditional, makVrf::DtEntIndependentlyTaskedConditional, makVrf::DtSimDateTimeConditional, makVrf::DtTrueConditional, makVrf::DtFalseConditional, and vrfAddConditionalExample::DtNorthConditional.

virtual bool makVrf::DtConditionalExpressionInterface::bringsUpDialog ( ) const

virtual

Return true if this is bringing up a dialog. Default is true.

Reimplemented in makVrf::DtLogicalConditionalExpressionInterface, makVrf::DtTrueConditional, and makVrf::DtFalseConditional.

virtual void makVrf::DtConditionalExpressionInterface::conditionComplete ( )

virtual

Sends signal_conditionalComplete.

virtual void makVrf::DtConditionalExpressionInterface::conditionCancelled ( )

virtual

Sends signal_conditionalCancelled.

Member Data Documentation

boost::signals2::signal<void ()> makVrf::DtConditionalExpressionInterface::signal_conditionComplete

boost::signals2::signal<void ()> makVrf::DtConditionalExpressionInterface::signal_conditionCancelled

boost::signals2::signal<void (DtConditionalExpressionInterface*)> makVrf::DtConditionalExpressionInterface::signal_destroyed

makVrv::DtDe& makVrf::DtConditionalExpressionInterface::myDe

protected

DtConditionExpressionLogic* makVrf::DtConditionalExpressionInterface::myLogic

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiTaskSetQt/conditionalExpressionInterface.h
