An advanced weather condition settings widget. More...

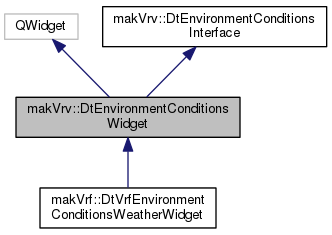

Inheritance diagram for makVrv::DtEnvironmentConditionsWidget:

Public Member Functions
	DtEnvironmentConditionsWidget (DtDe &de, QWidget *parent=NULL, Qt::WindowFlags flags=0)
	Initialization CTOR. More...

virtual	~DtEnvironmentConditionsWidget ()
	Virtual DTOR. More...

virtual void	setGroundSnowAccumulation (double depth)
	Set the ground snow accumulation depth. More...

virtual void	setGroundSnowAccumulationDecimals (int decimals)
	Set the ground snow accumulation decimal places. More...

virtual void	setGroundSnowAccumulationRange (double step, double max, double min=0.0)
	Set the ground snow accumulation slider ranges. More...

virtual void	setGroundSnowAccumulationUnits (const DtUnicode &units)
	Set the snow accumulation depth units. More...

virtual void	setRoadSnowAccumulation (double depth)
	Set the road snow accumulation depth. More...

virtual void	setRoadSnowAccumulationDecimals (int decimals)
	Set the road snow accumulation decimal places. More...

virtual void	setRoadSnowAccumulationRange (double step, double max, double min=0.0)
	Set the road snow accumulation slider ranges. More...

virtual void	setRoadSnowAccumulationUnits (const DtUnicode &units)
	Set the road snow accumulation depth units. More...

virtual void	setSnowMinimumElevation (double elevation)
	Set the snow elevation transition range. More...

virtual void	setSnowMinimumElevationDecimals (int decimals)
	Set the snow elevation transition range decimal places. More...

virtual void	setSnowMinimumElevationRange (double step, double max, double min=0.0)
	Set the snow elevation transition range slider ranges. More...

virtual void	setSnowMinimumElevationUnits (const DtUnicode &units)
	Set the snow elevation transition range units. More...

virtual void	setSnowElevationTransition (double elevation)
	Set the snow minimum elevation. More...

virtual void	setSnowElevationTransitionDecimals (int decimals)
	Set the snow minimum elevation decimal places. More...

virtual void	setSnowElevationTransitionRange (double step, double max, double min=0.0)
	Set the snow minimum elevation slider ranges. More...

virtual void	setSnowElevationTransitionUnits (const DtUnicode &units)
	Set the snow minimum elevation units. More...

virtual void	setGroundRainAccumulation (double depth)
	Set the ground rain accumulation percentage. More...

virtual void	setGroundRainAccumulationDecimals (int decimals)
	Set the ground rain accumulation decimal places. More...

virtual void	setGroundRainAccumulationRange (double step, double max, double min=0.0)
	Set the ground rain accumulation slider ranges. More...

virtual void	setGroundRainAccumulationUnits (const DtUnicode &units)
	Set the rain accumulation depth units. More...

Environment condition field value setters.
Sets the values of the widget's corresponding environment fields.
virtual void	setEnvironmentConditionsNames (const std::list< DtUnicode > &names)
	Set the list of environment condition names. More...

virtual StringList	environmentConditionNames () const
	Get the list of environment conditions names. More...

virtual void	setDefaultConditionName (const DtUnicode &name)
	Set the name of the default environment condition. More...

virtual void	setAdvanceConditionsVisible (bool show)
	Show or hide the sections for advanced conditions. More...

Weather field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setWindSpeed (double speed)
	Set the wind speed. More...

virtual void	setWindSpeedDecimals (int decimals)
	Set the wind speed decimal places. More...

virtual void	setWindSpeedUnits (const DtUnicode &units)
	Set the wind speed units. More...

virtual void	setWindSpeedRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for wind speed. More...

virtual void	setWindDirection (double degrees)
	Set the wind direction. More...

virtual void	setPrecipitationType (unsigned int type)
	Set the precipitation type. More...

virtual void	setPrecipitationIntensity (double intensity)
	Set the precipitation intensity. More...

virtual void	setVisibleDistance (double distance)
	Set the visible distance. More...

virtual void	setVisibleDistanceDecimals (int decimals)
	Set the visible distance decimal places. More...

virtual void	setVisibleDistanceUnits (const DtUnicode &units)
	Set the visible distance units. More...

virtual void	setVisibleDistanceRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for visible distance. More...

virtual void	setCloudCover (makArchives::DtCloudCoverType cloudCover)
	Set the NOAA (or user-defined) cloud cover type. More...

virtual void	removeAllCloudCoverTypes ()
	Remove all cloud cover types from the interface. More...

virtual void	addCloudCoverType (const DtUnicode &name, makArchives::DtCloudCoverType coverType)
	Add a new Cloud Cover type. More...

virtual void	removeCloudCoverType (makArchives::DtCloudCoverType coverType)
	Remove a cloud cover type from the GUI. More...

Advanced weather field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setFogHeight (double height)
	Set the height (or ceiling) of the fog layer. More...

virtual void	setFogHeightDecimals (int decimals)
	Set the fog height decimal places. More...

virtual void	setFogHeightUnits (const DtUnicode &units)
	Set the fog height units. More...

virtual void	setFogHeightRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for fog height. More...

virtual void	setFogColor (double red, double green, double blue)
	Set the color of the fog layer. More...

virtual void	setAirTurbidity (double turbidity)
	Set the turbidity of the air. More...

Marine field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setSwellStateNames (const StringList &names)
	Set the list of sea-swell state names. More...

virtual StringList	swellStateNames () const
	Get the list of sea-swell state names. More...

virtual void	setSwellState (unsigned int index)
	Set the current sea-swell state by index. More...

virtual void	setSwellState (const DtUnicode &name)
	Set the current sea-swell state by name. More...

virtual void	setSwellStateDirection (double degrees)
	Set the current sea-swell direction. More...

virtual void	enableWindDrivenSeaState (bool enable)
	Set the enabled state of wind-driven sea-state. More...

virtual void	setSeaStateNames (const StringList &names)
	Set the list of sea-state names. More...

virtual StringList	seaStateNames () const
	Get the list of sea-state names. More...

virtual void	setSeaState (unsigned int index)
	Set the current sea-state by index. More...

virtual void	setSeaState (const DtUnicode &name)
	Set the current sea-state by name. More...

virtual void	setSeaStateDirection (double degrees)
	Set the current sea-state direction. More...

Advanced marine field value setters.
Sets the values of the widget's corresponding advanced marine fields.
virtual void	setSurfaceTransparency (double alpha)
	Set the surface transparency of the water. More...

virtual void	setUnderwaterVisibilityEnabled (bool enabled)
	Set whether a different visibility is used when below sea level. More...

virtual void	setUnderwaterVisibility (double distance)
	Set the underwater visibility distance. More...

virtual void	setUnderwaterVisibilityDecimals (int decimals)
	Set the underwater visible distance decimal places. More...

virtual void	setUnderwaterVisibilityUnits (const DtUnicode &units)
	Set the underwater visible distance units. More...

virtual void	setUnderwaterVisibilityRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for underwater visibility. More...

virtual void	setWaterChoppiness (double chop)
	Set the surface choppiness of the water. More...

virtual void	setWindFetch (double distance)
	Set the sea wave fetch. More...

virtual void	setWindFetchDecimals (int decimals)
	Set the sea wave fetch decimal places. More...

virtual void	setWindFetchUnits (const DtUnicode &units)
	Set the sea wave fetch units. More...

virtual void	setWindFetchRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for sea fetch. More...

virtual void	setSurgeDepth (double depth)
	Set the surge depth. More...

virtual void	setSurgeDepthDecimals (int decimals)
	Set the surge depth decimal places. More...

virtual void	setSurgeDepthUnits (const DtUnicode &units)
	Set the surge depth units. More...

virtual void	setSurgeDepthRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for surge depth. More...

virtual void	setDepthOffset (double offset)
	Set the depth offset. More...

virtual void	setTidalCurrentSpeedDecimals (int decimals)
	Set the tidal stream current speed decimal places. More...

virtual void	setTidalCurrentSpeedUnits (const DtUnicode &units)
	Set the tidal stream current speed units. More...

virtual void	setTidalCurrentSpeedRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for tidal stream current speed. More...

virtual void	setTidalCurrentSpeed (double speed)
	Set the tidal stream current speed. More...

virtual void	setTidalCurrentDirectionDecimals (int decimals)
	Set the tidal stream current direction decimal places. More...

virtual void	setTidalCurrentDirectionUnits (const DtUnicode &units)
	Set the tidal stream current direction units. More...

virtual void	setTidalCurrentDirectionRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for tidal stream current direction. More...

virtual void	setTidalCurrentDirection (double direction)
	Set the tidal stream current direction. More...

Field value setters for a listening to remote weather.
virtual void	setListenToRemoteWeather (bool enable)
	Sets whether or not to list to simulated weather messages. More...

Public Member Functions inherited from makVrv::DtEnvironmentConditionsInterface
	DtEnvironmentConditionsInterface (DtDe &de)
	Initialization CTOR. More...

virtual	~DtEnvironmentConditionsInterface ()
	Virtual DTOR. More...

virtual void	setEnvironmentConditionsNames (const StringList &names)=0
	Set the list of environment condition names. More...

Protected Types
typedef QList< QWidget * >	WidgetList

Protected Slots
User input slots.
Receives notification that the user has changed a widget's value.
virtual void	on_selectEnvironmentConditions (const QString &)

virtual void	on_environmentConditionClicked (const QString &)

virtual void	on_windSpeedValueChanged (double)

virtual void	on_windDirectionValueChanged (double)

virtual void	on_precipitationTypeClicked (int)

virtual void	on_precipitationIntensityValueChanged (int)

virtual void	on_visibilityValueChanged (double)

virtual void	on_cloudCoverChanged (int)

virtual void	on_groundSnowAccumulationChanged (double value)

virtual void	on_roadSnowAccumulationChanged (double value)

virtual void	on_snowMinimumElevationChanged (double value)

virtual void	on_snowElevationTransitionChanged (double value)

virtual void	on_groundRainAccumulationChanged (double value)

virtual void	on_fogHeightValueChanged (double)

virtual void	on_fogColorValueChanged (const QColor &)

virtual void	on_airTurbidityChanged (int)

virtual void	on_swellStateChanged (int)

virtual void	on_swellStateDirectionChanged (double)

virtual void	on_windDrivenSeaStateEnabledChanged (const QString &)

virtual void	on_seaStateChanged (int)

virtual void	on_seaStateDirectionChanged (double)

virtual void	on_seaSurfaceTransparencyChanged (double)

virtual void	on_underWaterVisibilityEnabledChanged (int)

virtual void	on_underWaterVisibilityChanged (double)

virtual void	on_seaChoppinessChanged (int)

virtual void	on_windFetchChanged (double)

virtual void	on_surgeDepthChanged (double)

virtual void	on_depthOffsetChanged (double)

virtual void	on_tidalCurrentSpeedChanged (double)

virtual void	on_tidalCurrentDirectionChanged (double)

virtual void	on_listenToVrfStateChanged (int)

virtual void	on_refreshVrfWeatherClicked ()

Protected Member Functions
void	setWidgetsEnabled (WidgetList &widgets, bool enable) const
	Utility to enable/disable a set of widgets. More...

void	setWidgetEnabled (QWidget &widget, bool enable) const
	Utility to enable/disable a widget while blocking its signals. More...

void	setWidgetsVisible (WidgetList &widgets, bool show) const
	Utility to show/hide a set of widgets. More...

void	setWidgetVisible (QWidget &widget, bool show) const
	Utility to show/hide a widget while blocking its signals. More...

Protected Attributes
QVBoxLayout *	myMainLayout

QHBoxLayout *	myConditionsLayout

QVBoxLayout *	myWeatherLayout

QVBoxLayout *	myAdvancedWeatherLayout

QVBoxLayout *	myMarineLayout

QVBoxLayout *	myAdvancedMarineLayout

QHBoxLayout *	myRemoteListeningLayout

QSignalMapper *	myConditionsSignalMapper

QLabel *	myConditionsLabel

QComboBox *	myConditionNames

QPushButton *	myAddEnvironmentConditions

QPushButton *	myRemoveEnvironmentConditions

QPushButton *	mySaveEnvironmentConditions

QPushButton *	mySelectDefaultCondition

QString	myLastSelectedCondition

QString	myLastDefaultCondition

QLabel *	myWeatherSectionTitle

QLabel *	myWindSpeedLabel

DtSliderDoubleSpinboxWidget *	myWindSpeed

DtWindDirectionWidget *	myWindDirection

QSignalMapper *	myPrecipitationSignalMapper

QButtonGroup *	myPrecipitationButtonGroup

QRadioButton *	myPrecipitationNone

QRadioButton *	myPrecipitationRain

QRadioButton *	myPrecipitationSnow

QRadioButton *	myPrecipitationHail

QLabel *	myPrecipitationIntensityLabel

DtSliderSpinboxWidget *	myPrecipitationIntensity

QLabel *	myVisibilityLabel

DtSliderDoubleSpinboxWidget *	myVisibility

QComboBox *	myCloudCoversComboBox

QLabel *	myCloudLayerLabel

QLabel *	myGroundSnowAccumulationLabel

QLabel *	mySnowMinimumElevationLabel

QLabel *	mySnowElevationTransitionLabel

QLabel *	myRoadSnowAccumulationLabel

DtSliderDoubleSpinboxWidget *	myGroundSnowAccumulation

DtSliderDoubleSpinboxWidget *	myRoadSnowAccumulation

DtSliderDoubleSpinboxWidget *	mySnowMinimumElevation

DtSliderDoubleSpinboxWidget *	mySnowElevationTransition

QLabel *	myGroundRainAccumulationLabel

DtSliderDoubleSpinboxWidget *	myGroundRainAccumulation

QPushButton *	myAdvancedWeatherButton

QWidget *	myAdvancedWeather

QLabel *	myAdvancedWeatherSectionTitle

QLabel *	myFogHeightLabel

DtSliderDoubleSpinboxWidget *	myFogHeight

QLabel *	myFogColorLabel

DtColorPushButton *	myFogColor

QLabel *	myAirTurbidityLabel

DtSliderSpinboxWidget *	myAirTurbidity

QLabel *	myMarineSectionTitle

QComboBox *	mySwellState

DtWindDirectionWidget *	mySwellStateDirection

QSignalMapper *	mySeaStateSignalMapper

QButtonGroup *	mySeaStateButtonGroup

QRadioButton *	mySeaStateWindDriven

QRadioButton *	mySeaStateManual

QComboBox *	mySeaStates

DtWindDirectionWidget *	mySeaStateDirection

QPushButton *	myAdvancedMarineButton

QWidget *	myAdvancedMarine

QLabel *	myAdvancedMarineSectionTitle

QLabel *	mySurfaceTransparencyLabel

DtSliderDoubleSpinboxWidget *	mySurfaceTransparency

QCheckBox *	myUnderWaterVisibilityEnabled

QLabel *	myUnderWaterVisibilityLabel

DtSliderDoubleSpinboxWidget *	myUnderWaterVisibility

QLabel *	myChoppinessLabel

DtSliderSpinboxWidget *	myChoppiness

QLabel *	myFetchLabel

DtSliderDoubleSpinboxWidget *	myFetch

QLabel *	mySurgeDepthLabel

DtSliderDoubleSpinboxWidget *	mySurgeDepth

QLabel *	myDepthOffsetLabel

DtSliderDoubleSpinboxWidget *	myDepthOffset

QLabel *	myTidalCurrentSpeedLabel

DtSliderDoubleSpinboxWidget *	myTidalCurrentSpeed

QLabel *	myTidalCurrentDirectionLabel

DtSliderDoubleSpinboxWidget *	myTidalCurrentDirection

QCheckBox *	myListenToVrf

QPushButton *	myRefreshVrfWeather

WidgetList	myEnabledOnManualEnvironment

WidgetList	myEnabledOnPrecipitation

WidgetList	myEnabledOnManualStateSet

WidgetList	myVisibleOnShowAdvanced

Protected Attributes inherited from makVrv::DtEnvironmentConditionsInterface
DtDe &	myDe

Private Member Functions
void	setupGui ()
	Sets up the widget's fields. More...

void	connectToSignals ()
	Connects widget signals to slots. More...

void	setStringsToComboBox (QComboBox &cbox, const StringList &lst, bool srt=true) const
	Utility to set a list of unicode strings into a combo-box. More...

StringList	getStringsFromComboBox (const QComboBox &cbox) const
	Utility to get a list of unicode strings from a combo-box. More...

void	setQStringsToComboBox (QComboBox &cbox, QStringList lst, bool srt=true) const
	Utility to set a list of Qt strings into a combo-box. More...

QStringList	getQStringsFromComboBox (const QComboBox &cbox) const
	Utility to get a list of Qt strings from a combo-box. More...

Additional Inherited Members
Public Types inherited from makVrv::DtEnvironmentConditionsInterface
typedef std::list< DtUnicode >	StringList

Public Attributes inherited from makVrv::DtEnvironmentConditionsInterface
boost::signal< void(const DtUnicode &)>	signal_selectEnvironmentConditions

boost::signal< void(const DtUnicode &)>	signal_addEnvironmentConditions

boost::signal< void(const DtUnicode &)>	signal_removeEnvironmentConditions

boost::signal< void(const DtUnicode &)>	signal_saveEnvironmentConditions

boost::signal< void(const DtUnicode &)>	signal_setDefaultEnvironmentConditions

boost::signal< void(double)>	signal_changeWindSpeed

boost::signal< void(double)>	signal_changeWindDirection

boost::signal< void(int)>	signal_changePrecipitationType

boost::signal< void(double)>	signal_changePrecipitationIntensity

boost::signal< void(double)>	signal_changeVisibility

boost::signal< void(makArchives::DtCloudCoverType)>	signal_cloudCoverChanged

boost::signal< void(double)>	signal_changeGroundSnowAccumulation

boost::signal< void(double)>	signal_changeRoadSnowAccumulation

boost::signal< void(double)>	signal_changeSnowMinimumElevation

boost::signal< void(double)>	signal_changeSnowElevationTransition

boost::signal< void(double)>	signal_changeGroundRainAccumulation

boost::signal< void(double)>	signal_changeFogHeight

boost::signal< void(double, double, double)>	signal_changeFogColor

boost::signal< void(double)>	signal_changeAirTurbidity

boost::signal< void(unsigned int)>	signal_changeSwellState

boost::signal< void(double)>	signal_changeSwellStateDirection

boost::signal< void(bool)>	signal_enableWindDrivenSeaState

boost::signal< void(unsigned int)>	signal_changeSeaState

boost::signal< void(double)>	signal_changeSeaStateDirection

boost::signal< void(double)>	signal_changeSeaSurfaceTransparency

boost::signal< void(bool)>	signal_changeUnderWaterVisibilityEnabled

boost::signal< void(double)>	signal_changeUnderWaterVisibility

boost::signal< void(double)>	signal_changeSeaChoppiness

boost::signal< void(double)>	signal_changeWindFetch

boost::signal< void(double)>	signal_changeSurgeDepth

boost::signal< void(double)>	signal_changeDepthOffset

boost::signal< void(double)>	signal_changeTidalCurrentSpeed

boost::signal< void(double)>	signal_changeTidalCurrentDirection

boost::signal< void(bool)>	signal_changeRemoteSettings

boost::signal< void()>	signal_requestRemoteSettings

Detailed Description

An advanced weather condition settings widget.

Member Typedef Documentation

typedef QList<QWidget*> makVrv::DtEnvironmentConditionsWidget::WidgetList

protected

Constructor & Destructor Documentation

makVrv::DtEnvironmentConditionsWidget::DtEnvironmentConditionsWidget	(	DtDe &	de,
		QWidget *	parent = `NULL`,
		Qt::WindowFlags	flags = `0`
	)

Initialization CTOR.

Parameters

[in]	de	is the display engine.
[in]	parent	is a parent for this widget.
[in]	flags	is a set of enumerated window flags.

virtual makVrv::DtEnvironmentConditionsWidget::~DtEnvironmentConditionsWidget ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void makVrv::DtEnvironmentConditionsWidget::setEnvironmentConditionsNames ( const std::list< DtUnicode > & names )

virtual

Set the list of environment condition names.

Parameters

[in] names is the list of environment condition names.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual StringList makVrv::DtEnvironmentConditionsWidget::environmentConditionNames ( ) const

virtual

Get the list of environment conditions names.

Returns: the list of environment condition names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setDefaultConditionName ( const DtUnicode & name )

virtual

Set the name of the default environment condition.

Parameters

[in] name is the name of the default condition.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setAdvanceConditionsVisible ( bool show )

virtual

Show or hide the sections for advanced conditions.

Parameters

[in] show is the flag to show or hide advanced conditions.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeed ( double speed )

virtual

Set the wind speed.

Parameters

[in] speed is the wind speed to set.

See Also: setWindSpeedDecimals(int); setWindSpeedUnits(const DtUnicode&); setWindSpeedRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeedDecimals ( int decimals )

virtual

Set the wind speed decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeedUnits ( const DtUnicode & units )

virtual

Set the wind speed units.

Parameters

[in] units is the unit type to display.

See Also: setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeedRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for wind speed.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindDirection ( double degrees )

virtual

Set the wind direction.

Parameters

[in] degrees is the wind direction in degrees.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setPrecipitationType ( unsigned int type )

virtual

Set the precipitation type.

Parameters

[in] type is the type of precipitation type.

Note: None, Rain, Snow, Hail defined in DtEnvironmentRecord.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setPrecipitationIntensity ( double intensity )

virtual

Set the precipitation intensity.

Parameters

[in] intensity is the precipitation intensity from zero to one.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistance ( double distance )

virtual

Set the visible distance.

Parameters

[in] distance is the visible distance.

See Also: setVisibleDistanceDecimals(int); setVisibleDistanceUnits(const DtUnicode&); setVisibleDistanceRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistanceDecimals ( int decimals )

virtual

Set the visible distance decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setVisibleDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistanceUnits ( const DtUnicode & units )

virtual

Set the visible distance units.

Parameters

[in] units is the unit type to display.

See Also: setVisibleDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistanceRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for visible distance.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setVisibleDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setCloudCover ( makArchives::DtCloudCoverType cloudCover )

virtual

Set the NOAA (or user-defined) cloud cover type.

Parameters

[in] The NOAA (or user-defined) cloud cover to use

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::removeAllCloudCoverTypes ( )

virtual

Remove all cloud cover types from the interface.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::addCloudCoverType	(	const DtUnicode &	name,
		makArchives::DtCloudCoverType	coverType
	)

virtual

Add a new Cloud Cover type.

Parameters

[in]	name	is the name of the cloud cover
[in]	coverType	is the type of the cloud cover

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::removeCloudCoverType ( makArchives::DtCloudCoverType coverType )

virtual

Remove a cloud cover type from the GUI.

Parameters

[in] coverType is the type of the cloud cover to remove

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulation ( double depth )

virtual

Set the ground snow accumulation depth.

Parameters

[in] depth of accumulation, Currently only changes visuals for first .1 meters

See Also: setGroundSnowAccumulationqDecimals(const DtUnicode&); setGroundSnowAccumulationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulationDecimals ( int decimals )

virtual

Set the ground snow accumulation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setGroundSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the ground snow accumulation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setGroundSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulationUnits ( const DtUnicode & units )

virtual

Set the snow accumulation depth units.

Parameters

[in] units is the unit type to display.

See Also: setGroundSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulation ( double depth )

virtual

Set the road snow accumulation depth.

Parameters

[in] depth of accumulation of snow on the road. Translated to a coverage percentage in the shader effect manager.

See Also: setRoadSnowAccumulationDecimals(const DtUnicode&); setRoadSnowAccumulationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulationDecimals ( int decimals )

virtual

Set the road snow accumulation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setRoadSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the road snow accumulation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setRoadSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulationUnits ( const DtUnicode & units )

virtual

Set the road snow accumulation depth units.

Parameters

[in] units is the unit type to display.

See Also: setRoadSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevation ( double elevation )

virtual

Set the snow elevation transition range.

Parameters

[in] difference in elevation between when the snow starts showing up and complete coverage

See Also: setSnowMinimumElevationDecimals(const DtUnicode&); setSnowMinimumElevationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevationDecimals ( int decimals )

virtual

Set the snow elevation transition range decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setSnowMinimumElevation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the snow elevation transition range slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setSnowMinimumElevation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevationUnits ( const DtUnicode & units )

virtual

Set the snow elevation transition range units.

Parameters

[in] units is the unit type to display.

See Also: setSnowMinimumElevation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransition ( double elevation )

virtual

Set the snow minimum elevation.

Parameters

[in] elevation where snow starts to show up

See Also: setSnowElevationTransitionDecimals(const DtUnicode&); setSnowElevationTransitionRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransitionDecimals ( int decimals )

virtual

Set the snow minimum elevation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setSnowElevationTransition(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransitionRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the snow minimum elevation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setSnowElevationTransition(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransitionUnits ( const DtUnicode & units )

virtual

Set the snow minimum elevation units.

Parameters

[in] units is the unit type to display.

See Also: setSnowElevationTransition(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulation ( double depth )

virtual

Set the ground rain accumulation percentage.

Parameters

[in] depth of accumulation in meters. Translated to a coverage percentage in the shader effect manager. currently only changes visuals for 0.01 meters

See Also: setGroundRainAccumulationDecimals(const DtUnicode&); setGroundRainAccumulationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulationDecimals ( int decimals )

virtual

Set the ground rain accumulation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setGroundRainAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the ground rain accumulation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setGroundRainAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulationUnits ( const DtUnicode & units )

virtual

Set the rain accumulation depth units.

Parameters

[in] units is the unit type to display.

See Also: setGroundRainAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeight ( double height )

virtual

Set the height (or ceiling) of the fog layer.

Parameters

[in] height is the height of the fog layer.

See Also: setFogHeightDecimals(int); setFogHeightUnits(const DtUnicode&); setFogHeightRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightDecimals ( int decimals )

virtual

Set the fog height decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightUnits ( const DtUnicode & units )

virtual

Set the fog height units.

Parameters

[in] units is the unit type to display.

See Also: setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for fog height.

Parameters

[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogColor	(	double	red,
		double	green,
		double	blue
	)

virtual

Set the color of the fog layer.

Parameters

[in]	red	is a normalized color component from 0.0 to 1.0.
[in]	green	is a normalized color component from 0.0 to 1.0.
[in]	blue	is a normalized color component from 0.0 to 1.0.

See Also: setFogColor(int, int, int)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setAirTurbidity ( double turbidity )

virtual

Set the turbidity of the air.

Parameters

[in] turbidity is the intensity of air turbidity (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellStateNames ( const StringList & names )

virtual

Set the list of sea-swell state names.

Parameters

[in] names is the list of sea-swell names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual StringList makVrv::DtEnvironmentConditionsWidget::swellStateNames ( ) const

virtual

Get the list of sea-swell state names.

Returns: the list of sea-swell state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellState ( unsigned int index )

virtual

Set the current sea-swell state by index.

Parameters

[in] index is the sea-swell in sea-swell state names.

See Also: void setSwellStateNames(const StringList&)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellState ( const DtUnicode & name )

virtual

Set the current sea-swell state by name.

Parameters

[in] name is the name of the sea-swell state.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellStateDirection ( double degrees )

virtual

Set the current sea-swell direction.

Parameters

[in] degrees is the sea-swell direction

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::enableWindDrivenSeaState ( bool enable )

virtual

Set the enabled state of wind-driven sea-state.

Parameters

[in] enable is the enable flag for wind-driven sea-state.

Note: Setting to true should cause sea-state to be wind driven, while resetting to false should cause sea-state to be manual driven.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaStateNames ( const StringList & names )

virtual

Set the list of sea-state names.

Parameters

[in] names is the list of sea-state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual StringList makVrv::DtEnvironmentConditionsWidget::seaStateNames ( ) const

virtual

Get the list of sea-state names.

Returns: the list of sea-state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaState ( unsigned int index )

virtual

Set the current sea-state by index.

Parameters

[in] index is the index of the sea-state in sea-state names.

See Also: void setSeaStateNames(const StringList&).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaState ( const DtUnicode & name )

virtual

Set the current sea-state by name.

Parameters

[in] name is the name of the sea-state.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaStateDirection ( double degrees )

virtual

Set the current sea-state direction.

Parameters

[in] degrees is the sea-state direction

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurfaceTransparency ( double alpha )

virtual

Set the surface transparency of the water.

Parameters

[in] alpha is the transparency value (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityEnabled ( bool enabled )

virtual

Set whether a different visibility is used when below sea level.

Parameters

[in] enabled (or not)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibility ( double distance )

virtual

Set the underwater visibility distance.

Parameters

[in] distance is the visible distance underwater.

See Also: setUnderwaterVisibilityDecimals(int); setUnderwaterVisibilityUnits(const DtUnicode&); setUnderwaterVisibilityRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityDecimals ( int decimals )

virtual

Set the underwater visible distance decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityUnits ( const DtUnicode & units )

virtual

Set the underwater visible distance units.

Parameters

[in] units is the unit type to display.

See Also: setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for underwater visibility.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWaterChoppiness ( double chop )

virtual

Set the surface choppiness of the water.

Parameters

[in] chop is the intensity of choppiness (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetch ( double distance )

virtual

Set the sea wave fetch.

Parameters

[in] distance is the distance of fetch.

See Also: setWindFetchDecimals(int); setWindFetchUnits(const DtUnicode&); setWindFetchRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchDecimals ( int decimals )

virtual

Set the sea wave fetch decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchUnits ( const DtUnicode & units )

virtual

Set the sea wave fetch units.

Parameters

[in] units is the unit type to display.

See Also: setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for sea fetch.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepth ( double depth )

virtual

Set the surge depth.

Parameters

[in] depth is the surge depth in meters.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepthDecimals ( int decimals )

virtual

Set the surge depth decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setSurgeDepth(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepthUnits ( const DtUnicode & units )

virtual

Set the surge depth units.

Parameters

[in] units is the unit type to display.

See Also: setSurgeDepth(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepthRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for surge depth.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setSurgeDepth(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setDepthOffset ( double offset )

virtual

Set the depth offset.

Parameters

[in] offset is the distance for depth offset (0.0 - 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedDecimals ( int decimals )

virtual

Set the tidal stream current speed decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedUnits ( const DtUnicode & units )

virtual

Set the tidal stream current speed units.

Parameters

[in] units is the unit type to display.

See Also: setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for tidal stream current speed.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeed ( double speed )

virtual

Set the tidal stream current speed.

Parameters

[in] speed is the tidal stream current in meters/second (0.0 - 10.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionDecimals ( int decimals )

virtual

Set the tidal stream current direction decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionUnits ( const DtUnicode & units )

virtual

Set the tidal stream current direction units.

Parameters

[in] units is the unit type to display.

See Also: setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for tidal stream current direction.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirection ( double direction )

virtual

Set the tidal stream current direction.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setListenToRemoteWeather ( bool enable )

virtual

Sets whether or not to list to simulated weather messages.

Parameters

[in] enable is the flag to enable/disable listening.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::on_selectEnvironmentConditions ( const QString & )

protectedvirtualslot

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::on_environmentConditionClicked ( const QString & )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windSpeedValueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windDirectionValueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_precipitationTypeClicked ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_precipitationIntensityValueChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_visibilityValueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_cloudCoverChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_groundSnowAccumulationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_roadSnowAccumulationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_snowMinimumElevationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_snowElevationTransitionChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_groundRainAccumulationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_fogHeightValueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_fogColorValueChanged ( const QColor & )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_airTurbidityChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_swellStateChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_swellStateDirectionChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windDrivenSeaStateEnabledChanged ( const QString & )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaStateChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaStateDirectionChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaSurfaceTransparencyChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_underWaterVisibilityEnabledChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_underWaterVisibilityChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaChoppinessChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windFetchChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_surgeDepthChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_depthOffsetChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_tidalCurrentSpeedChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_tidalCurrentDirectionChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_listenToVrfStateChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_refreshVrfWeatherClicked ( )

protectedvirtualslot

void makVrv::DtEnvironmentConditionsWidget::setWidgetsEnabled	(	WidgetList &	widgets,
		bool	enable
	)		const

protected

Utility to enable/disable a set of widgets.

Parameters

[in]	widgets	is a list of widgets to enable or disable.
[in]	enable	is the new enabled state of the widgets.

void makVrv::DtEnvironmentConditionsWidget::setWidgetEnabled	(	QWidget &	widget,
		bool	enable
	)		const

protected

Utility to enable/disable a widget while blocking its signals.

Parameters

[in]	widget	is the widget to enable or disable.
[in]	enable	is the new enabled state of the widget.

void makVrv::DtEnvironmentConditionsWidget::setWidgetsVisible	(	WidgetList &	widgets,
		bool	show
	)		const

protected

Utility to show/hide a set of widgets.

Parameters

[in]	widgets	is a list of widgets to show or hide.
[in]	show	is the new visible state of the widgets.

void makVrv::DtEnvironmentConditionsWidget::setWidgetVisible	(	QWidget &	widget,
		bool	show
	)		const

protected

Utility to show/hide a widget while blocking its signals.

Parameters

[in]	widget	is the widget to show or hide.
[in]	show	is the new visible state of the widget.

void makVrv::DtEnvironmentConditionsWidget::setupGui ( )

private

Sets up the widget's fields.

Non-virtual (Called from CTOR).

void makVrv::DtEnvironmentConditionsWidget::connectToSignals ( )

private

Connects widget signals to slots.

Non-virtual (Called from CTOR).

void makVrv::DtEnvironmentConditionsWidget::setStringsToComboBox	(	QComboBox &	cbox,
		const StringList &	lst,
		bool	srt = `true`
	)		const

private

Utility to set a list of unicode strings into a combo-box.

Parameters

[in]	cbox	is the widget to populate;
[in]	lst	is a list of unicode strings;
[in]	srt	is a flag to sort the string in the combo-box.

StringList makVrv::DtEnvironmentConditionsWidget::getStringsFromComboBox ( const QComboBox & cbox ) const

private

Utility to get a list of unicode strings from a combo-box.

Parameters

[in] cbox is the widget to read from;

Returns: the list of unicode strings;

void makVrv::DtEnvironmentConditionsWidget::setQStringsToComboBox	(	QComboBox &	cbox,
		QStringList	lst,
		bool	srt = `true`
	)		const

private

Utility to set a list of Qt strings into a combo-box.

Parameters

[in]	cbox	is the widget to populate;
[in]	lst	is a list of Qt strings;
[in]	srt	is a flag to sort the string in the combo-box.

QStringList makVrv::DtEnvironmentConditionsWidget::getQStringsFromComboBox ( const QComboBox & cbox ) const

private

Utility to get a list of Qt strings from a combo-box.

Parameters

[in] cbox is the widget to read from;

Returns: the list of Qt strings;

Member Data Documentation

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myMainLayout

protected

QHBoxLayout* makVrv::DtEnvironmentConditionsWidget::myConditionsLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myWeatherLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeatherLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myMarineLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarineLayout

protected

QHBoxLayout* makVrv::DtEnvironmentConditionsWidget::myRemoteListeningLayout

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::myConditionsSignalMapper

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myConditionsLabel

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::myConditionNames

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAddEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myRemoveEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::mySaveEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::mySelectDefaultCondition

protected

QString makVrv::DtEnvironmentConditionsWidget::myLastSelectedCondition

protected

QString makVrv::DtEnvironmentConditionsWidget::myLastDefaultCondition

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myWeatherSectionTitle

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myWindSpeedLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myWindSpeed

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::myWindDirection

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::myPrecipitationSignalMapper

protected

QButtonGroup* makVrv::DtEnvironmentConditionsWidget::myPrecipitationButtonGroup

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationNone

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationRain

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationSnow

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationHail

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myPrecipitationIntensityLabel

protected

DtSliderSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myPrecipitationIntensity

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myVisibilityLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myVisibility

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::myCloudCoversComboBox

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myCloudLayerLabel

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myGroundSnowAccumulationLabel

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySnowMinimumElevationLabel

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySnowElevationTransitionLabel

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myRoadSnowAccumulationLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myGroundSnowAccumulation

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myRoadSnowAccumulation

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySnowMinimumElevation

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySnowElevationTransition

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myGroundRainAccumulationLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myGroundRainAccumulation

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeatherButton

protected

QWidget* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeather

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeatherSectionTitle

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFogHeightLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myFogHeight

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFogColorLabel

protected

DtColorPushButton* makVrv::DtEnvironmentConditionsWidget::myFogColor

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myAirTurbidityLabel

protected

DtSliderSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myAirTurbidity

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myMarineSectionTitle

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::mySwellState

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::mySwellStateDirection

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::mySeaStateSignalMapper

protected

QButtonGroup* makVrv::DtEnvironmentConditionsWidget::mySeaStateButtonGroup

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::mySeaStateWindDriven

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::mySeaStateManual

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::mySeaStates

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::mySeaStateDirection

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarineButton

protected

QWidget* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarine

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarineSectionTitle

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySurfaceTransparencyLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySurfaceTransparency

protected

QCheckBox* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibilityEnabled

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibilityLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibility

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myChoppinessLabel

protected

DtSliderSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myChoppiness

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFetchLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myFetch

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySurgeDepthLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySurgeDepth

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myDepthOffsetLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myDepthOffset

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentSpeedLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentSpeed

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentDirectionLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentDirection

protected

QCheckBox* makVrv::DtEnvironmentConditionsWidget::myListenToVrf

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myRefreshVrfWeather

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnManualEnvironment

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnPrecipitation

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnManualStateSet

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myVisibleOnShowAdvanced

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvCoreQt/DtEnvironmentConditionsWidget.h

Public Member Functions

Protected Types

Protected Slots

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
