makVrv::DtExtractPropsInterface Class Reference

Interface for the extract props widget. More...

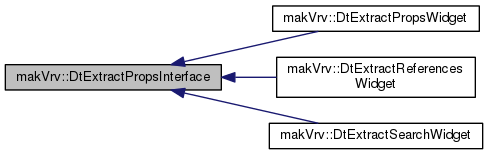

Inheritance diagram for makVrv::DtExtractPropsInterface:

Public Types
typedef std::set< std::string >	SearchCandidateSet

Public Member Functions
	DtExtractPropsInterface ()
	CTOR. More...
virtual	~DtExtractPropsInterface ()
	DTOR. More...
virtual void	reset ()=0
	Reset the GUI (e.g. set search expression empty) More...
virtual void	setSearchCandidateSet (const SearchCandidateSet &scSet)=0
virtual void	disable (const std::string &tooltip)=0
	disable this gui More...
virtual void	setValidSchemas (const std::vector< std::string > &schemaNames)=0
	Set the valid schema types for props. More...

Public Attributes
boost::signal< void(const std::string &expression, bool isRegEx, const std::string &type, const std::string &modelDef)>	signal_extractProps
	Signal emitted when a rule has been created by the user. More...
boost::signal< void(const std::string &expression, bool isRegEx, const std::string &modelDef) >	signal_extractToSpeedTree
	Signal emitted when a user set a rule to convert an external reference to speed trees. More...
boost::signal< void()>	signal_extractAllExternalRefs
	Signal emitted when the user has requested that all external references be extracted (i.e. More...
boost::signal< void(bool checked)>	signal_extractAsSpeedTreesChanged
	Signal emitted when the user checks or unchecks the Extract as Speed Trees checkbox. More...

Detailed Description

Interface for the extract props widget.

Member Typedef Documentation

typedef std::set<std::string> makVrv::DtExtractPropsInterface::SearchCandidateSet

Constructor & Destructor Documentation

makVrv::DtExtractPropsInterface::DtExtractPropsInterface

(

)

CTOR.

virtual makVrv::DtExtractPropsInterface::~DtExtractPropsInterface ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtExtractPropsInterface::reset ( )

pure virtual

Reset the GUI (e.g. set search expression empty)

Implemented in makVrv::DtExtractReferencesWidget, makVrv::DtExtractSearchWidget, and makVrv::DtExtractPropsWidget.

virtual void makVrv::DtExtractPropsInterface::setSearchCandidateSet ( const SearchCandidateSet &  scSet )

pure virtual

Implemented in makVrv::DtExtractReferencesWidget, makVrv::DtExtractSearchWidget, and makVrv::DtExtractPropsWidget.

virtual void makVrv::DtExtractPropsInterface::disable ( const std::string &  tooltip )

pure virtual

disable this gui

Implemented in makVrv::DtExtractReferencesWidget, makVrv::DtExtractSearchWidget, and makVrv::DtExtractPropsWidget.

virtual void makVrv::DtExtractPropsInterface::setValidSchemas ( const std::vector< std::string > &  schemaNames )

pure virtual

Set the valid schema types for props.

Implemented in makVrv::DtExtractReferencesWidget, makVrv::DtExtractSearchWidget, and makVrv::DtExtractPropsWidget.

Member Data Documentation

boost::signal<void (const std::string& expression, bool isRegEx, const std::string& type, const std::string& modelDef)> makVrv::DtExtractPropsInterface::signal_extractProps

Signal emitted when a rule has been created by the user.

Signal caught by the logic.

boost::signal< void(const std::string& expression, bool isRegEx , const std::string& modelDef) > makVrv::DtExtractPropsInterface::signal_extractToSpeedTree

Signal emitted when a user set a rule to convert an external reference to speed trees.

Signal caught by the logic.

boost::signal<void ()> makVrv::DtExtractPropsInterface::signal_extractAllExternalRefs

Signal emitted when the user has requested that all external references be extracted (i.e.

the contents of the SearchCandidateSet)

boost::signal<void(bool checked)> makVrv::DtExtractPropsInterface::signal_extractAsSpeedTreesChanged

Signal emitted when the user checks or unchecks the Extract as Speed Trees checkbox.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvOsgQt/DtExtractPropsInterface.h
