makVrv::DtSignalConnectionManager Class Reference

Class to manage disconnection of boost connections on deletion. More...

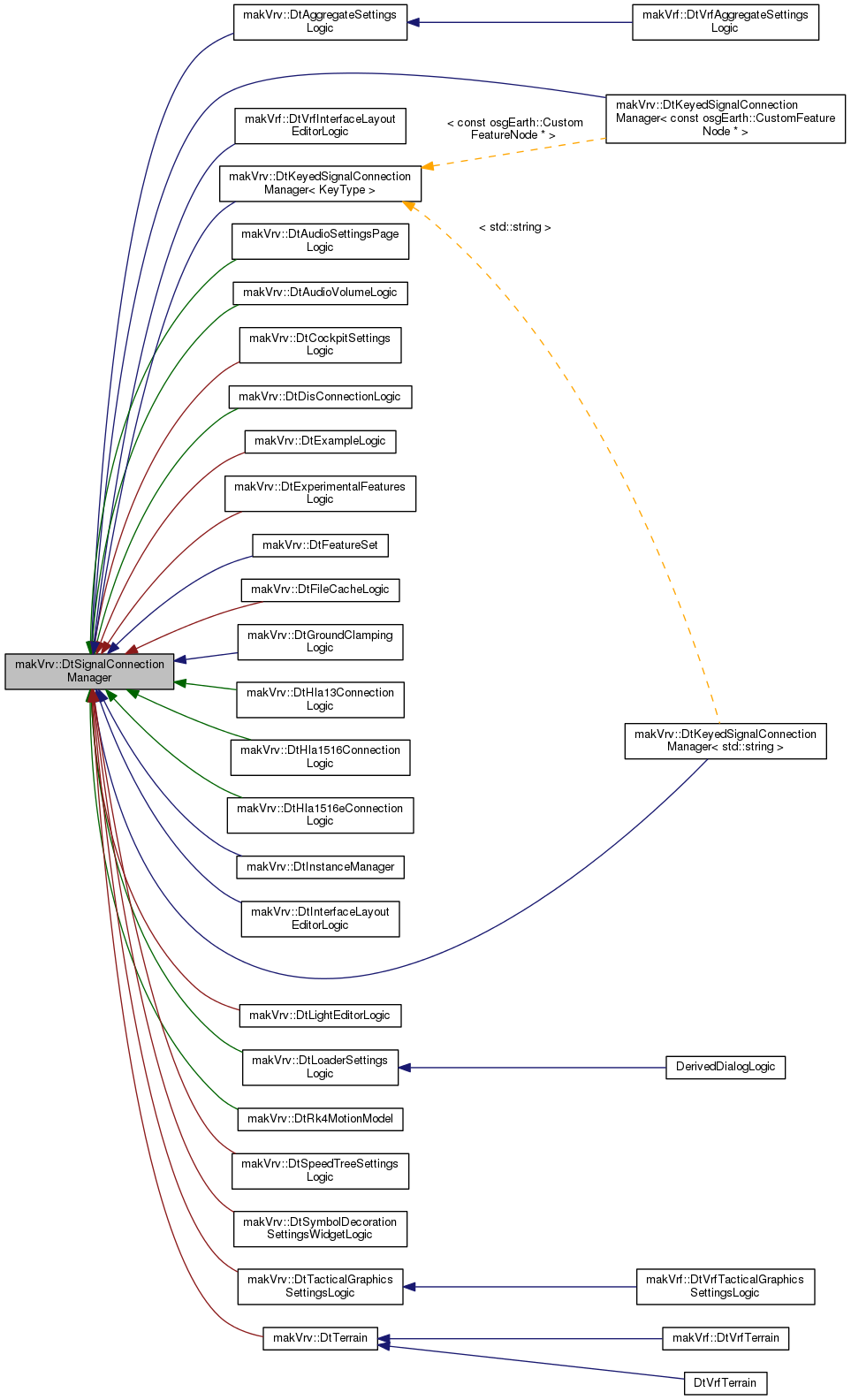

Inheritance diagram for makVrv::DtSignalConnectionManager:

Public Member Functions
	DtSignalConnectionManager ()
	CTOR. More...
virtual	~DtSignalConnectionManager ()
	DTOR. More...
void	manageConnection (const boost::signalslib::connection &conn)
	Connect a signal. More...
void	manageConnection (const boost::signalslib2::connection &conn)
DtSignalConnectionManager &	operator+= (const boost::signalslib::connection &conn)
	Connect a signal. More...
DtSignalConnectionManager &	operator+= (const boost::signalslib2::connection &conn)
bool	blockConnections (bool blocked)
	Blocks/unblocks connections. More...
int	numberOfConnections () const
	Get the number of connections. More...
void	disconnectSignals ()
	Disconnect all signals. More...
bool	connectionsBlocked () const
	check whether connections are blocked. More...

Protected Types
typedef std::vector < boost::signalslib::connection >	Connections
	A collection of signals. More...
typedef std::vector < boost::signalslib2::connection >	Connections2

Protected Member Functions
bool	blockConnection (int index, bool blocked)
	Blocks/unblocks connections. More...
bool	connectionBlocked (int index) const
	check whether connections are blocked. More...

Protected Attributes
Connections	myConnections
	The connected signals. More...
Connections2	myConnections2
bool	myConnectionsBlocked
bool	myIndiviualConnectionedBlocked
std::vector < boost::signalslib2::shared_connection_block * >	mySharedConnectionsBlockManager
	blocking Connections manager for signal2 connection More...

Private Member Functions
DtSignalConnectionManager &	operator= (DtSignalConnectionManager asn)
	Assignment. More...
	DtSignalConnectionManager (const DtSignalConnectionManager &copy)
	Copy. More...

Detailed Description

Class to manage disconnection of boost connections on deletion.

Examples

• exampleDialogPage

Member Typedef Documentation

typedef std::vector<boost::signalslib::connection> makVrv::DtSignalConnectionManager::Connections

protected

A collection of signals.

typedef std::vector<boost::signalslib2::connection> makVrv::DtSignalConnectionManager::Connections2

protected

Constructor & Destructor Documentation

makVrv::DtSignalConnectionManager::DtSignalConnectionManager

(

)

CTOR.

virtual makVrv::DtSignalConnectionManager::~DtSignalConnectionManager ( )

virtual

DTOR.

makVrv::DtSignalConnectionManager::DtSignalConnectionManager ( const DtSignalConnectionManager &  copy )

private

Copy.

Member Function Documentation

void makVrv::DtSignalConnectionManager::manageConnection

(

const boost::signalslib::connection &

conn

)

Connect a signal.

Referenced by makVrv::DtStateViewCollection< T >::DtStateViewCollection().

void makVrv::DtSignalConnectionManager::manageConnection

(

const boost::signalslib2::connection &

conn

)

DtSignalConnectionManager& makVrv::DtSignalConnectionManager::operator+= ( const boost::signalslib::connection &  conn )

inline

Connect a signal.

DtSignalConnectionManager& makVrv::DtSignalConnectionManager::operator+= ( const boost::signalslib2::connection &  conn )

inline

bool makVrv::DtSignalConnectionManager::blockConnections

(

bool

blocked

)

Blocks/unblocks connections.

Returns current state connection blocking

Referenced by makVrf::VRF_PROTOCOL_NAMESPACE::DtStateCacheManager< makVrv::DtVrlinkSimulatedEntityState >::disable(), and makVrf::VRF_PROTOCOL_NAMESPACE::DtStateCacheManager< makVrv::DtVrlinkSimulatedEntityState >::enable().

int makVrv::DtSignalConnectionManager::numberOfConnections

(

)

const

Get the number of connections.

void makVrv::DtSignalConnectionManager::disconnectSignals

(

)

Disconnect all signals.

bool makVrv::DtSignalConnectionManager::connectionsBlocked

(

)

const

check whether connections are blocked.

bool makVrv::DtSignalConnectionManager::blockConnection ( int  index, bool  blocked  )

protected

Blocks/unblocks connections.

Returns current state connection blocking, This function will cause the connection to be out of sync from the remaining connections. Deprecated (should be removed, not used)

bool makVrv::DtSignalConnectionManager::connectionBlocked ( int  index ) const

protected

check whether connections are blocked.

Deprecated (should be removed, not used)

DtSignalConnectionManager& makVrv::DtSignalConnectionManager::operator= ( DtSignalConnectionManager  asn )

private

Assignment.

Member Data Documentation

Connections makVrv::DtSignalConnectionManager::myConnections

protected

The connected signals.

Connections2 makVrv::DtSignalConnectionManager::myConnections2

protected

bool makVrv::DtSignalConnectionManager::myConnectionsBlocked

protected

bool makVrv::DtSignalConnectionManager::myIndiviualConnectionedBlocked

protected

std::vector<boost::signalslib2::shared_connection_block*> makVrv::DtSignalConnectionManager::mySharedConnectionsBlockManager

protected

blocking Connections manager for signal2 connection

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvUtil/DtSignalConnectionManager.h
