The abstract base class for widgets. More...

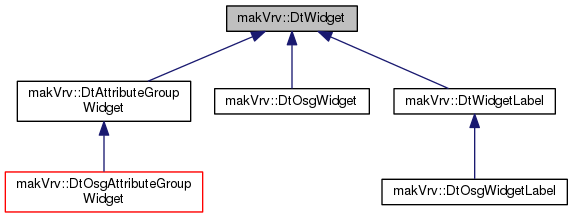

Inheritance diagram for makVrv::DtWidget:

Public Member Functions
	DtWidget (DtDe &de, DtUniqueID id)

virtual	~DtWidget ()

virtual void	setOverlay (unsigned int overlay)=0
	Sets the overlay of the widget. More...

virtual unsigned int	overlay () const =0
	Gets the overlay of the widget. More...

virtual void	setOrderGroup (unsigned int group)=0
	Sets the overlay of the widget. More...

virtual void	setRotation (float)=0
	Sets the rotation of the widget. Rotation is in radians. Default is no-op. More...

virtual unsigned int	orderGroup () const =0
	Gets the overlay of the widget. More...

virtual void	setParentId (DtUniqueID id)
	Set the parent id. More...

virtual void	setPosition (float x, float y, float z, float w=0)=0
	Set the position of the widget in screen space. More...

virtual void	setBackgroundImage (const std::string &filename)=0
	Set the background image. More...

virtual void	setColor (float r, float g, float b, float a)=0
	Set the color of the widget. More...

virtual void	setOrigin (float originX, float originY)=0
	Sets the origin location, by default it is 0,0. More...

virtual void	setSize (float w, float h)=0
	Sets the size of the widget in overlay coordinate space. More...

virtual void	setPadding (float paddingX, float paddingY)=0
	Sets the size of the widget in overlay coordinate space. More...

virtual void	setModelDefinition (const std::string &str)=0
	Sets the model definition of the widget (optional, since widgets are not models) More...

virtual void	setEventsEnabled (bool enabled)=0
	Enable or disable events for this widget. More...

virtual void	setVisible (bool visible)=0
	Set whether the widget is visible or not. More...

virtual DtUniqueID	id () const
	Return this widget's id. More...

virtual DtUniqueID	parentId () const
	Return the unique id specified as the parent of this widget. More...

Protected Attributes
DtDe &	myDe

DtUniqueID	myId

DtUniqueID	myParentId

Detailed Description

The abstract base class for widgets.

Constructor & Destructor Documentation

makVrv::DtWidget::DtWidget	(	DtDe &	de,
		DtUniqueID	id
	)

virtual makVrv::DtWidget::~DtWidget ( )

virtual

Member Function Documentation

virtual void makVrv::DtWidget::setOverlay ( unsigned int overlay )

pure virtual

Sets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual unsigned int makVrv::DtWidget::overlay ( ) const

pure virtual

Gets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setOrderGroup ( unsigned int group )

pure virtual

Sets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setRotation ( float )

pure virtual

Sets the rotation of the widget. Rotation is in radians. Default is no-op.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, makVrv::DtWidgetLabel, and makVrv::DtOsgWidget.

virtual unsigned int makVrv::DtWidget::orderGroup ( ) const

pure virtual

Gets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setParentId ( DtUniqueID id )

virtual

Set the parent id.

Reimplemented in makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setPosition	(	float	x,
		float	y,
		float	z,
		float	w = `0`
	)

pure virtual

Set the position of the widget in screen space.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setBackgroundImage ( const std::string & filename )

pure virtual

Set the background image.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setOrigin	(	float	originX,
		float	originY
	)

pure virtual

Sets the origin location, by default it is 0,0.

The origin can be used to specify a offset from the position.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setSize	(	float	w,
		float	h
	)

pure virtual

Sets the size of the widget in overlay coordinate space.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtWidgetLabel, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setPadding	(	float	paddingX,
		float	paddingY
	)

pure virtual

Sets the size of the widget in overlay coordinate space.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setModelDefinition ( const std::string & str )

pure virtual

Sets the model definition of the widget (optional, since widgets are not models)

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setEventsEnabled ( bool enabled )

pure virtual

Enable or disable events for this widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setVisible ( bool visible )

pure virtual

Set whether the widget is visible or not.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual DtUniqueID makVrv::DtWidget::id ( ) const

virtual

Return this widget's id.

If the widget is distributable, this will be it's id assigned by the agent manager

virtual DtUniqueID makVrv::DtWidget::parentId ( ) const

virtual

Return the unique id specified as the parent of this widget.

When a widget is added as a DtProjectedWidgetModel's widget, this will be the scene object id of the scene object that the widget model is attached to. Note that parentId may be 0, in which case it is not set.

Member Data Documentation

DtDe& makVrv::DtWidget::myDe

protected

DtUniqueID makVrv::DtWidget::myId

protected

DtUniqueID makVrv::DtWidget::myParentId

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvCore/DtWidget.h
