DtCoefficientsSignatureModifierEvaluator Class Reference

A DtSignatureModifierEvaluator that scales a signature with a.

polynomial whose coefficents are defined in modifier file. Based on the check of a boolean condition. This is an abstract base class for any actual evaluators that do this check. Requires that a DtCoefficientsSignatureModifier or subclass be passed in.

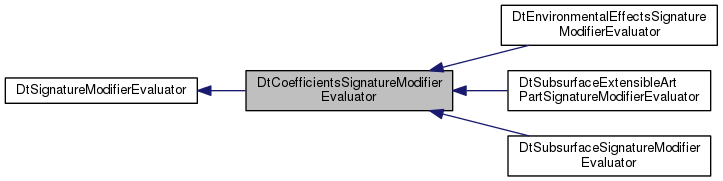

Inheritance diagram for DtCoefficientsSignatureModifierEvaluator:

Public Member Functions
	DtCoefficientsSignatureModifierEvaluator (const DtSignatureModifier &modifier, const DtSimulationServices *)
virtual	~DtCoefficientsSignatureModifierEvaluator ()
virtual bool	init ()
virtual double	modifySignature (const DtSimObject &, double inputSignature) const =0
virtual bool	checkCondition (const DtSimObject &) const =0
Public Member Functions inherited from DtSignatureModifierEvaluator
	DtSignatureModifierEvaluator (const DtSignatureModifier &modifier, const DtSimulationServices *)
virtual	~DtSignatureModifierEvaluator ()
virtual DtString	type () const =0

Private Member Functions
	DtCoefficientsSignatureModifierEvaluator ()
	DtCoefficientsSignatureModifierEvaluator (const DtCoefficientsSignatureModifierEvaluator &orig)
DtCoefficientsSignatureModifierEvaluator &	operator= (const DtCoefficientsSignatureModifierEvaluator &orig)

Additional Inherited Members
Static Public Member Functions inherited from DtSignatureModifierEvaluator
static void	setFactory (DtSignatureModifierEvaluatorFactory *factory)
static DtSignatureModifierEvaluator *	createSignatureModifierEvaluator (const DtString &type, const DtSignatureModifier &modifier, const DtSimulationServices *)
Protected Attributes inherited from DtSignatureModifierEvaluator
const DtSignatureModifier &	mySignatureModifier
const DtSimulationServices *	mySimulationServices
Static Protected Attributes inherited from DtSignatureModifierEvaluator
static DtSignatureModifierEvaluatorFactory *	theFactory

Constructor & Destructor Documentation

DtCoefficientsSignatureModifierEvaluator::DtCoefficientsSignatureModifierEvaluator ( )

private

Not implemented.

DtCoefficientsSignatureModifierEvaluator::DtCoefficientsSignatureModifierEvaluator ( const DtCoefficientsSignatureModifierEvaluator &  orig )

private

Not implemented. Class not copyable.

DtCoefficientsSignatureModifierEvaluator::DtCoefficientsSignatureModifierEvaluator	(	const DtSignatureModifier &	modifier,
		const DtSimulationServices *
	)

default constructor

virtual DtCoefficientsSignatureModifierEvaluator::~DtCoefficientsSignatureModifierEvaluator ( )

virtual

Member Function Documentation

DtCoefficientsSignatureModifierEvaluator& DtCoefficientsSignatureModifierEvaluator::operator= ( const DtCoefficientsSignatureModifierEvaluator &  orig )

private

Not implemented. Class not copyable.

virtual bool DtCoefficientsSignatureModifierEvaluator::init ( )

virtual

Uses dynamic_cast to make sure that the passed in DtSignatureModifier derives from DtMultiplierSignatureModifier.

Reimplemented from DtSignatureModifierEvaluator.

Reimplemented in DtSubsurfaceExtensibleArtPartSignatureModifierEvaluator, DtEnvironmentalEffectsSignatureModifierEvaluator, and DtSubsurfaceSignatureModifierEvaluator.

virtual double DtCoefficientsSignatureModifierEvaluator::modifySignature ( const DtSimObject &  , double  inputSignature  ) const

pure virtual

Returns

inputSignature scaled by polynomial User needs to define the variable to be used in the polynomial

Implements DtSignatureModifierEvaluator.

Implemented in DtSubsurfaceExtensibleArtPartSignatureModifierEvaluator, DtEnvironmentalEffectsSignatureModifierEvaluator, and DtSubsurfaceSignatureModifierEvaluator.

virtual bool DtCoefficientsSignatureModifierEvaluator::checkCondition ( const DtSimObject &  ) const

pure virtual

Override this in subclasses to check the condition of this evaluator.

Returns

True if condition is met.

Implemented in DtSubsurfaceExtensibleArtPartSignatureModifierEvaluator, DtEnvironmentalEffectsSignatureModifierEvaluator, and DtSubsurfaceSignatureModifierEvaluator.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/coefficientsSignatureModifierEvaluator.h
