DtConnectionSettings Class Reference

Base class for all Launcher settings objects.

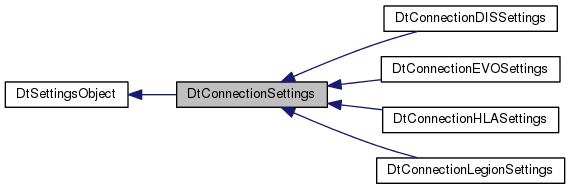

Inheritance diagram for DtConnectionSettings:

Public Member Functions
	DtConnectionSettings ()
	DtConnectionSettings (std::string name)
	DtConnectionSettings (std::string name, DtProtocolTypes protocol)
	DtConnectionSettings (const DtConnectionSettings &orig)
virtual	~DtConnectionSettings ()
virtual bool	operator== (const DtConnectionSettings &orig) const
virtual bool	operator!= (const DtConnectionSettings &orig) const
virtual bool	setFrom (const DtConnectionSettings *other)
virtual bool	setFrom (const DtConnectionFileRecord &rec)
virtual bool	connectionWillBeValid () const
virtual bool	connectionWillBeValid (const QString deviceAddress) const
virtual bool	setToFileRecord (DtConnectionFileRecord *rec)
virtual void	setName (std::string name)
virtual std::string	name ()
virtual DtProtocolTypes	protocolType () const
virtual void	setProtocolType (DtProtocolTypes type)
virtual bool	autoConnection () const
virtual void	setAutoConnection (bool conn)
virtual ConnectionArgValues *	argValues ()
virtual void	updateStringArgValue (unsigned int type, QString qstringValue)
virtual void	updateBoolArgValue (unsigned int type, bool boolValue)
virtual void	updateIntArgValue (unsigned int type, int intValue, bool negativeOneOk=false)
virtual bool	getArgValue (unsigned int argType, QString &argValue) const
virtual void	removeArgValueEntry (unsigned int type)
virtual bool	findArgDescriptor (unsigned int type, ArgFlagDescriptorPair &mappingStorage)
virtual QStringList	frontEndFlags ()
virtual QStringList	backEndFlags ()
Public Member Functions inherited from DtSettingsObject
	DtSettingsObject ()
	DtSettingsObject (std::string name)
	DtSettingsObject (const DtSettingsObject &orig)
virtual void	operator= (const DtSettingsObject &orig)
virtual bool	operator== (const DtSettingsObject &orig) const
virtual bool	operator!= (const DtSettingsObject &orig) const
virtual DtSettingsObject *	clone () const =0
virtual std::string	name () const
virtual bool	setFrom (const DtSettingsObject *other)

Static Public Member Functions
static DtConnectionSettings *	createFromDriverRecord (DtConnectionFileRecord &driverRecord, QString connName="")
static DtConnectionSettings *	createFromProtocol (DtProtocolTypes protocol, QString connName="")

Protected Member Functions
virtual void	initialize ()

Protected Attributes
ArgIndexDescriptionMap	myArgDescriptors
bool	myAmAutoConnection
DtProtocolTypes	myProtocolType
std::string	mySettingsType
ConnectionArgValues	myArgValues
Protected Attributes inherited from DtSettingsObject
std::string	myName

Private Member Functions
template<class Archive >
void	serialize (Archive &ar, const unsigned int version)

Friends
class	boost::serialization::access

Constructor & Destructor Documentation

DtConnectionSettings::DtConnectionSettings

(

)

DtConnectionSettings::DtConnectionSettings

(

std::string

name

)

DtConnectionSettings::DtConnectionSettings	(	std::string	name,
		DtProtocolTypes	protocol
	)

DtConnectionSettings::DtConnectionSettings

(

const DtConnectionSettings &

orig

)

virtual DtConnectionSettings::~DtConnectionSettings ( )

virtual

Member Function Documentation

virtual bool DtConnectionSettings::operator== ( const DtConnectionSettings &  orig ) const

virtual

Reimplemented in DtConnectionDISSettings, DtConnectionEVOSettings, DtConnectionHLASettings, and DtConnectionLegionSettings.

virtual bool DtConnectionSettings::operator!= ( const DtConnectionSettings &  orig ) const

virtual

Reimplemented in DtConnectionDISSettings, DtConnectionEVOSettings, DtConnectionHLASettings, and DtConnectionLegionSettings.

virtual bool DtConnectionSettings::setFrom ( const DtConnectionSettings *  other )

virtual

Reimplemented in DtConnectionDISSettings, DtConnectionEVOSettings, DtConnectionHLASettings, and DtConnectionLegionSettings.

virtual bool DtConnectionSettings::setFrom ( const DtConnectionFileRecord &  rec )

virtual

Reimplemented in DtConnectionDISSettings, DtConnectionEVOSettings, DtConnectionHLASettings, and DtConnectionLegionSettings.

virtual bool DtConnectionSettings::connectionWillBeValid ( ) const

virtual

Reimplemented in DtConnectionEVOSettings, and DtConnectionHLASettings.

virtual bool DtConnectionSettings::connectionWillBeValid ( const QString  deviceAddress ) const

virtual

virtual bool DtConnectionSettings::setToFileRecord ( DtConnectionFileRecord *  rec )

virtual

virtual void DtConnectionSettings::setName ( std::string  name )

virtual

virtual std::string DtConnectionSettings::name ( )

virtual

virtual DtProtocolTypes DtConnectionSettings::protocolType ( ) const

virtual

virtual void DtConnectionSettings::setProtocolType ( DtProtocolTypes  type )

virtual

virtual bool DtConnectionSettings::autoConnection ( ) const

virtual

virtual void DtConnectionSettings::setAutoConnection ( bool  conn )

virtual

virtual ConnectionArgValues* DtConnectionSettings::argValues ( )

virtual

virtual void DtConnectionSettings::updateStringArgValue ( unsigned int  type, QString  qstringValue  )

virtual

virtual void DtConnectionSettings::updateBoolArgValue ( unsigned int  type, bool  boolValue  )

virtual

virtual void DtConnectionSettings::updateIntArgValue ( unsigned int  type, int  intValue, bool  negativeOneOk = false  )

virtual

virtual bool DtConnectionSettings::getArgValue ( unsigned int  argType, QString &  argValue  ) const

virtual

virtual void DtConnectionSettings::removeArgValueEntry ( unsigned int  type )

virtual

Removes setting from map so it is no longer on the command line.

virtual bool DtConnectionSettings::findArgDescriptor ( unsigned int  type, ArgFlagDescriptorPair &  mappingStorage  )

virtual

virtual QStringList DtConnectionSettings::frontEndFlags ( )

virtual

Reimplemented in DtConnectionDISSettings, DtConnectionEVOSettings, DtConnectionHLASettings, and DtConnectionLegionSettings.

virtual QStringList DtConnectionSettings::backEndFlags ( )

virtual

Reimplemented in DtConnectionDISSettings, DtConnectionEVOSettings, DtConnectionHLASettings, and DtConnectionLegionSettings.

static DtConnectionSettings* DtConnectionSettings::createFromDriverRecord ( DtConnectionFileRecord &  driverRecord, QString  connName = ""  )

static

static DtConnectionSettings* DtConnectionSettings::createFromProtocol ( DtProtocolTypes  protocol, QString  connName = ""  )

static

virtual void DtConnectionSettings::initialize ( )

protectedvirtual

Reimplemented in DtConnectionEVOSettings, DtConnectionHLASettings, DtConnectionDISSettings, and DtConnectionLegionSettings.

template<class Archive >

void DtConnectionSettings::serialize ( Archive &  ar, const unsigned int  version  )

inlineprivate

References myAmAutoConnection, and myProtocolType.

Friends And Related Function Documentation

friend class boost::serialization::access

friend

Member Data Documentation

ArgIndexDescriptionMap DtConnectionSettings::myArgDescriptors

protected

bool DtConnectionSettings::myAmAutoConnection

protected

Referenced by serialize().

DtProtocolTypes DtConnectionSettings::myProtocolType

protected

Referenced by serialize().

std::string DtConnectionSettings::mySettingsType

protected

ConnectionArgValues DtConnectionSettings::myArgValues

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/appsrc/vrfLauncher/connectionSettings.h
