Signature propagator useful in any standard sensor domain. This propagator returns an apparent signature based on the absolute signature * 1000 / distance traveled in meters. This means that an apparent signature of 1.0 is observed when the distance from the target in km equals the target's absolute signature. If check-line-of-sight is set to True (the default), the DtPhysicalWorld::checkLineOfSight() call is used to determine if anything is between the observer and observee, and if so, returns a signature of 0.0. This propagator requires a DtStandardPropagatorDescriptor descriptor type.

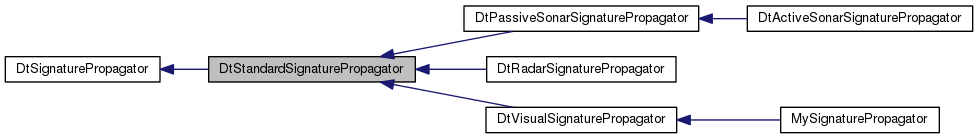

Inheritance diagram for DtStandardSignaturePropagator:

[legend]

Public Member Functions
	DtStandardSignaturePropagator (const DtSignaturePropagatorDescriptor desc, DtPhysicalWorld physicalWorld)

virtual	~DtStandardSignaturePropagator ()

virtual void	init ()

virtual double	calculateApparentSignature (double absoluteSignature, const DtSignaturePropagatorArgs &args, bool *dataAvailable=nullptr) const override

Public Member Functions inherited from DtSignaturePropagator
	DtSignaturePropagator (const DtSignaturePropagatorDescriptor descriptor, DtPhysicalWorld physicalWorld)

virtual	~DtSignaturePropagator ()

virtual const DtSignaturePropagatorDescriptor *	descriptor () const

virtual const DtPhysicalWorld *	physicalWorld () const

Static Public Member Functions
static DtSignaturePropagator *	create (const DtSignaturePropagatorDescriptor desc, DtPhysicalWorld physicalWorld)

Static Public Member Functions inherited from DtSignaturePropagator
static void	setFactory (DtSignaturePropagatorFactory *factory)

static DtSignaturePropagator *	createSignaturePropagator (const DtString &type, const DtSignaturePropagatorDescriptor desc, DtPhysicalWorld physicalWorld)

Protected Member Functions
virtual bool	getViewPoints (const DtSignaturePropagatorArgs &args, std::vector< DtVector > &points) const

virtual bool	getTargetPoints (const DtSignaturePropagatorArgs &args, std::vector< DtVector > &points) const

virtual void	getTargetPointsAtRange (const DtVector &viewerLoc, const DtVector &targetLoc, double range, bool clampToTerrain, double clampAlt, std::vector< DtVector > &points) const

virtual bool	viewerAndTargetOverlap (const DtSignaturePropagatorArgs &args) const

virtual double	getLinearEngineeringObjectsModifier (const DtSignaturePropagatorArgs &args) const

void	clampAltitudeToTerrain (const DtVector &targetObjectPosition, double clampAlt, DtVector &location) const

bool	clampViewPoints (const DtSimObject *object) const

Protected Attributes
const DtStandardPropagatorDescriptor *	myStandardPropagatorDescriptor

DtManagedObjectListConstPtr	myEngineeringLineList

Protected Attributes inherited from DtSignaturePropagator
const DtSignaturePropagatorDescriptor *	myDescriptor

DtPhysicalWorld *	myPhysicalWorld

Private Member Functions
	DtStandardSignaturePropagator (const DtStandardSignaturePropagator &orig)

DtStandardSignaturePropagator &	operator= (const DtStandardSignaturePropagator &orig)

Additional Inherited Members
Static Protected Attributes inherited from DtSignaturePropagator
static DtSignaturePropagatorFactory *	theFactory

Constructor & Destructor Documentation

DtStandardSignaturePropagator::DtStandardSignaturePropagator	(	const DtSignaturePropagatorDescriptor *	desc,
		DtPhysicalWorld *	physicalWorld
	)

default constructor

virtual DtStandardSignaturePropagator::~DtStandardSignaturePropagator ( )

virtual

destructor

DtStandardSignaturePropagator::DtStandardSignaturePropagator ( const DtStandardSignaturePropagator & orig )

private

copy constructor - not implemented

Member Function Documentation

virtual void DtStandardSignaturePropagator::init ( )

virtual

Assigns myStandardPropagatorDescriptor by casting the result of descriptor().

Reimplemented from DtSignaturePropagator.

Reimplemented in DtVisualSignaturePropagator, DtRadarSignaturePropagator, DtActiveSonarSignaturePropagator, DtPassiveSonarSignaturePropagator, and MySignaturePropagator.

virtual double DtStandardSignaturePropagator::calculateApparentSignature	(	double	absoluteSignature,
		const DtSignaturePropagatorArgs &	args,
		bool *	dataAvailable = `nullptr`
	)		const

overridevirtual

Calculates the apparent signature from the provided absolute signature. Deriving classes must override this function to provide the implementation for apparent signature they desire.

Implements DtSignaturePropagator.

Reimplemented in DtVisualSignaturePropagator, DtRadarSignaturePropagator, MySignaturePropagator, DtActiveSonarSignaturePropagator, and DtPassiveSonarSignaturePropagator.

static DtSignaturePropagator* DtStandardSignaturePropagator::create	(	const DtSignaturePropagatorDescriptor *	desc,
		DtPhysicalWorld *	physicalWorld
	)

static

Creates a new instance of this class, calls init() on it, and returns it.

virtual bool DtStandardSignaturePropagator::getViewPoints	(	const DtSignaturePropagatorArgs &	args,
		std::vector< DtVector > &	points
	)		const

protectedvirtual

Gets the view points of the viewing object. Returns false if no specific view points could be determined, in which case standard view point can be used.

virtual bool DtStandardSignaturePropagator::getTargetPoints	(	const DtSignaturePropagatorArgs &	args,
		std::vector< DtVector > &	points
	)		const

protectedvirtual

Gets the target points of the given object. Returns false if no specific target points could be determined, in which case standard target point can be used.

virtual void DtStandardSignaturePropagator::getTargetPointsAtRange	(	const DtVector &	viewerLoc,
		const DtVector &	targetLoc,
		double	range,
		bool	clampToTerrain,
		double	clampAlt,
		std::vector< DtVector > &	points
	)		const

protectedvirtual

Fills the points vector with a collection of locations at the specified range from targetLoc. These points are chose in relation to the viewerLoc. Returns three points: 1) The point on the line between viewerLoc and targetLoc that is range meters from targetLoc 2) The point on the line perpendicular to the one between viewerLoc and targetLoc that is range meters to the left of targetLoc 3) The point on the line perpendicular to the one between viewerLoc and targetLoc that is range meters to the right of targetLoc If clampToTerrain is true, the points will be clamped to clampAlt m above the terrain (assuming data is available). If clampToTerrain is false, the points will use the altitude of the target object.

virtual bool DtStandardSignaturePropagator::viewerAndTargetOverlap ( const DtSignaturePropagatorArgs & args ) const

protectedvirtual

Returns true if the footprints of the viewer and target overlap.

virtual double DtStandardSignaturePropagator::getLinearEngineeringObjectsModifier ( const DtSignaturePropagatorArgs & args ) const

protectedvirtual

Returns the signature modifier resulting from any linear engineering objects between the view point and the target point.

void DtStandardSignaturePropagator::clampAltitudeToTerrain	(	const DtVector &	targetObjectPosition,
		double	clampAlt,
		DtVector &	location
	)		const

protected

Set point clampAlt m off ground if data is available - set to clampAlt m above target object's altitude otherwise.

bool DtStandardSignaturePropagator::clampViewPoints ( const DtSimObject * object ) const

protected

Returns true if viewpoints for this object should be clamped.

DtStandardSignaturePropagator& DtStandardSignaturePropagator::operator= ( const DtStandardSignaturePropagator & orig )

private

assignment operator - not implemented

Member Data Documentation

const DtStandardPropagatorDescriptor* DtStandardSignaturePropagator::myStandardPropagatorDescriptor

protected

DtManagedObjectListConstPtr DtStandardSignaturePropagator::myEngineeringLineList

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/standardSignaturePropagator.h
