DtTerrainPagerSpecificCommand< T_Pager > Class Template Reference

template<typename T_Pager>
class DtTerrainPagerSpecificCommand< T_Pager >

Template class for creating DtTerrainPagerCommand subclasses that are used for a specific subclass of DtTerrainPager. The execute() method takes a pointer to the specific pager type.

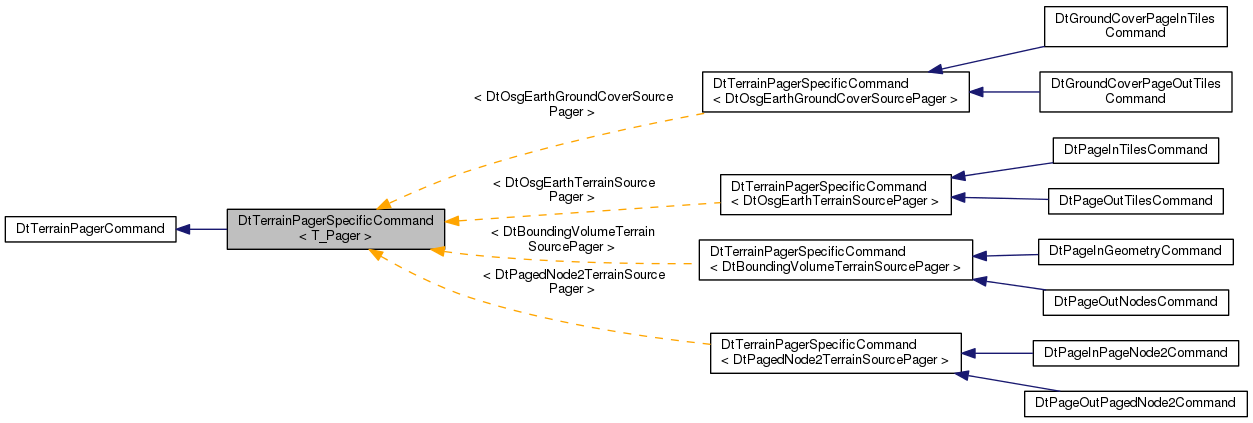

Inheritance diagram for DtTerrainPagerSpecificCommand< T_Pager >:

Public Member Functions
	DtTerrainPagerSpecificCommand (DtPagingMetaDataPtr metaData)
virtual	~DtTerrainPagerSpecificCommand ()
virtual void	execute (DtTerrainSourcePager *pager)
virtual void	execute (T_Pager *pager)=0
Public Member Functions inherited from DtTerrainPagerCommand
	DtTerrainPagerCommand (const DtPagingMetaDataPtr &metaData)
virtual	~DtTerrainPagerCommand ()
virtual void	setCount (CommandCounter &count)
virtual const bool	complete ()
virtual const bool	processing ()
virtual void	startProcessing ()
virtual void	stopProcessing ()
virtual const DtPagingMetaDataPtr	metaData ()
virtual const int	type () const =0

Additional Inherited Members
Static Public Member Functions inherited from DtTerrainPagerCommand
static DtTerrainPagerCommandFactory *	factory ()
Protected Attributes inherited from DtTerrainPagerCommand
tbb::spin_mutex	myMutex
DtPagingMetaDataPtr	myMetaData
bool	myComplete
bool	myProcessing
CommandCounter *	myCount
Static Protected Attributes inherited from DtTerrainPagerCommand
static DtTerrainPagerCommandFactory	theFactory

Constructor & Destructor Documentation

template<typename T_Pager>

DtTerrainPagerSpecificCommand< T_Pager >::DtTerrainPagerSpecificCommand ( DtPagingMetaDataPtr  metaData )

inline

template<typename T_Pager>

virtual DtTerrainPagerSpecificCommand< T_Pager >::~DtTerrainPagerSpecificCommand ( )

inlinevirtual

Member Function Documentation

template<typename T_Pager>

virtual void DtTerrainPagerSpecificCommand< T_Pager >::execute ( DtTerrainSourcePager *  pager )

inlinevirtual

Implements DtTerrainPagerCommand.

Referenced by DtTerrainPagerSpecificCommand< DtPagedNode2TerrainSourcePager >::execute().

template<typename T_Pager>

virtual void DtTerrainPagerSpecificCommand< T_Pager >::execute ( T_Pager *  pager )

pure virtual

Implemented in DtGroundCoverPageOutTilesCommand, DtGroundCoverPageInTilesCommand, DtPageOutPagedNode2Command, DtPageOutTilesCommand, DtPageOutNodesCommand, DtPageInPageNode2Command, DtPageInGeometryCommand, and DtPageInTilesCommand.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vantageTerrainImplementation/terrainPagerCommand.h
