This UI element will provide basical functionality for allowing a system to define rules that can determine if there is something about the system the user needs to fix in order to make it a working system.

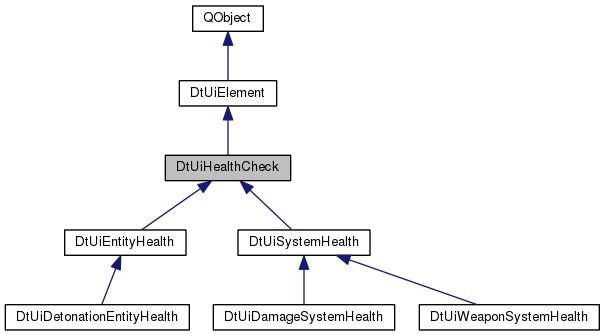

Inheritance diagram for DtUiHealthCheck:

[legend]

Public Member Functions
	DtUiHealthCheck (makVrv::DtDe &)

virtual	~DtUiHealthCheck ()

virtual void	createControls (QWidget *)

virtual void	attemptHealthFix (const QString &)

virtual void	setAsHealthy ()

virtual void	addHealthCheck (const DtHealthCheck &, bool rerun=false)

virtual void	setCheckHealthOnSetup (bool)

bool	checkHealthOnSetup () const

Public Member Functions inherited from DtUiElement
	DtUiElement (makVrv::DtDe &)

virtual	~DtUiElement ()

virtual bool	blockSignals (bool)

virtual void	init (QWidget widget, QWidget label, DtReaderWriter originalData, DtReaderWriter backupData, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))

virtual void	init (QWidget widget, QWidget label, const std::vector< DtReaderWriter * > &originalData, const std::vector< DtReaderWriter * > &backupData, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))

virtual void	init (QWidget widget, QWidget label, const DtObjectType &, const DtString &platformType, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))

virtual DtString	displayUnits () const

virtual void	setDisplayUnits (const DtString &units)

virtual void	setLabelText (const QString &)

virtual DtString	sourceUnits () const

virtual void	setSourceUnits (const DtString &units)

virtual void	setFromSystemParameterData (const DtSystemParameterData data, const DtComponentSystemDefinition )

virtual void	objectParametersModified ()

virtual void	connectedTo (QObject *)

virtual void	processUiEvent (const DtUiElementEvent &)

virtual void	setModelModified (DtModelSetEntry *)

virtual DtString	uniqueName () const

virtual bool	supportsSystems () const

virtual const DtString &	platformType () const

virtual void	setPlatformType (const DtString &)

virtual void	setObjectTypes (const std::vector< DtObjectType > &)

virtual void	aboutToShow ()

const std::vector < DtReaderWriter * > &	values () const

const std::vector < DtReaderWriter * > &	backupValues () const

virtual bool	isModified () const

virtual bool	isValid () const

virtual void	decorateElement ()

virtual void	setFromParameters (DtReaderWriter *parentRw)

virtual void	setFromParameters (const std::vector< DtComponentSystemDefinition * > &)

virtual void	setFromParameters (const std::vector< DtReaderWriter * > &parentRw)

virtual bool	restoreFromBackup ()

QHBoxLayout *	findLayoutThatHas (QWidget w, QBoxLayout layout)

QBoxLayout *	findUsableLayoutFor (QWidget *w)

const std::vector< DtObjectType > &	objectTypes () const

const std::vector < DtComponentSystemDefinition * > &	systems () const

virtual void	sendEvent (const DtUiElementEvent &)

virtual bool	allValuesTheSame () const

virtual bool	isMixedValue () const

virtual void	setEnabled (bool)

virtual bool	enabled () const

virtual void	setControllingCheckBox (QCheckBox *)

QCheckBox *	controllingCheckBox ()

virtual void	populateParentValues (std::string elementName)

Public Attributes
QTreeWidget *	myHealth

Public Attributes inherited from DtUiElement
QWidget *	myWidget

QWidget *	myLabel

Protected Types
typedef std::vector < DtHealthCheck * >	HealthChecks

Protected Slots
virtual void	fix ()

virtual bool	checkHealth ()

Protected Slots inherited from DtUiElement
virtual void	elementChanged ()

virtual void	enableIfChecked ()

virtual void	disableIfChecked ()

Protected Member Functions
virtual bool	canAddHealthCheck (const DtHealthCheck &) const

virtual void	addHealthChecks ()=0

virtual QString	tab () const =0

virtual QString	affects () const =0

virtual bool	checkup (QString &toolTip)=0

virtual void	cure (DtHealthCheck *)=0

virtual void	failed (DtHealthCheck *, const QString &error)

virtual void	checkout (const QString &toolTip)

Protected Member Functions inherited from DtUiElement
virtual double	sourceToDisplayUnits (double) const

virtual double	displayToSourceUnits (double) const

virtual QString	units () const

virtual void	updateLabelTitle ()

virtual QString	labelTitle () const

Protected Attributes
HealthChecks	myHealthChecks

bool	myCheckHealthOnSetup

Protected Attributes inherited from DtUiElement
DtString	myDisplayUnits

DtString	mySourceUnits

std::vector< DtReaderWriter * >	myValues

std::vector< DtReaderWriter * >	myBackupValues

DtReaderWriter *	myParentValue

bool	myIsNew

DtElementChangedCallbackFcn	myElementChangedCallbackFunction

DtUnit	mySource

DtUnit	myDestination

makVrv::DtDe &	myDe

DtString	myPlatformType

std::vector< DtObjectType >	myObjectTypes

std::vector < DtComponentSystemDefinition * >	mySystems

const DtComponentSystemDefinition *	mySystemDefinition

bool	myEnabled

std::vector< QObject * >	myConnectedTo

int	myUniqueId

QCheckBox *	myControllingCheckBox

QToolButton *	myRevertToParentButton

Additional Inherited Members
Public Types inherited from DtUiElement
typedef boost::function < DtUiElement *(makVrv::DtDe &)>	CreatorFunction

typedef std::map< std::string, CreatorFunction >	UiElementFactoryMap

Public Slots inherited from DtUiElement
virtual void	toggleDisplayed (bool display)

Signals inherited from DtUiElement
void	uiEvent (const DtUiElementEvent &)

void	changed ()

Static Public Member Functions inherited from DtUiElement
static void	registerUiTypes ()

static DtUiElement *	createUiElement (makVrv::DtDe &, const DtString &type)

static bool	hasCreator (const DtString &)

static void	theNullFunction (DtUiElement *)

static UiElementFactoryMap &	elementFactory ()

static QString	mixedText ()

static void	setMixedText (const QString &)

Static Protected Attributes inherited from DtUiElement
static UiElementFactoryMap	theFactory

Member Typedef Documentation

typedef std::vector<DtHealthCheck*> DtUiHealthCheck::HealthChecks

protected

Constructor & Destructor Documentation

DtUiHealthCheck::DtUiHealthCheck ( makVrv::DtDe & )

Constructor.

virtual DtUiHealthCheck::~DtUiHealthCheck ( )

virtual

Destructor.

Member Function Documentation

virtual void DtUiHealthCheck::createControls ( QWidget * parent )

virtual

If additional widgets or connections need to be made do it here. The parent is the myWidget member.

Reimplemented from DtUiElement.

virtual void DtUiHealthCheck::attemptHealthFix ( const QString & )

virtual

virtual void DtUiHealthCheck::setAsHealthy ( )

virtual

virtual void DtUiHealthCheck::addHealthCheck	(	const DtHealthCheck &	,
		bool	rerun = `false`
	)

virtual

Add a new health check (which will be cloned) into this system check. If last flag is true will also rerun health check.

virtual void DtUiHealthCheck::setCheckHealthOnSetup ( bool )

virtual

bool DtUiHealthCheck::checkHealthOnSetup ( ) const

inline

virtual bool DtUiHealthCheck::canAddHealthCheck ( const DtHealthCheck & ) const

protectedvirtual

virtual void DtUiHealthCheck::addHealthChecks ( )

protectedpure virtual

Implemented in DtUiDamageSystemHealth, DtUiDetonationEntityHealth, and DtUiWeaponSystemHealth.

virtual QString DtUiHealthCheck::tab ( ) const

protectedpure virtual

Which tab to show the warning icon on.

Implemented in DtUiDamageSystemHealth, DtUiDetonationEntityHealth, and DtUiWeaponSystemHealth.

virtual QString DtUiHealthCheck::affects ( ) const

protectedpure virtual

What this affects (system or entity)

Implemented in DtUiDamageSystemHealth, DtUiDetonationEntityHealth, and DtUiWeaponSystemHealth.

virtual bool DtUiHealthCheck::checkup ( QString & toolTip )

protectedpure virtual

Fill in tool tip with what to display for overall health if fails.

Implemented in DtUiEntityHealth, and DtUiSystemHealth.

virtual void DtUiHealthCheck::cure ( DtHealthCheck * )

protectedpure virtual

Attempt to fix the failed health check.

Implemented in DtUiEntityHealth, and DtUiSystemHealth.

virtual void DtUiHealthCheck::failed	(	DtHealthCheck *	,
		const QString &	error
	)

protectedvirtual

virtual void DtUiHealthCheck::checkout ( const QString & toolTip )

protectedvirtual

Called after checkup complete.

virtual void DtUiHealthCheck::fix ( )

protectedvirtualslot

virtual bool DtUiHealthCheck::checkHealth ( )

protectedvirtualslot

Member Data Documentation

QTreeWidget* DtUiHealthCheck::myHealth

HealthChecks DtUiHealthCheck::myHealthChecks

protected

bool DtUiHealthCheck::myCheckHealthOnSetup

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/simulationObjectEditorImpl/uiHealthCheck.h
