makVrf::DtConditionalDialogInterface Class Reference

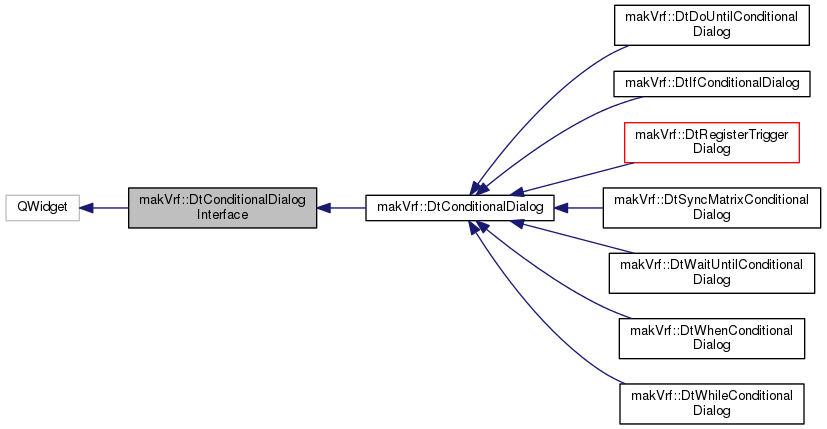

Inheritance diagram for makVrf::DtConditionalDialogInterface:

Public Member Functions
	DtConditionalDialogInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtConditionalDialogInterface ()
virtual void	run (const std::vector< makVrv::DtSimEntry * > &data)=0
virtual void	conditionComplete (const DtSimStatement &)
virtual void	conditionCancelled ()
virtual void	setupGui (const std::vector< makVrv::DtSimEntry * > &data)=0
virtual void	enable ()=0
virtual void	disable ()=0
virtual DtSimCondExpr *	conditionalExpression () const =0
virtual bool	editExpression (const DtSimStatement *, const DtSimCondExpr *, const std::vector< makVrv::DtSimEntry * > &data)=0
virtual QString	statementDescription () const =0
virtual void	setStatementDescription (const QString &)=0
virtual void	setTriggers (DtRwTriggersList *)
virtual DtRwTriggersList *	triggers () const
virtual void	closeEvent (QCloseEvent *) override
virtual bool	alwaysPopOut () const
virtual void	setConditionalMenu (DtVrfConditionalMenu *)
virtual void	setCancelButtonText (const QString &)=0
virtual QWidget *	takeOKCancelButtonCanvas (QWidget *newParent)=0
virtual void	giveOKCancelButtonCanvas (QWidget *)=0
virtual void	onCancel ()=0
virtual QSize	sizeHint () const override
virtual QSize	minimumSizeHint () const override

Public Attributes
boost::signals2::signal< void(const DtSimStatement &)>	signal_conditionComplete
boost::signals2::signal< void()>	signal_conditionCancelled
boost::signals2::signal< void(DtConditionalDialogInterface *)>	signal_destroyed
boost::signals2::signal< void(DtConditionalDialogInterface *)>	signal_dialogComplete

Protected Member Functions
virtual QWidget *	sizeToParent () const

Protected Attributes
makVrv::DtDe &	myDe
DtRwTriggersList *	myTriggers
DtVrfConditionalMenu *	myConditionalMenu

Constructor & Destructor Documentation

makVrf::DtConditionalDialogInterface::DtConditionalDialogInterface	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtConditionalDialogInterface::~DtConditionalDialogInterface ( )

virtual

Member Function Documentation

virtual void makVrf::DtConditionalDialogInterface::run ( const std::vector< makVrv::DtSimEntry * > &  data )

pure virtual

Override to run the dialog.

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::conditionComplete ( const DtSimStatement &  )

virtual

Sends signal to send out set.

virtual void makVrf::DtConditionalDialogInterface::conditionCancelled ( )

virtual

Sends signal that current condition expression was cancelled.

virtual void makVrf::DtConditionalDialogInterface::setupGui ( const std::vector< makVrv::DtSimEntry * > &  data )

pure virtual

Implemented in makVrf::DtConditionalDialog, and makVrf::DtRegisterTriggerDialog.

virtual void makVrf::DtConditionalDialogInterface::enable ( )

pure virtual

enables interface

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::disable ( )

pure virtual

disbles interface

Implemented in makVrf::DtConditionalDialog.

virtual DtSimCondExpr* makVrf::DtConditionalDialogInterface::conditionalExpression ( ) const

pure virtual

Calls down to view to get condition. Memory allocated must be freed by caller.

Implemented in makVrf::DtConditionalDialog.

virtual bool makVrf::DtConditionalDialogInterface::editExpression ( const DtSimStatement *  , const DtSimCondExpr *  , const std::vector< makVrv::DtSimEntry * > &  data  )

pure virtual

edits the expression

Implemented in makVrf::DtConditionalDialog, makVrf::DtRegisterTriggerDialog, and makVrf::DtWhenConditionalDialog.

virtual QString makVrf::DtConditionalDialogInterface::statementDescription ( ) const

pure virtual

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::setStatementDescription ( const QString &  )

pure virtual

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::setTriggers ( DtRwTriggersList *  )

virtual

Reimplemented in makVrf::DtRegisterTriggerDialog.

virtual DtRwTriggersList* makVrf::DtConditionalDialogInterface::triggers ( ) const

virtual

virtual void makVrf::DtConditionalDialogInterface::closeEvent ( QCloseEvent *  )

overridevirtual

virtual bool makVrf::DtConditionalDialogInterface::alwaysPopOut ( ) const

inlinevirtual

virtual void makVrf::DtConditionalDialogInterface::setConditionalMenu ( DtVrfConditionalMenu *  )

virtual

virtual void makVrf::DtConditionalDialogInterface::setCancelButtonText ( const QString &  )

pure virtual

Sets the Cancel button text.

Implemented in makVrf::DtConditionalDialog.

virtual QWidget* makVrf::DtConditionalDialogInterface::takeOKCancelButtonCanvas ( QWidget *  newParent )

pure virtual

This will return the OK/Cancel cavas that the current OK/Cancel buttons are on. You can use this to reparent to another widget.

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::giveOKCancelButtonCanvas ( QWidget *  )

pure virtual

Gives the canvas back to this widget.

Implemented in makVrf::DtConditionalDialog.

virtual void makVrf::DtConditionalDialogInterface::onCancel ( )

pure virtual

virtual QSize makVrf::DtConditionalDialogInterface::sizeHint ( ) const

overridevirtual

Reimplemented in makVrf::DtConditionalDialog.

virtual QSize makVrf::DtConditionalDialogInterface::minimumSizeHint ( ) const

overridevirtual

Reimplemented in makVrf::DtConditionalDialog.

virtual QWidget* makVrf::DtConditionalDialogInterface::sizeToParent ( ) const

protectedvirtual

Member Data Documentation

boost::signals2::signal<void (const DtSimStatement&)> makVrf::DtConditionalDialogInterface::signal_conditionComplete

boost::signals2::signal<void ()> makVrf::DtConditionalDialogInterface::signal_conditionCancelled

boost::signals2::signal<void (DtConditionalDialogInterface*)> makVrf::DtConditionalDialogInterface::signal_destroyed

boost::signals2::signal<void (DtConditionalDialogInterface*)> makVrf::DtConditionalDialogInterface::signal_dialogComplete

makVrv::DtDe& makVrf::DtConditionalDialogInterface::myDe

protected

DtRwTriggersList* makVrf::DtConditionalDialogInterface::myTriggers

protected

DtVrfConditionalMenu* makVrf::DtConditionalDialogInterface::myConditionalMenu

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfGuiTaskSetQt/conditionalDialogInterface.h
