makVrf::DtCopyObject Class Reference

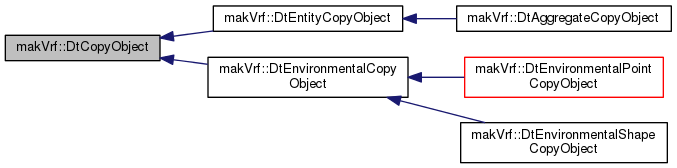

Inheritance diagram for makVrf::DtCopyObject:
Inheritance graph
[legend]

Public Types

enum  DtPasteFlags {
  DtPasteNewName = 0x00000001, DtPasteAppearance = 0x00000002, DtPasteHeading = 0x00000004, DtPasteEngagement = 0x00000008,
  DtPastePlan = 0x00000010, DtPasteAboveSeaLevel = 0x00000020, DtPasteAboveTerrain = 0x00000040, DtPasteFormation = 0x00000080,
  DtPasteStateProperties = 0x00000100, DtAllPasteFlags
}


Public Member Functions

 DtCopyObject (makVrv::DtDe &)

virtual ~DtCopyObject ()

virtual void copy (makVrv::DtSimEntry *)

virtual void read (const std::string &buf)

virtual void cancel ()

const std::string & name () const

const DtUUID & uuid () const

virtual std::string copyPendingMessage () const

virtual std::string pastePendingMessage () const

virtual void setAltitudeClampType (DtAltitudeClampType)

DtAltitudeClampType altitudeClampType () const

void setType (int t)

int type () const

void setBuffer (const std::string &b)

const std::string & buffer () const

virtual
DtVrfObjectFacadeInterface * 		facade () const

virtual bool preserveOffsets () const

virtual void multipleObjectsPasting ()

virtual void paste (const DtVector &, int flags=DtAllPasteFlags)

virtual DtGeodeticCoord center () const

virtual DtVector localCenter () const

virtual DtGeodeticCoord calculateCenter () const

virtual DtVector origin () const

virtual DtVector pasteOrigin () const

virtual void setGeometricCenter (const DtGeodeticCoord &)

const DtGeodeticCoord & geometricCenter () const

virtual void createFacade (const DtGeodeticCoord &origin)

virtual void setOrigin (const DtGeodeticCoord &)

const
makVrv::DtVrlinkSimulatedBaseState * 		readableStateData () const

virtual bool updateDataBeforeCopy () const

virtual void setUpdateDataBeforeCopy (bool)


Public Attributes

boost::signals2::signal< void(DtCopyObject *)> signal_copyCancelled

boost::signals2::signal< void(DtCopyObject
*, const std::string &)> 		signal_copied

boost::signals2::signal< void(DtCopyObject
*, const std::string &)> 		signal_copyOperationPending

boost::signals2::signal< void(DtCopyObject *)> signal_pasted

boost::signals2::signal< void(DtCopyObject
*, const std::string &)> 		signal_pasteOperationPending

boost::signals2::signal< void(DtCopyObject *)> signal_pasteCancelled


Protected Types

typedef std::vector< double > HeightOffsets


Protected Member Functions

virtual void write (std::ostringstream &str, const makVrv::DtVrlinkSimulatedBaseState *data, makVrv::DtUniqueID id)

virtual void write (std::ostringstream &str, const DtVrfObjectDataState *data)

virtual DtVrfObjectDataState * createReadableObjectStateData () const

virtual
makVrv::DtVrlinkSimulatedBaseState * 		createReadableStateData () const

virtual void read (std::istringstream &str, makVrv::DtVrlinkSimulatedBaseState *data)

virtual void read (std::istringstream &str, DtVrfObjectDataState *data)

virtual void checkCopyComplete ()

virtual bool copyOperationsPending () const

virtual void copyComplete ()

virtual bool cancelComplete () const

virtual void readComplete (std::istringstream &str)

virtual void checkPasteComplete ()

virtual bool pasteComplete () const

virtual void createObject (const DtVector &)

virtual int generateRequestId ()

virtual double groundHeight (const DtVector &currentLocal) const

virtual void setupOffsets (const DtGeodeticCoord &)

virtual void slot_onStateViewUpdated (DtVrlinkSimulatedBaseStateView *state, makVrv::DtSimEntry *simEntry)

virtual DtVector offsetLocation (int, const DtVector &loc) const

virtual DtGeodeticCoord calculateOffsetPoint (const DtGeodeticCoord &start, const DtGeodeticCoord &end, double &altAboveTerrain, double &altAboveSeaLevel) const

virtual DtVector localLocation (const DtGeodeticCoord &, int) const

virtual void forceUpdate (DtVrlinkSimulatedBaseStateView *stateView, makVrv::DtSimEntry *simEntry)


Protected Attributes

makVrv::DtDe & myDe

std::ostringstream myOutput

std::string myName

int myPasteFlags

DtVrfObjectDataState * myReadableObjectStateData

makVrv::DtVrlinkSimulatedBaseState * myReadableStateData

DtGeodeticCoord myCenter

CopyOffsets myOffsets

HeightOffsets myAltitudeAboveTerrain

HeightOffsets myAltitudeAboveSeaLevel

DtAltitudeClampType myAltitudeClampType

DtReferenceEllipsoid myReferenceEllipsoid

int myType

std::string myBuffer

DtGeodeticCoord myGeometricCenter

bool myIsLocal

bool myUpdateDataBeforeCopy

DtUUID myUUID

bool myUpdated

makVrv::DtSignalConnectionManager myStateViewConnections


Private Types

typedef std::vector
< DtGeodeticCoord > 		CopyOffsets


Member Typedef Documentation

typedef std::vector<DtGeodeticCoord> makVrf::DtCopyObject::CopyOffsets
private
typedef std::vector<double> makVrf::DtCopyObject::HeightOffsets
protected

Member Enumeration Documentation

enum makVrf::DtCopyObject::DtPasteFlags
Enumerator
DtPasteNewName
DtPasteAppearance

Paste under a new name vs. name as it was copied.

DtPasteHeading

Paste appearance bits or use 0.

DtPasteEngagement

Paste heading or use 0 heading.

DtPastePlan
DtPasteAboveSeaLevel
DtPasteAboveTerrain
DtPasteFormation
DtPasteStateProperties
DtAllPasteFlags

Constructor & Destructor Documentation

makVrf::DtCopyObject::DtCopyObject ( makVrv::DtDe &  )
virtual makVrf::DtCopyObject::~DtCopyObject ( )
virtual

Member Function Documentation

virtual void makVrf::DtCopyObject::copy ( makVrv::DtSimEntry *  )
virtual

Starts copy process. Subclasses need to implement specific copy procedures.

Reimplemented in makVrf::DtAggregateCopyObject, and makVrf::DtEnvironmentalShapeCopyObject.

virtual void makVrf::DtCopyObject::read ( const std::string &  buf)
virtual

Reads data from the buffer. Creates the state data to read into from a call to createReadableStateData()

virtual void makVrf::DtCopyObject::cancel ( )
virtual

Cancels copy. Emits signal when cancel is complete.

Reimplemented in makVrf::DtAggregateCopyObject, and makVrf::DtEntityCopyObject.

const std::string& makVrf::DtCopyObject::name ( void  ) const
inline
const DtUUID& makVrf::DtCopyObject::uuid ( ) const
inline
virtual std::string makVrf::DtCopyObject::copyPendingMessage ( ) const
virtual

Message that is describing what this object is waiting for as far as copying goes.

Reimplemented in makVrf::DtAggregateCopyObject, and makVrf::DtEntityCopyObject.

virtual std::string makVrf::DtCopyObject::pastePendingMessage ( ) const
virtual

Message that is describing what this object is waiting for as far as pasting goes.

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtAggregateCopyObject.

virtual void makVrf::DtCopyObject::setAltitudeClampType ( DtAltitudeClampType  )
virtual

Sets the clamp type to used when calculating localLocation. Default is above terrain.

DtAltitudeClampType makVrf::DtCopyObject::altitudeClampType ( ) const
void makVrf::DtCopyObject::setType ( int  t)
inline
int makVrf::DtCopyObject::type ( void  ) const
inline
void makVrf::DtCopyObject::setBuffer ( const std::string &  b)
inline
const std::string& makVrf::DtCopyObject::buffer ( ) const
inline
virtual DtVrfObjectFacadeInterface* makVrf::DtCopyObject::facade ( ) const
inlinevirtual

Returns the facade.

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtEnvironmentalCopyObject.

virtual bool makVrf::DtCopyObject::preserveOffsets ( ) const
virtual

Returns true if offsets from origin should be preserved on paste. Default is false.

Reimplemented in makVrf::DtEnvironmentalShapeCopyObject.

virtual void makVrf::DtCopyObject::multipleObjectsPasting ( )
virtual

During the paste operation, this method will be called if there are multiple objects being pasted. The handler can then configure the facade accordingly.

Reimplemented in makVrf::DtEntityCopyObject.

virtual void makVrf::DtCopyObject::write ( std::ostringstream &  str,
const makVrv::DtVrlinkSimulatedBaseState *  data,
makVrv::DtUniqueID  id
)
protectedvirtual

Writes data to stream. Override to write own data, but, make sure to call parent method.

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtEnvironmentalCopyObject.

virtual void makVrf::DtCopyObject::write ( std::ostringstream &  str,
const DtVrfObjectDataState *  data
)
protectedvirtual

Writes vrf object data state.

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtAggregateCopyObject.

virtual DtVrfObjectDataState* makVrf::DtCopyObject::createReadableObjectStateData ( ) const
protectedvirtual

Creates state data that will be used to read into a readable buffer. Will persist until object is deleted.

virtual makVrv::DtVrlinkSimulatedBaseState* makVrf::DtCopyObject::createReadableStateData ( ) const
protectedvirtual

Reimplemented in makVrf::DtAggregateCopyObject, makVrf::DtEntityCopyObject, and makVrf::DtEnvironmentalCopyObject.

virtual void makVrf::DtCopyObject::read ( std::istringstream &  str,
makVrv::DtVrlinkSimulatedBaseState *  data
)
protectedvirtual

Reads data from stream. Override to read own data, but, make sure to call parent method.

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtEnvironmentalCopyObject.

virtual void makVrf::DtCopyObject::read ( std::istringstream &  str,
DtVrfObjectDataState *  data
)
protectedvirtual

Reads vrf object data state.

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtAggregateCopyObject.

virtual void makVrf::DtCopyObject::checkCopyComplete ( )
protectedvirtual

Checks whether or not the copy is complete, and, if it is, calls copyComplet()

virtual bool makVrf::DtCopyObject::copyOperationsPending ( ) const
protectedvirtual

Return true if copy operations are complete, else false will signal that there are other operations yet to be done.

Reimplemented in makVrf::DtAggregateCopyObject, and makVrf::DtEntityCopyObject.

virtual void makVrf::DtCopyObject::copyComplete ( )
protectedvirtual

Sends copied message with resultant copied string.

Reimplemented in makVrf::DtAggregateCopyObject.

virtual bool makVrf::DtCopyObject::cancelComplete ( ) const
protectedvirtual

Returns true if cancel is complete.

Reimplemented in makVrf::DtAggregateCopyObject.

virtual void makVrf::DtCopyObject::paste ( const DtVector &  ,
int  flags = DtAllPasteFlags
)
virtual

Pastes object given the current information. If paste is not complete, will send out pasteOperationPending signal. The geocentric coordinate given the the center around which this item should be placed. This object will figure out the correct placement based on that center (in geocentric coordinates)

Reimplemented in makVrf::DtAggregateCopyObject.

virtual DtGeodeticCoord makVrf::DtCopyObject::center ( ) const
virtual

Returns the center of the object in geocentric coordinates.

virtual DtVector makVrf::DtCopyObject::localCenter ( ) const
virtual
virtual DtGeodeticCoord makVrf::DtCopyObject::calculateCenter ( ) const
virtual

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtEnvironmentalCopyObject.

virtual DtVector makVrf::DtCopyObject::origin ( ) const
virtual

If facade is available, returns the origin of the facade, else returns center(). Returns origin in local coordinates.

Reimplemented in makVrf::DtEnvironmentalShapeCopyObject, makVrf::DtEnvironmentalPointCopyObject, and makVrf::DtEntityCopyObject.

virtual DtVector makVrf::DtCopyObject::pasteOrigin ( ) const
virtual

Origin at which to paste the object. Will take into account offsets (if they exist)

Reimplemented in makVrf::DtEntityCopyObject.

virtual void makVrf::DtCopyObject::setGeometricCenter ( const DtGeodeticCoord &  )
virtual

Sets the center of all objects being painted (in geocentric as per center() call). Will store both the center in a member variable.

const DtGeodeticCoord& makVrf::DtCopyObject::geometricCenter ( ) const
virtual void makVrf::DtCopyObject::createFacade ( const DtGeodeticCoord &  origin)
virtual

Creates the facade that will be used to display a temp item during paste operation. Base does nothing.

Reimplemented in makVrf::DtEnvironmentalShapeCopyObject, makVrf::DtEnvironmentalPointCopyObject, and makVrf::DtEntityCopyObject.

virtual void makVrf::DtCopyObject::setOrigin ( const DtGeodeticCoord &  )
virtual

Sets new location of object. Base member is no-op. Location is in local database coordinates.

Reimplemented in makVrf::DtEnvironmentalShapeCopyObject, makVrf::DtEnvironmentalPointCopyObject, and makVrf::DtEntityCopyObject.

const makVrv::DtVrlinkSimulatedBaseState* makVrf::DtCopyObject::readableStateData ( ) const
inline
virtual bool makVrf::DtCopyObject::updateDataBeforeCopy ( ) const
virtual

Returns true as to whether or not to force a data update before copy. Default is false.

virtual void makVrf::DtCopyObject::setUpdateDataBeforeCopy ( bool  )
virtual
virtual void makVrf::DtCopyObject::readComplete ( std::istringstream &  str)
protectedvirtual

Called when reading of buffer for object is complete.

Reimplemented in makVrf::DtAggregateCopyObject.

virtual void makVrf::DtCopyObject::checkPasteComplete ( )
protectedvirtual

Checks to see if paste operation is complete. If it is, then, will signal pasted, else signals the pasteOperationPending message with the message of what it is doing.

virtual bool makVrf::DtCopyObject::pasteComplete ( ) const
protectedvirtual

Returns true if paste operation is complete. Default is true.

Reimplemented in makVrf::DtEntityCopyObject, and makVrf::DtAggregateCopyObject.

virtual void makVrf::DtCopyObject::createObject ( const DtVector &  )
protectedvirtual

Creates the object locally or on the network. Default implementation does nothing. Vector is supplied in geocentric coordinates.

Reimplemented in makVrf::DtSpawnSinkEnvironmentalPointCopyObject, makVrf::DtEntityCopyObject, makVrf::DtEnvironmentalShapeCopyObject, makVrf::DtEnvironmentalPointCopyObject, and makVrf::DtAggregateCopyObject.

virtual int makVrf::DtCopyObject::generateRequestId ( )
protectedvirtual

Generates a request id to match our request.

virtual double makVrf::DtCopyObject::groundHeight ( const DtVector &  currentLocal) const
protectedvirtual

Returns the height at the given local position.

Reimplemented in makVrf::DtEntityCopyObject.

virtual void makVrf::DtCopyObject::setupOffsets ( const DtGeodeticCoord &  )
protectedvirtual

Sets up offsets from geometric center. Default adds one offset from center() of object.

Reimplemented in makVrf::DtEnvironmentalShapeCopyObject.

virtual void makVrf::DtCopyObject::slot_onStateViewUpdated ( DtVrlinkSimulatedBaseStateView *  state,
makVrv::DtSimEntry *  simEntry
)
protectedvirtual
virtual DtVector makVrf::DtCopyObject::offsetLocation ( int  ,
const DtVector &  loc
) const
protectedvirtual

Returns the geocentric location of the point at offset location index offset by geocentric loc.

virtual DtGeodeticCoord makVrf::DtCopyObject::calculateOffsetPoint ( const DtGeodeticCoord &  start,
const DtGeodeticCoord &  end,
double &  altAboveTerrain,
double &  altAboveSeaLevel
) const
protectedvirtual

Calculates an offset point based on the start and end positions. Return vector is geodetic. The altAboveTerrain and altAboveSeaLevel relate to the start point. Given the clamp type, the local location will return a different value if the offsets are there for above terrain and above sea level. If not, no offset will be applied.

virtual DtVector makVrf::DtCopyObject::localLocation ( const DtGeodeticCoord &  ,
int
) const
protectedvirtual

Given an origin and an index, return local location as an offset from that origin.

virtual void makVrf::DtCopyObject::forceUpdate ( DtVrlinkSimulatedBaseStateView *  stateView,
makVrv::DtSimEntry *  simEntry
)
protectedvirtual

Reimplemented in makVrf::DtAggregateCopyObject.

Member Data Documentation

boost::signals2::signal<void (DtCopyObject*)> makVrf::DtCopyObject::signal_copyCancelled
boost::signals2::signal<void (DtCopyObject*, const std::string&)> makVrf::DtCopyObject::signal_copied
boost::signals2::signal<void (DtCopyObject*, const std::string&)> makVrf::DtCopyObject::signal_copyOperationPending
boost::signals2::signal<void (DtCopyObject*)> makVrf::DtCopyObject::signal_pasted
boost::signals2::signal<void (DtCopyObject*, const std::string&)> makVrf::DtCopyObject::signal_pasteOperationPending
boost::signals2::signal<void (DtCopyObject*)> makVrf::DtCopyObject::signal_pasteCancelled
makVrv::DtDe& makVrf::DtCopyObject::myDe
protected
std::ostringstream makVrf::DtCopyObject::myOutput
protected
std::string makVrf::DtCopyObject::myName
protected
int makVrf::DtCopyObject::myPasteFlags
protected
DtVrfObjectDataState* makVrf::DtCopyObject::myReadableObjectStateData
protected
makVrv::DtVrlinkSimulatedBaseState* makVrf::DtCopyObject::myReadableStateData
protected
DtGeodeticCoord makVrf::DtCopyObject::myCenter
mutableprotected
CopyOffsets makVrf::DtCopyObject::myOffsets
protected
HeightOffsets makVrf::DtCopyObject::myAltitudeAboveTerrain
protected
HeightOffsets makVrf::DtCopyObject::myAltitudeAboveSeaLevel
protected
DtAltitudeClampType makVrf::DtCopyObject::myAltitudeClampType
protected
DtReferenceEllipsoid makVrf::DtCopyObject::myReferenceEllipsoid
protected
int makVrf::DtCopyObject::myType
protected
std::string makVrf::DtCopyObject::myBuffer
protected
DtGeodeticCoord makVrf::DtCopyObject::myGeometricCenter
protected
bool makVrf::DtCopyObject::myIsLocal
protected
bool makVrf::DtCopyObject::myUpdateDataBeforeCopy
protected
DtUUID makVrf::DtCopyObject::myUUID
protected
bool makVrf::DtCopyObject::myUpdated
protected
makVrv::DtSignalConnectionManager makVrf::DtCopyObject::myStateViewConnections
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Sun Dec 4 20:22:03 EST 2022 from SVN revision 249613
Copyright © 2005-2021 MAK Technologies. All Rights Reserved (www.mak.com)
