makVrf::DtPropCreatePalette Class Reference

A widget class for managing different camera views the currently selected observer can be placed in.

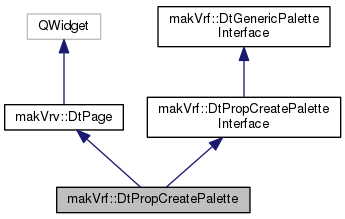

Inheritance diagram for makVrf::DtPropCreatePalette:

Public Member Functions
	DtPropCreatePalette (makVrv::DtDe &de, QWidget *parent=0, Qt::WindowFlags flags=0)
virtual	~DtPropCreatePalette ()
void	setupUi (QWidget *p)
virtual void	clear ()
virtual void	clearProps ()
virtual void	update ()
virtual void	setEnabled (bool)
virtual void	addItem (const std::string &name, const std::string &type, const std::string &modelDef, const std::string &group)
virtual QIcon	icon ()
virtual makVrv::DtQIconConfigurations	qIconConfigurations () const
virtual QString	title ()
virtual const std::string &	pageClassName () const
virtual bool	initiallyVisible () const
virtual void	activate ()
virtual void	deactivate ()
Public Member Functions inherited from makVrv::DtPage
	DtPage (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
virtual	~DtPage ()
virtual PageAction	pageAction ()
virtual void	setPageAction (PageAction action)
virtual void	setActionFlag (int flag)
virtual int	actionFlag ()
virtual void	setParentDialog (QWidget *paraentDialog)
virtual QWidget *	parentDialog ()
virtual bool	shouldAskBeforeAction (PageAction action)
virtual void	askBeforeAction ()
virtual void	executeAfterAsk (bool revert)
virtual void	resumeLastAction ()
virtual void	onCloseEvent ()
virtual void	onSwitchEvent ()
Public Member Functions inherited from makVrf::DtPropCreatePaletteInterface
virtual	~DtPropCreatePaletteInterface ()
Public Member Functions inherited from makVrf::DtGenericPaletteInterface
virtual	~DtGenericPaletteInterface ()

Static Public Member Functions
static const std::string &	thePageClassName ()

Protected Slots
virtual void	slot_onItemClicked (QTreeWidgetItem *, int)

Protected Attributes
DtPropCreatePaletteLogic *	myLogic
QVBoxLayout *	myMainLayout
QTreeWidget *	myPropTree
Protected Attributes inherited from makVrv::DtPage
DtDe &	myDe
QWidget *	myParentDialog
PageAction	myCurrentPageAction
int	myActionFlag

Additional Inherited Members
Public Types inherited from makVrv::DtPage
enum	PageAction { None = 0x0000, Switching = 0x0001, Closing = 0x0010 }
Public Attributes inherited from makVrf::DtPropCreatePaletteInterface
boost::signals2::signal< void(const std::string &, const std::string &)>	signal_itemSelected
boost::signals2::signal< void(DtPropCreatePaletteInterface *)>	signal_Updated

Constructor & Destructor Documentation

makVrf::DtPropCreatePalette::DtPropCreatePalette	(	makVrv::DtDe &	de,
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

CTOR.

virtual makVrf::DtPropCreatePalette::~DtPropCreatePalette ( )

virtual

DTOR.

Member Function Documentation

void makVrf::DtPropCreatePalette::setupUi

(

QWidget *

p

)

Sets up the contents of the widget onto the supplied parent.

virtual void makVrf::DtPropCreatePalette::clear ( )

inlinevirtual

Clears contents of widget (from DtGenericPaletteInterface)

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::clearProps ( )

virtual

Clears out props tree.

Implements makVrf::DtPropCreatePaletteInterface.

virtual void makVrf::DtPropCreatePalette::update ( )

inlinevirtual

Tells widget to update (redraw) (from DtGenericPaletteInterface)

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::setEnabled ( bool  )

virtual

Enables/Disables Gui (from DtGenericPaletteInterface)

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::addItem ( const std::string &  name, const std::string &  type, const std::string &  modelDef, const std::string &  group  )

virtual

Implements makVrf::DtPropCreatePaletteInterface.

virtual QIcon makVrf::DtPropCreatePalette::icon ( )

virtual

Icon to be used in small display.

Implements makVrv::DtPage.

virtual makVrv::DtQIconConfigurations makVrf::DtPropCreatePalette::qIconConfigurations ( ) const

virtual

Get the icon configurations for the page. This is used to style the page's icon based on application settings.

Implements makVrv::DtPage.

virtual QString makVrf::DtPropCreatePalette::title ( )

virtual

Name to put next to the icon.

Implements makVrv::DtPage.

virtual const std::string& makVrf::DtPropCreatePalette::pageClassName ( ) const

virtual

Get the class name of the page.

Implements makVrv::DtPage.

static const std::string& makVrf::DtPropCreatePalette::thePageClassName ( )

static

Static accessor for the class name.

virtual bool makVrf::DtPropCreatePalette::initiallyVisible ( ) const

inlinevirtual

Implements makVrf::DtGenericPaletteInterface.

virtual void makVrf::DtPropCreatePalette::activate ( )

inlinevirtual

Called when the page is displayed.

Implements makVrv::DtPage.

virtual void makVrf::DtPropCreatePalette::deactivate ( )

inlinevirtual

Called when the page is hidden.

Implements makVrv::DtPage.

virtual void makVrf::DtPropCreatePalette::slot_onItemClicked ( QTreeWidgetItem *  , int    )

protectedvirtualslot

Member Data Documentation

DtPropCreatePaletteLogic* makVrf::DtPropCreatePalette::myLogic

protected

QVBoxLayout* makVrf::DtPropCreatePalette::myMainLayout

protected

QTreeWidget* makVrf::DtPropCreatePalette::myPropTree

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfGuiCoreQt/propCreatePalette.h
