makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository > Class Template Reference

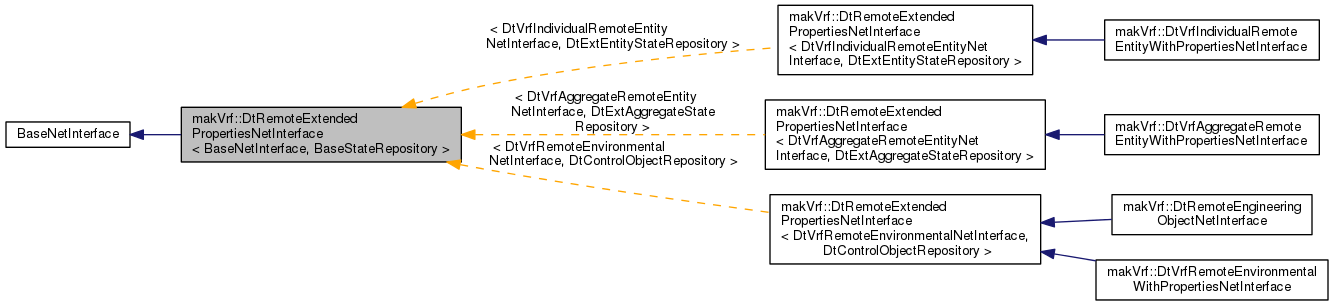

Inheritance diagram for makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >:

Public Member Functions
	DtRemoteExtendedPropertiesNetInterface (DtStateData *simObject, DtVrlinkNetworkInterface *mgr, bool publishObject=false)
virtual	~DtRemoteExtendedPropertiesNetInterface ()
virtual bool	initExtendedProperties ()
virtual void	initializeNetWithProperties ()=0
virtual void	updateFromReflectedObject ()

Static Public Member Functions
static DtSimObjectNetInterface *	creator (DtStateData *simObject, DtVrlinkNetworkInterface *mgr, bool publishObject)

Public Attributes
bool	myIsUninitialized
std::map< DtString, DtReaderWriterRegistryData * >	myStatePropertyMap
std::map< DtString, DtReaderWriterRegistryData * >	myParamPropertyMap

Protected Member Functions
	DtRemoteExtendedPropertiesNetInterface ()

Constructor & Destructor Documentation

template<typename BaseNetInterface, typename BaseStateRepository>

makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::DtRemoteExtendedPropertiesNetInterface ( )

inlineprotected

default constructor

template<typename BaseNetInterface, typename BaseStateRepository>

makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::DtRemoteExtendedPropertiesNetInterface ( DtStateData *  simObject, DtVrlinkNetworkInterface *  mgr, bool  publishObject = false  )

inline

read/writable constructor

template<typename BaseNetInterface, typename BaseStateRepository>

virtual makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::~DtRemoteExtendedPropertiesNetInterface ( )

inlinevirtual

destructor

Member Function Documentation

template<typename BaseNetInterface, typename BaseStateRepository>

virtual bool makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::initExtendedProperties ( )

inlinevirtual

Initializer.

template<typename BaseNetInterface, typename BaseStateRepository>

virtual void makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::initializeNetWithProperties ( )

pure virtual

Initializes network state rep with state and parameter properties.

Implemented in makVrf::DtVrfAggregateRemoteEntityWithPropertiesNetInterface, makVrf::DtVrfIndividualRemoteEntityWithPropertiesNetInterface, makVrf::DtVrfRemoteEnvironmentalWithPropertiesNetInterface, and makVrf::DtRemoteEngineeringObjectNetInterface.

template<typename BaseNetInterface, typename BaseStateRepository>

virtual void makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::updateFromReflectedObject ( )

inlinevirtual

Calls the base class function to copy the network data to the local state repository, then does the same for the extended property attributes.

template<typename BaseNetInterface, typename BaseStateRepository>

static DtSimObjectNetInterface* makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::creator ( DtStateData *  simObject, DtVrlinkNetworkInterface *  mgr, bool  publishObject  )

inlinestatic

Member Data Documentation

template<typename BaseNetInterface, typename BaseStateRepository>

bool makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::myIsUninitialized

template<typename BaseNetInterface, typename BaseStateRepository>

std::map<DtString, DtReaderWriterRegistryData *> makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::myStatePropertyMap

template<typename BaseNetInterface, typename BaseStateRepository>

std::map<DtString, DtReaderWriterRegistryData *> makVrf::DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::myParamPropertyMap

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrlinkNetworkInterface/remoteExtendedPropertiesNetInterface.h
