makVrf::DtSimpleLabelWidget Class Reference

These classes will define simple label widgets. These widgets are not variables – they are simply display elements.

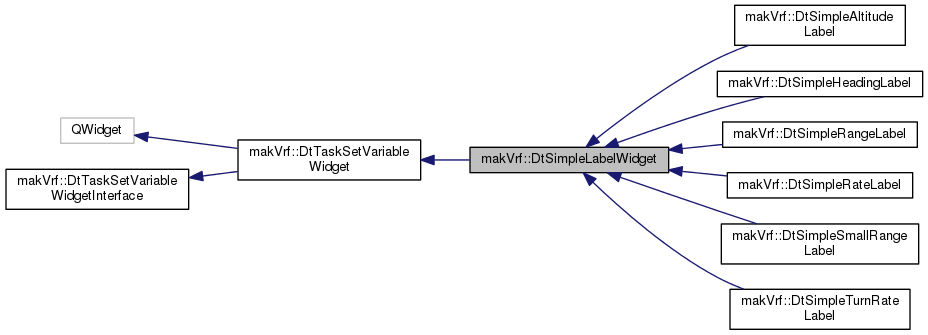

Inheritance diagram for makVrf::DtSimpleLabelWidget:

Public Member Functions
	DtSimpleLabelWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)
virtual	~DtSimpleLabelWidget ()
virtual void	setLabel (const QString &)
virtual QString	label () const
virtual void	setVariableData (const std::string &)
virtual makVrv::DtUnicode	elementDisplayDefault () const
virtual void	setDefaultValue (const std::string &)
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
virtual void	setRange (double, double)
virtual DtReaderWriter *	createBoundVariable (const std::string &)
virtual void	setupFromBoundVariable (const DtReaderWriter *)
virtual bool	guiElementOnly () const
virtual bool	isValid () const
virtual void	refreshLabels ()
virtual bool	supportsDisplayNotation (const makVrv::DtUnicode &type) const =0
virtual makVrv::DtUnicode	unitNotation () const =0
Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)
virtual	~DtTaskSetVariableWidget ()
virtual void	setToolTip (const QString &)
virtual void	setLabel (const std::string &)
virtual void	setVariableData (const QString &)
virtual QString	variableData () const
virtual void	setIsInternal (bool)
virtual bool	isInternal () const
virtual void	setTopLineVisible (bool)
virtual bool	topLineVisible () const
virtual void	createTopLine ()
virtual void	setIndent (int)
virtual int	indent () const
virtual void	setTopLabelChecked (bool)
virtual bool	topLabelChecked () const
virtual void	setRange (const DtRange &)
virtual void	setRangeTop (double)
virtual void	setRangeTop (int)
virtual double	rangeTop () const
virtual void	setRangeBottom (double)
virtual void	setRangeBottom (int)
virtual double	rangeBottom () const
virtual const DtRange &	getRange () const
virtual void	setTopLabelIsCheckable (bool)
virtual bool	topLabelIsCheckable () const
virtual void	getDefaultSpecificTitles (QString &defaultTitle, QString &specificTitle) const
virtual void	setDefaultSpecificTitles (const QString &defaultTitle, const QString &specificTitle)
virtual void	setupDefaultSpecificFromVariableData (const DtString &var)
virtual std::string	variableDataFromUiDesigner (const QDomElement &, const DtScriptedTaskVariableLayoutConverter &) const
virtual std::string	scriptedTaskVariableName () const
virtual void	setSelection (const std::set< makVrv::DtUniqueID > &selection)
virtual void	setSelection (const std::vector< makVrv::DtSimEntry * > &data)
virtual const std::set < makVrv::DtUniqueID > &	selection () const
Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()
virtual	~DtTaskSetVariableWidgetInterface ()
virtual void	widgetInitializedForDialog (DtScriptedTaskDialog *, const std::vector< makVrv::DtSimEntry * > &data)
virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const

Static Public Member Functions
static makVrv::DtUnicode	codeVariableType ()
static std::string	designerGroup ()
static std::string	headerFile ()
static std::string	variableName ()
Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
static bool	includeInQtDesigner ()
Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
static bool	canBeUsedAsWidget ()
static void	initializeForQtDesignerExtension (makVrv::DtDe &de, QDesignerFormEditorInterface *core)
static bool	includeInQtDesigner ()

Public Attributes
QLabel *	myLabel
Public Attributes inherited from makVrf::DtTaskSetVariableWidget
boost::signals2::signal< void(bool)>	signal_topLevelCheckStateChanged
int	myIndent
QVBoxLayout *	myVariableWidgetLayout
QHBoxLayout *	mySpacedLayout
QVBoxLayout *	myVariableContentLayout
QWidget *	myTopLine
QLabel *	myTopLabel
QWidget *	myChoiceCanvas
QRadioButton *	myUseDefault
QRadioButton *	myUseSpecific
QSpacerItem *	myTopSeparator
QHBoxLayout *	myTopLineLayout
QSpacerItem *	mySpacerItem

Protected Member Functions
virtual void	slot_onUnitChanged (const makVrv::DtUnicode &category, const makVrv::DtUnicode &type)
virtual void	selectionChanged (const std::set< makVrv::DtUniqueID > &)

Protected Attributes
QString	myLabelText
Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe
makVrv::DtSignalConnectionManager	myConnections
bool	myTopLabelIsCheckable
DtRange	myRange
bool	myIsInternal
CreationFlags	myCreationFlags
QString	myVariableData
std::set< makVrv::DtUniqueID >	mySelection

Additional Inherited Members
Public Types inherited from makVrf::DtTaskSetVariableWidgetInterface
enum	CreationFlags { NormalMode = 0x00000000, QtDesignerMode = 0x00000001 }
Signals inherited from makVrf::DtTaskSetVariableWidget
void	validityUpdated ()
Protected Slots inherited from makVrf::DtTaskSetVariableWidget
virtual void	topLabelCheckStateChanged ()
Properties inherited from makVrf::DtTaskSetVariableWidget
QString	label
bool	isInternal
int	indent
QString	variableData

Constructor & Destructor Documentation

makVrf::DtSimpleLabelWidget::DtSimpleLabelWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0,
		const CreationFlags &	cflags = NormalMode
	)

virtual makVrf::DtSimpleLabelWidget::~DtSimpleLabelWidget ( )

virtual

Member Function Documentation

virtual void makVrf::DtSimpleLabelWidget::setLabel ( const QString &  )

virtual

QString version for property.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual QString makVrf::DtSimpleLabelWidget::label ( ) const

virtual

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtSimpleLabelWidget::setVariableData ( const std::string &  )

inlinevirtual

No-op.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual makVrv::DtUnicode makVrf::DtSimpleLabelWidget::elementDisplayDefault ( ) const

virtual

Return the default level of display (Application or Default)

Reimplemented in makVrf::DtSimpleSmallRangeLabel.

virtual void makVrf::DtSimpleLabelWidget::setDefaultValue ( const std::string &  )

inlinevirtual

Default value to set in control.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtSimpleLabelWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > &  data )

inlinevirtual

Sets up widget with currently selected item. Since this is a GUI only element this is not implemented.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtSimpleLabelWidget::setRange ( double  , double    )

inlinevirtual

Sets the range of the item. This widget does not support that.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual DtReaderWriter* makVrf::DtSimpleLabelWidget::createBoundVariable ( const std::string &  )

inlinevirtual

Creates the bound variable. Since this is a GUI only element, not implemented.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtSimpleLabelWidget::setupFromBoundVariable ( const DtReaderWriter *  )

inlinevirtual

Sets up from bound variable. Since this is a GUI only element, not implemented.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual bool makVrf::DtSimpleLabelWidget::guiElementOnly ( ) const

inlinevirtual

This is a GUI element only.

Reimplemented from makVrf::DtTaskSetVariableWidgetInterface.

virtual bool makVrf::DtSimpleLabelWidget::isValid ( void  ) const

inlinevirtual

Indicates the current selection is valid.

Reimplemented from makVrf::DtTaskSetVariableWidget.

static makVrv::DtUnicode makVrf::DtSimpleLabelWidget::codeVariableType ( )

inlinestatic

References makVrv::DtUnicode::tr().

static std::string makVrf::DtSimpleLabelWidget::designerGroup ( )

inlinestatic

static std::string makVrf::DtSimpleLabelWidget::headerFile ( )

inlinestatic

static std::string makVrf::DtSimpleLabelWidget::variableName ( )

inlinestatic

virtual void makVrf::DtSimpleLabelWidget::refreshLabels ( )

virtual

virtual bool makVrf::DtSimpleLabelWidget::supportsDisplayNotation ( const makVrv::DtUnicode &  type ) const

pure virtual

What this widget supports and the unit notation.

Implemented in makVrf::DtSimpleHeadingLabel, makVrf::DtSimpleTurnRateLabel, makVrf::DtSimpleRateLabel, makVrf::DtSimpleAltitudeLabel, makVrf::DtSimpleSmallRangeLabel, and makVrf::DtSimpleRangeLabel.

virtual makVrv::DtUnicode makVrf::DtSimpleLabelWidget::unitNotation ( ) const

pure virtual

Implemented in makVrf::DtSimpleHeadingLabel, makVrf::DtSimpleTurnRateLabel, makVrf::DtSimpleRateLabel, makVrf::DtSimpleAltitudeLabel, makVrf::DtSimpleSmallRangeLabel, and makVrf::DtSimpleRangeLabel.

virtual void makVrf::DtSimpleLabelWidget::slot_onUnitChanged ( const makVrv::DtUnicode &  category, const makVrv::DtUnicode &  type  )

protectedvirtual

virtual void makVrf::DtSimpleLabelWidget::selectionChanged ( const std::set< makVrv::DtUniqueID > &  oldSelection )

protectedvirtual

Called when the selection has changed via setSelection.

Reimplemented from makVrf::DtTaskSetVariableWidget.

Member Data Documentation

QLabel* makVrf::DtSimpleLabelWidget::myLabel

QString makVrf::DtSimpleLabelWidget::myLabelText

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfGuiDataEntryWidgets/simpleLabelWidgets.h
