A single Aggregate element. An Aggregate element may be visualized using multiple visualizer sets one per model set.

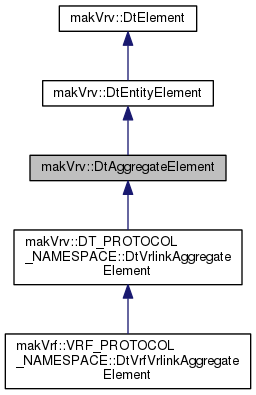

Inheritance diagram for makVrv::DtAggregateElement:

Public Member Functions
	DtAggregateElement (DtBaseConnection &conn, DtStateListener &listener)

virtual	~DtAggregateElement ()

	DtAggregateElement ()=delete

	DtAggregateElement (const DtAggregateElement &)=delete

DtAggregateElement &	operator= (const DtAggregateElement &)=delete

virtual void	visualize (const DtSharedModelSetSettings::ModelSetVisualizedMap &sets) override

virtual bool	setObjectIsVisible (bool visible, DtShowHideContext::ShowHideContext context)

virtual bool	objectIsVisible () const

virtual void	setModelSetEnabled (int modelSet, bool enabled) override

virtual DtAggregateStateListener &	aggregateStateListener ()

virtual void	slot_subordinatesChanged ()

virtual const DtElementEntry::ElementType	elementType () const override

Public Member Functions inherited from makVrv::DtEntityElement
	DtEntityElement (DtBaseConnection &conn, DtStateListener &listener)

virtual	~DtEntityElement ()

	DtEntityElement ()=delete

	DtEntityElement (const DtEntityElement &)=delete

DtEntityElement &	operator= (const DtEntityElement &)=delete

virtual void	setVisible (bool visible)

virtual const ModelSetToEntityObjectMap &	entityObjectMap () const

template<typename VisualizerClass >
void	findVisualizers (std::vector< VisualizerClass * > &visualizers)

template<typename VisualizerClass >
void	findVisualizersByDynamicCast (std::vector< VisualizerClass * > &visualizers)

virtual DtEntityStateListener &	entityStateListener ()

virtual void	update2DEmbarkationVisibility ()

virtual void	createVisualizersByModelSetAndType (int modelSet, int visualType)

virtual void	destroyVisualizersByModelSetAndType (int modelSet, int visualType)

virtual DtEntityObjectStruct *	findObjectStructForModelSet (int modelSet) const

virtual DtSceneObjectAgent *	findSceneObjectForModelSet (int modelSet) const

virtual DtEntityVisualizerSet *	findVisualizerSetForModelSet (int modelSet) const

virtual DtEntityKinematicState *	findKinematicStateForModelSet (int modelSet) const

virtual void	setSmoothingEnabled (bool enabled)

virtual void	setSmoothingEnabled (bool enabled, int modelSet)

virtual void	setGroundClampingEnabled (bool enabled)

virtual void	setGroundClampingEnabled (bool enabled, int modelSet)

virtual void	setPickable (bool pickable)

virtual void	setPickable (bool pickable, int modelSet)

virtual std::vector< DtUniqueID >	sceneObjectUniqueIds ()

virtual DtUniqueID	sceneObjectIdForModelSet (int modelSet)

Public Member Functions inherited from makVrv::DtElement
	DtElement (DtBaseConnection &conn, DtElementID elementId)

virtual	~DtElement ()

	DtElement ()=delete

	DtElement (const DtElement &)=delete

DtElement &	operator= (const DtElement &)=delete

virtual bool	visible () const

virtual void	setElementId (const DtElementID)

DtElementID	elementID () const

virtual const DtUnicode &	elementDefinition () const

virtual void	setElementDefinition (const DtUnicode &definition)

virtual std::string	displayUnitCollectionName () const

virtual void	setDisplayUnitCollectionName (const std::string &definition)

virtual void	setDriverType (const std::string &driverType)

virtual void	setElementSubtype (DtElementAttributes::ElementSubtypes subtype)

virtual void	changeElementAttribute (const DtElementAttribute *attr)

virtual void	updateElementDefinitionFromDefinitions ()

virtual void	updateElementDefinitionFromDefinitions (std::vector< DtUnicode > &definitions)

virtual ModelSetToSceneObjectIdMap &	modelSetToSceneObjectIdMap ()

virtual void	setSceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet, DtUniqueID id)

virtual void	removeSceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet)

virtual DtUniqueID	sceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet) const

Static Public Member Functions
static const DtElementEntry::ElementType	theElementType ()

Static Public Member Functions inherited from makVrv::DtEntityElement
static const DtElementEntry::ElementType	theElementType ()

Public Attributes
boost::signalslib::signal < void(DtAggregateElement *)>	signal_subordinatesChanged

Protected Member Functions
virtual DtAggregateKinematicState *	createAggregateKinState (DtSceneObjectAgent &sceneObject, int modelSet)

void	damageSet (EntityStateListener::DamageState damage)

Protected Member Functions inherited from makVrv::DtEntityElement
virtual void	slot_visibilityChanged (bool vis)

virtual DtEntityKinematicState *	createEntityKinState (DtSceneObjectAgent &sceneObject, int modelSet)

virtual void	processElementParameters ()

Protected Member Functions inherited from makVrv::DtElement
void	slot_updateOverlayNameRaw (const char *text)

void	slot_updateConnectionObjectID (const std::string &id)

void	slot_updateConnectionObjectType (const std::string &type)

void	slot_updateDisplayName (const std::string &text)

void	slot_updateOverlayName (const std::string &pname)

void	slot_updateDamageState (EntityStateListener::DamageState state)

virtual void	getDefinitions (std::vector< DtUnicode > &definitions)

virtual void	reportElementCreated ()

virtual void	reportDisplayName ()

virtual void	reportConnectionObjectID ()

virtual void	reportConnectionObjectType ()

virtual void	reportOverlayNameChanged ()

virtual void	reportVisibility ()

virtual void	reportDamageStateChanged ()

virtual void	reportDriverType ()

virtual void	reportElementSubtype ()

virtual void	reportElementDefinitionName ()

virtual void	reportDisplayUnitCollectionName ()

virtual bool	distribute () const

virtual void	setDistribute (const bool distribute)

Protected Attributes
DtAggregateStateListener &	myAggregateListener

DtSignalConnectionManager	myConnections

Protected Attributes inherited from makVrv::DtEntityElement
DtEntityStateListener &	myListener

ModelSetToEntityObjectMap	myModelSetToEntityObjectMap

DtSignalConnectionManager	myConnections

Protected Attributes inherited from makVrv::DtElement
DtAgentManagerInterface &	mySceneInterface

DtSharedSettingsManager &	mySettingsManager

const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap &	myVisualTypeVisualizerCreationMap

DtBaseConnection &	myBaseConnection

DtElementID	myElementId

DtUnicode	myElementDefinitionName

const DtElementDefinitionNew *	myElementDefinition

std::string	myDisplayUnitCollectionName

std::string	myConnectionObjectID

std::string	myConnectionObjectType

std::string	myDisplayName

std::string	myElementOverlayName

std::string	myDriverType

DtElementAttributes::ElementSubtypes	myElementSubtype

EntityStateListener::DamageState	myDamageState

bool	myElementVisible

bool	myElementReported

bool	myDistribute

ModelSetToSceneObjectIdMap	myModelSetToSceneObjectIdMap

Additional Inherited Members
Public Types inherited from makVrv::DtEntityElement
using	ModelSetToEntityObjectMap = boost::unordered_map< int, DtEntityObjectStruct * >

Public Types inherited from makVrv::DtElement
using	ModelSetToSceneObjectIdMap = boost::unordered_map< DtObserverMode::ModelSets, DtUniqueID >

Constructor & Destructor Documentation

makVrv::DtAggregateElement::DtAggregateElement	(	DtBaseConnection &	conn,
		DtStateListener &	listener
	)

CTOR.

virtual makVrv::DtAggregateElement::~DtAggregateElement ( )

virtual

DTOR.

makVrv::DtAggregateElement::DtAggregateElement ( )

delete

not allowed - default constructor

makVrv::DtAggregateElement::DtAggregateElement ( const DtAggregateElement & )

delete

not allowed - copy constructor

Member Function Documentation

DtAggregateElement& makVrv::DtAggregateElement::operator= ( const DtAggregateElement & )

delete

not allowed - equals operator

virtual void makVrv::DtAggregateElement::visualize ( const DtSharedModelSetSettings::ModelSetVisualizedMap & sets )

overridevirtual

Visualize the element.

Reimplemented from makVrv::DtEntityElement.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateElement, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement.

virtual bool makVrv::DtAggregateElement::setObjectIsVisible	(	bool	visible,
		DtShowHideContext::ShowHideContext	context
	)

virtual

Set the Aggregate element to be visible.

virtual bool makVrv::DtAggregateElement::objectIsVisible ( ) const

virtual

virtual void makVrv::DtAggregateElement::setModelSetEnabled	(	int	modelSet,
		bool	enabled
	)

overridevirtual

Sets the particular model set up. Does nothing if it already exists. This method does a large portion of aggregate creation. It creates the sceneObject agent, the visualizer set, and kinematic state object for a model set. It sets information from the visualizer definition on the kin state, and then calls updateVisibilityState If the model set is disabled it will delete the pointers and the stuct in myModelSetToAggregateObjectMap.

Reimplemented from makVrv::DtEntityElement.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateElement.

virtual DtAggregateStateListener& makVrv::DtAggregateElement::aggregateStateListener ( )

virtual

Get the listener for the Aggregate this visualizer is visualizing.

virtual void makVrv::DtAggregateElement::slot_subordinatesChanged ( )

virtual

If subordiantes have changed emit signal.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement.

virtual const DtElementEntry::ElementType makVrv::DtAggregateElement::elementType ( ) const

overridevirtual

Returns state theElementType::Aggregate, used by factory to create.

Reimplemented from makVrv::DtEntityElement.

static const DtElementEntry::ElementType makVrv::DtAggregateElement::theElementType ( )

static

Return DtElementEntry::Aggregate.

virtual DtAggregateKinematicState* makVrv::DtAggregateElement::createAggregateKinState	(	DtSceneObjectAgent &	sceneObject,
		int	modelSet
	)

protectedvirtual

Create an aggregate kinematic state.

void makVrv::DtAggregateElement::damageSet ( EntityStateListener::DamageState damage )

protected

Update echelon hierarchy with destroyed state of this item.

Member Data Documentation

boost::signalslib::signal<void( DtAggregateElement* )> makVrv::DtAggregateElement::signal_subordinatesChanged

DtAggregateStateListener& makVrv::DtAggregateElement::myAggregateListener

protected

DtSignalConnectionManager makVrv::DtAggregateElement::myConnections

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtAggregateElement.h
