Abstract interface class for all coordinate system displays.

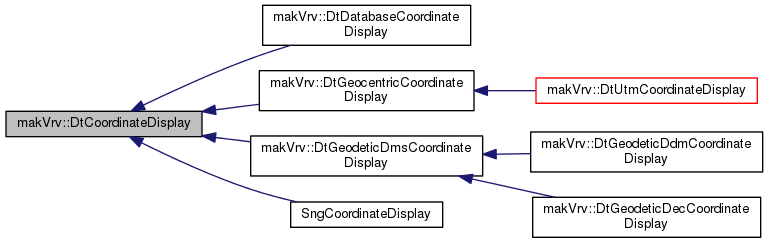

Inheritance diagram for makVrv::DtCoordinateDisplay:

Public Types
typedef makArchives::DtDisplayUnitsSettingsRecord::CoordSys	CoordSys

typedef makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits	DistanceUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::VelocityUnits	VelocityUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::AccelerationUnits	AccelerationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::OrientationUnits	OrientationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::RotVelocityUnits	RotVelocityUnits

typedef std::list< DistanceUnits >	SupportedPositionDistanceUnits

typedef std::list < OrientationUnits >	SupportedPositionAngularUnits

typedef std::list< std::string >	SupportedCSForGridLines

Public Member Functions
	DtCoordinateDisplay (const DtCoordinateSystem &coordSys)

virtual	~DtCoordinateDisplay ()

virtual DtCoordinateDisplay *	clone () const =0

virtual DtUnicode	name () const =0

virtual DtUnicode	gridBoxLabel (const DtVector &lowerLeftGeocPos, const DtVector &upperRightGeocPos)

virtual DtUnicode	northSouthGridLabel (DistanceUnits unit, const DtVector &geocPos, int decimals, double gridSpacing, bool minimal=false)

virtual DtUnicode	northSouthGridLabel (OrientationUnits unit, const DtVector &geocPos, int decimals, double gridSpacing, bool minimal=false)

virtual DtUnicode	eastWestGridLabel (DistanceUnits unit, const DtVector &geocPos, int decimals, double gridSpacing, bool minimal=false)

virtual DtUnicode	eastWestGridLabel (OrientationUnits unit, const DtVector &geocPos, int decimals, double gridSpacing, bool minimal=false)

virtual bool	clipXToGrid (double inStartX, double inEndX, double constantY, double &clippedStartX, double &clippedEndX)

virtual bool	clipYToGrid (double inStartY, double inEndY, double constantX, double &clippedStartY, double &clippedEndY)

virtual void	shiftGridLineAnchors (double xSpacing, double ySpacing, double &shiftX, double &shifY)

virtual bool	usesDecimalsOnGridLines () const

virtual double	maxGridSpacing () const

virtual double	minGridSpacing () const

virtual DistanceUnits	xUnitsFor (DistanceUnits unit) const =0

virtual DistanceUnits	yUnitsFor (DistanceUnits unit) const =0

virtual DistanceUnits	zUnitsFor (DistanceUnits unit) const =0

virtual DtUnicode	xAxisLabel () const =0

virtual DtUnicode	yAxisLabel () const =0

virtual DtUnicode	zAxisLabel () const =0

virtual std::vector< std::string >	convertPositionToStringList (DistanceUnits unit, const DtVector &geocPos, int decimals) const =0

virtual std::vector< DtUnicode >	convertPositionToNotatedStringList (DistanceUnits unit, DtUnicode unitNotation, const DtVector &geocPos, int decimals, bool minimal=false) const =0

virtual void	convertToGeocentric (const std::string &x, const std::string &y, const std::string &z, DistanceUnits distUnits, DistanceUnits altUnits, DtVector &vector)=0

virtual DtVector	convertFromGeocentric (const DtVector &vector) const =0

virtual DtTaitBryan	headingPitchRollFor (const DtVector &geocPos, const DtTaitBryan &geocOri) const =0

virtual DtTaitBryan	localOrientationFor (const DtVector &location, const DtTaitBryan &geocOri) const =0

virtual void	regularExpressionValidator (std::string &x, std::string &y, std::string &z)=0

virtual DtTaitBryan	topoOrientationFor (const DtVector &geocPos, const DtTaitBryan &geocOri) const

virtual DtVector	geocToLocalVector (const DtVector &geocLoc, const DtVector &geocVec) const

const SupportedPositionDistanceUnits &	supportedPositionDistanceUnits () const

bool	isSupportedPositionUnit (DistanceUnits unit) const

void	addSupportedPositionUnit (DistanceUnits unitToSupport)

void	removeSupportedPositionUnit (DistanceUnits unitToRemove)

const SupportedPositionAngularUnits &	supportedPositionAngularUnits () const

bool	isSupportedPositionUnit (OrientationUnits unit) const

void	addSupportedPositionUnit (OrientationUnits unitToSupport)

void	removeSupportedPositionUnit (OrientationUnits unitToRemove)

const SupportedCSForGridLines &	supportedCSForGridLines () const

bool	isSupportedCSForGridLines (const std::string &cs) const

void	addSupportedCSForGridLines (const std::string &cs)

void	removeSupportedCSForGridLines (const std::string &cs)

Static Public Member Functions
static std::string	removeNegativeZeroIfNeeded (const char *ptr)

static std::string	cleanupNumericalString (const char *buffer, int decimals)

Protected Attributes
const DtCoordinateSystem &	myCoordinateSystem

SupportedPositionDistanceUnits	mySupportedPositionDistanceUnits

SupportedPositionAngularUnits	mySupportedPositionAngularUnits

SupportedCSForGridLines	mySupportedCSForGridLines

Member Typedef Documentation

typedef makArchives::DtDisplayUnitsSettingsRecord::CoordSys makVrv::DtCoordinateDisplay::CoordSys

typedef makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits makVrv::DtCoordinateDisplay::DistanceUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::VelocityUnits makVrv::DtCoordinateDisplay::VelocityUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::AccelerationUnits makVrv::DtCoordinateDisplay::AccelerationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::OrientationUnits makVrv::DtCoordinateDisplay::OrientationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::RotVelocityUnits makVrv::DtCoordinateDisplay::RotVelocityUnits

typedef std::list<DistanceUnits> makVrv::DtCoordinateDisplay::SupportedPositionDistanceUnits

typedef std::list<OrientationUnits> makVrv::DtCoordinateDisplay::SupportedPositionAngularUnits

typedef std::list<std::string> makVrv::DtCoordinateDisplay::SupportedCSForGridLines

Constructor & Destructor Documentation

makVrv::DtCoordinateDisplay::DtCoordinateDisplay ( const DtCoordinateSystem & coordSys )

CTOR DtUnitConverterCollection is a collection of classes used to convert between different units (meters, feet, miles, etc.) DtCoordinateSystem is used to do coordinate system conversions, when possible.

virtual makVrv::DtCoordinateDisplay::~DtCoordinateDisplay ( )

virtual

DTOR.

Member Function Documentation

virtual DtCoordinateDisplay* makVrv::DtCoordinateDisplay::clone ( ) const

pure virtual

Virtual clone function.

Implemented in SngCoordinateDisplay, makVrv::DtGeodeticDdmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtGeodeticDecCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, and makVrv::DtGeocentricCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::name ( ) const

pure virtual

Implemented in SngCoordinateDisplay, makVrv::DtGeodeticDdmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtGeodeticDecCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, and makVrv::DtGeocentricCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::gridBoxLabel	(	const DtVector &	lowerLeftGeocPos,
		const DtVector &	upperRightGeocPos
	)

virtual

Some systems (such as MGRS) are not just positions but boxes with grid designators. This function should return "" if a system has no grid boxes, otherwise return a label suitable for the lower left-hand corner of that box.

Reimplemented in makVrv::DtMgrsCoordinateDisplay, and makVrv::DtUtmCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::northSouthGridLabel	(	DistanceUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing,
		bool	minimal = `false`
	)

virtual

Get a north / south label with linear units.

Parameters

unit	The linear distance unit being used
geocPos	The geocentric position to get a gridline label for
decimals	The number of decimals places to include in gridline label
gridSpacing	A spacing parameter for gridlines
minimal	Return a 'minimal' version of the grid label - behavior defined by the child class

Reimplemented in makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::northSouthGridLabel	(	OrientationUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing,
		bool	minimal = `false`
	)

virtual

Get a north / south label with angular units.

Parameters

unit	The angular orientation unit being used
geocPos	The geocentric position to get a gridline label for
decimals	The number of decimals places to include in gridline label
gridSpacing	A spacing parameter for gridlines
minimal	Return a 'minimal' version of the grid label - behavior defined by the child class

Reimplemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtGeodeticDdmCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::eastWestGridLabel	(	DistanceUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing,
		bool	minimal = `false`
	)

virtual

Get an east / west label with linear units.

Parameters

unit	The linear distance unit being used
geocPos	The geocentric position to get a gridline label for
decimals	The number of decimals places to include in gridline label
gridSpacing	A spacing parameter for gridlines
minimal	Return a 'minimal' version of the grid label - behavior defined by the child class

Reimplemented in makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::eastWestGridLabel	(	OrientationUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing,
		bool	minimal = `false`
	)

virtual

Get an east / west label with angular units.

Parameters

unit	The angular orientation unit being used
geocPos	The geocentric position to get a gridline label for
decimals	The number of decimals places to include in gridline label
gridSpacing	A spacing parameter for gridlines
minimal	Return a 'minimal' version of the grid label - behavior defined by the child class

Reimplemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtGeodeticDdmCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual bool makVrv::DtCoordinateDisplay::clipXToGrid	(	double	inStartX,
		double	inEndX,
		double	constantY,
		double &	clippedStartX,
		double &	clippedEndX
	)

virtual

Clip a line segment in LOCAL coordinates to an existing grid defined by this coord system, if any. Returns false if entire segment is outside grid.

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual bool makVrv::DtCoordinateDisplay::clipYToGrid	(	double	inStartY,
		double	inEndY,
		double	constantX,
		double &	clippedStartY,
		double &	clippedEndY
	)

virtual

Returns false if entire segment is outside grid.

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual void makVrv::DtCoordinateDisplay::shiftGridLineAnchors	(	double	xSpacing,
		double	ySpacing,
		double &	shiftX,
		double &	shifY
	)

virtual

Normally, grid lines are started at database 0,0. This allows a shift to start them somewhere else (like a UTM zone origin)

Reimplemented in makVrv::DtGeodeticDmsCoordinateDisplay, and makVrv::DtUtmCoordinateDisplay.

virtual bool makVrv::DtCoordinateDisplay::usesDecimalsOnGridLines ( ) const

virtual

Enable/disable the decimals spinbox on grid settings dialog.

Reimplemented in makVrv::DtUtmCoordinateDisplay.

virtual double makVrv::DtCoordinateDisplay::maxGridSpacing ( ) const

virtual

Maximum grid spacing allowed. 0. returned if unlimited.

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual double makVrv::DtCoordinateDisplay::minGridSpacing ( ) const

virtual

Minimum grid spacing allowed. 0. returned if unlimited.

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual DistanceUnits makVrv::DtCoordinateDisplay::xUnitsFor ( DistanceUnits unit ) const

pure virtual

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, and SngCoordinateDisplay.

virtual DistanceUnits makVrv::DtCoordinateDisplay::yUnitsFor ( DistanceUnits unit ) const

pure virtual

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DistanceUnits makVrv::DtCoordinateDisplay::zUnitsFor ( DistanceUnits unit ) const

pure virtual

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::xAxisLabel ( ) const

pure virtual

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::yAxisLabel ( ) const

pure virtual

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, SngCoordinateDisplay, and makVrv::DtDatabaseCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::zAxisLabel ( ) const

pure virtual

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, SngCoordinateDisplay, and makVrv::DtDatabaseCoordinateDisplay.

virtual std::vector<std::string> makVrv::DtCoordinateDisplay::convertPositionToStringList	(	DistanceUnits	unit,
		const DtVector &	geocPos,
		int	decimals
	)		const

pure virtual

Takes the x, y, z values that comes in and creates a string array of three strings that represent the values. This call assumes the values being passed in are in geocentric values.

Implemented in makVrv::DtMgrsCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDdmCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, SngCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual std::vector<DtUnicode> makVrv::DtCoordinateDisplay::convertPositionToNotatedStringList	(	DistanceUnits	unit,
		DtUnicode	unitNotation,
		const DtVector &	geocPos,
		int	decimals,
		bool	minimal = `false`
	)		const

pure virtual

Convert the geocentric position to a vector of notated strings.

Parameters

unit	The distance unit of the values passed in
unitNotation	The notation that corresponds to the distance unit
geocPos	The geocentric position to convert
decimals	The number of decimal places to include
minimal	Return a 'minimal' version of the grid label - behavior defined by the child class

Implemented in makVrv::DtMgrsCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDdmCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, SngCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual void makVrv::DtCoordinateDisplay::convertToGeocentric	(	const std::string &	x,
		const std::string &	y,
		const std::string &	z,
		DistanceUnits	distUnits,
		DistanceUnits	altUnits,
		DtVector &	vector
	)

pure virtual

Converts the given coordinates (in string rep) from the base units to geocentric. Note that the coordinates must be in the units of this collection.

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, SngCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual DtVector makVrv::DtCoordinateDisplay::convertFromGeocentric ( const DtVector & vector ) const

pure virtual

Converts the vector from geocentric to local. Assumes the vector is in geocentric coordinates.

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, SngCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and makVrv::DtGeocentricCoordinateDisplay.

virtual DtTaitBryan makVrv::DtCoordinateDisplay::headingPitchRollFor	(	const DtVector &	geocPos,
		const DtTaitBryan &	geocOri
	)		const

pure virtual

Return heading, pitch, roll in radians given local orientation.

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, SngCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and makVrv::DtGeocentricCoordinateDisplay.

virtual DtTaitBryan makVrv::DtCoordinateDisplay::localOrientationFor	(	const DtVector &	location,
		const DtTaitBryan &	geocOri
	)		const

pure virtual

Return local orientation given geocentric orientation.

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, SngCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and makVrv::DtGeocentricCoordinateDisplay.

virtual void makVrv::DtCoordinateDisplay::regularExpressionValidator	(	std::string &	x,
		std::string &	y,
		std::string &	z
	)

pure virtual

Returns a the regexes for validating the XYZ values for this coordsys. Need X, Y and Z because they may be different for a given coordinate system.

Implemented in makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, SngCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtGeodeticDdmCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual DtTaitBryan makVrv::DtCoordinateDisplay::topoOrientationFor	(	const DtVector &	geocPos,
		const DtTaitBryan &	geocOri
	)		const

virtual

virtual DtVector makVrv::DtCoordinateDisplay::geocToLocalVector	(	const DtVector &	geocLoc,
		const DtVector &	geocVec
	)		const

virtual

Reimplemented in makVrv::DtGeocentricCoordinateDisplay.

const SupportedPositionDistanceUnits& makVrv::DtCoordinateDisplay::supportedPositionDistanceUnits ( ) const

Retrieve the the list of DistanceUnits supported by this cs display for displaying positions (coordnates).Different coordinate displays can support different distance units for position display (or, in some cases, none). For example, UTM only xupports meters. On the other hand, Local Cartesian Coordinates can be displayed in any DistanceUnit.

bool makVrv::DtCoordinateDisplay::isSupportedPositionUnit ( DistanceUnits unit ) const

Determine if the specified distance unit is supported.

void makVrv::DtCoordinateDisplay::addSupportedPositionUnit ( DistanceUnits unitToSupport )

Add support for a new distance unit type.

void makVrv::DtCoordinateDisplay::removeSupportedPositionUnit ( DistanceUnits unitToRemove )

Remove support for a distance unit type.

const SupportedPositionAngularUnits& makVrv::DtCoordinateDisplay::supportedPositionAngularUnits ( ) const

Retrieve the the list of OrientationUnits supported by this cs display

for displaying positions (coordnates). Different coordinate displays can support different angular units for position display (or, in some cases, none). For example, Geodetic currently supports degrees.

bool makVrv::DtCoordinateDisplay::isSupportedPositionUnit ( OrientationUnits unit ) const

Determine if the specified distance unit is supported.

void makVrv::DtCoordinateDisplay::addSupportedPositionUnit ( OrientationUnits unitToSupport )

Add support for a new distance unit type.

void makVrv::DtCoordinateDisplay::removeSupportedPositionUnit ( OrientationUnits unitToRemove )

Remove support for a distance unit type.

const SupportedCSForGridLines& makVrv::DtCoordinateDisplay::supportedCSForGridLines ( ) const

Retrieve the the list of coordinate systems that can have grid lines drawn using this display type.

bool makVrv::DtCoordinateDisplay::isSupportedCSForGridLines ( const std::string & cs ) const

Determine if this display supports grid lines for the specified coordinate system.

void makVrv::DtCoordinateDisplay::addSupportedCSForGridLines ( const std::string & cs )

Add grid line support for a coordinate system.

void makVrv::DtCoordinateDisplay::removeSupportedCSForGridLines ( const std::string & cs )

Remove grid line support for a coordinate system.

static std::string makVrv::DtCoordinateDisplay::removeNegativeZeroIfNeeded ( const char * ptr )

static

Utility function to prevent the -0 case in numeric strings.

Parameters

ptr	A pointer to a C-style string representing a numeric value

This function removes '-' from a c-style string, if a negative zero is found in the string, and returns the result as a std::string. If a negative zero is not found in the string, this function returns the std::string equivalent of ptr. It is assumed that if the string has a '-', it is at ptr[0].

For example,

"-0.0" => "0.0"
"-0.01" => "-0.01"
"-0.000" => "0.000"

static std::string makVrv::DtCoordinateDisplay::cleanupNumericalString	(	const char *	buffer,
		int	decimals
	)

static

Cleans up a string representation of any numerical value.

Parameters

buff	The string representation of the numerical value to clean up
decimals	The maximum number of decimal places the numerical value will have This function cleans up a string representation by only keeping significant digits. Additionally, any "-0" values will be rounded to "0". For example, "2" instead of "2.000" "2.02" instead of "2.020" "0" instead of "-0.000"

Member Data Documentation

const DtCoordinateSystem& makVrv::DtCoordinateDisplay::myCoordinateSystem

protected

SupportedPositionDistanceUnits makVrv::DtCoordinateDisplay::mySupportedPositionDistanceUnits

protected

SupportedPositionAngularUnits makVrv::DtCoordinateDisplay::mySupportedPositionAngularUnits

protected

SupportedCSForGridLines makVrv::DtCoordinateDisplay::mySupportedCSForGridLines

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvUtil/DtCoordinateDisplay.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
