makVrv::DtEllipseVisualizer Class Referenceabstract
vrvCore

Contains DtEllipseVisualizer class. Visualizer for a ellipses and circles The setPoints method will inherently assume that if there are 2 points defined the distance between the first (origin) and second is the X Radius. If there are three points defined the distance between the third and the first is the Y radius. If there is no Y radius a circle is assumed.

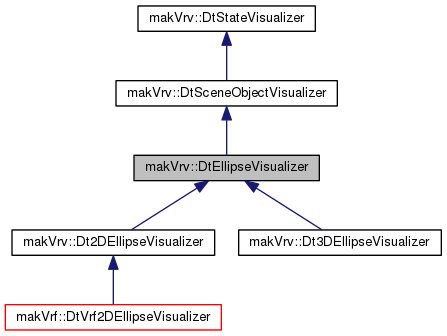

Inheritance diagram for makVrv::DtEllipseVisualizer:
Inheritance graph
[legend]

Public Member Functions

 DtEllipseVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtEllipseVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual ~DtEllipseVisualizer ()

 DtEllipseVisualizer ()=delete

 DtEllipseVisualizer (const DtEllipseVisualizer &)=delete

DtEllipseVisualizer & operator= (const DtEllipseVisualizer &)=delete

virtual void initialize () override

virtual void setFillStyle (vrvTacticalGraphicUtilities::FillStyle)

virtual
vrvTacticalGraphicUtilities::FillStyle 		fillStyle () const

virtual void setPenStyle (vrvTacticalGraphicUtilities::PenStyle)

virtual unsigned short stipplePattern () const

virtual void setStipplePattern (unsigned short)

virtual void slot_setSelected (bool) override

virtual void setPixelLineWidth (int)

virtual void setPickable (bool)

virtual void setColor (float r, float g, float b, float a)

virtual void getColor (float &r, float &g, float &b, float &a) const

virtual void useDefaultColor ()

virtual void setOutsideColor (float r, float g, float b, float a)

virtual void setSelectedOutsideColor (float r, float g, float b, float a)

virtual void setInsideColor (float r, float g, float b, float a)

virtual void setSelectedInsideColor (float r, float g, float b, float a)

virtual void updateColors ()=0

virtual void setDimensions (double x, double y)

virtual void getDimensions (double &x, double &y)

virtual void setFilled (bool filled)

virtual bool isFilled ()

- Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual ~DtSceneObjectVisualizer ()

virtual DtUniqueID sceneObjectID () const override

virtual DtSceneObjectAgent * sceneObjectAgent ()

virtual void setParent (DtStateVisualizer *p)

virtual void setModelDefinitionForAgents ()

virtual void setSceneObjectAgent (DtSceneObjectAgent *)

virtual void setElementID (const DtElementID &elementID)

DtElementID elementID () const

- Public Member Functions inherited from makVrv::DtStateVisualizer
 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual ~DtStateVisualizer ()

virtual DtObserverMode::ModelSets modelSet ()

virtual const TypeInfo & typeInfo () const =0

virtual const DtStateVisualizer * parent () const

void setModelDefinition (const std::string &definition)

const std::string & modelDefinition () const

virtual void implementVisibility (bool visible)

void setName (const std::string &)

const std::string & name () const

virtual bool pickable () const

virtual void setSceneObjectID (DtUniqueID id)

int visualizerType () const

virtual void setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener & listener ()

const DtStateListener & listener () const

DtBaseConnection & simulation ()

void setDistribute (bool b)

bool distribute () const

virtual bool setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)


Protected Member Functions

virtual void connectToListenerSignals () override

virtual void setInitialValuesFromVisualizerDefinition () override

virtual void setArrowSize (double s)

- Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent * createObjectAgent ()

virtual void createModelAgents ()

virtual void destroyModelAgents ()

- Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void makeVisible ()

virtual bool isVisible () const

template<typename T , typename C >
void connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)


Protected Attributes

DtTacticalGraphicStateListener & myEllipseListener

double myXRadius

double myYRadius

float myDefaultColor [4]

float myColor [4]

float myInsideColor [4]

float myOutsideColor [4]

float mySelectedOutsideColor [4]

float mySelectedInsideColor [4]

bool mySelectedInsideColorSet

bool mySelectedOutsideColorSet

bool myFill

bool myFillAlphaSet

bool myDefaultColorSet

bool myXDimensionSet

bool myYDimensionSet

unsigned short myLineStipple

int myLineWidth

vrvTacticalGraphicUtilities::FillStyle myFillStyle

std::vector< unsigned int > myFillPattern

float myFillAlpha

double myDefaultLineWidth

- Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID myElementID

bool myOwnsSceneObjectAgent

- Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection & mySimulation

DtStateListener & myListener

bool myDistributeFlag

DtUniqueID mySceneObjectID

std::string myName

std::string myModelDefinition

DtSignalConnectionManager myConnections

int myModelSet

int myVisualizerType

bool myPickable

bool myVisible

const DtVisualizerDefinition * myVisualizerDefinition

DtStateVisualizer * myParent

DtSceneObjectAgent * mySceneObjectAgent

bool myInitialInitializeDone

ShowHideContextVector myVisualizerShowHideContexts


Additional Inherited Members

- Public Types inherited from makVrv::DtStateVisualizer
enum  Type {
  AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,
  AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000
}

- Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal
< void(DtStateVisualizer
*, DtStateVisualizer
*, DtStateVisualizer *)> 		signal_reparented

- Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector
< DtVisualizerShowHideContext::VisualizerShowHideContext > 		ShowHideContextVector


Constructor & Destructor Documentation

makVrv::DtEllipseVisualizer::DtEllipseVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
int  modelSet
)

CTOR.

makVrv::DtEllipseVisualizer::DtEllipseVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
DtSceneObjectAgent *  sceneObject,
int  modelSet
)

CTOR.

virtual makVrv::DtEllipseVisualizer::~DtEllipseVisualizer ( )
virtual

DTOR.

makVrv::DtEllipseVisualizer::DtEllipseVisualizer ( )
delete

default constructor - not allowed

makVrv::DtEllipseVisualizer::DtEllipseVisualizer ( const DtEllipseVisualizer &  )
delete

copy constructor - not allowed

Member Function Documentation

DtEllipseVisualizer& makVrv::DtEllipseVisualizer::operator= ( const DtEllipseVisualizer &  )
delete

assignment operator - not allowed

virtual void makVrv::DtEllipseVisualizer::initialize ( )
overridevirtual

Initialize the visualizer.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEllipseVisualizer, makVrv::Dt3DEllipseVisualizer, and makVrf::DtVrf2DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::setColor ( float  r,
float  g,
float  b,
float  a
)
virtual

ColorSets the color for the ellipse. This will apply to all segments of the area. If the default (all 0's), uses the default as defined in the visual definition.

Reimplemented in makVrf::DtVrf2DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::getColor ( float &  r,
float &  g,
float &  b,
float &  a
) const
virtual

ColorSets the color for the ellipse. This will apply to all segments of the area. If the default (all 0's), uses the default as defined in the visual definition.

virtual void makVrv::DtEllipseVisualizer::useDefaultColor ( )
virtual

Sets color to default color as defined in the visualizer definition. Called when color set is 0, 0, 0, 0.

virtual void makVrv::DtEllipseVisualizer::setOutsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the outside color (rim) if available.

Reimplemented in makVrv::Dt3DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::setSelectedOutsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the selected outside color. This color is used if the object is selected.

virtual void makVrv::DtEllipseVisualizer::setInsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets inside color (fill) if available.

virtual void makVrv::DtEllipseVisualizer::setSelectedInsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the selected inside color.

virtual void makVrv::DtEllipseVisualizer::updateColors ( )
pure virtual

update the color - derived classes override

Implemented in makVrv::Dt2DEllipseVisualizer, and makVrv::Dt3DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::setDimensions ( double  x,
double  y
)
virtual

Set / Get the dimensions of the ellipse.

Reimplemented in makVrv::Dt3DEllipseVisualizer, and makVrv::Dt2DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::getDimensions ( double &  x,
double &  y
)
virtual

Set / Get the dimensions of the ellipse.

virtual void makVrv::DtEllipseVisualizer::setFilled ( bool  filled)
virtual

Set / Get if the ellipse is filled Default set from visualizer definition.

Reimplemented in makVrv::Dt3DEllipseVisualizer, and makVrv::Dt2DEllipseVisualizer.

virtual bool makVrv::DtEllipseVisualizer::isFilled ( )
virtual

Set / Get if the ellipse is filled Default set from visualizer definition.

virtual void makVrv::DtEllipseVisualizer::setFillStyle ( vrvTacticalGraphicUtilities::FillStyle  )
virtual

Sets the fill style of the area. If fill is 0, will be considered an outlined area. Translates the fill style bit to a patterened fill style using the mapping routines found in vrvTacticalGraphicUtilities.h.

Reimplemented in makVrv::Dt2DEllipseVisualizer, and makVrf::DtVrf2DEllipseVisualizer.

virtual vrvTacticalGraphicUtilities::FillStyle makVrv::DtEllipseVisualizer::fillStyle ( ) const
virtual

Returns the currently set fill style.

virtual void makVrv::DtEllipseVisualizer::setPenStyle ( vrvTacticalGraphicUtilities::PenStyle  )
virtual

Takes the pen style and translates it to a stipple pattern. See vrvTacticalGraphicUtilities for styles.

virtual unsigned short makVrv::DtEllipseVisualizer::stipplePattern ( ) const
virtual

Returns the stipple pattern.

virtual void makVrv::DtEllipseVisualizer::setStipplePattern ( unsigned  short)
virtual

Sets the stipple pattern of the line.

Reimplemented in makVrv::Dt3DEllipseVisualizer, and makVrv::Dt2DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::slot_setSelected ( bool  )
overridevirtual

Sets whether or not the ellipse is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtVrf2DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::setPixelLineWidth ( int  )
virtual

Sets the width of the outside line. Default is 2. The pixel line width is the line in osg pixel space. This is different than physicalLineWidth which sets the width of the line in datasbe space.

Reimplemented in makVrv::Dt3DEllipseVisualizer, and makVrv::Dt2DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::setPickable ( bool  )
virtual

Whether or not the area can be pickable.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEllipseVisualizer, and makVrv::Dt2DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::connectToListenerSignals ( )
overrideprotectedvirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::setInitialValuesFromVisualizerDefinition ( )
overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEllipseVisualizer.

virtual void makVrv::DtEllipseVisualizer::setArrowSize ( double  s)
protectedvirtual

This is for air corridors, they set the dimensions of the ellipse via arrow size when ellipses are used at each vertex.

Member Data Documentation

DtTacticalGraphicStateListener& makVrv::DtEllipseVisualizer::myEllipseListener
protected
double makVrv::DtEllipseVisualizer::myXRadius
protected
double makVrv::DtEllipseVisualizer::myYRadius
protected
float makVrv::DtEllipseVisualizer::myDefaultColor[4]
protected
float makVrv::DtEllipseVisualizer::myColor[4]
protected
float makVrv::DtEllipseVisualizer::myInsideColor[4]
protected
float makVrv::DtEllipseVisualizer::myOutsideColor[4]
protected
float makVrv::DtEllipseVisualizer::mySelectedOutsideColor[4]
protected
float makVrv::DtEllipseVisualizer::mySelectedInsideColor[4]
protected
bool makVrv::DtEllipseVisualizer::mySelectedInsideColorSet
protected
bool makVrv::DtEllipseVisualizer::mySelectedOutsideColorSet
protected
bool makVrv::DtEllipseVisualizer::myFill
protected
bool makVrv::DtEllipseVisualizer::myFillAlphaSet
protected
bool makVrv::DtEllipseVisualizer::myDefaultColorSet
protected
bool makVrv::DtEllipseVisualizer::myXDimensionSet
protected
bool makVrv::DtEllipseVisualizer::myYDimensionSet
protected
unsigned short makVrv::DtEllipseVisualizer::myLineStipple
protected
int makVrv::DtEllipseVisualizer::myLineWidth
protected
vrvTacticalGraphicUtilities::FillStyle makVrv::DtEllipseVisualizer::myFillStyle
protected
std::vector<unsigned int> makVrv::DtEllipseVisualizer::myFillPattern
protected
float makVrv::DtEllipseVisualizer::myFillAlpha
protected
double makVrv::DtEllipseVisualizer::myDefaultLineWidth
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Sun Dec 4 20:22:03 EST 2022 from SVN revision 249613
Copyright © 2005-2021 MAK Technologies. All Rights Reserved (www.mak.com)
