makVrv::DtIntervisibilityFanVisualizer Class Referenceabstract
vrvCore

DtIntervisibilityLineVisualizer display an intervisibility line drawn as geometry in the scene.

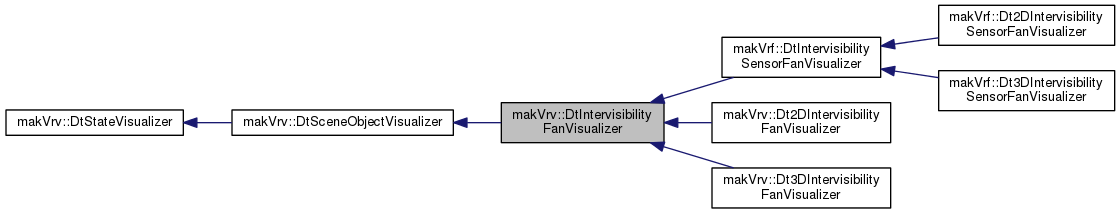

Inheritance diagram for makVrv::DtIntervisibilityFanVisualizer:
Inheritance graph
[legend]

Public Member Functions

 DtIntervisibilityFanVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtIntervisibilityFanVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual ~DtIntervisibilityFanVisualizer ()

virtual void setVisibleColor (float r, float g, float b, float a)

void visibleColor (float &r, float &g, float &b, float &a) const

virtual void setBlockedColor (float r, float g, float b, float a)

void blockedColor (float &r, float &g, float &b, float &a) const

virtual void setCircleColor (float r, float g, float b, float a)=0

virtual void setStartPoint (const DtVector &)

virtual void setEndPoint (const DtVector &)

virtual void setStartAttachPoint (DtElementID)

virtual void setStartPointOffset (const DtVector &)

virtual void setEndAttachPoint (DtElementID)

virtual void setEndPointOffset (const DtVector &)

virtual void slot_setSelected (bool) override

virtual void setFanModeSamplingRate (double d)

virtual void setStartPointOffsetFromCenter (const DtVector &)

- Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual ~DtSceneObjectVisualizer ()

virtual DtUniqueID sceneObjectID () const override

virtual DtSceneObjectAgent * sceneObjectAgent ()

virtual void setParent (DtStateVisualizer *p)

virtual void setSceneObjectAgent (DtSceneObjectAgent *)

virtual void setElementID (const DtElementID &elementID)

DtElementID elementID () const

- Public Member Functions inherited from makVrv::DtStateVisualizer
 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual ~DtStateVisualizer ()

virtual DtObserverMode::ModelSets modelSet ()

virtual const TypeInfo & typeInfo () const =0

virtual const DtStateVisualizer * parent () const

void setModelDefinition (const std::string &definition)

const std::string & modelDefinition () const

virtual void implementVisibility (bool visible)

virtual void initialize ()

void setName (const std::string &)

const std::string & name () const

virtual void setPickable (bool)

virtual bool pickable () const

virtual void setSceneObjectID (DtUniqueID id)

int visualizerType () const

virtual void setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener & listener ()

const DtStateListener & listener () const

DtBaseConnection & simulation ()

void setDistribute (bool b)

bool distribute () const

virtual bool setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)


Protected Member Functions

virtual void createModelAgents ()

virtual void destroyModelAgents ()

virtual void setModelDefinitionForAgents ()

virtual void resetSpatial ()

virtual void setInitialValuesFromVisualizerDefinition () override

virtual void setFixedDistance (bool b)

virtual void createCircle ()=0

virtual void selectCircle (bool)=0

- Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent * createObjectAgent ()

- Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void connectToListenerSignals ()

virtual void makeVisible ()

virtual bool isVisible () const

template<typename T , typename C >
void connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)


Protected Attributes

DtMultiLineModelAgent * myMultiLineModelAgent

DtIntervisibilityFanStateListener & myFanListener

DtAttachableFanUpdaterAgent * myAttachableUpdaterAgent

DtVector myStartPointOffsetFromCenter

- Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID myElementID

bool myOwnsSceneObjectAgent

- Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection & mySimulation

DtStateListener & myListener

bool myDistributeFlag

DtUniqueID mySceneObjectID

std::string myName

std::string myModelDefinition

DtSignalConnectionManager myConnections

int myModelSet

int myVisualizerType

bool myPickable

bool myVisible

const DtVisualizerDefinition * myVisualizerDefinition

DtStateVisualizer * myParent

DtSceneObjectAgent * mySceneObjectAgent

bool myInitialInitializeDone

ShowHideContextVector myVisualizerShowHideContexts


Additional Inherited Members

- Public Types inherited from makVrv::DtStateVisualizer
enum  Type {
  AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,
  AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000
}

- Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal
< void(DtStateVisualizer
*, DtStateVisualizer
*, DtStateVisualizer *)> 		signal_reparented

- Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector
< DtVisualizerShowHideContext::VisualizerShowHideContext > 		ShowHideContextVector


Constructor & Destructor Documentation

makVrv::DtIntervisibilityFanVisualizer::DtIntervisibilityFanVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
int  modelSet
)

Constructor.

makVrv::DtIntervisibilityFanVisualizer::DtIntervisibilityFanVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
DtSceneObjectAgent *  sceneObject,
int  modelSet
)

Constructor.

virtual makVrv::DtIntervisibilityFanVisualizer::~DtIntervisibilityFanVisualizer ( )
virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtIntervisibilityFanVisualizer::setVisibleColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the color for the visible portion of the line (default is green)

Reimplemented in makVrf::DtIntervisibilitySensorFanVisualizer.

void makVrv::DtIntervisibilityFanVisualizer::visibleColor ( float &  r,
float &  g,
float &  b,
float &  a
) const
virtual void makVrv::DtIntervisibilityFanVisualizer::setBlockedColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the color for the blocked portion of the line (default is red)

Reimplemented in makVrf::DtIntervisibilitySensorFanVisualizer.

void makVrv::DtIntervisibilityFanVisualizer::blockedColor ( float &  r,
float &  g,
float &  b,
float &  a
) const
virtual void makVrv::DtIntervisibilityFanVisualizer::setCircleColor ( float  r,
float  g,
float  b,
float  a
)
pure virtual

Sets the color for the circle portion of the fan (default is blue)

Implemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartPoint ( const DtVector &  )
virtual

Sets the start for of the first vertex. Will delete any updaters if they exist for the start point.

virtual void makVrv::DtIntervisibilityFanVisualizer::setEndPoint ( const DtVector &  )
virtual

Sets the end point. Will delete any updaters if they exist for the end point.

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartAttachPoint ( DtElementID  )
virtual

Will set the start attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartPointOffset ( const DtVector &  )
virtual

Sets the offset from the attached start point.

virtual void makVrv::DtIntervisibilityFanVisualizer::setEndAttachPoint ( DtElementID  )
virtual

Will set the end attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityFanVisualizer::setEndPointOffset ( const DtVector &  )
virtual

Sets the offset from the attached end point.

virtual void makVrv::DtIntervisibilityFanVisualizer::slot_setSelected ( bool  )
overridevirtual

Sets whether or not the fan is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtIntervisibilitySensorFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setFanModeSamplingRate ( double  d)
virtual

Sets the fan mode fampling rate (in radians)

virtual void makVrv::DtIntervisibilityFanVisualizer::setStartPointOffsetFromCenter ( const DtVector &  )
virtual

Sets the start offset from the center. For display only, not calculation. Useful in 2D mode when wanting to have points on top of the lines.

virtual void makVrv::DtIntervisibilityFanVisualizer::createModelAgents ( )
protectedvirtual

Creates the model agent. If already created, makes it visible.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrf::DtIntervisibilitySensorFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::destroyModelAgents ( )
protectedvirtual

Model agent is only destroyed in destructor. Here, it will be hidden (if it has been created)

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setModelDefinitionForAgents ( )
protectedvirtual

Sets model definition for all the agents that this visualizer might be using. If model agents are not created, should create them. Should not call this directly. Called by initialize.

Reimplemented from makVrv::DtSceneObjectVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::resetSpatial ( )
protectedvirtual
virtual void makVrv::DtIntervisibilityFanVisualizer::setInitialValuesFromVisualizerDefinition ( )
overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize. Get the start point offset (if set) from the definition.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::setFixedDistance ( bool  b)
protectedvirtual
virtual void makVrv::DtIntervisibilityFanVisualizer::createCircle ( )
protectedpure virtual

Creates the circle used for the outline.

Implemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

virtual void makVrv::DtIntervisibilityFanVisualizer::selectCircle ( bool  )
protectedpure virtual

Selects the circle.

Implemented in makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, and makVrv::Dt3DIntervisibilityFanVisualizer.

Member Data Documentation

DtMultiLineModelAgent* makVrv::DtIntervisibilityFanVisualizer::myMultiLineModelAgent
protected
DtIntervisibilityFanStateListener& makVrv::DtIntervisibilityFanVisualizer::myFanListener
protected
DtAttachableFanUpdaterAgent* makVrv::DtIntervisibilityFanVisualizer::myAttachableUpdaterAgent
protected
DtVector makVrv::DtIntervisibilityFanVisualizer::myStartPointOffsetFromCenter
protected
The documentation for this class was generated from the following file:
