makVrv::DtModelInstance Class Reference

The base class for all model instances.

The details required to draw a model, such as geometry, filename, scale, or texture are provided by a DtModelDefinition. A DtModelDefinition is a set of parameters, whose names and types are defined by a DtSchema. The DtModelDefinitionManager saves and loads model-definitions and schemas and maintains settings for model instancing and caching. Model-definitions and schemas are distributed, but not by the usual agent mechanism. Instead, the DtDeSharedState distributes them directly.

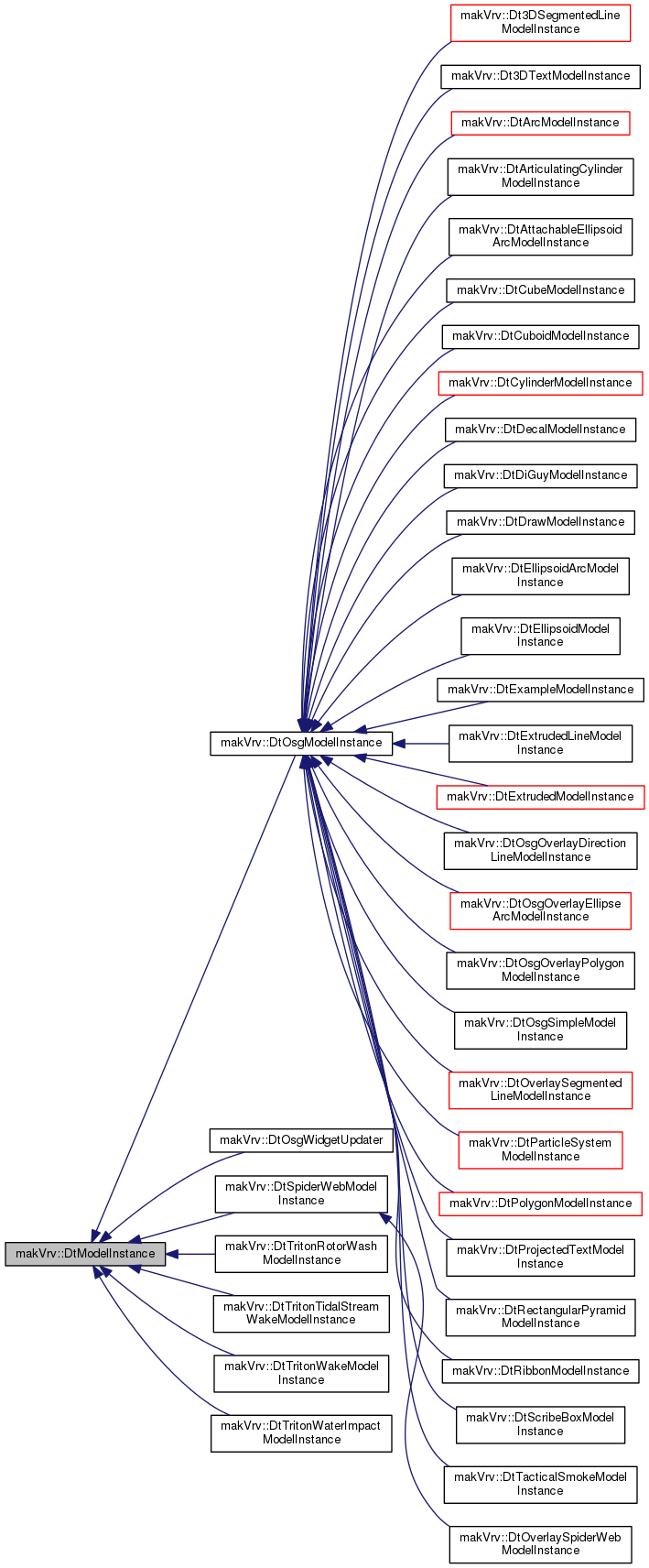

Inheritance diagram for makVrv::DtModelInstance:

Public Member Functions
	DtModelInstance (DtDe &de)
virtual	~DtModelInstance ()
virtual bool	realize (DtModelDefinition &definition)
virtual bool	cloneInstance (DtModelDefinition &definition)
const std::string &	realizedDefinitionName () const
virtual bool	saveModelToFile (const std::string &filename) const
const DtVector &	boundingBoxExtents () const
void	getBoundingBoxExtents (double &x, double &y, double &z) const
const DtVector &	boundingBoxCenter () const
void	getBoundingBoxCenter (double &x, double &y, double &z) const
void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
const DtVector &	allGeometryboundingBoxExtents () const
void	getAllGeometryBoundingBoxExtents (double &x, double &y, double &z) const
const DtVector &	allGeometryboundingBoxCenter () const
void	getAllGeometryBoundingBoxCenter (double &x, double &y, double &z) const
void	getAllGeometryBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
virtual void	setContributesToBound (bool trueOrFalse)
bool	contributesToBound () const
virtual void	setVisible (bool isVisible)=0
virtual void	setBlendColor (float r, float g, float b, float a)
virtual void	enableColorBlending (bool b)

Static Public Member Functions
static float	readFloat (const std::string &paramName, const DtModelDefinition &definition)
static DtVector	readVector (const std::string &paramName, const DtModelDefinition &definition)

Public Attributes
boost::signalslib::signal < void(DtModelInstance *)>	signal_modelInstanceChanged

Protected Attributes
DtDe &	myDe
std::string	myRealizedModelDefinitionName
DtVector	myBoundingBoxCenter
DtVector	myBoundingBoxExtents
DtVector	myBoundingBoxMinimum
DtVector	myBoundingBoxMaximum
DtVector	myAllGeometryBoundingBoxCenter
DtVector	myAllGeometryBoundingBoxExtents
DtVector	myAllGeometryBoundingBoxMinimum
DtVector	myAllGeometryBoundingBoxMaximum
bool	myContributesToBound
bool	myColorBlendingEnabled
float	myBlendRed
float	myBlendBlue
float	myBlendGreen
float	myBlendAlpha

Constructor & Destructor Documentation

makVrv::DtModelInstance::DtModelInstance

(

DtDe &

de

)

CTOR.

virtual makVrv::DtModelInstance::~DtModelInstance ( )

virtual

DTOR.

Member Function Documentation

virtual bool makVrv::DtModelInstance::realize ( DtModelDefinition &  definition )

virtual

Attempt to realize a definition. If the model instance can't realize the definition it should return false.

Reimplemented in makVrv::DtSpiderWebModelInstance, makVrv::DtAttachableEllipsoidArcModelInstance, makVrv::DtArcModelInstance, makVrv::DtOsgOverlayEllipseArcModelInstance, makVrv::DtOsgOverlayDirectionLineModelInstance, makVrv::DtOverlaySegmentedLineModelInstance, makVrv::Dt3DSegmentedLineModelInstance, makVrv::DtOsgModelInstance, makVrv::DtExtrudedLineModelInstance, makVrv::DtTritonWaterImpactModelInstance, makVrv::DtFxParticleSystemModelInstance, makVrv::Dt3DTextModelInstance, makVrv::DtArticulatingCylinderModelInstance, makVrv::DtEllipsoidArcModelInstance, makVrv::DtPolygonModelInstance, makVrv::DtCuboidModelInstance, makVrv::DtCylinderModelInstance, makVrv::DtEllipsoidModelInstance, makVrv::DtCubeModelInstance, makVrv::DtParticleSystemModelInstance, makVrv::DtRibbonModelInstance, makVrv::DtRectangularPyramidModelInstance, makVrv::DtTacticalSmokeModelInstance, makVrv::DtDecalModelInstance, makVrv::DtOverlayGreatCircleArcModelInstance, makVrv::DtDiGuyModelInstance, makVrv::Dt3DGreatCircleArcModelInstance, and makVrv::DtOsgSimpleModelInstance.

virtual bool makVrv::DtModelInstance::cloneInstance ( DtModelDefinition &  definition )

virtual

Attempt to clone the basic geometry. Can be done in the background. If the model instance can't clone the definition it should return false.

Reimplemented in makVrv::DtOsgModelInstance, and makVrv::DtOsgSimpleModelInstance.

const std::string& makVrv::DtModelInstance::realizedDefinitionName

(

)

const

Get the name of the definition that this model instance was realized with.

virtual bool makVrv::DtModelInstance::saveModelToFile ( const std::string &  filename ) const

virtual

Attempt to save the model to a file.

Reimplemented in makVrv::DtOsgModelInstance.

const DtVector& makVrv::DtModelInstance::boundingBoxExtents

(

)

const

Get the bounding box extents of the model instance.

void makVrv::DtModelInstance::getBoundingBoxExtents	(	double &	x,
		double &	y,
		double &	z
	)		const

Get the bounding box extents of the model instance.

const DtVector& makVrv::DtModelInstance::boundingBoxCenter

(

)

const

Get the bounding box center of the model instance.

void makVrv::DtModelInstance::getBoundingBoxCenter	(	double &	x,
		double &	y,
		double &	z
	)		const

Get the bounding box center of the model instance.

void makVrv::DtModelInstance::getBoundingBoxComponents	(	DtVector &	minimum,
		DtVector &	maximum
	)

Get the bounding box min/max of the model instance.

const DtVector& makVrv::DtModelInstance::allGeometryboundingBoxExtents

(

)

const

functions for getting the allGeometry versions of the extents (they are calculated by traversing as if all switch paths are active)

Get the all geometry version of bounding box extents of the model instance

void makVrv::DtModelInstance::getAllGeometryBoundingBoxExtents	(	double &	x,
		double &	y,
		double &	z
	)		const

Get the all geometry version of bounding box extents of the model instance.

const DtVector& makVrv::DtModelInstance::allGeometryboundingBoxCenter

(

)

const

Get the all geometry version of bounding box center of the model instance.

void makVrv::DtModelInstance::getAllGeometryBoundingBoxCenter	(	double &	x,
		double &	y,
		double &	z
	)		const

Get the all geometry version of bounding box center of the model instance.

void makVrv::DtModelInstance::getAllGeometryBoundingBoxComponents	(	DtVector &	minimum,
		DtVector &	maximum
	)

Get the all geometry version of bounding box min/max of the model instance.

virtual void makVrv::DtModelInstance::setContributesToBound ( bool  trueOrFalse )

virtual

Set whether this model instance contributes to an object's overall bounding volume.

Reimplemented in makVrv::DtCubeModelInstance.

bool makVrv::DtModelInstance::contributesToBound

(

)

const

Get whether this model instance contributes to an object's overall bounding volume.

virtual void makVrv::DtModelInstance::setVisible ( bool  isVisible )

pure virtual

Set whether the model is visible or not.

Implemented in makVrv::DtAttachableEllipsoidArcModelInstance, makVrv::DtExtrudedLineModelInstance, makVrv::DtExtrudedModelInstance, makVrv::DtOsgOverlayPolygonModelInstance, makVrv::Dt3DSegmentedLineModelInstance, makVrv::DtOverlaySegmentedLineModelInstance, makVrv::DtArcModelInstance, makVrv::DtSpiderWebModelInstance, makVrv::DtFxParticleSystemModelInstance, makVrv::DtOsgOverlayEllipseArcModelInstance, makVrv::DtPolygonModelInstance, makVrv::DtTritonRotorWashModelInstance, makVrv::DtRibbonModelInstance, makVrv::DtParticleSystemModelInstance, makVrv::Dt3DTextModelInstance, makVrv::DtArticulatingCylinderModelInstance, makVrv::DtEllipsoidArcModelInstance, makVrv::DtDecalModelInstance, makVrv::DtCuboidModelInstance, makVrv::DtCylinderModelInstance, makVrv::DtEllipsoidModelInstance, makVrv::DtCubeModelInstance, makVrv::DtRectangularPyramidModelInstance, makVrv::DtTacticalSmokeModelInstance, makVrv::DtOsgOverlayDirectionLineModelInstance, makVrv::DtProjectedTextModelInstance, makVrv::DtDiGuyModelInstance, makVrv::DtOsgWidgetUpdater, makVrv::DtScribeBoxModelInstance, makVrv::DtTritonTidalStreamWakeModelInstance, makVrv::DtTritonWakeModelInstance, makVrv::DtTritonWaterImpactModelInstance, makVrv::DtOsgSimpleModelInstance, makVrv::DtDrawModelInstance, makVrv::DtParticleRotorWashModelInstance, makVrv::DtAttachedCylinderModelInstance, and makVrv::DtExampleModelInstance.

virtual void makVrv::DtModelInstance::setBlendColor ( float  r, float  g, float  b, float  a  )

virtual

set the model's color

Reimplemented in makVrv::DtOsgModelInstance.

virtual void makVrv::DtModelInstance::enableColorBlending ( bool  b )

virtual

Enable / disable coloring on all models in the scene object Note about enableColorBlending: If this particular model has instancing enabled then this flag is set to false and color blending is handled by the instance manager. It should not be set to true if the model has instancing enabled.

Reimplemented in makVrv::DtOsgModelInstance, and makVrv::DtPolygonModelInstance.

static float makVrv::DtModelInstance::readFloat ( const std::string &  paramName, const DtModelDefinition &  definition  )

static

static DtVector makVrv::DtModelInstance::readVector ( const std::string &  paramName, const DtModelDefinition &  definition  )

static

Member Data Documentation

boost::signalslib::signal<void (DtModelInstance*)> makVrv::DtModelInstance::signal_modelInstanceChanged

DtDe& makVrv::DtModelInstance::myDe

protected

std::string makVrv::DtModelInstance::myRealizedModelDefinitionName

protected

DtVector makVrv::DtModelInstance::myBoundingBoxCenter

protected

DtVector makVrv::DtModelInstance::myBoundingBoxExtents

protected

DtVector makVrv::DtModelInstance::myBoundingBoxMinimum

protected

DtVector makVrv::DtModelInstance::myBoundingBoxMaximum

protected

DtVector makVrv::DtModelInstance::myAllGeometryBoundingBoxCenter

protected

DtVector makVrv::DtModelInstance::myAllGeometryBoundingBoxExtents

protected

DtVector makVrv::DtModelInstance::myAllGeometryBoundingBoxMinimum

protected

DtVector makVrv::DtModelInstance::myAllGeometryBoundingBoxMaximum

protected

bool makVrv::DtModelInstance::myContributesToBound

protected

bool makVrv::DtModelInstance::myColorBlendingEnabled

protected

float makVrv::DtModelInstance::myBlendRed

protected

float makVrv::DtModelInstance::myBlendBlue

protected

float makVrv::DtModelInstance::myBlendGreen

protected

float makVrv::DtModelInstance::myBlendAlpha

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtModelInstance.h
