Overview

This example shows how to create an agent for an object and create an instance of the agent in a driver. It creates a distributed object, DtExampleObject, that loads a model and rotates it using an agent.

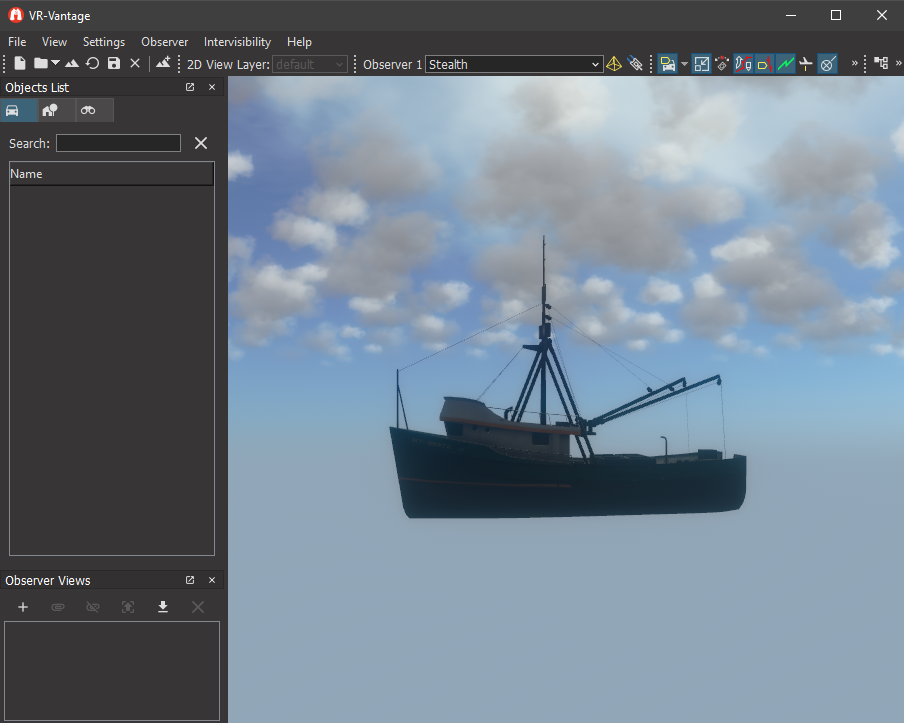

Expected Result

Distributed Object Result

Example details

To fully appreciate this example, use the Distributed Code Generator to generate the agent classes.

The object is defined as follows:

   class DtExampleObject
   {
   public:
      DtExampleObject(DtDe& de, DtUniqueID id);
      virtual ~DtExampleObject();
      void loadModel(const std::string& filename);
      void setRotationAngle(double rotationAngleInDegrees);

To generate the agent files:

Run ./bin64/dcgen.exe. The Distributed Code Generator opens.
Choose Files -> Open. An Open dialog box opens.
Select ./examples/exampleDistributedObject/DtExampleObject.ocdx.
Examine the object class definition and compare it to the object code to see how functions for the agent were chosen.
Choose Build -> Set Output Directory.
Specify a directory for the output files. Be careful not to overwrite the files shipped with VR-Vantage.
Choose Build -> Generate Files. (You can also generate files from the command line or from within your IDE. For details, please see VR-Vantage Developer's Guide.)

To add the agent to the driver:

Drivers get ticked every frame. In our driver's tick method, we will tell the agent to rotate to a certain degree:

Building the Example

VR-Vantage includes pre-built versions of the example application. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is a plugin. You can run it by running ./bin64/exampleDistributedObject_stealth.bat (on Windows) or ./bin64/exampleDistributedObject_stealth.sh (on Linux). For more information about running examples, please see Running Applications and Examples.

Example Source Files

DtExampleObject.h

// /******************************************************************************
// ** Copyright (c) 2019 MAK Technologies, Inc.
// ** All rights reserved.
// ******************************************************************************/
#ifndef DtExampleObject_H_
#define DtExampleObject_H_
#include <vrvCore/DtDe.h>
#include <vrvCore/DtUniqueID.h>
#include <osg/PositionAttitudeTransform>
#include <string>
namespace makVrv
{
   class DtExampleObject
   {
   public:
      DtExampleObject(DtDe& de, DtUniqueID id);
      virtual ~DtExampleObject();
      void loadModel(const std::string& filename);
      void setRotationAngle(double rotationAngleInDegrees);
   protected:
      DtDe& myDe;
      osg::ref_ptr<osg::PositionAttitudeTransform> myPat;
   };
}
#endif

DtExampleObject.cxx

// /******************************************************************************
// ** Copyright (c) 2020 MAK Technologies, Inc.
// ** All rights reserved.
// ******************************************************************************/
#include "DtExampleObject.h"
#include <vrvOsg/DtOsgRenderer.h>
#include <vrvCore/DtModelSetRealizationManager.h>
#include <vrvCore/DtDeSharedState.h>
#include <vrvOsg/DtOsgRenderer.h>
#include <vrvOsg/DtChannelSpecificGroup.h>
#include <osg/Group>
#include <osg/Node>
#include <osgDB/ReadFile>
#include <osg/ShapeDrawable>
#include <osg/Geode>
namespace makVrv
{
   DtExampleObject::DtExampleObject( DtDe& de, DtUniqueID id )
   : myDe(de)
   , myPat(0)
   {
   }
   DtExampleObject::~DtExampleObject()
   {
      if (myPat)
      {
         myPat->removeChild(0,1);
      }
      myPat = 0;
   }
   void DtExampleObject::loadModel( const std::string& filename )
   {
      // Add a model...
      osg::ref_ptr<osg::Node> modelNode = osgDB::readNodeFile(filename);
      // Create a transform for the model.
      myPat = new osg::PositionAttitudeTransform();
      // Add the model to the transform.
      myPat->addChild(modelNode.get());
      // The observer starts at 0,0,0. Move the transform, 45 meters away.
      myPat->setPosition(osg::Vec3(0.0,45.0,-5.0));
      const DtModelSetRealizationManager& manager = myDe.sharedState().modelSetRealizationManager();
      DtModelSetRealizationManager::ModelSetRealizations::const_iterator iter = manager.modelSetRealizations().begin();
      DtModelSetRealizationManager::ModelSetRealizations::const_iterator end = manager.modelSetRealizations().end();
      while (iter != end)
      {
         if (iter->second)
         {
            // Add the boat to the root of the scene graph.
            ((DtOsgRenderer&)myDe.renderer()).addNodeToRoot(myPat.get(),
               DtOsgRenderer::visualizerTypeRoot( iter->first, 0 ) );
         }
         ++iter;
      }
   }
   void DtExampleObject::setRotationAngle( double rotationAngleInDegrees )
   {
      myPat->setAttitude(osg::Quat(
         osg::DegreesToRadians(0.0), osg::Vec3d(1.0, 0.0, 0.0),
         osg::DegreesToRadians(0.0), osg::Vec3d(0.0, 1.0, 0.0),
         osg::DegreesToRadians(rotationAngleInDegrees), osg::Vec3d(0.0, 0.0, 1.0)));
   }
}

exampleDistributedObjectPlugin.cxx

// /******************************************************************************
// ** Copyright (c) 2022 MAK Technologies, Inc.
// ** All rights reserved.
// ******************************************************************************/
#include <vrvCore/DtDe.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvCore/DtDriver.h>
#include <vrvCore/DtAgentManager.h>
#include <boost/bind.hpp>
#include "exampleDistributedObjectPlugin.h"
// The header for the driver generated by the Distributed Object Compiler
#include "DtExampleObjectAgent.hpp"
// Use the VR-Vantage namespace. All classes in VR-Vantage are in this namespace.
using namespace makVrv;
// This driver creates and owns the example driver.
class DtExampleDriver : public DtDriver
{
public:
   DtExampleDriver(DtAgentManager& am)
      : DtDriver(am,"DtExampleDriver")
      , myAgent(0)
      , myRotationDegree(0.0)
   {
      setAutoStart(true);
   }
   virtual ~DtExampleDriver()
   {
      if(myAgent)
         delete myAgent;
      myAgent = 0;
   }
   virtual const std::string& className() const
   {
      static std::string name = "DtExampleDriver";
      return name;
   }
   virtual bool onStart()
   {
      // Create the agent
      myAgent = DtExampleObjectAgent::create(myAgentManager);
      // Load the model
      std::string sharedDataPath = myAgentManager.de().dePathConfiguration().sharedDataPath();
      myAgent->loadModel( sharedDataPath + "/ModelData/Vehicles/Surface/FISHING_VESSEL_MEDIUM_GREEN_V7.0/DB_FISHING_VESSEL_MEDIUM_GREEN_V7.0.medf");
      return true;
   }
   virtual bool onStop()
   {
      if (myAgent)
      {
         delete myAgent;
         myAgent = 0;
      }
      return true;
   }
   virtual bool onTick()
   {
      // Rotate the object a little bit every frame.
      myAgent->setRotationAngle(myRotationDegree);
      myRotationDegree += 0.15;
      if(myRotationDegree > 360.0)
      {
         myRotationDegree = 0.0;
      }
      return true;
   }
protected:
   virtual void slot_displayEngineAdded(const DtDeRecord& igRecord)
   {
      // When a new display engine is added, we need to restart the driver so that everything is
      // correctly created on the new DE.
      if (DtDriver::myStartedFlag)
      {
         stop();
         start();
      }
   }
   DtExampleObjectAgent* myAgent;
   double myRotationDegree;
};
void init(DtDe& de)
{
   // Ensure that init only gets called once
   // (not strictly necessary here, but this is good practice in general)
   DT_DE_INIT_ONCE(de);
   // We only want to create the example driver if we're running in master mode:
   if (de.isInMasterMode())
   {
      // The driver must be created after the DE's initialization is finished,
      // to make sure all the objects it uses exist.
      de.signal_postInitialize.connect(boost::bind(
         &loadDriver, &de));
   }
}
bool initDeModule(makVrv::DtDe* de)
{
   // Setup the plugin. Normally, the init function and functionality
   // should be in its own library.
   init(*de);
   return true;
}
void loadDriver(DtDe* de)
{
   // We're done with the signal, so disconnect from it
   de->signal_postInitialize.disconnect(boost::bind(
      &loadDriver, de));
   // Create the driver that will manage the DtExampleObjectAgents
   DtExampleDriver* driver = new DtExampleDriver(
      de->agentManager());
   // After the driver is added to the display engine below, the DE will manage
   // its memory. The driver will be started automatically when added since we
   // set the autoStart property in its CTOR
   de->driverManager().addDriver(driver);
}
