Overview

This example shows how to create a very simple plug-in that creates a Hla13 driver and automatically connects to a Hla13 exercise.

Expected Result

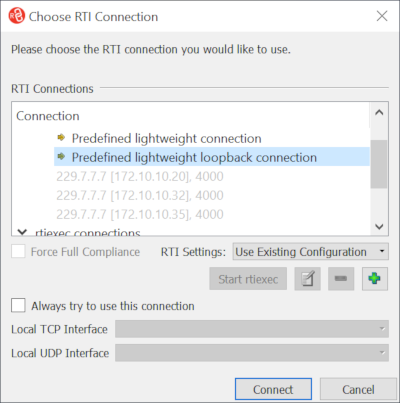

Select the RTI connection

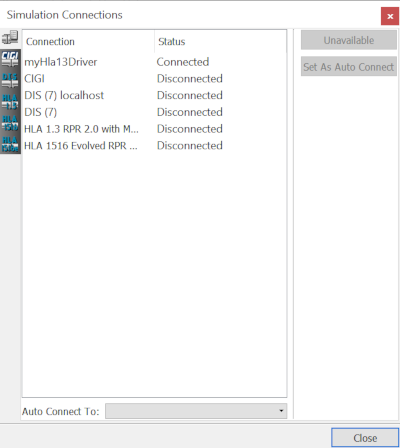

New HLA connection from the connection dialog

Example details

It shows how to create a new Hla13 Driver object, add it to the driver manager and set it up to start automatically.

Building the Example

VR-Vantage includes pre-built versions of the example plug-in. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is an application. You can run it by running ./bin64/exampleHla13Connection_stealth.bat (on Windows) or ./bin64/exampleHla13Connection_stealth.sh (on Linux). When Vantage start it will ask you to select an RTI connection (select the loopback connection). From the menu "Settings->Connections..." you can see the new HLA connection that was added by the plugin. For more information about running examples, please see Running Applications and Examples.

Example Source Files

exampleHla13ConnectionInit.cxx

/******************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/
#include "exampleHla13Connection.h"
#include "exampleHla13ConnectionInit.h"
#include <vrvCore/DtDe.h>
#include <vrvCore/DtDriverFactory.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvHla13/DtHla13Driver.h>
#include <vl/exerciseConnInitializer.h>
#include <boost/bind.hpp>
bool initDeModule(makVrv::DtDe* de)
{
   makVrv::vrvExampleHla13Connection::init(*de);
   return true;
}
// Use the VR-Vantage namespace. All classes in VR-Vantage are in this namespace.
namespace makVrv
{
   namespace vrvExampleHla13Connection
   {
      //name for example driver that this example creates
      static const std::string exampleDriverName = "myHla13Driver";
      //Create the example HLA13 driver
      void createDriver(DtDe* de)
      {
         // We're done with the signal, so disconnect from it
         de->signal_postInitialize.disconnect(boost::bind(
            &createDriver, de));
         //Step 1: Create the HLA13 driver.
         DtHla13Driver* hla13Driver = dynamic_cast<DtHla13Driver*>(
            DtDriverFactory::instance(*de).
            createDriver(std::string("DtHla13Driver"), exampleDriverName));
         // Step 2: Create the HLA13 Connection initializer and add it to the HLA13 driver.
         DtExerciseConnInitializer exConnInitializer;
         exConnInitializer.setExecName("VR-Link");
         exConnInitializer.setFederateType("VR-Vantage HLA 1.3 Driver");
         exConnInitializer.setFedFileName("VR-Link.fed");
         exConnInitializer.setRprFomVersion(1);
         exConnInitializer.setUseAdvisories(true);
         exConnInitializer.setUseGeographicDdm(false);
         hla13Driver->setExerciseSettings(exConnInitializer);
         // Step 3: Add the Hla13 driver to the display engine.
         // The driver is now owned by the display engine. Do not delete it.
         de->driverManager().addDriver(hla13Driver);
      }
      void init(DtDe& de)
      {
         DT_DE_INIT_ONCE(de);
         try
         {
            //connect to the post initialize signal so the driver is created at
            // the proper time
            de.signal_postInitialize.connect(boost::bind(
               &createDriver, &de));
            //Add the example drivers name to the list of drivers to start when
            // the De starts all the drivers.
            DtDeInitializer initializer = de.deInitializer();
            std::vector< std::string > autoStartList = initializer.autoStartDrivers();
            //this name needs to match the name used in createDriver() above
            // when the driver is created
            autoStartList.push_back(exampleDriverName);
            initializer.setAutoStartDrivers(autoStartList);
            de.setDeInitializer(initializer);
         }
         DtCATCH_AND_PROPAGATE(DtCorruptedState)
      }

   }
}

exampleHla13ConnectionInit.h

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/
#pragma once
// Get proper local export symbol
#include "exampleHla13Connection.h"
// Setup proper plugin export symbol
#define DT_DE_PLUGIN_EXPORT_MACRO DT_DLL_EXAMPLEHLA13CONNECTION
// Export plugging function bool initDeModule(DtDe* de);
#include <vrvCore/exportPlugin.h>
namespace makVrv
{
   class DtDe;
   namespace vrvExampleHla13Connection
   {
      DT_DLL_EXAMPLEHLA13CONNECTION void init(DtDe& anIG);
   }
}

exampleHla13Connection.h

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/
#ifndef exampleHla13Connection_H_
#define exampleHla13Connection_H_
#ifdef _WIN32
#ifdef EXAMPLEHLA13CONNECTION_EXPORTS
#define DT_DLL_EXAMPLEHLA13CONNECTION __declspec ( dllexport )
#else
#define DT_DLL_EXAMPLEHLA13CONNECTION __declspec ( dllimport )
#endif
#else
#define DT_DLL_EXAMPLEHLA13CONNECTION
#endif
#endif
