DtEvaluator Class Reference

class DtEvaluator:

Instances of DtEvaluator are used to perform the evaluation for a given DtSimCondExpr conditional expression.

Related examples

• Add Conditional Example
• Simple Plan Example

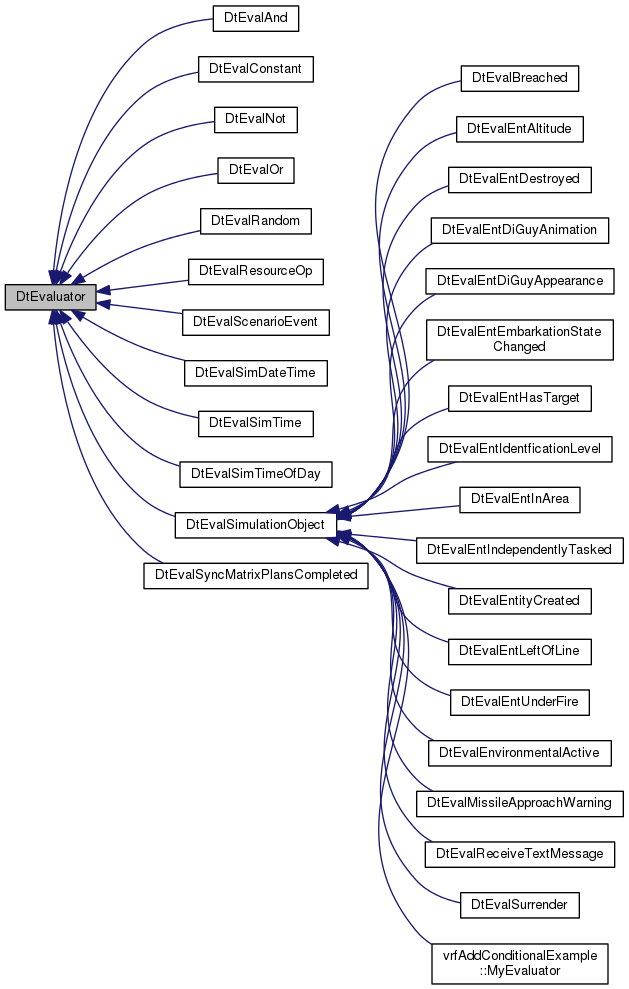

Inheritance diagram for DtEvaluator:

Public Member Functions
	DtEvaluator ()
virtual	~DtEvaluator ()
virtual bool	evaluate (DtSimCondExpr *condExpr, DtLocalObject *entity, const DtSimulationServices *simManager, const DtPlan *plan=0) const =0
	DtEvaluator (const DtEvaluator &orig)
DtEvaluator &	operator= (const DtEvaluator &orig)
virtual DtEvaluator *	clone ()=0
virtual const DtUUID &	simulationObject (const DtSimCondExpr *condExpr) const

Static Public Member Functions
static void	setFactory (DtEvaluatorFactory *factory)
static DtEvaluatorFactory *	factory ()
static void	addEvaluatorCreatorFcn (const int intType, DtEvaluatorCreatorFcn fcn)

Static Protected Attributes
static DtEvaluatorFactory *	theFactory

Constructor & Destructor Documentation

DtEvaluator::DtEvaluator

(

)

constructor - condExpr is the conditional expression to be evaluated.

virtual DtEvaluator::~DtEvaluator ( )

virtual

destructor

DtEvaluator::DtEvaluator

(

const DtEvaluator &

orig

)

copy constructor

Member Function Documentation

virtual bool DtEvaluator::evaluate ( DtSimCondExpr *  condExpr, DtLocalObject *  entity, const DtSimulationServices *  simManager, const DtPlan *  plan = 0  ) const

pure virtual

Evaluate the conditional expression for the entity, and return the current result. The plan is supplied for variable substituion.

Implemented in DtEvalAnd, DtEvalResourceOp, DtEvalMissileApproachWarning, DtEvalOr, DtEvalEntAltitude, DtEvalScenarioEvent, DtEvalEntInArea, vrfAddConditionalExample::MyEvaluator, DtEvalBreached, DtEvalEntEmbarkationStateChanged, DtEvalEntLeftOfLine, DtEvalEntUnderFire, DtEvalConstant, DtEvalEntDestroyed, DtEvalEntDiGuyAppearance, DtEvalEntHasTarget, DtEvalEntIdentficationLevel, DtEvalEnvironmentalActive, DtEvalReceiveTextMessage, DtEvalSimDateTime, DtEvalSimTime, DtEvalSimTimeOfDay, DtEvalSurrender, DtEvalEntDiGuyAnimation, DtEvalEntIndependentlyTasked, DtEvalEntityCreated, DtEvalSyncMatrixPlansCompleted, DtEvalNot, and DtEvalRandom.

DtEvaluator& DtEvaluator::operator=

(

const DtEvaluator &

orig

)

assignment operator

virtual DtEvaluator* DtEvaluator::clone ( )

pure virtual

clone operator

Implemented in DtEvalReceiveTextMessage, DtEvalResourceOp, DtEvalMissileApproachWarning, DtEvalBreached, DtEvalEntAltitude, DtEvalSimDateTime, DtEvalSimTime, DtEvalSimTimeOfDay, DtEvalAnd, DtEvalEnvironmentalActive, DtEvalOr, DtEvalScenarioEvent, DtEvalConstant, DtEvalEntDiGuyAppearance, DtEvalEntEmbarkationStateChanged, DtEvalEntIdentficationLevel, DtEvalEntInArea, DtEvalEntityCreated, DtEvalEntUnderFire, DtEvalSyncMatrixPlansCompleted, DtEvalEntDestroyed, DtEvalEntDiGuyAnimation, DtEvalEntHasTarget, DtEvalEntLeftOfLine, DtEvalNot, DtEvalRandom, DtEvalSurrender, vrfAddConditionalExample::MyEvaluator, and DtEvalEntIndependentlyTasked.

virtual const DtUUID& DtEvaluator::simulationObject ( const DtSimCondExpr *  condExpr ) const

virtual

If there is a simulation object that satisfied the evaluation of this condition then it is returned here. Default returns DtUUID::nullUUID()

Reimplemented in DtEvalAnd, DtEvalOr, DtEvalNot, and DtEvalSimulationObject.

static void DtEvaluator::setFactory ( DtEvaluatorFactory *  factory )

static

Set/get the DtEvaluator class factory.

static DtEvaluatorFactory* DtEvaluator::factory ( )

static

static void DtEvaluator::addEvaluatorCreatorFcn ( const int  intType, DtEvaluatorCreatorFcn  fcn  )

static

Adds a evaluator creator member function to the evaluator factory.

Member Data Documentation

DtEvaluatorFactory* DtEvaluator::theFactory

staticprotected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfutil/evaluator.h
