Lua object class which represents a terrain reasoning job. Given an origin point, which is assumed to be near a hilltop or ridge, find "positions" (described in findSinglePosition) where the shoot and hide locations in each position are lined up with the target area. The positions are returned in left to right order as viewed from the originPoint looking toward the targetArea. This function is intended to compute the shoot and hide positions more accurately than the findPositionGroups functions. This function starts an async job to find the positions. The getObject function for this job returns a list of lists. Each list (table) has two Location3Ds in it; the first is the shoot position and the second is the hide position. Ideally there will be nPositionPairs pairs of locations, but there may not be.

Parameters

nPointsToReturn	The number of pairs to find. A pair is a shoot position and a hide position. Typically one pair per subordinate.
targetAreaCorners	Table of Location3D vertices defining the area to target for engagement.
originPoint	A point representing the battle position from which to engage the enemy, i.e. the pivot point for the search.
hideVolume	Notional bounding volume (full dimensions) of a vehicle, perhaps the largest vehicle in a unit. Used to space out the pairs along searchWidthSide.
shootHeight	In meters, a height above the ground where presumably a shooter's gun is located. Used as an endpoint for line of sight checks.
targetHeight	In meters, a height above the ground to use for line of sight checks, notionally some portion of an enemy's vehicle height, used for detection, e.g. 2/3 vehicle height.
forwardBackSearchLimit	In meters, total distance forward and back of the originPoint, in which to find shoot/hide positions. E.g. 50m forward + 50m back = 100m.
sideSideSearchLimit	In meters, the total width left to right about origin point in which the position pairs should fit. E.g. 50m left + 50m right = 100m.
maxSlopeDegrees	In degrees, the absolute value of the maximum slope along the line between view point and cover point. Must be from 0.0 to 90.0.
positionSpacing	In meters, how far apart should the position pairs be laterally across the width of a formation?

Returns: An asynchronous job.

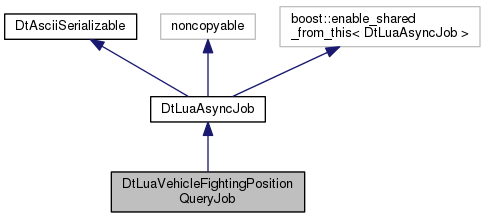

Inheritance diagram for DtLuaVehicleFightingPositionQueryJob:

[legend]

Public Types
typedef std::list< DtLocation3D >	Points

Public Member Functions
	DtLuaVehicleFightingPositionQueryJob ()

virtual	~DtLuaVehicleFightingPositionQueryJob ()

luabind::object	getObject (lua_State *L, int &index, std::string &message)

luabind::object	getDebugObject (lua_State *L)

virtual void	cancel (lua_State *L)

DtString	serialize ()

bool	deserialize (const DtString &)

DtString	objectType () const

boost::shared_ptr < DtLuaVehicleFightingPositionQueryJob >	shared_from_this ()

boost::shared_ptr< const DtLuaVehicleFightingPositionQueryJob >	shared_from_this () const

Public Member Functions inherited from DtLuaAsyncJob
void	init (void *userData)

Public Member Functions inherited from DtAsciiSerializable
	DtAsciiSerializable ()

	DtAsciiSerializable (const DtAsciiSerializable &orig)

virtual	~DtAsciiSerializable ()

virtual std::string	objectTypeC () const

Static Public Member Functions
static boost::shared_ptr < DtLuaVehicleFightingPositionQueryJob >	Make (DtSimulationServices *, unsigned int nPointsToReturn, const std::list< DtLocation3D > &targetAreaCorners, const DtLocation3D &originPoint, const DtVectorOffset3D &hideVolume, double shootHeight, double targetHeight, double forwardBackSearchLimit, double sideSideSearchLimit, double maxSlopeDegrees, double positionSpacing, bool bDebug=false)

static DtAsciiSerializable *	creator ()

Protected Member Functions
	DtLuaVehicleFightingPositionQueryJob (DtSimulationServices *, unsigned int nPointsToReturn, const std::list< DtLocation3D > &targetAreaCorners, const DtLocation3D &originPoint, const DtVectorOffset3D &hideVolume, double shootHeight, double targetHeight, double forwardBackSearchLimit, double sideSideSearchLimit, double maxSlopeDegrees, double positionSpacing, bool bDebug=false)

void	start ()

void	run (const DtAlgorithmManager &mgr=DtAlgorithmManager())

void	taskComplete ()

Protected Member Functions inherited from DtLuaAsyncJob
	DtLuaAsyncJob ()

	DtLuaAsyncJob (DtSimulationServices *)

Protected Attributes
Points	myTargetAreaCorners

unsigned int	nMyPointsToReturn

DtLocation3D	myOriginPoint

DtVectorOffset3D	myHideVolume

double	myShootHeight

double	myTargetHeight

double	myForwardBackSearchLimit

double	mySideSideSearchLimit

double	myMaxSlopeDegrees

double	myPositionSpacing

DtAsyncJobStatus	myStatus

std::vector< std::pair < DtLocation3D, DtLocation3D > >	myPositionPairs

boost::shared_ptr < DtAsyncJobMapEntry >	myJobEntry

bool	bMyDebug

Protected Attributes inherited from DtLuaAsyncJob
DtSimulationServices *	mySimulationServices

Member Typedef Documentation

typedef std::list<DtLocation3D> DtLuaVehicleFightingPositionQueryJob::Points

Constructor & Destructor Documentation

DtLuaVehicleFightingPositionQueryJob::DtLuaVehicleFightingPositionQueryJob ( )

For creating when deserializing.

virtual DtLuaVehicleFightingPositionQueryJob::~DtLuaVehicleFightingPositionQueryJob ( )

virtual

DTOR.

DtLuaVehicleFightingPositionQueryJob::DtLuaVehicleFightingPositionQueryJob	(	DtSimulationServices *	,
		unsigned int	nPointsToReturn,
		const std::list< DtLocation3D > &	targetAreaCorners,
		const DtLocation3D &	originPoint,
		const DtVectorOffset3D &	hideVolume,
		double	shootHeight,
		double	targetHeight,
		double	forwardBackSearchLimit,
		double	sideSideSearchLimit,
		double	maxSlopeDegrees,
		double	positionSpacing,
		bool	bDebug = `false`
	)

protected

For creating from lua call.

Member Function Documentation

static boost::shared_ptr<DtLuaVehicleFightingPositionQueryJob> DtLuaVehicleFightingPositionQueryJob::Make	(	DtSimulationServices *	,
		unsigned int	nPointsToReturn,
		const std::list< DtLocation3D > &	targetAreaCorners,
		const DtLocation3D &	originPoint,
		const DtVectorOffset3D &	hideVolume,
		double	shootHeight,
		double	targetHeight,
		double	forwardBackSearchLimit,
		double	sideSideSearchLimit,
		double	maxSlopeDegrees,
		double	positionSpacing,
		bool	bDebug = `false`
	)

static

luabind::object DtLuaVehicleFightingPositionQueryJob::getObject	(	lua_State *	L,
		int &	index,
		std::string &	message
	)

virtual

Retrieve value If job is done, index will be > 0 and returned table will be Location3D points found.

Implements DtLuaAsyncJob.

luabind::object DtLuaVehicleFightingPositionQueryJob::getDebugObject ( lua_State * L )

inlinevirtual

Retrieve debug data, if available. Default return value is an empty table.

Implements DtLuaAsyncJob.

virtual void DtLuaVehicleFightingPositionQueryJob::cancel ( lua_State * L )

inlinevirtual

Currently a no-op.

Implements DtLuaAsyncJob.

static DtAsciiSerializable* DtLuaVehicleFightingPositionQueryJob::creator ( )

static

DtAsciiSerializable functions.

DtString DtLuaVehicleFightingPositionQueryJob::serialize ( )

virtual

The following characters are reserved and cannot be used in serialization: '|', ':'.

Implements DtAsciiSerializable.

bool DtLuaVehicleFightingPositionQueryJob::deserialize ( const DtString & )

virtual

This function should take the string that was serialized via serialize() and fill this object with the correct data.

Implements DtAsciiSerializable.

DtString DtLuaVehicleFightingPositionQueryJob::objectType ( ) const

virtual

Should return the string name of this object. The object name should not be part of the serialization unless you want it to be, but you should take it into account when implementing both functions.

Implements DtAsciiSerializable.

boost::shared_ptr<DtLuaVehicleFightingPositionQueryJob> DtLuaVehicleFightingPositionQueryJob::shared_from_this ( )

boost::shared_ptr<const DtLuaVehicleFightingPositionQueryJob> DtLuaVehicleFightingPositionQueryJob::shared_from_this ( ) const

void DtLuaVehicleFightingPositionQueryJob::start ( )

protected

void DtLuaVehicleFightingPositionQueryJob::run ( const DtAlgorithmManager & mgr = DtAlgorithmManager() )

protected

void DtLuaVehicleFightingPositionQueryJob::taskComplete ( )

protected

Called by task object whenever it is done.

Member Data Documentation

Points DtLuaVehicleFightingPositionQueryJob::myTargetAreaCorners

protected

unsigned int DtLuaVehicleFightingPositionQueryJob::nMyPointsToReturn

protected

DtLocation3D DtLuaVehicleFightingPositionQueryJob::myOriginPoint

protected

DtVectorOffset3D DtLuaVehicleFightingPositionQueryJob::myHideVolume

protected

double DtLuaVehicleFightingPositionQueryJob::myShootHeight

protected

double DtLuaVehicleFightingPositionQueryJob::myTargetHeight

protected

double DtLuaVehicleFightingPositionQueryJob::myForwardBackSearchLimit

protected

double DtLuaVehicleFightingPositionQueryJob::mySideSideSearchLimit

protected

double DtLuaVehicleFightingPositionQueryJob::myMaxSlopeDegrees

protected

double DtLuaVehicleFightingPositionQueryJob::myPositionSpacing

protected

DtAsyncJobStatus DtLuaVehicleFightingPositionQueryJob::myStatus

protected

std::vector<std::pair<DtLocation3D, DtLocation3D> > DtLuaVehicleFightingPositionQueryJob::myPositionPairs

protected

boost::shared_ptr<DtAsyncJobMapEntry> DtLuaVehicleFightingPositionQueryJob::myJobEntry

protected

bool DtLuaVehicleFightingPositionQueryJob::bMyDebug

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfLua/luaTerrainReasoningJob.h
