DtPageInVisitor Class Reference

OSG Visitor class which pages the highest level of detail of paged LOD nodes in. This is a base class, intended to be overridden. This base class will cause paging in of every paged LOD node. Subclasses may be more selective by overriding requiresPageIn().

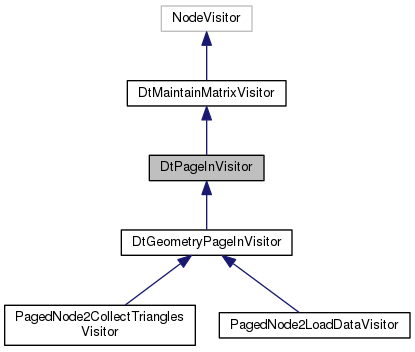

Inheritance diagram for DtPageInVisitor:

Public Member Functions
	DtPageInVisitor ()
	DtPageInVisitor (const osg::Matrix &)
virtual void	apply (osg::LOD &node)
virtual void	apply (osg::PagedLOD &node)
const NodePagingRecords &	pagedInNodes () const
Public Member Functions inherited from DtMaintainMatrixVisitor
	DtMaintainMatrixVisitor ()
	DtMaintainMatrixVisitor (const osg::Matrix &)
virtual void	apply (osg::Transform &node)

Protected Member Functions
virtual bool	requiresPageIn (const osg::BoundingSphere &)
virtual osg::Node *	getNode (const std::string &filepath, const osgDB::Options *, bool &valid)
virtual bool	shouldExit () const
Protected Member Functions inherited from DtMaintainMatrixVisitor
virtual osg::BoundingSphere	worldRefNodeBounds (osg::Node &node)

Protected Attributes
NodePagingRecords	myPagedInNodes
Protected Attributes inherited from DtMaintainMatrixVisitor
osg::Matrix	myMatrix

Constructor & Destructor Documentation

DtPageInVisitor::DtPageInVisitor

(

)

DtPageInVisitor::DtPageInVisitor ( const osg::Matrix &  )

explicit

Member Function Documentation

virtual void DtPageInVisitor::apply ( osg::LOD &  node )

virtual

virtual void DtPageInVisitor::apply ( osg::PagedLOD &  node )

virtual

Reimplemented in PagedNode2CollectTrianglesVisitor, and PagedNode2LoadDataVisitor.

const NodePagingRecords& DtPageInVisitor::pagedInNodes ( ) const

inline

virtual bool DtPageInVisitor::requiresPageIn ( const osg::BoundingSphere &  )

protectedvirtual

Returns

True if this node should be paged in. This is overridden in subclasses, depending on how the paging is being implemented. Default implementation returns true, which pages in the entire database.

Reimplemented in DtGeometryPageInVisitor.

virtual osg::Node* DtPageInVisitor::getNode ( const std::string &  filepath, const osgDB::Options *  , bool &  valid  )

protectedvirtual

Produce a node from a filepath. Default calls osgDB::readNodeFile. If a node cannot be created then a dummy node (an empty group) will be returned and the valid parameter will be set to false (true if otherwise)

virtual bool DtPageInVisitor::shouldExit ( ) const

protectedvirtual

Should the traversal quit. Used to bail out when exiting.

Member Data Documentation

NodePagingRecords DtPageInVisitor::myPagedInNodes

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vantageTerrainImplementation/pageInVisitor.h
