This DtPlatformSimObjectFacadeInterface class will provide API functionality for platform objects. These objects are typically ground objects and have the DtMovingObjectParameters object parameter. This class is not thread safe. Do not share amongst multiple threads.

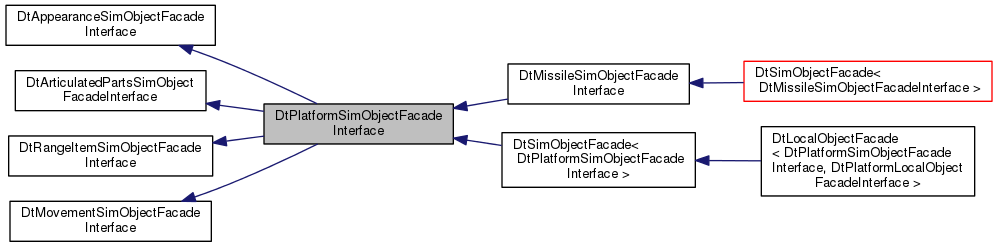

Inheritance diagram for DtPlatformSimObjectFacadeInterface:

[legend]

Public Member Functions
	DtPlatformSimObjectFacadeInterface ()

virtual	~DtPlatformSimObjectFacadeInterface ()

virtual bool	isUsable () const

bool	isMoveable () const

bool	hasHighFidelityObjectGeometryModel () const

bool	flaming () const

bool	smoking () const

bool	powerPlantOn () const

bool	lightState (int state) const

double	illumination () const

double	expectedIllumination (double dateAndTimeOfDay) const

bool	canPivot () const

double	turningRadius () const

bool	protectEmbarkedFromCollateralDamage () const

bool	isEmbeddedInTerrain () const

void	embedInTerrainIfNeeded ()


double	sensorSignature (const DtSymbolString &sensorDomain) const


bool	intersect (const DtChord &, DtVrfChordIntersectionRecord *record=0) const

Public Member Functions inherited from DtAppearanceSimObjectFacadeInterface
	DtAppearanceSimObjectFacadeInterface ()

virtual	~DtAppearanceSimObjectFacadeInterface ()

bool	isUsable () const

int	damageState () const

bool	isDestroyed () const

bool	firePowerKilled () const

bool	mobilityKilled () const

bool	isConcealed () const

DtReal	healthPct () const

const DtAppearance &	appearance () const

int	capabilities () const

Public Member Functions inherited from DtArticulatedPartsSimObjectFacadeInterface
	DtArticulatedPartsSimObjectFacadeInterface ()

virtual	~DtArticulatedPartsSimObjectFacadeInterface ()

bool	isUsable () const

bool	hasArticulatedParts () const

const makVrf::DtArticulatedPartManager &	articulatedPartsManager () const

const DtArticulatedPartCollection &	artPartList () const

const makVrf::DtArticulatedPartStateRepository *	part (DtArtPartType partType) const

Public Member Functions inherited from DtRangeItemSimObjectFacadeInterface
	DtRangeItemSimObjectFacadeInterface ()

virtual	~DtRangeItemSimObjectFacadeInterface ()

bool	isUsable () const

const DtRangeItems &	rangeItems () const

Public Member Functions inherited from DtMovementSimObjectFacadeInterface
	DtMovementSimObjectFacadeInterface ()

virtual	~DtMovementSimObjectFacadeInterface ()

DtDeadReckonTypes	deadReckoningAlgorithm () const

const DtThresholder &	thresholder () const

bool	isSpatiallyFrozen () const

bool	isFrozen () const

DtStationName	parentStationName () const

const DtVector &	worldVelocity () const

const DtVector &	localVelocity () const

const DtVector	bodyVelocity () const

const DtVector &	relativeVelocity () const

const DtVector &	parentVelocity () const

const DtVector &	rotationalVelocity () const

const DtVector &	worldAcceleration () const

const DtVector &	localAcceleration () const

const DtVector &	relativeAcceleration () const

double	localSpeed () const

double	speed () const

double	forwardSpeed () const

Protected Member Functions
virtual void	setupDecorator () override

virtual DtSimObjectReference	simObject () const =0

Protected Member Functions inherited from DtAppearanceSimObjectFacadeInterface
const makVrf::DtSimulatedObjectStateComponent *	simObjectStateComponent () const

Protected Member Functions inherited from DtMovementSimObjectFacadeInterface
void	setupDecorator ()

const makVrf::DtEntityLocationStateComponent *	entityLocationStateComponent () const

Protected Attributes
DtSensorSignatureSimObjectDecorator *	mySensorSignatureSimObjectDecorator

DtIlluminationSimObjectDecorator *	myIlluminationSimObjectDecorator

DtPlatformGeometrySimObjectDecorator *	myPlatformGeometrySimObjectDecorator

Protected Attributes inherited from DtAppearanceSimObjectFacadeInterface
DtAppearance	myAppearance

const makVrf::DtSimulatedObjectStateComponent *	mySimulatedObjectStateComponent

tbb::spin_rw_mutex	mySimObjectStateComponentMutex

Protected Attributes inherited from DtMovementSimObjectFacadeInterface
const makVrf::DtEntityLocationStateComponent *	myEntityLocationStateComponent

tbb::spin_rw_mutex	myEntityLocationStateComponentMutex

Constructor & Destructor Documentation

DtPlatformSimObjectFacadeInterface::DtPlatformSimObjectFacadeInterface ( )

virtual DtPlatformSimObjectFacadeInterface::~DtPlatformSimObjectFacadeInterface ( )

virtual

Member Function Documentation

virtual bool DtPlatformSimObjectFacadeInterface::isUsable ( ) const

virtual

Returns true if all the subclasses are usable and this objects parameters are of type DtGroundVehicleParameters.

Reimplemented from DtMovementSimObjectFacadeInterface.

Reimplemented in DtLocalObjectFacade< DtPlatformSimObjectFacadeInterface, DtPlatformLocalObjectFacadeInterface >, DtLocalObjectFacade< DtMissileSimObjectFacadeInterface, DtMissileLocalObjectFacadeInterface >, and DtMissileSimObjectFacadeInterface.

bool DtPlatformSimObjectFacadeInterface::isMoveable ( ) const

bool DtPlatformSimObjectFacadeInterface::hasHighFidelityObjectGeometryModel ( ) const

bool DtPlatformSimObjectFacadeInterface::flaming ( ) const

bool DtPlatformSimObjectFacadeInterface::smoking ( ) const

bool DtPlatformSimObjectFacadeInterface::powerPlantOn ( ) const

bool DtPlatformSimObjectFacadeInterface::lightState ( int state ) const

double DtPlatformSimObjectFacadeInterface::sensorSignature ( const DtSymbolString & sensorDomain ) const

Routines that use associated managers and/or helper classes to calculate the values needed If need be, uses the sensor signature logic to calculate a sensor signature for this object.

double DtPlatformSimObjectFacadeInterface::illumination ( ) const

Illumination state (0 - 1) at the entities current position. Calls to logic to get the value.

double DtPlatformSimObjectFacadeInterface::expectedIllumination ( double dateAndTimeOfDay ) const

bool DtPlatformSimObjectFacadeInterface::canPivot ( ) const

Whether or not this object can pivot. Based on parameters.

double DtPlatformSimObjectFacadeInterface::turningRadius ( ) const

Turning radius. Based on parameters.

bool DtPlatformSimObjectFacadeInterface::protectEmbarkedFromCollateralDamage ( ) const

If embarked, protected from collateral damage if this is true.

bool DtPlatformSimObjectFacadeInterface::intersect	(	const DtChord &	,
		DtVrfChordIntersectionRecord *	record = `0`
	)		const

Object intersection routines.

bool DtPlatformSimObjectFacadeInterface::isEmbeddedInTerrain ( ) const

Returns true if the object has its object geometry model embedded into the terrain.

void DtPlatformSimObjectFacadeInterface::embedInTerrainIfNeeded ( )

Call once (after object is initialized) to see if it needs to be embedded in the terrain.

virtual void DtPlatformSimObjectFacadeInterface::setupDecorator ( )

overrideprotectedvirtual

Reimplemented from DtAppearanceSimObjectFacadeInterface.

Reimplemented in DtSimObjectFacade< DtMissileSimObjectFacadeInterface >, DtSimObjectFacade< DtPlatformSimObjectFacadeInterface >, DtMissileSimObjectFacadeInterface, DtLocalObjectFacade< DtPlatformSimObjectFacadeInterface, DtPlatformLocalObjectFacadeInterface >, and DtLocalObjectFacade< DtMissileSimObjectFacadeInterface, DtMissileLocalObjectFacadeInterface >.

virtual DtSimObjectReference DtPlatformSimObjectFacadeInterface::simObject ( ) const

protectedpure virtual

Implemented by subclasses to return the sim object this class represents.

Implements DtAppearanceSimObjectFacadeInterface.

Implemented in DtSimObjectFacade< DtMissileSimObjectFacadeInterface >, DtSimObjectFacade< DtPlatformSimObjectFacadeInterface >, and DtMissileSimObjectFacadeInterface.

Member Data Documentation

DtSensorSignatureSimObjectDecorator* DtPlatformSimObjectFacadeInterface::mySensorSignatureSimObjectDecorator

mutableprotected

DtIlluminationSimObjectDecorator* DtPlatformSimObjectFacadeInterface::myIlluminationSimObjectDecorator

mutableprotected

DtPlatformGeometrySimObjectDecorator* DtPlatformSimObjectFacadeInterface::myPlatformGeometrySimObjectDecorator

mutableprotected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/platformSimObjectFacade.h
