DtRwPropertyWithThreshold< _RwType > Class Template Reference

template<typename _RwType>
class DtRwPropertyWithThreshold< _RwType >

This class is similar to DtRwProperty, but allows you to specify a threshold at which the value should be considered different enough to require an update. wasUpdatedSince() will return false until the threshold is met. The threshold is defined as a percentage of the current value.

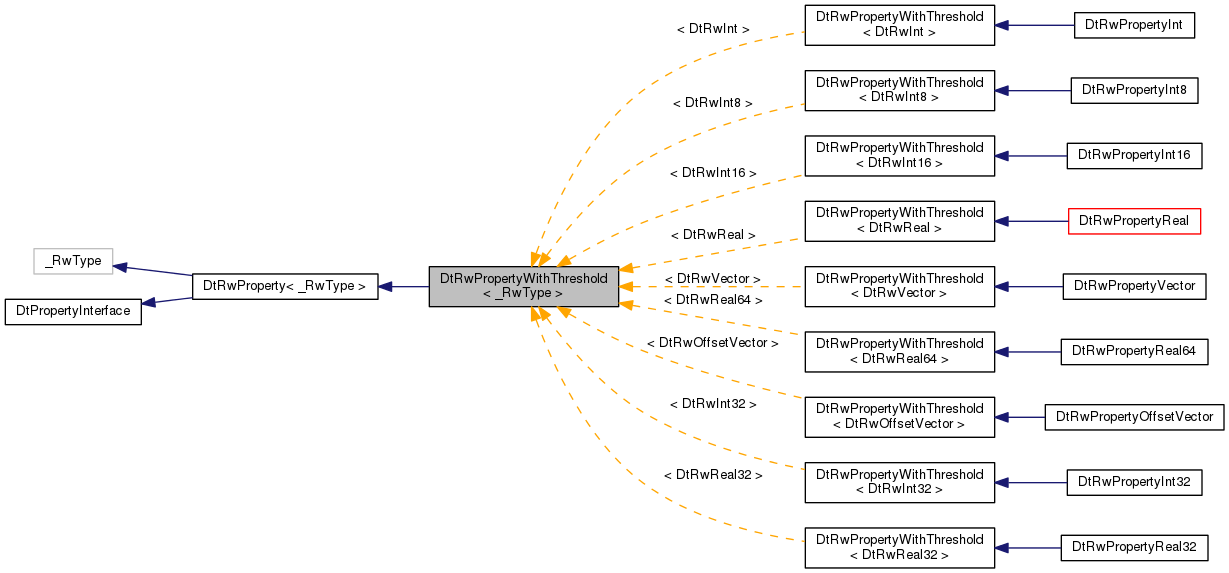

Inheritance diagram for DtRwPropertyWithThreshold< _RwType >:
Inheritance graph
[legend]

Public Member Functions

 DtRwPropertyWithThreshold (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

 DtRwPropertyWithThreshold (const DtString &name, const DtRwPropertyWithThreshold &orig, DtReaderWriterRegistry *parentRegistry=0)

DtRwPropertyWithThreshold & operator= (const DtRwPropertyWithThreshold &orig)

virtual ~DtRwPropertyWithThreshold ()

virtual char * encode (char *) const

virtual bool wasUpdatedSince (DtTime t) const

virtual void enableThresholding (bool enable)

virtual void setThreshold (double percentage)

virtual void setMaxUpdateInterval (DtTime interval)

virtual void setMaxUnchangedUpdateInterval (DtTime interval)

- Public Member Functions inherited from DtRwProperty< _RwType >
 DtRwProperty (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

 DtRwProperty (const DtString &name, const DtRwProperty &orig, DtReaderWriterRegistry *parentRegistry=0)

DtRwProperty & operator= (const DtRwProperty &orig)

virtual ~DtRwProperty ()

virtual void copy (const DtPropertyInterface &rhs)

virtual DtString stringRep (const DtString &root="") const

virtual const char * propertyType () const

virtual DtSymbolString propertyName () const

virtual void setPropertyName (const DtString &propertyName)

virtual void getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=DtReaderWriter::SearchPaths(), const DtVariableBindingsList &variableBindings=DtReaderWriter::nullVariableReference())

virtual DtlObjPtr getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual bool merge (const DtPropertyInterface &target, MergeFlags, const DtMergePath &path=DtMergePath(), const std::set< DtString > &ignore=std::set< DtString >())

virtual void recordUpdateTime () const

virtual void reset ()

virtual const char * decode (const char *)

virtual void getSize (int &size) const

virtual int hlaAlignment () const

virtual DtReaderWriter * readerWriter ()

virtual const DtReaderWriter * readerWriter () const

virtual DtPropertyInterface * property ()

virtual const DtPropertyInterface * property () const

virtual bool isPublished () const

virtual void setIsPublished (bool isPub)

virtual unsigned disRecordType () const

virtual void setDisRecordType (unsigned recType)

virtual bool isDebugEnabled () const

virtual void setDebugEnabled (bool en)

- Public Member Functions inherited from DtPropertyInterface
virtual ~DtPropertyInterface ()

virtual bool isSimilarProperty (const DtPropertyInterface *rhs, bool strict=true) const

virtual bool isPublishedArg (DtlObjPtr arg, unsigned &disVarRecType) const

template<typename ValueType >
boost::optional< ValueType > propertyValue () const

template<typename ValueType >
bool setPropertyValue (ValueType val)

virtual const DtPropertyInterface * findPropertyInterface (const DtString &propertyName) const

virtual DtPropertyInterface * findPropertyInterface (const DtString &propertyName)

template<typename SpecificPropType >
const SpecificPropType * findProperty (const DtString &propertyName) const

template<typename SpecificPropType >
SpecificPropType * findProperty (const DtString &propertyName)

template<typename ValueType >
boost::optional< ValueType > findPropertyValue (const DtString &propertyName) const

template<typename ValueType >
bool findAndSetPropertyValue (const DtString &propertyName, ValueType val)

virtual bool addProperty (DtPropertyInterface *property)

template<typename SpecificPropType >
SpecificPropType * addNewProperty (const DtString &propertyName)

virtual bool removeProperty (const DtString &propertyName)

virtual bool removeProperty (const DtPropertyInterface *property)

int getSize () const


Static Public Member Functions

static void setDefaultThreshold (double percentage)

static void setDefaultMaxUpdateInterval (DtTime interval)

static void setDefaultMaxUnchangedUpdateInterval (DtTime interval)


Protected Attributes

bool myThresholdingEnabled

_RwType myLastEncodedValue

DtTime myLastEncodeTime

double myThreshold

DtTime myMaxUpdateInterval

DtTime myMaxUnchangedUpdateInterval

- Protected Attributes inherited from DtRwProperty< _RwType >
DtClock myClock

DtTime myUpdateTime

unsigned myDisRecordType

bool myIsPublished

bool myDebugEnabled


Static Protected Attributes

static double myDefaultThreshold

static DtTime myDefaultMaxUpdateInterval

static DtTime myDefaultMaxUnchangedUpdateInterval


Private Member Functions

 DtRwPropertyWithThreshold ()


Additional Inherited Members

- Public Types inherited from DtPropertyInterface
enum  MergeFlags {
  Replace = 0x00000001, MinimalSimilarityCheck = 0x00000002, RollUp = 0x00000004, AddMissing = 0x00000008,
  KeepIsPublished = 0x00000010
}


Constructor & Destructor Documentation

template<typename _RwType>
DtRwPropertyWithThreshold< _RwType >::DtRwPropertyWithThreshold ( )
private

Not implemented.

template<typename _RwType>
DtRwPropertyWithThreshold< _RwType >::DtRwPropertyWithThreshold ( const DtString &  name,
DtReaderWriterRegistry *  parentRegistry = 0
)
template<typename _RwType>
DtRwPropertyWithThreshold< _RwType >::DtRwPropertyWithThreshold ( const DtString &  name,
const DtRwPropertyWithThreshold< _RwType > &  orig,
DtReaderWriterRegistry *  parentRegistry = 0
)
template<typename _RwType>
virtual DtRwPropertyWithThreshold< _RwType >::~DtRwPropertyWithThreshold ( )
virtual

Member Function Documentation

template<typename _RwType>
DtRwPropertyWithThreshold& DtRwPropertyWithThreshold< _RwType >::operator= ( const DtRwPropertyWithThreshold< _RwType > &  orig)
template<typename _RwType>
virtual char* DtRwPropertyWithThreshold< _RwType >::encode ( char *  ) const
virtual

These methods are for network encoding/decoding for Hla encoding decoding reasons. Implemented at templated rw level. Encodes the variable bindings into the supplied buffer. In addition, stores the value in myLastEncodedValue for threshold testing.

Reimplemented from DtRwProperty< _RwType >.

template<typename _RwType>
virtual bool DtRwPropertyWithThreshold< _RwType >::wasUpdatedSince ( DtTime  t) const
virtual

Returns true if an update occurred since the specified time and the current value is at least _Threshold percent away from the previous encoded value.

Reimplemented from DtRwProperty< _RwType >.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::enableThresholding ( bool  enable)
virtual

Enables or disables thresholding of this property. Enabled by default.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setThreshold ( double  percentage)
virtual

Changes the threshold for when an update should be sent. If the percentage change of the value is greater than this threshold, wasUpdatedSince() will return true.

template<typename _RwType>
static void DtRwPropertyWithThreshold< _RwType >::setDefaultThreshold ( double  percentage)
static

Changes the default threshold for cases when setThreshold() has not been called.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setMaxUpdateInterval ( DtTime  interval)
virtual

Changes the maximum time between updates if data has changed but has not crossed the threshold for an update. This ensures that periodically subscribers receive current data, even if the value has only changed a small amount.

template<typename _RwType>
static void DtRwPropertyWithThreshold< _RwType >::setDefaultMaxUpdateInterval ( DtTime  interval)
static

Changes the default max update interval for cases when setMaxUpdateInterval() has not been called.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setMaxUnchangedUpdateInterval ( DtTime  interval)
virtual

Changes the maximum time between updates if data has changed but has not crossed the threshold for an update, but seems to have settled on a new value. For instance, if the threshold his 2%, and a value goes from 99 to 100 where it caps out, it will never hit the 2% mark, and therefore an update would otherwise not be sent for a full minute. This setting indicates how long a value should stabilize, remaining unchanged, before we send it. Should be greater than the tick rate but less than the max update interval.

template<typename _RwType>
static void DtRwPropertyWithThreshold< _RwType >::setDefaultMaxUnchangedUpdateInterval ( DtTime  interval)
static

Changes the default max unchanged update interval for cases when setMaxUnchangedUpdateInterval() has not been called.

Member Data Documentation

template<typename _RwType>
bool DtRwPropertyWithThreshold< _RwType >::myThresholdingEnabled
protected

Whether thresholding is currently enabled.

template<typename _RwType>
_RwType DtRwPropertyWithThreshold< _RwType >::myLastEncodedValue
mutableprotected

The value at the last time the value was encoded.

template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myLastEncodeTime
mutableprotected

The time the value was last encoded.

template<typename _RwType>
double DtRwPropertyWithThreshold< _RwType >::myDefaultThreshold
staticprotected
template<typename _RwType>
double DtRwPropertyWithThreshold< _RwType >::myThreshold
protected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myDefaultMaxUpdateInterval
staticprotected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myMaxUpdateInterval
protected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myDefaultMaxUnchangedUpdateInterval
staticprotected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myMaxUnchangedUpdateInterval
protected
The documentation for this class was generated from the following file:
