ReaderWriter object that maintains a list of reader-writer variable bindings. It keeps a list of names and reader-writer types that are associated with the name. This object differs from most other RW objects in that it writes out the RW type string for the object along with its name and type, and dynamically types the objects being read in based on the type string in the file. It uses the static DtReaderWriter::factory to do this.

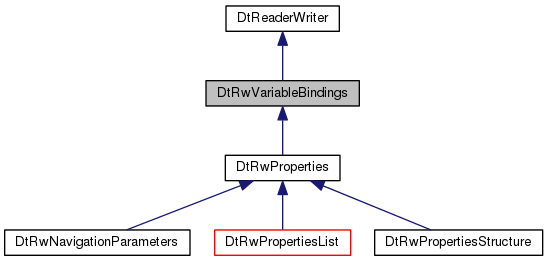

Inheritance diagram for DtRwVariableBindings:

[legend]

Public Member Functions
	DtRwVariableBindings (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

	DtRwVariableBindings (const DtString &name, const DtRwVariableBindings &orig, DtReaderWriterRegistry *parentRegistry=0, bool copyVariables=true)

	DtRwVariableBindings (const DtRwVariableBindings &orig, DtReaderWriterRegistry *parentRegistry=0, bool copyVariables=true)

DtRwVariableBindings &	operator= (const DtRwVariableBindings &orig)

virtual	~DtRwVariableBindings ()

virtual void	getSelf (DtlObjPtr args, const std::vector< DtFilename > &searchPaths=std::vector< DtFilename >(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

template<typename RW_Type >
const RW_Type *	findAndCastVariableBinding (const DtString &variableName) const

virtual DtReaderWriter *	addVariableBinding (const DtSymbolString &name, const char *type)

virtual void	addVariable (DtReaderWriter *)

virtual void	removeVariable (DtReaderWriter *)

virtual void	removeVariable (const DtReaderWriter *)

virtual void	clearVariables ()

virtual const char *	readerWriterType () const

virtual int	getSize () const

virtual char *	encode (char *) const

virtual const char *	decode (const char *)

bool	operator== (const DtRwVariableBindings &) const

bool	operator!= (const DtRwVariableBindings &) const

virtual DtString	prettyPrint () const

virtual void	setVariableSubstitutions (const std::map< DtString, DtString > &)

virtual const std::map < DtString, DtString > &	variableSubstitutions () const

virtual void	merge (const DtRwVariableBindings &)


virtual const DtReaderWriter *	findVariableBinding (const DtString &rwTypeString, const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >()) const

virtual DtReaderWriter *	findVariableBinding (const DtString &rwTypeString, const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >())


virtual const DtReaderWriter *	findVariableBinding (const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >()) const

virtual DtReaderWriter *	findVariableBinding (const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >())

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs)

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

virtual const char *	xmlType () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	wasUpdatedSince (DtTime t) const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtRwVariableBindings *	createBinding (const std::list< DtReaderWriter::DtVariableNameType > &)

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Member Functions
virtual const DtReaderWriter *	internalFindVariableBinding (const DtString &rwTypeString, const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >()) const

virtual void	copyVariables (const DtRwVariableBindings &other)

virtual bool	keywordMatches (const DtSymbolString &lhs, const DtString &rhs, const std::map< DtString, DtString > &variableSubstitutions) const

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
std::map< DtString, DtString >	myVariableSubstitutions

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Private Member Functions
	DtRwVariableBindings ()

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Constructor & Destructor Documentation

DtRwVariableBindings::DtRwVariableBindings ( )

private

Not implemented.

DtRwVariableBindings::DtRwVariableBindings	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

DtRwVariableBindings::DtRwVariableBindings	(	const DtString &	name,
		const DtRwVariableBindings &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`,
		bool	copyVariables = `true`
	)

DtRwVariableBindings::DtRwVariableBindings	(	const DtRwVariableBindings &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`,
		bool	copyVariables = `true`
	)

virtual DtRwVariableBindings::~DtRwVariableBindings ( )

virtual

Member Function Documentation

DtRwVariableBindings& DtRwVariableBindings::operator= ( const DtRwVariableBindings & orig )

virtual void DtRwVariableBindings::getSelf	(	DtlObjPtr	args,
		const std::vector< DtFilename > &	searchPaths = `std::vector< DtFilename >()`,
		const DtVariableBindingsList &	variableBindings = `nullVariableReference()`
	)

virtual

Reads in items, using the factory to read the correct types.

Reimplemented from DtReaderWriter.

Reimplemented in DtRwProperties, and DtRwPropertiesList.

virtual void DtRwVariableBindings::writeSelf	(	std::string &	fp,
		int	indentLevel = `0`,
		bool	writeUnspecified = `false`,
		const DtFilename &	path = `DtFilename::nullFilename()`
	)

virtual

Writes out registry data, but includes the type strings when writing.

Reimplemented from DtReaderWriter.

Reimplemented in DtRwProperties, and DtRwPropertiesList.

virtual const DtReaderWriter* DtRwVariableBindings::findVariableBinding	(	const DtString &	rwTypeString,
		const DtString &	variableName,
		const std::map< DtString, DtString > &	variableSubstitutions = `std::map< DtString, DtString >()`
	)		const

virtual

Looks for the specified name/type combination in the registry, and returns a pointer to that RW object if it is found. The variable substitutions is a map of items that can be used in trying to see if a variable named one thing should also be referenced as something else. If set this will replace the existing variable substitution map that might be part of this class.

virtual DtReaderWriter* DtRwVariableBindings::findVariableBinding	(	const DtString &	rwTypeString,
		const DtString &	variableName,
		const std::map< DtString, DtString > &	variableSubstitutions = `std::map< DtString, DtString >()`
	)

virtual

Looks for the specified name/type combination in the registry, and returns a pointer to that RW object if it is found. The variable substitutions is a map of items that can be used in trying to see if a variable named one thing should also be referenced as something else. If set this will replace the existing variable substitution map that might be part of this class.

virtual const DtReaderWriter* DtRwVariableBindings::findVariableBinding	(	const DtString &	variableName,
		const std::map< DtString, DtString > &	variableSubstitutions = `std::map< DtString, DtString >()`
	)		const

virtual

Finds the variable with the given name regardless of type.

virtual DtReaderWriter* DtRwVariableBindings::findVariableBinding	(	const DtString &	variableName,
		const std::map< DtString, DtString > &	variableSubstitutions = `std::map< DtString, DtString >()`
	)

virtual

Finds the variable with the given name regardless of type.

template<typename RW_Type >

const RW_Type* DtRwVariableBindings::findAndCastVariableBinding ( const DtString & variableName ) const

inline

static DtRwVariableBindings* DtRwVariableBindings::createBinding ( const std::list< DtReaderWriter::DtVariableNameType > & )

static

Creates a new instance of this class and creates all elements found in the list and adds it to this variables registry. Calls addVariableBinding() to add new variable.

virtual DtReaderWriter* DtRwVariableBindings::addVariableBinding	(	const DtSymbolString &	name,
		const char *	type
	)

virtual

Adds new variable binding to registry. The new DtReaderWriter item is created using the DtReaderWriter::factory() by passing the type parameter. The item is added to this variable binding structure, and returned.

virtual void DtRwVariableBindings::addVariable ( DtReaderWriter * )

virtual

Adds a newly created DtReaderWriter variable to the registry. This class will then take ownership of the variable.

virtual void DtRwVariableBindings::removeVariable ( DtReaderWriter * )

virtual

Reimplemented in DtRwProperties.

virtual void DtRwVariableBindings::removeVariable ( const DtReaderWriter * )

virtual

Reimplemented in DtRwProperties.

virtual void DtRwVariableBindings::clearVariables ( )

virtual

Removes and deletes all variable items.

Reimplemented in DtRwProperties.

virtual const char* DtRwVariableBindings::readerWriterType ( ) const

virtual

Used to supply a string type that this reader writer type is. This can be used in place of dynamic-casting. Also used by the opd editor to determine which type of control to create.

Reimplemented from DtReaderWriter.

Reimplemented in DtRwProperties, DtRwPropertiesMap, DtRwPropertiesStructure, DtRwPropertiesList, and DtRwPropertiesFixedArray.

virtual int DtRwVariableBindings::getSize ( ) const

virtual

Returns the size of this item, in bytes, iterating over all types.

virtual char* DtRwVariableBindings::encode ( char * ) const

virtual

Encodes the variable bindings into the supplied buffer.

Reimplemented in DtRwProperties, DtRwPropertiesList, and DtRwPropertiesFixedArray.

virtual const char* DtRwVariableBindings::decode ( const char * )

virtual

Decodes the variable bindings from the specified buffer.

Reimplemented in DtRwProperties, DtRwPropertiesList, and DtRwPropertiesFixedArray.

bool DtRwVariableBindings::operator== ( const DtRwVariableBindings & ) const

bool DtRwVariableBindings::operator!= ( const DtRwVariableBindings & ) const

virtual DtString DtRwVariableBindings::prettyPrint ( ) const

virtual

Routine to return a human readable form of the reader/writer variable. Not all reader/writer classes implement this feature. Default is to return an empty string.

Reimplemented from DtReaderWriter.

virtual void DtRwVariableBindings::setVariableSubstitutions ( const std::map< DtString, DtString > & )

virtual

virtual const std::map<DtString, DtString>& DtRwVariableBindings::variableSubstitutions ( ) const

virtual

virtual void DtRwVariableBindings::merge ( const DtRwVariableBindings & )

virtual

Will take the contents of the supplied variable bindings and merge in both the variables (ignoring ones that already exist) and the variable substitutions.

virtual const DtReaderWriter* DtRwVariableBindings::internalFindVariableBinding	(	const DtString &	rwTypeString,
		const DtString &	variableName,
		const std::map< DtString, DtString > &	variableSubstitutions = `std::map< DtString, DtString >()`
	)		const

protectedvirtual

Actual find method such that the const and non-const versions can share the same code.

virtual void DtRwVariableBindings::copyVariables ( const DtRwVariableBindings & other )

protectedvirtual

Copies all variable items from another bindings list and adds them to the local one.

Reimplemented in DtRwProperties, and DtRwPropertiesStructure.

virtual bool DtRwVariableBindings::keywordMatches	(	const DtSymbolString &	lhs,
		const DtString &	rhs,
		const std::map< DtString, DtString > &	variableSubstitutions
	)		const

protectedvirtual

Check to see if there are any variable substitutions such that a variable named something has a map to another name and can match the right hand side.

Member Data Documentation

std::map<DtString, DtString> DtRwVariableBindings::myVariableSubstitutions

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/readerWriter/rwVariableBindings.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
