Abstract interface for a spatial object manager.

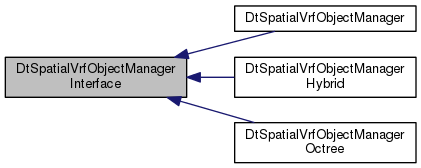

Inheritance diagram for DtSpatialVrfObjectManagerInterface:

Public Types
typedef std::vector< const DtSimObject * >	DtVrfObjectUniqueContainer

typedef std::vector< const DtSimObject * >	DtVrfConstObjectUniqueContainer

typedef std::vector< const DtSimObject * >	DtVrfObjectContainer

Public Member Functions
virtual	~DtSpatialVrfObjectManagerInterface ()

virtual void	addVrfObjects (const DtManagedObjectListConstPtr &vrfObjects)=0

virtual void	removeVrfObject (const DtSimObject *vrfObject)=0

virtual bool	setResolutions (unsigned int xRes, unsigned int yRes, unsigned int zRes)=0

virtual void	clearVrfObjects ()=0

virtual void	reset (const DtManagedObjectListConstPtr &vrfObjects)=0

virtual bool	getVrfObjects (const DtExtent &extent, DtVrfConstObjectUniqueContainer &objects) const =0

virtual bool	getVrfObjects (const DtVrfObjectPredicate &predicate, const DtExtent &extent, DtVrfConstObjectUniqueContainer &objects) const =0

virtual bool	getVrfObjects (const DtChord &chord, std::list< const DtSimObject * > &objects) const =0

virtual bool	getVrfObjects (const DtVrfObjectPredicate &predicate, const DtChord &chord, std::list< const DtSimObject * > &objects) const =0

virtual void	visitVrfObjects (const DtExtent &extent, DtSpatialSelectionFunctor &callback) const =0

virtual void	visitVrfObjects (const DtChord &chord, DtSpatialSelectionFunctor &callback) const =0

virtual unsigned int	numObjects () const =0

Constructor & Destructor Documentation

virtual DtSpatialVrfObjectManagerInterface::~DtSpatialVrfObjectManagerInterface ( )

inlinevirtual

Member Function Documentation

virtual void DtSpatialVrfObjectManagerInterface::addVrfObjects ( const DtManagedObjectListConstPtr & vrfObjects )

pure virtual

Spatially sorts the vrfObjects associated in the vrfObjects.

Implemented in DtSpatialVrfObjectManager, DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

virtual void DtSpatialVrfObjectManagerInterface::removeVrfObject ( const DtSimObject * vrfObject )

pure virtual

Removes vrfObject from the set of vrfObjects we are maintaining.

Parameters

vrfObject Pointer to the object to be removed.

Implemented in DtSpatialVrfObjectManager, DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

virtual bool DtSpatialVrfObjectManagerInterface::setResolutions	(	unsigned int	xRes,
		unsigned int	yRes,
		unsigned int	zRes
	)

pure virtual

Deprecated – doesn't apply to octree manager. Still necessary for DtSpatialVrfObjectManager. TODO need to push this all into the manager class, instead of having the DtPhysicalWorld assume that things are uniformly subdivided.

Implemented in DtSpatialVrfObjectManager, DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

virtual void DtSpatialVrfObjectManagerInterface::clearVrfObjects ( )

pure virtual

Clears all managed objects from the manager. Does not affect the spatial container, other than to empty its cells of any elements.

Implemented in DtSpatialVrfObjectManager, DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

virtual void DtSpatialVrfObjectManagerInterface::reset ( const DtManagedObjectListConstPtr & vrfObjects )

pure virtual

Clears out the current DtSimObjects, sets it to have the minimum extent, that contains all of the DtSimObjects specified, and adds the specified DtSimObjects.

Note: This is provided as a memory optimization. Deleting and reallocating the spatial subdivision every tick was inefficient. So the spatial container is just cleared and resized to adjust for entities moving, being created destroyed, etc. This has the benefit of not causing a large memory reallocation, but at the disadvantage of not allowing the spatial subdivision to change its resolution.

Implemented in DtSpatialVrfObjectManager, DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

virtual void DtSpatialVrfObjectManagerInterface::visitVrfObjects	(	const DtExtent &	extent,
		DtSpatialSelectionFunctor &	callback
	)		const

pure virtual

Functions that call the specified functor for every object intersecting the requested region (whether chord or extent). The functor should return false while additional processing should be done, and true if processing is complete and visitVrfObjects() should return. Note that processing is not guaranteed to stop immediately when the functor returns true; it is only a recommendation that processing can stop at any time.

Note: The functor may, and probably will, be called for additional DtSimObjects when a primitive is supplied. We are only guaranteed not to miss any that do intersect.

Implemented in DtSpatialVrfObjectManager, DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

virtual void DtSpatialVrfObjectManagerInterface::visitVrfObjects	(	const DtChord &	chord,
		DtSpatialSelectionFunctor &	callback
	)		const

pure virtual

Implemented in DtSpatialVrfObjectManager, DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

virtual unsigned int DtSpatialVrfObjectManagerInterface::numObjects ( ) const

pure virtual

Number of objects in the octree.

Implemented in DtSpatialVrfObjectManagerHybrid, and DtSpatialVrfObjectManagerOctree.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/spatialVrfObjectManager.h
