makVrf::DtAutoHideDock Class Reference

Represents a new kind of dock widget: it has a "pin" button that allows the widget to pin/unpin from an autoHidePanel widget (if added to it) and a "close" button. It also adds an entry inside the "View" menu to show/hide the dock (if it is a palette type)

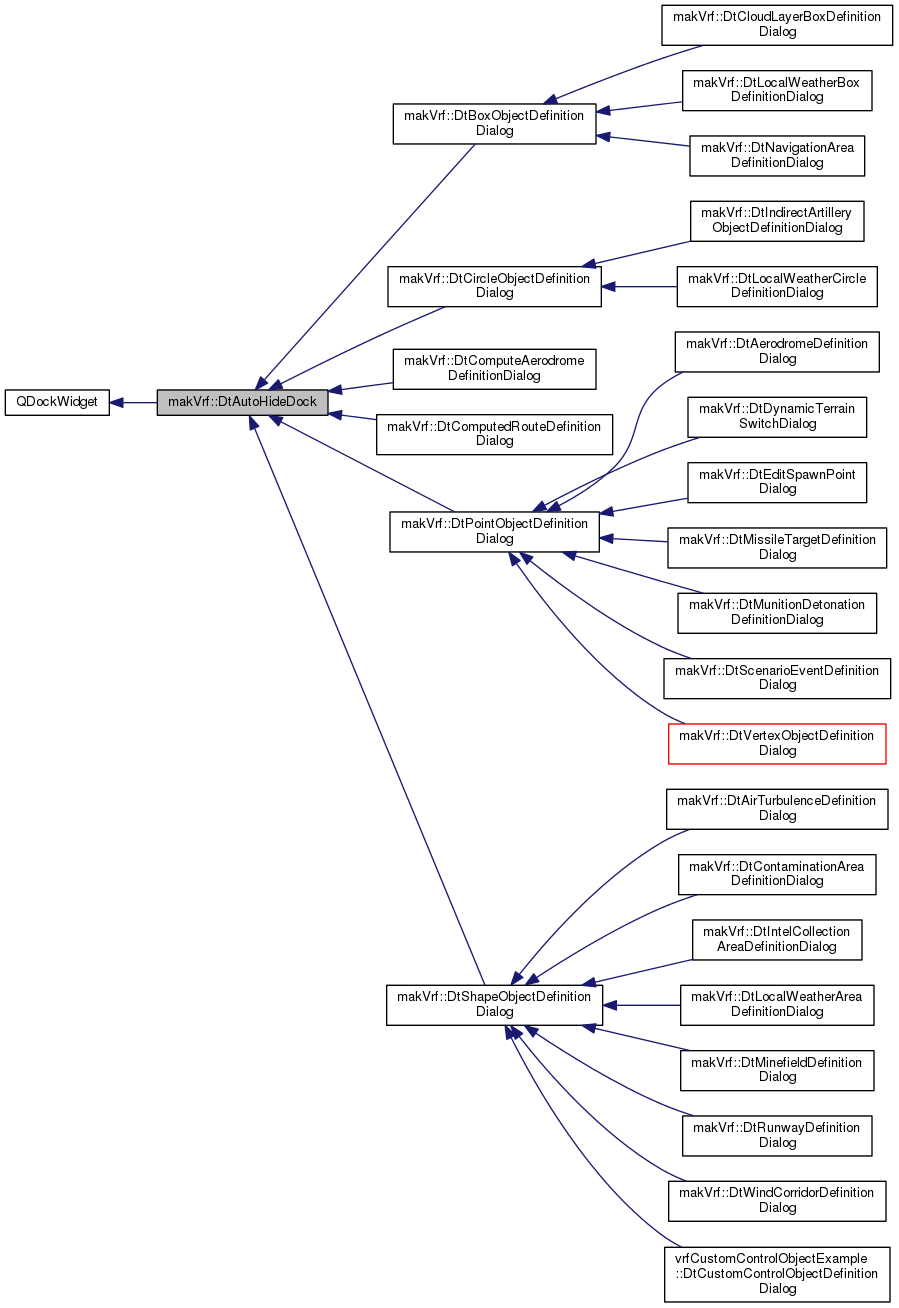

Inheritance diagram for makVrf::DtAutoHideDock:

Public Types
enum	DtAutoHideDockType { Palette = 0, Dialog }

Signals
void	signal_closing (DtAutoHideDock *dock)
void	signal_pinPressed (DtAutoHideDock *dock)
void	signal_topLevelChanged (DtAutoHideDock *dock)
void	signal_resized (DtAutoHideDock *dock)
void	signal_destroyed (DtAutoHideDock *dock)
void	signal_enter (DtAutoHideDock *dock)
void	signal_leave (DtAutoHideDock *dock)

Public Member Functions
	DtAutoHideDock (makVrv::DtDe &de, const QString &title="", const std::string &className="", QWidget *parent=0, Qt::WindowFlags flags=0)
	~DtAutoHideDock ()
virtual const makVrv::DtQIconConfigurations &	icon ()
virtual void	setIcon (const makVrv::DtQIconConfigurations &icon)
virtual DtAutoHideDockType	dockType () const
virtual void	setDockType (DtAutoHideDockType t)
virtual bool	pinned () const
virtual void	setPinned (bool flag)
virtual void	setupGui ()
virtual void	setTitle (const QString &title)
virtual void	setAdjustToMinimumSize (bool)
virtual bool	adjustToMinimumSize () const
const std::string &	className () const
virtual bool	keepAlive () const

Protected Slots
virtual void	slot_closePressed ()
virtual void	slot_pinPressed (bool flag)
virtual void	slot_topLevelChanged (bool)

Protected Member Functions
virtual bool	eventFilter (QObject *p, QEvent *e)
virtual void	enterEvent (QEvent *event)
virtual void	leaveEvent (QEvent *event)
virtual void	closeEvent (QCloseEvent *event)
virtual void	paintEvent (QPaintEvent *p)
virtual void	resizeEvent (QResizeEvent *event)

Protected Attributes
makVrv::DtDe &	myDe
DtExtendedTitleBarWidget *	myTitleBarWidget
makVrv::DtQIconConfigurations	myIcon
DtAutoHideDockType	myDockType
bool	myAdjustToMinimumSize
std::string	myClassName
QColor	myTitleFillColorStop0
QColor	myTitleFillColorStop1
QColor	myOutlineInnerColor
QColor	myOutlineOuterColor

Properties
QColor	TitleFillColorStop0
QColor	TitleFillColorStop1
QColor	OutlineInnerColor
QColor	OutlineOuterColor

Member Enumeration Documentation

enum makVrf::DtAutoHideDock::DtAutoHideDockType

Enumerator
Palette
Dialog

Constructor & Destructor Documentation

makVrf::DtAutoHideDock::DtAutoHideDock	(	makVrv::DtDe &	de,
		const QString &	title = "",
		const std::string &	className = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

Ctor.

makVrf::DtAutoHideDock::~DtAutoHideDock

(

)

Dtor.

Member Function Documentation

virtual const makVrv::DtQIconConfigurations& makVrf::DtAutoHideDock::icon ( )

virtual

Set/Get the icon.

virtual void makVrf::DtAutoHideDock::setIcon ( const makVrv::DtQIconConfigurations &  icon )

virtual

virtual DtAutoHideDockType makVrf::DtAutoHideDock::dockType ( ) const

virtual

Set/Get the type of dock this item represents.

virtual void makVrf::DtAutoHideDock::setDockType ( DtAutoHideDockType  t )

virtual

virtual bool makVrf::DtAutoHideDock::pinned ( ) const

virtual

Set/Get the pin status.

virtual void makVrf::DtAutoHideDock::setPinned ( bool  flag )

virtual

virtual void makVrf::DtAutoHideDock::setupGui ( )

virtual

Initializes the visuals of this object.

Reimplemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtComputedRouteDefinitionDialog, makVrf::DtComputeAerodromeDefinitionDialog, makVrf::DtNavigationAreaDefinitionDialog, makVrf::DtLocalWeatherAreaDefinitionDialog, makVrf::DtLocalWeatherBoxDefinitionDialog, makVrf::DtLocalWeatherCircleDefinitionDialog, vrfCustomControlObjectExample::DtCustomControlObjectDefinitionDialog, makVrf::DtScenarioEventDefinitionDialog, makVrf::DtCloudLayerBoxDefinitionDialog, makVrf::DtWindCorridorDefinitionDialog, makVrf::DtIntelCollectionAreaDefinitionDialog, makVrf::DtMinefieldDefinitionDialog, makVrf::DtAirTurbulenceDefinitionDialog, makVrf::DtContaminationAreaDefinitionDialog, makVrf::DtMissileTargetDefinitionDialog, makVrf::DtRunwayDefinitionDialog, makVrf::DtAerodromeDefinitionDialog, makVrf::DtMunitionDetonationDefinitionDialog, makVrf::DtIndirectArtilleryObjectDefinitionDialog, and makVrf::DtDynamicTerrainSwitchDialog.

virtual void makVrf::DtAutoHideDock::setTitle ( const QString &  title )

virtual

Reimplemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtPointObjectDefinitionDialog.

virtual void makVrf::DtAutoHideDock::setAdjustToMinimumSize ( bool  )

virtual

Whether or not to adjust the size of the doc (on open) to minimum size. Default is true.

virtual bool makVrf::DtAutoHideDock::adjustToMinimumSize ( ) const

virtual

const std::string& makVrf::DtAutoHideDock::className ( ) const

inline

virtual bool makVrf::DtAutoHideDock::keepAlive ( ) const

virtual

Return true to keep this dock on display even after the mouse have left the dock widget. Use this carefully as the user will have to re-enter and leave (or close the dock widget) if this returns true. Default is false.

virtual bool makVrf::DtAutoHideDock::eventFilter ( QObject *  p, QEvent *  e  )

protectedvirtual

Event filter installed to listen for mouse events from the titleBarWidget.

virtual void makVrf::DtAutoHideDock::enterEvent ( QEvent *  event )

protectedvirtual

Automatic event that gets triggered when the mouse enters the widget.

virtual void makVrf::DtAutoHideDock::leaveEvent ( QEvent *  event )

protectedvirtual

Automatic event that gets triggered when the mouse leaves the widget.

virtual void makVrf::DtAutoHideDock::closeEvent ( QCloseEvent *  event )

protectedvirtual

This event gets automatically called when the widget is about to be closed.

Reimplemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtComputedRouteDefinitionDialog, and makVrf::DtComputeAerodromeDefinitionDialog.

virtual void makVrf::DtAutoHideDock::paintEvent ( QPaintEvent *  p )

protectedvirtual

This event gets automatically called when the widget is about to be painted on screen.

virtual void makVrf::DtAutoHideDock::resizeEvent ( QResizeEvent *  event )

protectedvirtual

void makVrf::DtAutoHideDock::signal_closing ( DtAutoHideDock *  dock )

signal

This signal gets emitted when the widget is closing. It passes itself as argument.

void makVrf::DtAutoHideDock::signal_pinPressed ( DtAutoHideDock *  dock )

signal

This signal gets emitted when the pin button is pressed on this widget. It passes itself as argument.

void makVrf::DtAutoHideDock::signal_topLevelChanged ( DtAutoHideDock *  dock )

signal

This signal gets emitted when this widget changes its status from docked to floating and vice versa. It passes itself as argument.

void makVrf::DtAutoHideDock::signal_resized ( DtAutoHideDock *  dock )

signal

This signal gets emitted when this widget is resized.

void makVrf::DtAutoHideDock::signal_destroyed ( DtAutoHideDock *  dock )

signal

This signal gets emitted when this widget is about to be destroyed.

void makVrf::DtAutoHideDock::signal_enter ( DtAutoHideDock *  dock )

signal

This signal gets emitted when the mouse enters on this widget.

void makVrf::DtAutoHideDock::signal_leave ( DtAutoHideDock *  dock )

signal

This signal gets emitted when the mouse leaves this widget.

virtual void makVrf::DtAutoHideDock::slot_closePressed ( )

protectedvirtualslot

Gets called when the close button is pressed on the titleBarWidget.

virtual void makVrf::DtAutoHideDock::slot_pinPressed ( bool  flag )

protectedvirtualslot

Gets called when the pin is pressed on the titleBarWidget.

virtual void makVrf::DtAutoHideDock::slot_topLevelChanged ( bool  )

protectedvirtualslot

Gets called when the widget changes its floating status.

Member Data Documentation

makVrv::DtDe& makVrf::DtAutoHideDock::myDe

protected

DtExtendedTitleBarWidget* makVrf::DtAutoHideDock::myTitleBarWidget

protected

makVrv::DtQIconConfigurations makVrf::DtAutoHideDock::myIcon

protected

DtAutoHideDockType makVrf::DtAutoHideDock::myDockType

protected

bool makVrf::DtAutoHideDock::myAdjustToMinimumSize

protected

std::string makVrf::DtAutoHideDock::myClassName

protected

QColor makVrf::DtAutoHideDock::myTitleFillColorStop0

protected

QColor makVrf::DtAutoHideDock::myTitleFillColorStop1

protected

QColor makVrf::DtAutoHideDock::myOutlineInnerColor

protected

QColor makVrf::DtAutoHideDock::myOutlineOuterColor

protected

Property Documentation

QColor makVrf::DtAutoHideDock::TitleFillColorStop0

QColor makVrf::DtAutoHideDock::TitleFillColorStop1

QColor makVrf::DtAutoHideDock::OutlineInnerColor

QColor makVrf::DtAutoHideDock::OutlineOuterColor

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfGuiCommonQt/autoHideDock.h
