makVrv::DtArticulatedModelParser Class Reference

Default implementation of the model parser for Articulated models.

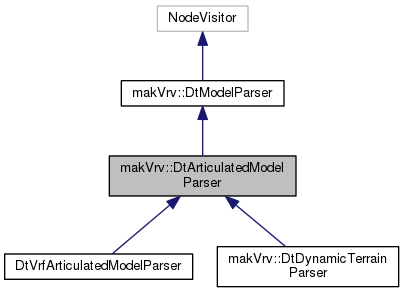

Inheritance diagram for makVrv::DtArticulatedModelParser:

Classes
struct	ScrollableTextureGroupAndParams
struct	SequenceAndParams

Public Types
Output structures
enum	TrackSide { TS_LEFT = 0, TS_RIGHT, TS_UKNOWN }
typedef std::vector < osg::ref_ptr < osgSim::DOFTransform > >	PartTransformList
typedef std::unordered_map < int, PartTransformList >	PartMap
typedef std::vector < osg::ref_ptr < osgSim::MultiSwitch > >	MultiSwitchList
typedef std::unordered_map < int, MultiSwitchList >	MapStateNumberToMultiSwitchList
typedef std::vector < osg::ref_ptr< osg::Sequence > >	AnimationList
typedef std::unordered_map < std::string, AnimationList >	AnimationMap
typedef std::map< int, int >	MapStateNumberToStateValue
typedef std::vector< bool >	StateExistenceList
typedef std::unordered_map < int, StateExistenceList >	MapStateNumberToStateExistenceList
typedef std::vector < osg::ref_ptr< osg::Group > >	GroupList
typedef std::unordered_map < std::string, GroupList >	AnnotationMap
typedef std::vector< bool >	ValueList
typedef std::vector< ValueList >	SwitchSetList
typedef std::map < osgSim::MultiSwitch *, SwitchSetList >	MapMultiSwitchToSwitchSetList
typedef std::vector < SequenceAndParams >	VectorSequenceAndMultipliers
typedef std::unordered_map < std::string, VectorSequenceAndMultipliers >	FlipBookAnimationMap
typedef std::vector < ScrollableTextureGroupAndParams >	VectorScrollableTextureGroupAndParams
typedef std::map< std::string, VectorScrollableTextureGroupAndParams >	ScrollableTextureGroupMap

Public Member Functions
	DtArticulatedModelParser (DtDe &de, DtModelSemanticsMapper &modelSematicsMapper)
virtual	~DtArticulatedModelParser ()
virtual void	apply (osg::Group &group)
virtual void	apply (osg::Sequence &sequence)
virtual void	apply (osgSim::MultiSwitch &multiswitch)
virtual void	apply (osgSim::DOFTransform &transform)
virtual void	apply (osg::Transform &transform)
Public Member Functions inherited from makVrv::DtModelParser
	DtModelParser ()
virtual	~DtModelParser ()

Static Public Member Functions
static std::string	parserFormat ()

Public Attributes
PartMap	myPartMap
AnimationMap	myAnimationMap
FlipBookAnimationMap	myFlipBookAnimationMap
FlipBookAnimationMap	myFlipBookAnimationMapWithVelocityControl
AnnotationMap	myAnnotationMap
ScrollableTextureGroupMap	myScrollableTextureGroupMap
MapStateNumberToStateExistenceList	myMapStateNumberToStateExistenceList
MapStateNumberToStateValue	myMapStateNumberToStateValue
MapStateNumberToMultiSwitchList	myMapStateNumberToMultiSwitchList
MapMultiSwitchToSwitchSetList	myDefaultActiveSwitchState
DtModelSemanticsMapper &	myModelSematicsMapper

Protected Member Functions
virtual bool	parseSwitchDeclaration (const std::string &desc, osgSim::MultiSwitch &multiswitch)
virtual bool	parseDefaultMultiSwitchValues (osgSim::MultiSwitch &multiswitch)
const DtModelSemanticsMapper::States::Id *	createCustomStateId (const std::string &stateName)
virtual bool	parseStateDeclaration (const std::string &desc, osg::Group &group)
virtual bool	parseAnnotationDeclaration (const std::string &desc, osg::Group &group)
virtual bool	parseScrollableTextureDeclaration (const std::string &desc, osg::Group &group)
virtual bool	parsePartDeclaration (const std::string &desc, osgSim::DOFTransform &transform)
virtual bool	parseAnimationDeclaration (const std::string &desc, osg::Sequence &sequence)
virtual bool	parseFlipBookAnimationDeclaration (const std::string &desc, osg::Sequence &sequence)
std::vector< int >	parseValueList (const std::string &valueList)
void	pushStateId (int idNumber, osgSim::MultiSwitch *lastStateId)
void	popStateId ()
osgSim::MultiSwitch *	lastStateId () const
int	lastStateIdNumber () const
get/set parsed data interface
void	getParts (DtArticulatedModel::PartList &parts) const
const PartMap &	parts () const
const MapStateNumberToMultiSwitchList &	states () const
const AnimationMap &	animations () const
const FlipBookAnimationMap &	flipBookAnimations (void) const
const FlipBookAnimationMap &	flipBookAnimationsWithVelocityControl (void) const
void	addPart (int partNumber, osgSim::DOFTransform *node)
void	addState (int stateNumber, osgSim::MultiSwitch *node)
void	addAnimation (const std::string &animationName, osg::Sequence *node)
void	setStateValueExists (int stateNumber, int stateValue)
void	addAnnotationGroup (const std::string &annotation, osg::Group *group)
void	addScrollableTextureGroup (osg::Group *group)
void	setDepthMask (osg::Group &parent)

Protected Attributes
const std::string	mySwitchTag
const std::string	myStateTag
const std::string	myPartTag
const std::string	myAnimationTag
const std::string	mySkipTag
const std::string	myNoSkipTag
const std::string	myAnnotationTag
const std::string	myLoopCountTag
const std::string	myScrollableTextureTag
const std::string	myLastFrameTimeTag
const std::string	myFlipBookAnimationTag
const std::string	myLoopDurationMultiplierTag
std::stack< osg::ref_ptr < osgSim::MultiSwitch > >	myStateIds
std::stack< int >	myStateIdNumbers
DtDe &	myDe

Member Typedef Documentation

typedef std::vector<osg::ref_ptr<osgSim::DOFTransform> > makVrv::DtArticulatedModelParser::PartTransformList

typedef std::unordered_map<int, PartTransformList > makVrv::DtArticulatedModelParser::PartMap

typedef std::vector< osg::ref_ptr<osgSim::MultiSwitch> > makVrv::DtArticulatedModelParser::MultiSwitchList

typedef std::unordered_map<int, MultiSwitchList > makVrv::DtArticulatedModelParser::MapStateNumberToMultiSwitchList

typedef std::vector< osg::ref_ptr<osg::Sequence> > makVrv::DtArticulatedModelParser::AnimationList

typedef std::unordered_map<std::string, AnimationList > makVrv::DtArticulatedModelParser::AnimationMap

typedef std::map<int, int > makVrv::DtArticulatedModelParser::MapStateNumberToStateValue

typedef std::vector<bool> makVrv::DtArticulatedModelParser::StateExistenceList

typedef std::unordered_map<int, StateExistenceList> makVrv::DtArticulatedModelParser::MapStateNumberToStateExistenceList

typedef std::vector< osg::ref_ptr<osg::Group> > makVrv::DtArticulatedModelParser::GroupList

typedef std::unordered_map<std::string, GroupList > makVrv::DtArticulatedModelParser::AnnotationMap

typedef std::vector<bool> makVrv::DtArticulatedModelParser::ValueList

typedef std::vector<ValueList> makVrv::DtArticulatedModelParser::SwitchSetList

typedef std::map<osgSim::MultiSwitch*, SwitchSetList> makVrv::DtArticulatedModelParser::MapMultiSwitchToSwitchSetList

typedef std::vector< SequenceAndParams> makVrv::DtArticulatedModelParser::VectorSequenceAndMultipliers

typedef std::unordered_map<std::string, VectorSequenceAndMultipliers> makVrv::DtArticulatedModelParser::FlipBookAnimationMap

typedef std::vector< ScrollableTextureGroupAndParams> makVrv::DtArticulatedModelParser::VectorScrollableTextureGroupAndParams

typedef std::map<std::string, VectorScrollableTextureGroupAndParams> makVrv::DtArticulatedModelParser::ScrollableTextureGroupMap

Member Enumeration Documentation

enum makVrv::DtArticulatedModelParser::TrackSide

Enumerator
TS_LEFT
TS_RIGHT
TS_UKNOWN

Constructor & Destructor Documentation

makVrv::DtArticulatedModelParser::DtArticulatedModelParser	(	DtDe &	de,
		DtModelSemanticsMapper &	modelSematicsMapper
	)

CTOR.

virtual makVrv::DtArticulatedModelParser::~DtArticulatedModelParser ( )

virtual

DTOR.

Member Function Documentation

static std::string makVrv::DtArticulatedModelParser::parserFormat ( )

static

Get the string to indicate the parser format this parser supports.

virtual void makVrv::DtArticulatedModelParser::apply ( osg::Group &  group )

virtual

Apply functions used for iterating through a model using the as a node visitor.

Reimplemented in makVrv::DtDynamicTerrainParser.

virtual void makVrv::DtArticulatedModelParser::apply ( osg::Sequence &  sequence )

virtual

Apply functions used for iterating through a model using the as a node visitor.

Reimplemented in makVrv::DtDynamicTerrainParser.

virtual void makVrv::DtArticulatedModelParser::apply ( osgSim::MultiSwitch &  multiswitch )

virtual

Apply functions used for iterating through a model using the as a node visitor.

Reimplemented in makVrv::DtDynamicTerrainParser.

virtual void makVrv::DtArticulatedModelParser::apply ( osgSim::DOFTransform &  transform )

virtual

Apply functions used for iterating through a model using the as a node visitor.

virtual void makVrv::DtArticulatedModelParser::apply ( osg::Transform &  transform )

virtual

Apply functions used for iterating through a model using the as a node visitor.

virtual bool makVrv::DtArticulatedModelParser::parseSwitchDeclaration ( const std::string &  desc, osgSim::MultiSwitch &  multiswitch  )

protectedvirtual

Parse a switch declaration and add a state to the model if it is able to parse the description.

Return values

true	if a state was added.
false	if a state was not added.

virtual bool makVrv::DtArticulatedModelParser::parseDefaultMultiSwitchValues ( osgSim::MultiSwitch &  multiswitch )

protectedvirtual

Parse a switch to save the default values to be re-used when use by a simple model (props)

const DtModelSemanticsMapper::States::Id* makVrv::DtArticulatedModelParser::createCustomStateId ( const std::string &  stateName )

protected

Creates a custom state id if possible.

Returns

NULL if a state was not added.

virtual bool makVrv::DtArticulatedModelParser::parseStateDeclaration ( const std::string &  desc, osg::Group &  group  )

protectedvirtual

Parse a state node. A state is added if a declaration was parsed.

Return values

true	if a state was added.
false	if a state was not added.

virtual bool makVrv::DtArticulatedModelParser::parseAnnotationDeclaration ( const std::string &  desc, osg::Group &  group  )

protectedvirtual

Parse a annotation node. An annotation is added if a declaration was parsed.

Return values

true	if a state was added.
false	if a state was not added.

virtual bool makVrv::DtArticulatedModelParser::parseScrollableTextureDeclaration ( const std::string &  desc, osg::Group &  group  )

protectedvirtual

Parse a group node with scrollable texture.

Return values

true	if a group was added.
false	if a group was not added.

virtual bool makVrv::DtArticulatedModelParser::parsePartDeclaration ( const std::string &  desc, osgSim::DOFTransform &  transform  )

protectedvirtual

Parse a part declaration and add a part if the parse was successful.

Return values

true	if a part was added.
false	if a part was not added.

Reimplemented in DtVrfArticulatedModelParser.

virtual bool makVrv::DtArticulatedModelParser::parseAnimationDeclaration ( const std::string &  desc, osg::Sequence &  sequence  )

protectedvirtual

Parse an animation declaration and add an animation if the part was successful.

Return values

true	if an animation was added.
false	if an animation was not added.

virtual bool makVrv::DtArticulatedModelParser::parseFlipBookAnimationDeclaration ( const std::string &  desc, osg::Sequence &  sequence  )

protectedvirtual

Parse flip book animation types.

std::vector<int> makVrv::DtArticulatedModelParser::parseValueList ( const std::string &  valueList )

protected

Parse a value list string into a list of integers.

void makVrv::DtArticulatedModelParser::pushStateId ( int  idNumber, osgSim::MultiSwitch *  lastStateId  )

protected

Push a state id onto a local stack. This allows for tracking which the current state is when adding children.

void makVrv::DtArticulatedModelParser::popStateId ( )

protected

Pop a state id onto a local stack. This removes a state id after a node's children have been traversed.

osgSim::MultiSwitch* makVrv::DtArticulatedModelParser::lastStateId ( ) const

protected

Return values

0	(invalidId) if there are no ids.

int makVrv::DtArticulatedModelParser::lastStateIdNumber ( ) const

protected

Return values

0	(invalidId) if there are no ids.

void makVrv::DtArticulatedModelParser::getParts ( DtArticulatedModel::PartList &  parts ) const

protected

const PartMap& makVrv::DtArticulatedModelParser::parts ( ) const

protected

const MapStateNumberToMultiSwitchList& makVrv::DtArticulatedModelParser::states ( ) const

protected

const AnimationMap& makVrv::DtArticulatedModelParser::animations ( ) const

protected

const FlipBookAnimationMap& makVrv::DtArticulatedModelParser::flipBookAnimations ( void  ) const

protected

const FlipBookAnimationMap& makVrv::DtArticulatedModelParser::flipBookAnimationsWithVelocityControl ( void  ) const

protected

void makVrv::DtArticulatedModelParser::addPart ( int  partNumber, osgSim::DOFTransform *  node  )

protected

void makVrv::DtArticulatedModelParser::addState ( int  stateNumber, osgSim::MultiSwitch *  node  )

protected

void makVrv::DtArticulatedModelParser::addAnimation ( const std::string &  animationName, osg::Sequence *  node  )

protected

void makVrv::DtArticulatedModelParser::setStateValueExists ( int  stateNumber, int  stateValue  )

protected

void makVrv::DtArticulatedModelParser::addAnnotationGroup ( const std::string &  annotation, osg::Group *  group  )

protected

void makVrv::DtArticulatedModelParser::addScrollableTextureGroup ( osg::Group *  group )

protected

void makVrv::DtArticulatedModelParser::setDepthMask ( osg::Group &  parent )

protected

Member Data Documentation

const std::string makVrv::DtArticulatedModelParser::mySwitchTag

protected

const std::string makVrv::DtArticulatedModelParser::myStateTag

protected

const std::string makVrv::DtArticulatedModelParser::myPartTag

protected

const std::string makVrv::DtArticulatedModelParser::myAnimationTag

protected

const std::string makVrv::DtArticulatedModelParser::mySkipTag

protected

const std::string makVrv::DtArticulatedModelParser::myNoSkipTag

protected

const std::string makVrv::DtArticulatedModelParser::myAnnotationTag

protected

const std::string makVrv::DtArticulatedModelParser::myLoopCountTag

protected

const std::string makVrv::DtArticulatedModelParser::myScrollableTextureTag

protected

const std::string makVrv::DtArticulatedModelParser::myLastFrameTimeTag

protected

const std::string makVrv::DtArticulatedModelParser::myFlipBookAnimationTag

protected

const std::string makVrv::DtArticulatedModelParser::myLoopDurationMultiplierTag

protected

std::stack<osg::ref_ptr<osgSim::MultiSwitch> > makVrv::DtArticulatedModelParser::myStateIds

protected

std::stack<int> makVrv::DtArticulatedModelParser::myStateIdNumbers

protected

DtDe& makVrv::DtArticulatedModelParser::myDe

protected

PartMap makVrv::DtArticulatedModelParser::myPartMap

AnimationMap makVrv::DtArticulatedModelParser::myAnimationMap

FlipBookAnimationMap makVrv::DtArticulatedModelParser::myFlipBookAnimationMap

FlipBookAnimationMap makVrv::DtArticulatedModelParser::myFlipBookAnimationMapWithVelocityControl

AnnotationMap makVrv::DtArticulatedModelParser::myAnnotationMap

ScrollableTextureGroupMap makVrv::DtArticulatedModelParser::myScrollableTextureGroupMap

MapStateNumberToStateExistenceList makVrv::DtArticulatedModelParser::myMapStateNumberToStateExistenceList

MapStateNumberToStateValue makVrv::DtArticulatedModelParser::myMapStateNumberToStateValue

MapStateNumberToMultiSwitchList makVrv::DtArticulatedModelParser::myMapStateNumberToMultiSwitchList

MapMultiSwitchToSwitchSetList makVrv::DtArticulatedModelParser::myDefaultActiveSwitchState

DtModelSemanticsMapper& makVrv::DtArticulatedModelParser::myModelSematicsMapper

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvOsg/DtArticulatedModelParser.h
